场效应晶体管（FET）、MOSFET 阵列
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 配置 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | FET 特性 | 输入电容 (Ciss)（最大值）@ Vds | 功率 - 最大值 | 供应商设备封装 | 工作温度 | 安装类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP8M8TBMOSFET N/P-CH 30V 6A/4.5A 8SOP |
6,322 | - |
|
数据表 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | 30V | 6A, 4.5A | 30mOhm @ 6A, 10V | 2.5V @ 1mA | 7.2nC @ 5V | Logic Level Gate | 520pF @ 10V | 2W | 8-SOP | 150°C (TJ) | Surface Mount | - | - |
|
BSO200N03MOSFET 2N-CH 30V 6.6A 8DSO |
6,276 | - |
|
数据表 |
OptiMOS™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 30V | 6.6A | 20mOhm @ 7.9A, 10V | 2V @ 13µA | 8nC @ 5V | Logic Level Gate | 1010pF @ 15V | 1.4W | PG-DSO-8 | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
BSO615CGXUMA1MOSFET N/P-CH 60V 3.1A 8DSO |
2,417 | - |
|
数据表 |
SIPMOS® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | 60V | 3.1A (Ta), 2A (Ta) | 110mOhm @ 3.1A, 10V, 300mOhm @ 2A, 10V | 2V @ 20µA, 2V @ 450µA | 22.5nC @ 10V, 20nC @ 10V | Logic Level Gate | 380pF @ 25V, 460pF @ 25V | 2W (Ta) | PG-DSO-8 | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
SI7540DP-T1-E3MOSFET N/P-CH 12V 7.6A PPAK SO8 |
7,256 | - |
|
数据表 |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | 12V | 7.6A, 5.7A | 17mOhm @ 11.8A, 4.5V | 1.5V @ 250µA | 17nC @ 4.5V | Logic Level Gate | - | 1.4W | PowerPAK® SO-8 Dual | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
|
SI7540DP-T1-GE3MOSFET N/P-CH 12V 7.6A PPAK SO8 |
3,030 | - |
|
数据表 |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | 12V | 7.6A, 5.7A | 17mOhm @ 11.8A, 4.5V | 1.5V @ 250µA | 17nC @ 4.5V | Logic Level Gate | - | 1.4W | PowerPAK® SO-8 Dual | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
IRFHM8363TR2PBFMOSFET 2N-CH 30V 11A 8PQFN |
7,384 | - |
|
数据表 |
- | 8-PowerVDFN | Cut Tape (CT) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 30V | 11A | 14.9mOhm @ 10A, 10V | 2.35V @ 25µA | 15nC @ 10V | Logic Level Gate | 1165pF @ 10V | 2.7W | 8-PQFN-Dual (3.3x3.3) | - | Surface Mount | - | - |
|
IRF7750TRMOSFET 2P-CH 20V 4.7A 8TSSOP |
9,827 | - |
|
数据表 |
HEXFET® | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | 20V | 4.7A | 30mOhm @ 4.7A, 4.5V | 1.2V @ 250µA | 39nC @ 5V | Logic Level Gate | 1700pF @ 15V | 1W | 8-TSSOP | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
|
IRF7904TRPBFMOSFET 2N-CH 30V 7.6A/11A 8SO |
8,987 | - |
|
数据表 |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | 30V | 7.6A, 11A | 16.2mOhm @ 7.6A, 10V | 2.25V @ 25µA | 11nC @ 4.5V | Logic Level Gate | 910pF @ 15V | 1.4W, 2W | 8-SO | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
SIZ920DT-T1-GE3MOSFET 2N-CH 30V 40A 8POWERPAIR |
5,455 | - |
|
数据表 |
TrenchFET® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | 30V | 40A | 7.1mOhm @ 18.9A, 10V | 2.5V @ 250µA | 35nC @ 10V | - | 1260pF @ 15V | 39W, 100W | 8-PowerPair® (6x5) | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
TSM9926DCS RLGMOSFET 2N-CH 20V 6A 8SOP |
6,312 | - |
|
数据表 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 20V | 6A (Tc) | 30mOhm @ 6A, 10V | 600mV @ 250µA | 7.1nC @ 4.5V | - | 562pF @ 8V | 1.6W | 8-SOP | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
SI6963BDQ-T1-E3MOSFET 2P-CH 20V 3.4A 8TSSOP |
5,196 | - |
|
数据表 |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | 20V | 3.4A | 45mOhm @ 3.9A, 4.5V | 1.4V @ 250µA | 11nC @ 4.5V | Logic Level Gate | - | 830mW | 8-TSSOP | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
|
SI7530DP-T1-E3MOSFET N/P-CH 60V 3A PPAK SO8 |
5,046 | - |
|
数据表 |
- | PowerPAK® SO-8 Dual | Cut Tape (CT) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | 60V | 3A, 3.2A | 75mOhm @ 4.6A, 10V | 3V @ 250µA | 20nC @ 10V | Logic Level Gate | - | 1.4W, 1.5W | PowerPAK® SO-8 Dual | - | Surface Mount | - | - |
|
SI7222DN-T1-GE3MOSFET 2N-CH 40V 6A PPAK 1212 |
7,640 | - |
|
数据表 |
TrenchFET® | PowerPAK® 1212-8 Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 40V | 6A | 42mOhm @ 5.7A, 10V | 1.6V @ 250µA | 29nC @ 10V | - | 700pF @ 20V | 17.8W | PowerPAK® 1212-8 Dual | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
PJQ5848-AU_R2_000A1MOSFET 2N-CH 40V 8.6A 8DFN |
5,064 | - |
|
数据表 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 40V | 8.6A (Ta), 30A (Tc) | 12mOhm @ 12A, 10V | 2.5V @ 250µA | 10nC @ 4.5V | - | 1040pF @ 20V | 2W (Ta), 23.8W (Tc) | DFN5060B-8 | -55°C ~ 175°C (TJ) | Surface Mount | Automotive | AEC-Q101 |
|
NDS9953AMOSFET 2P-CH 30V 2.9A 8SOIC |
8,401 | - |
|
数据表 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | 30V | 2.9A | 130mOhm @ 1A, 10V | 2.8V @ 250µA | 25nC @ 10V | Logic Level Gate | 350pF @ 10V | 900mW | 8-SOIC | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
|
SI4966DY-T1-E3MOSFET 2N-CH 20V 8SOIC |
8,813 | - |
|
数据表 |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 20V | - | 25mOhm @ 7.1A, 4.5V | 1.5V @ 250µA | 50nC @ 4.5V | Logic Level Gate | - | 2W | 8-SOIC | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|

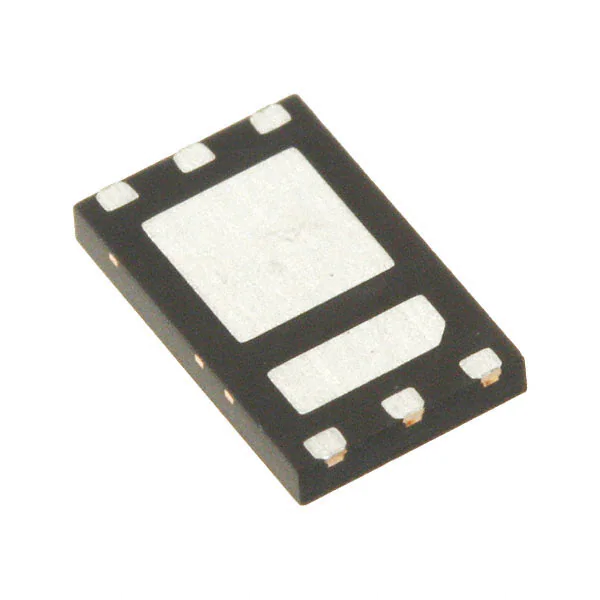

SIZ904DT-T1-GE3MOSFET 2N-CH 30V 12A 6POWERPAIR |
8,861 | - |
|
数据表 |
TrenchFET® | 6-PowerPair™ | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | 30V | 12A, 16A | 24mOhm @ 7.8A, 10V | 2.5V @ 250µA | 12nC @ 10V | Logic Level Gate | 435pF @ 15V | 20W, 33W | 6-PowerPair™ | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
|
|
SP8K33FRATBMOSFET 2N-CH 60V 5A 8SOP |
7,868 | - |
|
数据表 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 60V | 5A (Ta) | 48mOhm @ 5A, 10V | 2.5V @ 1mA | 12nC @ 5V | - | 620pF @ 10V | 2W | 8-SOP | 150°C | Surface Mount | Automotive | AEC-Q101 |
|
|
SP8M10TBMOSFET N/P-CH 30V 7A/4.5A 8SOP |
2,756 | - |
|
数据表 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | 30V | 7A, 4.5A | 25mOhm @ 7A, 10V | 2.5V @ 1mA | 8.4nC @ 5V | Logic Level Gate | 600pF @ 10V | 2W | 8-SOP | 150°C (TJ) | Surface Mount | - | - |
|
|
SI4670DY-T1-E3MOSFET 2N-CH 25V 8A 8SOIC |
4,179 | - |
|
数据表 |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | 25V | 8A | 23mOhm @ 7A, 10V | 2.2V @ 250µA | 18nC @ 10V | Logic Level Gate | 680pF @ 13V | 2.8W | 8-SOIC | -55°C ~ 150°C (TJ) | Surface Mount | - | - |
