铁氧体磁芯

制造商	系列	包装	产品状态	核心类型	供应商设备封装	直径	电感因子 (Al)	容差	高度	气隙	有效磁导率 (µe)	材质	初始磁导率 (µi)	磁芯因子 (ΣI/A) mm⁻¹	表面处理	有效长度 (le) mm	长度	有效磁体积 (Ve) mm³	有效面积 (Ae) mm²	最小磁芯横截面积 (Amin) mm²	宽度
Chemi-Con Cosmo Ferrites Ltd. Enerdoor EPCOS - TDK Electronics Fair-Rite Products Corp. Ferrite International FERROXCUBE Laird-Signal Integrity Products Maanshan New Conda Magnetic Industrial Co.,Ltd. Magnetics, a division of Spang & Co. Omron Automation and Safety TDK Corporation Toshiba Semiconductor and Storage VACUUMSCHMELZE GmbH & Co. KG.	* - AB B62152 B64290 B65495 B65514 B65526 B65531 B65541 B65611 B65646 B65651 B65652 B65671 B65701 B65738 B65754 B65755 B65756 B65803 B65805 B65807 B65844 B65855A B65857A B65862 B65981 B66229 B66283 B66285 B66287 B66289 B66289G B66289K B66291 B66291K B66297G B66297K B66305 B66307 B66308 B66310 B66311 B66337 B66339 B66341 B66343 B66350 B66367 B66371 B66375 B66381 B66387 B66413 B66417 B66457 B66457K B66459G B66459K B66461G B66461K B66481 B66482 B66483K B66484 B66498P B66503 B66506 B66512P B66586 B66894 B67350 B67362 B67366 B67410 BB E E10/5.5/5 E100/45/28 E100/60/28 E118/86/35 E13/7/4 E130/63/40 E14/8/4 E140/68/40 E140/86/35 E16/6/5 E16/8/5 E160/83/40 E19/8/5 E20/10/11 E20/10/6 E200/80/40 E21/9/5 E220/95/80 E25.4/10/7 E25/13/7 E30/15/7 E32/16/11 E32/16/9 E34/14/9 E36/18/11 E40/16/12 E42/21/15 E42/21/20 E47/20/16 E5.3/2.7/2 E55/28/21 E55/28/25 E56/24/19 E6.3 E65/32/27 E70/33/32 E8.8/4/2 E80/38/20 EC35/17/10 EC41/20/12 EC52/24/14 EC70/35/16 EER11/5/6 EFD10/5/3 EFD15/8/5 EFD20/10/7 EFD25/13/9 EFD30/15/9 ELP102/20/38 ELP14/3.5/5 ELP18/4/10 ELP22/6/16 ELP32/6/20 ELP38/8/25 ELP43/10/28 ELP58/11/38 ELP64/10/50 EP EP10 EP13 EP13/LP EP17 EP20 EP5 EP6 EP7 EPC EPX10 EPX7/9 EPX9/9 EQ13/9/3 EQ20/6.3/14 EQ25/6/18 EQ30/8/20 EQ38/8/25 ER11/2.5/6 ER11/5 ER14.5 ER18/3/10 ER23/5/13 ER25/6/15 ER28/17/11 ER32/5/21 ER42/22/15 ER46/17/18 ER9.5 ETD 44/22/15 ETD29/16/10 ETD34/17/11 ETD39/20/13 ETD44/22/15 ETD49/25/16 ETD54/28/19 ETD59/31/22 EV15/9/7 EV25/13/13 EV30 EV30/16/13 FINFE FINTR FL-V FW H102/65/20C H107/65/25C H117/80/23C H152/104/19C H209/185/25C H65/38/25C H78/50.5/25 H87/56/15 HF I102/7/38 I126/28/20 I13/9/1 I14/1.5/5 I18/2/10 I18/4/10 I20/2.3/14 I22/2.5/16 I23/2/13 I25/2/18 I25/3/15 I25/6/6 I30/2.7/20 I32/3/20 I38/4/25 I43/4/28 I64/5/50 I93/28/16 I93/28/20 I93/28/30 ILP58/4/38 Large PQ MH MHB2-1.4/3.6/2.1 MHB2-14.5/8.5/14.5 MHB2-14.5/8.5/8.3 MHB2-2.0/3.6/2.1 MHB2-2.5/3.6/2.1 MHB2-3.0/3.6/2.1 MHB2-6.2/7.25/4.2 MHB2-7.25/4.2/6.2 MHB2/P-2.0/3.6/2.1 MHB2/P-3.6/2.1/1.4 MHB2/P-3.6/2.1/2.5 MHB2/P-6.2/7.25/4.2 P P11/7 P11/7/I P14/8 P14/8/I P18/11 P22/13 P22/9 P23/13 P26/16 P26/16/I P3.3/2.6 P30/19 P36/22 P4.6/4.1 P41/25 P42/29 P47/28 P5.8/3.3 P59/36 P7/4 P70/42 P9/5 P9/7 PCH11/2.8 PCH14.4/7.5 PCH14/5.95 PCH150/30 PCH150/45 PCH17.7/9 PCH18/4.9 PCH70/13 PCH70/14.5 Planar PLT22/16/2.5 PLT58/38/4 PM114/92.5 PM114/93 PM47/28 PM50/39 PM62/38 PM62/49 PM74/59 PM87/70 PQ PQ107/68 PQ16/11.6 PQ20/16 PQ20/20 PQ26/20 PQ26/25 PQ32/20 PQ32/30 PQ35/35 PQ40/40 PQ50/40 PQ50/50 PQ65/60 PS14/5 PS24.6/8 PS25/8.9 PS30.5/10.2 PS35/10.8 PS47/14.9 PS5.6/1.7 PS5.6/3.7 PS68/14.5 PS7.3/3.6 PS7.35/3.6 PS8.6/3.3 PS9.4/2.8 PS9.4/3.5 PS9.4/4.6 PT14/8 PT18/11 PT23/11 PTS14/8 PTS23/11 PTS23/18 PTS30/19 QU150/100/5 R6H RH RID RM RM10 RM10/I RM10/LP RM12 RM12/I RM12/ILP RM12/LP RM14 RM14/I RM14/ILP RM14/LP RM4 RM4/I RM4/ILP RM4/LP RM5 RM5/I RM5/LP RM6 RM6/R RM6R RM6S RM6S/I RM6S/ILP RM7 RM7/I RM7/ILP RM7/LP RM8 RM8/I RM8/ILP RM8/LP RU SP T T10/6/4 T10/6/7 T102/66/15 T12.5/7.5/5 T14/9/5 T140/103/25 T16/9.6/6.3 T2.5/1.5/1 T2.5/1.5/1.3 T20/10/10 T20/10/7 T202/153/25 T22.1/13.7/6.3 T22.1/13.7/7.9 T25.3/14.8/15 T26/14.5/15 T3.9/2.2/1.3 T3.94/2.24/1.8 T34/20.5/12.5 T36/23/10 T36/23/15 T4/2.4/1.6 T40/24/16 T42/26/13 T50/30/20 T55/32/18 T58/32/18 T58/41/18 T58/41/20 T6.3/3.8/2.5 T63/38/25 T68/48/13 T8/4/4 T87/54.3/13.5 T9.53/4.75/2 TC2.5/1.5/1 TC2.5/1.5/1.3 TC3.05/1.27/2.5 TC3.1/1.3/1.3 TC3.94/1.78/1.78 TC3.94/2.24/2.3 TC4.0/2.4/1.6 TC4.0/2.4/1.8 TC4.8/2.3/1.3 TC5.8/3/3 TC5.84/3.05/1.75 TC6.3/3.8/2.5 TC6.3/3.8/3.18 TC6.3/3.8/4 TC6.3/3.8/5 TC8/4/4 TC9.53/4.75/2.0 TN23/14/7 Toroid Cores TUB1.25/0.55/1.2 TUB1.81/0.8/2 TUB1.81/0.8/2.7 TUB1.84/0.8/3.4 TUB2.62/1.15/3.6 TUB2.82/1.15/4.4 TUB3.85/1.5/5 TUB4.1/1.5/4 TUB4.55/1.9/6.3 TUB4.98/1.9/6.2 TX10/6/3 TX10/6/3.1 TX10/6/4 TX102/66/15 TX12.5/7.5/4.1 TX12.5/7.5/5 TX12.7/7.9/7.5 TX13.3/8.3/5 TX13/7.1/4.8 TX13/7.9/6.4 TX14/9/5 TX140/103/25 TX140/106/25 TX15.8/8.9/5.2 TX16/9.1/4.7 TX16/9.6/2.5 TX16/9.6/6.3 TX16/9/5 TX17.4/10.3/7 TX17/10.7/4.8 TX17/10.7/6.8 TX18/5.9/5.9 TX20/10/15 TX20/10/7 TX22.6/14.7/9.2 TX22/14/13 TX22/14/6.4 TX22/14/7.9 TX25.3/14.8/10 TX25.3/14.8/15 TX25.3/14.8/20 TX25/15/13 TX26/15/20 TX29.5/19/20 TX29.5/19/7.5 TX29/19/15 TX29/19/7.5 TX30/20/12 TX30/20/12.5 TX32/19/13 TX34/20.5/10 TX34/20.5/12.5 TX36/23/10 TX36/23/15 TX38/19/13 TX39/20/13 TX40/24/16 TX42/26/13 TX42/26/18 TX50/30/20 TX51/32/19 TX58.3/32/18 TX58.3/40.8/17.6 TX58.3/40.8/20.2 TX63/38/25 TX68/48/13 TX87/54.3/13.5 TX87/54/14 TX9.5/4.8/3.2 TX9.53/4.75/2 U100/75/30 U101/76/30 U120/118/40 U120/80/40 U126/75/25 U126/91/20 U140/110/39 U141/78/30 U17/12/7 U93/76/16 U93/76/20 U93/76/30	Bag Box Bulk Cut Tape (CT) Strip Tape & Reel (TR) Tray	Active Discontinued at InFortune Not For New Designs Obsolete	- DS E EC EER EFD EL ELH, PLT ELP EP EPC EPO EPX EQ ER ETD EV HE, PLT HER, PLT HPQ, PQD I Multi-Hole Multi-Hole (2) Multi-Hole (4) Multi-Hole (6) P P (Pot Core) Planar E Planar E/I PLT PM PQ PS RM ROD SP Toroid TT Tube TX U UR	- BC 13 x 4.8 x 16 BC 22 x 12 x 14 BC 22 x 12 x 18 BC 22 x 12 x 19 BC 22 x 12 x 38 E 10 x 5.5 x 5 E 100 x 45 x 28 E 100 x 60 x 28 E 100/60/28 E 118 x 86 x 35 E 13 x 6 x 6 E 13 x 7 x 4 E 130 x 63 x 40 E 14 x 3.5 x 5 E 140 x 68 x 40 E 140 x 86 x 35 E 16 x 12 x 5 E 16 x 6 x 5 E 16 x 8 x 5 E 160 x 83 x 40 E 18 x 4 x 10 E 19 x 8 x 5 E 19 x 8 x 9 E 20 x 10 x 5 E 20 x 10 x 6 E 200 x 80 x 40 E 21 x 9 x 5 E 22 x 6 x 16 E 220 x 95 x 80 E 25 x 10 x 6 E 25 x 13 x 11 E 25 x 13 x 7 E 25.4 x 10 x 7 E 30 x 15 x 7 E 32 x 16 x 11 E 32 x 16 x 9 E 32 x 6 x 20 E 34 x 14 x 9 E 35 x 18 x 10 E 36 x 18 x 11 E 36 x 21 x 12 E 38 x 8 x 25 E 40 x 16 x 12 E 41 x 17 x 12 E 42 x 21 x 15 E 42 x 21 x 20 E 42 x 33 x 20 E 43 x 10 x 28 E 47 x 20 x 16 E 55 x 28 x 21 E 55 x 28 x 25 E 56 x 24 x 19 E 58 x 11 x 38 E 6 x 3 E 64 x 10 x 50 E 65 x 32 x 27 E 70 x 33 x 32 E 71 x 33 x 32 E 8 x 8 E 80 x 38 x 20 E5 EC 35 x 17 x 10 EC 41 x 19 x 12 EC 41 x 20 x 12 EC 52 x 24 x 14 EC 52/24/14 EC 70 x 34 x 17 EC 70 x 35 x 16 EER 25.5 EER 28 EER 35 EER 40 EER 42 EER 42 x 42 x 20 EER 49 EFD 10 x 5 x 3 EFD 10/5/3 EFD 12 x 6 x 3.5 EFD 15 x 8 x 5 EFD 20 x 10 x 7 EFD 25 x 13 x 9 EFD 30 x 15 x 9 EI 13 x 4.4 EI 14 x 4.5 x 9 EI 14 x 5 x 5 EI 15.5 x 5.8 EI 18 x 5 x 12 EI 18 x 6 x 10 EI 22 x 8 x 16 EIR 14 x 4.5 x 9 EIR 22 x 5.5 x 15 EL 11 x 4 EL 18 x 7.3 EL 20 x 7.7 EL 22 x 8 EL 25 x 8.6 ELP 102 x 20 x 38 ELP 14 x 3.5 x 5 ELP 18 x 4 x 10 ELP 22 x 6 x 16 ELP 32 x 6 x 20 ELP 38 x 8 x 25 ELP 43 x 10 x 28 ELP 58 x 11 x 38 ELP 64 x 10 x50 ELT 11 x 4 ELT 13 x 4.4 ELT 15.5 x 5.8 ELT 18 x 7.3 ELT 20 x 7.7 ELT 22 x 8 ELT 25 x 8.6 EP 10 EP 13 EP 17 EP 20 EP 5 EP 6 EP 7 EPC 10 EPC 13 EPC 17 EPC 19 EPC 25 EPC 27 EPC 30 EPO 13 EPX 10 EPX 7 x 9 EPX 9 x 9 EQ 13 EQ 13 x 2.9 x 8.7 EQ 13 x 3 EQ 20 EQ 20 x 6 EQ 20 x 6.4 x 14 EQ 25 EQ 25 x 5.6 x 18 EQ 25 x 6 EQ 25 x 8 x 18 EQ 25 x LP EQ 30 EQ 30 x 8 EQ 38 x 8 x 25 ER 11 x 2.5 x 6 ER 11 x 5 ER 14.5 x 3 x 7 ER 14.5 x 6 ER 18 x 3 x 10 ER 18 x 3.2 x 10 ER 18 x 5 x 12 ER 22 x 5.5 x 15 ER 23 x 3.6 x 13 ER 23 x 5 x 13 ER 25 x 5.5 x 18 ER 25 x 6 x 15 ER 28 x 14 x 11 ER 28 x 17 x 11 ER 32 x 5 x 21 ER 32 x 6 x 25 ER 35 x 20 x 11 ER 35 x 21 x 11 ER 40 x 22 x 13 ER 41 x 7.6 x 32 ER 42 x 22 x 15 ER 42 x 22 x 16 ER 46 x 17 x 18 ER 48 x 18 x 18 ER 48 x 21 x 21 ER 51 x 10 x 38 ER 54 x 18 x 18 ER 64 x 13 x 51 ER 9.5 x 2.5 x 5 ER 9.5 x 5 ER11 ER14.5 ETD 29 x 16 x 10 ETD 34 x 17 x 11 ETD 34/17/11 ETD 39 x 20 x 13 ETD 44 x 22 x 15 ETD 49 x 25 x 16 ETD 54 x 28 x 19 ETD 59 x 31 x 22 EV 15 x 9 x 7 EV 25 x 13 x 13 EV 30 x 16 x 13 EV 30/16/13 H102 x 65 x 20 H107 x 65 x 25 H117 x 80 x 23 H152 x 104 x 19 H209 x 185 x 25 H65 x 38 x 25 H78 x 50.5 x 25 H87 x 56 x 15 I 100 x 25 x 25 I 102 x 20 x 38 I 126 x 28 x 20 I 13 x 1 I 13 x 1.1 x 8.7 I 14 x 1.5 x 5 I 164 x 27.5 x 20 I 18 x 2 x 10 I 20 x 2 I 20 x 2.3 x 14 I 22 x 2.5 x 16 I 23 x 2 x 13 I 25 x 2 I 25 x 2.3 x 18 I 25 x 3 x 15 I 25 x 6 x 6 I 30 x 2.7 x 20 I 30 x 3 I 32 x 3 x 20 I 38 x 4 x 25 I 43 x 10 x 28 I 43 x 4 x 28 I 58 x 4 x 38 I 64 x 5 x 50 I 93 x 28 x 16 I 93 x 28 x 20 I 93 x 28 x 30 MHB 14 x 8.5 x 8 MHB 5 x 3 x 3 MHB 7 x 4 x 4 MHR 11 x 5.4 x 11 P 11 x 7 P 11 x 7 x I P 14 x 8 P 14 x 8 x I P 18 x 11 P 18 × 11 P 22 x 13 P 26 x 16 P 26 x 16 x I P 3.3 x 2.6 P 30 x 19 P 36 x 22 P 4.6 x 4.1 P 41 x 25 P 42 x 29 P 47 x 28 P 5.8 x 3.3 P 66 x 56 P 7 x 4 P 9 x 5 P Core Half 14 x 7.5 P Core Half 150 x 30 P Core Half 70 x 14.5 PCH 5.6 x 3.7 PCH 9.4 x 4.6 PLT 13 x 9 x 1 PLT 14 x 5 x 1.5 PLT 18 x 10 x 2 PLT 20 x 14 x 2 PLT 22 x 16 x 2.5 PLT 25 x 18 x 2 PLT 30 x 20 x 3 PLT 32 x 20 x 3.2 PLT 38 x 25 x 2.7 PLT 38 x 25 x 3.8 PLT 43 x 28 x 4.1 PLT 58 x 38 x 4 PLT 64 x 50 x 5 PM 114 x 92.5 PM 114 x 93 PM 50 x 39 PM 62 x 49 PM 74 x 59 PM 87 x 70 PQ 107 x 68 PQ 16 x 11.6 PQ 20 x 16 PQ 20 x 20 PQ 26 x 20 PQ 26 x 25 PQ 32 x 15 PQ 32 x 20 PQ 32 x 25 PQ 32 x 30 PQ 32 x 35 PQ 35 x 20 PQ 35 x 30 PQ 35 x 35 PQ 40 x 30 PQ 40 x 40 PQ 50 x 30 PQ 50 x 35 PQ 50 x 40 PQ 50 x 50 PQ 60 x 42 PQ 60 x 52 PQ 65 x 44 PQ 65 x 54 PQ 65 x 60 PQI 16 x 7.8 PQI 20 x 9 PQI 26 x 12 PS 25 x 8.9 PS 30.5 x 10.2 PS 35 x 10.8 PS 47 x 14.9 PS 7.35 x 3.6 PS 9 x 3.5 PT 14 x 8 PT 23 x 11 PT 23 x 18 PTS 14 x 8 PTS 18 x 11 PTS 23 x 11 PTS 23 x 18 PTS 30 x 19 x I R 10 x 6 x 4 R 10 x 6 x 7 R 102 x 65.8 x 15 R 12.5 x 7.5 x 5 R 13.3 x 8.3 x 5 R 14 x 9 x 5 R 140 x 103 x 25 R 16 x 9.6 x 6.3 R 2.5 x 1.5 x 1 R 2.5 x 1.5 x 1.3 R 20 x 10 x 7 R 202 x 153 x 25 R 22.1 x 13.7 x 7.9 R 25.3 x 14.8 x 10 R 25.3 x 14.8 x 15 R 3.94 x 2.24 x 1.3 R 34 x 20.5 x 12.5 R 34.0 × 20.5 × 12.5 R 36 x 23 x 15 R 4 x 2.4 x 1.6 R 4 x 2.4 x 1.8 R 40 x 24 x 16 R 41.8 x 26.2 x 12.5 R 5.84 x 3.05 x 3 R 50 x 30 x 20 R 58.3 x 32 x 18 R 58.3 x 40.8 x 17.6 R 58.3 x 40.8 x 20.2 R 6.3 x 3.8 x 2.5 R 63 x 38 x 25 R 68 x 40 x 13 R 68.0 × 48.0 × 13.0 R 8 x 4 x 4 R 87 x 54.3 x 13.5 R 9.53 × 4.75 × 3.17 RM 10 RM 10 LP RM 10 x 1 RM 12 RM 12 LP RM 12 x I RM 14 RM 4 RM 4 LP RM 5 RM 5 LP RM 6 RM 6 LP RM 7 RM 7 LP RM 8 RM 8 LP ROD 1.5 x 10 ROD 1.5 x 100 ROD 10 x 140 ROD 10 x 200 ROD 10 x 245 ROD 10 x 40 ROD 10 x 50 ROD 12 x 40 ROD 3 x 15 ROD 4 x 15 ROD 4 x 25 ROD 5 x 20 ROD 5 x 25 ROD 6 x 25 ROD 6 x 40 ROD 6 x 50 ROD 8 x 100 ROD 8 x 150 ROD 8 x 25 ROD 8 x 50 SP 100 x 100 x 5 SP 110 x 40 x 20 SP 135 x 65 x 20 SP 25 x 5 x 5 SP 50 x 50 x 5 SP 70 x 20 x 20 T 102 x 66 x 15 T 107 x 65 x 18 T 107 x 65 x 25 T 13 x 7.5 x 5 T 25 x 15 x 13 T 55 x 32 x 18 T 63 x 38 x 25 T 87 x 56 x 13 TC 4.8 x 2.3 x 1.3 TC 5.8 x 3.1 x 1.5 TN 10 x 6 x 4 TN 13 x 7.5 x 5 TN 14 x 9 x 5 TN 14 x 9 x 9 TN 16 x 9.6 x 6.3 TN 19 x 11 x 10 TN 20 x 10 x 7 TN 23 x 14 x 7 TN 25 x 15 x 10 TN 29 x 19 x 7.5 TN 32 x 19 x 13 TN 36 x 23 x 15 TN 9 x 6 x 3 Toroid 107 x 65 x 26 Toroid 140 x 106 x 25 Toroid 3.4 x 1.8 x 1.3 Toroid 4 x 2.2 x 1.1 Toroid 4 x 2.2 x 1.6 Toroid 5.8 x 3.1 x 3.2 Toroid 55 x 32 x 18 Toroid 58 x 32 x 18 Toroid 58 x 41 x 18 Toroid 6 x 4 x 2 Toroid 6.3 x 3.8 x 2.5 Toroid 74 x 39 x 13 Toroid 80 x 40 x 15 Toroid 87 x 54 x 14 Toroid 87 x 56 x 13 Toroid 9.5 x 4.8 x 3.2 TT 23 x 11 TUB 10 x 4.2 x 20 TUB 12 x 4.5 x 12 TUB 3.5 x 1.3 x 3 TUB 3.5 x 1.3 x 7.5 TUB 4 x 2 x 5 TUB 4.1 x 2 x 20 TUB 6 x 3 x 20 TUB 8 x 4 x 20 TUB 8 x 4 x 40 TUB 8 x 4.2 x 51 TX 10 x 6 x 4 TX 102 x 66 x 15 TX 107 x 65 x 18 TX 107 x 65 x 25 TX 13 x 7.1 x 4.8 TX 13 x 7.5 x 5 TX 13 x 7.9 x 6.4 TX 14 x 9 x 5 TX 140 x 106 x 25 TX 16 x 9.1 x 4.7 TX 16 x 9.6 x 6.3 TX 20 x 10 x 7 TX 22 x 14 13 TX 22 x 14 x 13 TX 22 x 14 x 6.4 TX 25 x 15 x 10 TX 25 x 15 x 13 TX 26 x 15 x 10 TX 26 x 15 x 20 TX 29 x 19 x 15 TX 29 x 19 x 7.5 TX 29 x 19 x 7.6 TX 32 x 19 x 13 TX 36 x 23 x 10 TX 36 x 23 x 15 TX 39 x 20 x 13 TX 40 x 24 x 16 TX 42 x 26 x 13 TX 42 x 26 x 18 TX 50 x 30 x 19 TX 51 x 32 x 19 TX 55 x 32 x 18 TX 58 x 41 x 18 TX 63 x 38 x 25 TX 74 x 39 x 13 TX 80 x 40 x 15 TX 87 x 54 x 14 TX 87 x 56 x 13 TX 9 x 6 x 3 U 10 x 8 x 3 U 100 x 57 x 25 U 100 x 75 x 30 U 101 x 76 x 30 U 11 x 9 x 6 U 120 x 118 x 40 U 120 x 80 x 40 U 126 x 75 x 25 U 126 x 91 x 20 U 140 x 110 x 39 U 141 x 78 x 30 U 15 x 11 x 16 U 15 x 11 x 6 U 20 x 16 x 7 U 25 x 16 x 6 U 25 x 20 x 13 U 30 x 25 x 16 U 30 x 26 x 26 U 46 x 40 x 28 U 67 x 27 x 14 U 80 x 65 x 32 U 93 x 52 x 30 U 93 x 76 x 16 U 93 x 76 x 20 U 93 x 76 x 30 UR 35 x 27.5 x 13 UR 37 x 26 x 18 UR 39 x 35 x 15 UR 42 x 21 x 12 UR 46 x 21 x 11 UR 48 x 39 x 17 UR 55 x 38 x 36 UR 57 x 28 x 16 UR 59 x 36 x 17 UR 64 x 29 x 14 UR 64 x 40 x 20 UR 64 x 43 x 20 UR 70 x 33 x 17	- 0.029" (0.75mm) 0.030" (0.76mm) 0.039" (1.00mm) 0.059" (1.50mm) 0.079" (2.00mm) 0.080" (2.03mm) 0.098" (2.50mm) 0.099" (2.52mm) 0.100" (2.54mm) 0.101" (2.57mm) 0.110" (2.79mm) 0.115" (2.93mm) 0.118" (3.00mm) 0.120" (3.05mm) 0.121" (3.07mm) 0.125" (3.18mm) 0.128" (3.25mm) 0.130" (3.30mm) 0.132" (3.35mm) 0.134" (3.40mm) 0.135" (3.43mm) 0.136" (3.45mm) 0.138" (3.50mm) 0.140" (3.56mm) 0.142" (3.61mm) 0.145" (3.68mm) 0.146" (3.71mm) 0.149" (3.79mm) 0.155" (3.94mm) 0.156" (3.96mm) 0.157" (4.00mm) 0.158" (4.02mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.162" (4.11mm) 0.163" (4.15mm) 0.164" (4.17mm) 0.165" (4.19mm) 0.166" (4.22mm) 0.177" (4.50mm) 0.180" (4.57mm) 0.183" (4.65mm) 0.189" (4.80mm) 0.191" (4.85mm) 0.197" (5.00mm) 0.201" (5.10mm) 0.201" (5.11mm) 0.208" (5.28mm) 0.217" (5.50mm) 0.219" (5.55mm) 0.220" (5.60mm) 0.224" (5.70mm) 0.228" (5.80mm) 0.230" (5.84mm) 0.231" (5.87mm) 0.232" (5.89mm) 0.234" (5.95mm) 0.236" (6.00mm) 0.244" (6.20mm) 0.248" (6.30mm) 0.249" (6.32mm) 0.250" (6.35mm) 0.251" (6.38mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.260" (6.60mm) 0.270" (6.86mm) 0.275" (6.99mm) 0.276" (7.00mm) 0.285" (7.24mm) 0.288" (7.33mm) 0.289" (7.35mm) 0.291" (7.40mm) 0.295" (7.49mm) 0.300" (7.62mm) 0.301" (7.65mm) 0.303" (7.70mm) 0.310" (7.87mm) 0.313" (7.95mm) 0.315" (8.00mm) 0.316" (8.02mm) 0.318" (8.08mm) 0.323" (8.20mm) 0.335" (8.51mm) 0.354" (9.00mm) 0.366" (9.30mm) 0.370" (9.40mm) 0.372" (9.45mm) 0.374" (9.50mm) 0.375" (9.53mm) 0.380" (9.65mm) 0.381" (9.68mm) 0.388" (9.86mm) 0.392" (9.95mm) 0.393" (9.99mm) 0.394" (10.00mm) 0.400" (10.15mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.405" (10.29mm) 0.413" (10.50mm) 0.415" (10.55mm) 0.417" (10.60mm) 0.419" (10.64mm) 0.419" (10.65mm) 0.425" (10.80mm) 0.433" (11.00mm) 0.437" (11.10mm) 0.440" (11.18mm) 0.441" (11.20mm) 0.444" (11.28mm) 0.445" (11.30mm) 0.465" (11.81mm) 0.472" (12.00mm) 0.484" (12.30mm) 0.490" (12.45mm) 0.492" (12.50mm) 0.500" (12.70mm) 0.502" (12.75mm) 0.504" (12.80mm) 0.506" (12.85mm) 0.510" (12.95mm) 0.512" (13.00mm) 0.513" (13.04mm) 0.518" (13.16mm) 0.520" (13.20mm) 0.525" (13.34mm) 0.526" (13.35mm) 0.528" (13.40mm) 0.530" (13.45mm) 0.533" (13.55mm) 0.535" (13.60mm) 0.540" (13.72mm) 0.545" (13.84mm) 0.550" (13.97mm) 0.551" (14.00mm) 0.553" (14.05mm) 0.554" (14.07mm) 0.555" (14.10mm) 0.559" (14.20mm) 0.561" (14.25mm) 0.562" (14.27mm) 0.563" (14.30mm) 0.565" (14.35mm) 0.567" (14.40mm) 0.575" (14.60mm) 0.576" (14.64mm) 0.577" (14.65mm) 0.579" (14.70mm) 0.581" (14.76mm) 0.583" (14.80mm) 0.594" (15.10mm) 0.625" (15.88mm) 0.626" (15.90mm) 0.630" (16.00mm) 0.631" (16.03mm) 0.635" (16.13mm) 0.640" (16.25mm) 0.643" (16.34mm) 0.650" (16.51mm) 0.653" (16.59mm) 0.655" (16.64mm) 0.657" (16.70mm) 0.659" (16.75mm) 0.661" (16.80mm) 0.663" (16.84mm) 0.665" (16.90mm) 0.669" (17.00mm) 0.673" (17.10mm) 0.677" (17.20mm) 0.680" (17.27mm) 0.695" (17.65mm) 0.701" (17.90mm) 0.705" (17.90mm) 0.709" (18.00mm) 0.710" (18.03mm) 0.717" (18.20mm) 0.724" (18.40mm) 0.748" (19.00mm) 0.756" (19.20mm) 0.764" (19.41mm) 0.768" (19.50mm) 0.776" (19.70mm) 0.785" (19.95mm) 0.787" (20.00mm) 0.797" (20.25mm) 0.800" (20.32mm) 0.801" (20.35mm) 0.811" (20.60mm) 0.821" (20.85mm) 0.825" (20.96mm) 0.830" (21.08mm) 0.835" (21.20mm) 0.840" (21.34mm) 0.848" (21.54mm) 0.850" (21.60mm) 0.854" (21.70mm) 0.860" (21.84mm) 0.866" (22.00mm) 0.870" (22.10mm) 0.880" (22.35mm) 0.886" (22.50mm) 0.890" (22.60mm) 0.900" (22.86mm) 0.902" (22.90mm) 0.906" (23.00mm) 0.907" (23.05mm) 0.908" (23.07mm) 0.917" (23.30mm) 0.928" (23.57mm) 0.930" (23.62mm) 0.933" (23.70mm) 0.937" (23.80mm) 0.939" (23.86mm) 0.945" (24.00mm) 0.958" (24.33mm) 0.961" (24.40mm) 0.976" (24.80mm) 0.984" (25.00mm) 0.994" (25.25mm) 0.996" (25.30mm) 0.998" (25.34mm) 1.000" (25.40mm) 1.004" (25.50mm) 1.007" (25.95mm) 1.016" (25.80mm) 1.024" (26.00mm) 1.035" (26.29mm) 1.043" (26.50mm) 1.045" (26.55mm) 1.047" (26.60mm) 1.050" (26.67mm) 1.059" (26.90mm) 1.060" (26.92mm) 1.061" (26.95mm) 1.075" (27.30mm) 1.087" (27.60mm) 1.090" (27.69mm) 1.091" (27.71mm) 1.098" (27.90mm) 1.102" (28.00mm) 1.103" (28.01mm) 1.105" (28.07mm) 1.114" (28.30mm) 1.142" (29.00mm) 1.152" (29.25mm) 1.177" (29.90mm) 1.179" (29.95mm) 1.181" (30.00mm) 1.185" (30.10mm) 1.187" (30.15mm) 1.200" (30.50mm) 1.220" (31.00mm) 1.250" (31.75mm) 1.253" Dia (31.83mm) 1.255" (31.88mm) 1.264" (32.10mm) 1.265" (32.14mm) 1.268" (32.20mm) 1.272" (32.30mm) 1.274" (32.35mm) 1.281" (32.55mm) 1.291" (32.80mm) 1.299" (33.00mm) 1.313" (33.36mm) 1.325" (33.66mm) 1.339" (34.00mm) 1.350" (34.29mm) 1.378" (35.00mm) 1.385" (35.18mm) 1.386" (35.20mm) 1.397" (35.50mm) 1.400" (35.56mm) 1.402" (35.60mm) 1.402" (35.61mm) 1.410" (35.81mm) 1.417" (36.00mm) 1.425" (36.20mm) 1.427" (36.25mm) 1.445" (36.70mm) 1.449" (36.80mm) 1.453" (36.90mm) 1.457" (37.00mm) 1.460" (37.08mm) 1.462" (37.14mm) 1.463" (37.15mm) 1.467" (37.27mm) 1.476" (37.50mm) 1.496" (38.00mm) 1.500" (38.10mm) 1.539" (39.10mm) 1.545" (39.25mm) 1.551" (39.40mm) 1.560" (39.63mm) 1.567" (39.80mm) 1.570" (39.88mm) 1.575" (40.00mm) 1.580" (40.13mm) 1.585" (40.25mm) 1.594" (40.50mm) 1.605" (40.77mm) 1.614" (41.00mm) 1.640" (41.65mm) 1.646" (41.80mm) 1.656" (42.05mm) 1.665" (42.30mm) 1.669" (42.40mm) 1.689" (42.90mm) 1.697" (43.10mm) 1.697" (43.15mm) 1.705" (43.30mm) 1.717" (43.60mm) 1.744" (44.30mm) 1.752" (44.50mm) 1.772" (45.00mm) 1.795" (45.60mm) 1.810" (45.98mm) 1.839" (46.70mm) 1.840" (46.74mm) 1.846" (46.90mm) 1.850" (47.00mm) 1.855" (47.12mm) 1.862" (47.30mm) 1.875" (47.63mm) 1.890" (48.00mm) 1.891" (48.04mm) 1.902" (48.30mm) 1.906" (48.40mm) 1.929" (49.00mm) 1.933" (49.10mm) 1.945" (49.40mm) 1.969" (50.00mm) 1.977" (50.22mm) 1.978" (50.25mm) 1.984" (50.40mm) 1.990" (50.55mm) 1.992" (50.60mm) 2.000" (50.80mm) 2.010" (51.05mm) 2.018" (51.25mm) 2.022" (51.35mm) 2.028" (51.51mm) 2.035" (51.69mm) 2.039" (51.80mm) 2.040" (51.80mm) 2.050" (52.07mm) 2.051" (52.10mm) 2.059" (52.30mm) 2.069" (52.55mm) 2.106" (53.50mm) 2.126" (54.00mm) 2.181" (55.40mm) 2.197" (55.80mm) 2.250" (57.15mm) 2.252" (57.20mm) 2.264" (57.50mm) 2.281" (57.95mm) 2.285" (58.04mm) 2.295" (58.30mm) 2.300" (58.42mm) 2.311" (58.70mm) 2.335" (59.30mm) 2.346" (59.60mm) 2.354" (59.80mm) 2.366" (60.10mm) 2.400" (60.96mm) 2.402" (61.00mm) 2.433" (61.80mm) 2.440" (61.98mm) 2.441" (62.00mm) 2.450" (62.23mm) 2.468" (62.69mm) 2.472" (62.80mm) 2.480" (63.00mm) 2.484" (63.09mm) 2.496" (63.40mm) 2.555" (64.90mm) 2.559" (65.00mm) 2.571" (65.30mm) 2.579" (65.50mm) 2.583" (65.60mm) 2.598" (66.00mm) 2.610" (66.29mm) 2.650" (67.30mm) 2.677" (68.00mm) 2.756" (70.00mm) 2.900" (73.66mm) 2.902" (73.70mm) 2.910" (73.91mm) 2.913" (74.00mm) 2.917" (74.09mm) 2.955" (75.06mm) 2.961" (75.21mm) 2.975" (75.57mm) 2.978" (75.65mm) 3.063" (77.80mm) 3.071" (78.00mm) 3.108" (78.94mm) 3.150" (80.00mm) 3.165" (80.40mm) 3.169" (80.50mm) 3.268" (83.00mm) 3.374" (85.70mm) 3.378" (85.80mm) 3.386" (86.00mm) 3.425" (87.00mm) 3.440" (87.38mm) 3.465" (88.02mm) 3.494" (88.75mm) 3.516" (89.30mm) 3.756" (95.40mm) 4.000" (101.60mm) 4.016" (102.00mm) 4.031" (102.40mm) 4.055" (103.00mm) 4.094" (104.00mm) 4.114" (104.50mm) 4.126" (104.80mm) 4.154" (105.50mm) 4.213" (107.00mm) 4.228" (107.40mm) 4.256" (108.10mm) 4.311" (109.50mm) 4.488" (114.00mm) 4.606" (117.00mm) 5.219" (132.56mm) 5.220" (132.60mm) 5.274" (133.96mm) 5.295" (134.50mm) 5.512" (140.00mm) 5.528" (140.40mm) 5.650" (143.50mm) 5.661" (143.80mm) 5.906" (150.00mm) 5.984" (152.00mm) 6.496" (165.00mm) 6.500" (165.10mm) 6.555" (166.50mm) 6.571" (166.90mm) 7.874" (200.00mm) 7.953" (202.00mm) 8.228" (209.00mm) TN 29 x 19 x 7.5	- 1 µH 1.001 µH 1.01 µH 1.015 µH 1.02 µH 1.022 µH 1.029 µH 1.04 µH 1.05 µH 1.053 µH 1.075 µH 1.08 µH 1.081 µH 1.09 µH 1.095 µH 1.1 µH 1.107 µH 1.112 µH 1.12 µH 1.125 µH 1.13 µH 1.133 µH 1.136 µH 1.14 µH 1.15 µH 1.153 µH 1.16 µH 1.17 µH 1.173 µH 1.18 µH 1.19 µH 1.2 µH 1.21 µH 1.225 µH 1.24 µH 1.25 µH 1.253 µH 1.26 µH 1.27 µH 1.29 µH 1.3 µH 1.305 µH 1.314 µH 1.32 µH 1.325 µH 1.327 µH 1.33 µH 1.333 µH 1.334 µH 1.34 µH 1.35 µH 1.351 µH 1.354 µH 1.356 µH 1.36 µH 1.365 µH 1.375 µH 1.38 µH 1.39 µH 1.399 µH 1.4 µH 1.42 µH 1.43 µH 1.45 µH 1.46 µH 1.47 µH 1.475 µH 1.48 µH 1.485 µH 1.488 µH 1.5 µH 1.504 µH 1.51 µH 1.52 µH 1.53 µH 1.533 µH 1.54 µH 1.55 µH 1.56 µH 1.57 µH 1.573 µH 1.58 µH 1.585 µH 1.6 µH 1.61 µH 1.619 µH 1.625 µH 1.627 µH 1.63 µH 1.633 µH 1.65 µH 1.653 µH 1.66 µH 1.665 µH 1.667 µH 1.68 µH 1.69 µH 1.7 µH 1.72 µH 1.747 µH 1.75 µH 1.76 µH 1.767 µH 1.773 µH 1.779 µH 1.782 µH 1.79 µH 1.8 µH 1.805 µH 1.812 µH 1.83 µH 1.84 µH 1.85 µH 1.858 µH 1.86 µH 1.867 µH 1.87 µH 1.875 µH 1.88 µH 1.884 µH 1.9 µH 1.902 µH 1.907 µH 1.913 µH 1.915 µH 1.92 µH 1.93 µH 1.933 µH 1.94 µH 1.947 µH 1.95 µH 1.958 µH 1.96 µH 1.973 µH 1.98 µH 1.983 µH 1.99 µH 10 nH 10 µH 10.04 µH 10.13 µH 10.133 µH 10.2 µH 10.3 µH 10.4 µH 10.44 µH 10.5 µH 10.6 µH 10.613 µH 10.653 µH 10.7 µH 10.701 µH 10.78 µH 10.8 µH 10.96 µH 10.974 µH 10.984 µH 100 nH 100 µH 101 nH 101 µH 102 nH 103 nH 104 nH 105 nH 106 nH 107 nH 108 nH 109 nH 109 µH 11 nH 11 µH 11.04 µH 11.072 µH 11.147 µH 11.178 µH 11.2 µH 11.28 µH 11.429 µH 11.45 µH 11.5 µH 11.6 µH 11.7 µH 11.8 µH 11.823 µH 11.85 µH 11.95 µH 110 nH 111 nH 112 nH 113 nH 114 nH 115 nH 116 nH 117 nH 118 nH 119 nH 12 nH 12 µH 12.08 µH 12.13 µH 12.2 µH 12.3 µH 12.35 µH 12.4 µH 12.461 µH 12.5 µH 12.535 µH 12.6 µH 12.7 µH 12.8 µH 12.894 µH 12.9 µH 120 nH 121 nH 122 nH 123 nH 124 nH 125 nH 126 nH 127 nH 127.5 µH 128 nH 129 nH 1295 nH 13 nH 13 µH 13.1 µH 13.2 µH 13.3 µH 13.33 µH 13.4 µH 13.5 µH 13.69 µH 13.8 µH 13.813 µH 13.9 µH 130 nH 132 nH 134 nH 135 nH 136 nH 137 nH 138 nH 139 nH 14 nH 14 µH 14.021 µH 14.1 µH 14.2 µH 14.3 µH 14.618 µH 14.64 µH 14.7 µH 14.87 µH 140 nH 141 nH 142 nH 143 nH 144 nH 145 nH 146 nH 1460 nH 147 nH 148 nH 15 nH 15 µH 15.1 µH 15.2 µH 15.252 µH 15.3 µH 15.5 µH 15.599 µH 15.6 nH 15.7 µH 15.776 µH 150 nH 151 nH 152 nH 153 nH 154 nH 155 nH 156 nH 157 nH 158 nH 159 nH 16 nH 16 µH 16.071 µH 16.1 µH 16.192 µH 16.28 µH 16.3 µH 16.7 µH 16.73 µH 16.816 µH 16.9 µH 160 nH 160 µH 161 nH 162 nH 163 nH 164 nH 164.4 nH 165 nH 166 nH 167 nH 168 nH 169 nH 17 nH 17 µH 17.1 µH 17.163 µH 17.313 µH 17.4 µH 17.5 µH 17.55 µH 17.6 µH 17.7 µH 17.9 µH 170 nH 1707 nH 172 nH 173 nH 175 nH 176 nH 177 nH 1778 nH 178 nH 179 nH 18 nH 18 µH 18.293 µH 18.4 µH 18.5 µH 18.571 µH 18.6 µH 18.7 µH 18.76 µH 180 nH 182 nH 1824 nH 183 nH 184 nH 185 nH 187 nH 188 nH 189 nH 19 nH 19 µH 19.1 µH 19.286 µH 19.5 µH 190 nH 1905 nH 192 nH 193 nH 194 nH 1949 nH 195 nH 197 nH 198 nH 2 µH 2.001 µH 2.03 µH 2.04 µH 2.047 µH 2.05 µH 2.053 µH 2.059 µH 2.06 µH 2.088 µH 2.09 µH 2.093 µH 2.1 µH 2.127 µH 2.13 µH 2.135 µH 2.14 µH 2.147 µH 2.15 µH 2.152 µH 2.16 µH 2.166 µH 2.169 µH 2.17 µH 2.172 µH 2.196 µH 2.2 µH 2.213 µH 2.214 µH 2.22 µH 2.225 µH 2.23 µH 2.24 µH 2.25 µH 2.257 µH 2.26 µH 2.27 µH 2.274 µH 2.28 µH 2.285 µH 2.295 µH 2.3 µH 2.314 µH 2.32 µH 2.333 µH 2.339 µH 2.347 µH 2.348 µH 2.35 µH 2.36 µH 2.38 µH 2.387 µH 2.4 µH 2.43 µH 2.44 µH 2.45 µH 2.46 µH 2.467 µH 2.5 µH 2.505 µH 2.507 µH 2.52 µH 2.53 µH 2.545 µH 2.55 µH 2.555 µH 2.56 µH 2.573 µH 2.595 µH 2.6 µH 2.61 µH 2.623 µH 2.63 µH 2.64 µH 2.65 µH 2.66 µH 2.667 µH 2.69 µH 2.693 µH 2.695 µH 2.7 µH 2.707 µH 2.71 µH 2.715 µH 2.725 µH 2.726 µH 2.727 µH 2.73 µH 2.74 µH 2.75 µH 2.76 µH 2.77 µH 2.79 µH 2.795 µH 2.796 µH 2.8 µH 2.81 µH 2.82 µH 2.83 µH 2.843 µH 2.85 µH 2.86 µH 2.87 µH 2.88 µH 2.89 µH 2.9 µH 2.907 µH 2.93 µH 2.933 µH 2.94 µH 2.947 µH 2.95 µH 2.96 µH 2.963 µH 2.968 µH 2.973 µH 2.974 µH 2.976 µH 2.99 µH 20 nH 20 µH 20.2 µH 200 nH 201 nH 202 nH 203 nH 204 nH 205 nH 206 nH 207 nH 208 nH 209 nH 21 nH 21 µH 21.056 µH 21.184 µH 21.2 µH 21.3 µH 210 nH 2100 nH 211 nH 213 nH 214 nH 215 nH 216 nH 217 nH 218 nH 219 nH 22 nH 22 µH 22.5 µH 220 nH 223 nH 224 nH 225 nH 226 nH 228 nH 229 nH 23 nH 23 µH 23.2 µH 23.6 µH 230 nH 232 nH 233 nH 234 nH 235 nH 237 nH 24 nH 24 µH 24.3 µH 24.4 µH 24.5 µH 241 nH 242 nH 243 nH 244 nH 245 nH 246 nH 247 nH 25 nH 25 µH 25.2 µH 25.4 µH 25.5 µH 25.6 µH 25.9 µH 250 nH 251 nH 253 nH 254 nH 255 nH 256 nH 258 nH 259 nH 26 nH 26.5 µH 260 nH 261 nH 263 nH 269 nH 27 nH 27 µH 27.61 µH 270 nH 275 nH 28 nH 28 µH 28.4 µH 28.7 µH 280 nH 281 nH 284 nH 285 nH 287 nH 29 nH 290 nH 3 µH 3.02 µH 3.025 µH 3.032 µH 3.05 µH 3.058 µH 3.06 µH 3.061 µH 3.066 µH 3.067 µH 3.08 µH 3.1 µH 3.11 µH 3.112 µH 3.147 µH 3.15 µH 3.16 µH 3.17 µH 3.2 µH 3.21 µH 3.213 µH 3.222 µH 3.225 µH 3.227 µH 3.23 µH 3.244 µH 3.25 µH 3.268 µH 3.27 µH 3.274 µH 3.28 µH 3.3 µH 3.308 µH 3.32 µH 3.333 µH 3.35 µH 3.366 µH 3.384 µH 3.4 µH 3.42 µH 3.429 µH 3.43 µH 3.44 µH 3.448 µH 3.45 µH 3.46 µH 3.464 µH 3.466 µH 3.473 µH 3.477 µH 3.491 µH 3.498 µH 3.5 nH 3.5 µH 3.52 µH 3.525 µH 3.533 µH 3.54 µH 3.55 µH 3.572 µH 3.575 µH 3.58 µH 3.587 µH 3.59 µH 3.6 µH 3.606 µH 3.612 µH 3.62 µH 3.624 µH 3.627 µH 3.641 µH 3.65 µH 3.659 µH 3.667 µH 3.67 µH 3.68 µH 3.687 µH 3.69 µH 3.7 µH 3.718 µH 3.733 µH 3.747 µH 3.75 µH 3.765 µH 3.77 µH 3.784 µH 3.788 µH 3.8 µH 3.81 µH 3.82 µH 3.827 µH 3.83 µH 3.837 µH 3.84 µH 3.85 µH 3.867 µH 3.868 µH 3.87 µH 3.89 µH 3.9 µH 3.907 µH 3.913 µH 3.92 µH 3.93 µH 3.95 µH 30 nH 30 µH 300 nH 304 nH 305 nH 306 nH 31 nH 31.5 µH 310 nH 312 nH 313 nH 314 nH 315 nH 317 nH 32 nH 32.3 µH 32.5 µH 32.667 µH 320 nH 322 nH 325 nH 329 nH 3290 nH 33 nH 33.1 µH 33.4 µH 330 nH 332 nH 333 nH 335 nH 337 nH 34 nH 34.7 µH 340 nH 341 nH 348 nH 35 nH 35 µH 35.6 µH 350 nH 351 nH 355 nH 358 nH 36 nH 36.1 µH 360 nH 365 nH 366 nH 37 nH 370 nH 372 nH 374 nH 375 nH 376 nH 377 nH 38 nH 38.1 µH 38.7 µH 380 nH 381 nH 382 nH 386 nH 39 nH 39.2 µH 390 nH 394 nH 396 nH 399 nH 4 µH 4.013 µH 4.024 µH 4.026 µH 4.03 µH 4.04 µH 4.047 µH 4.05 µH 4.07 µH 4.08 µH 4.09 µH 4.093 µH 4.098 µH 4.1 µH 4.107 µH 4.127 µH 4.13 µH 4.133 µH 4.15 µH 4.16 µH 4.17 µH 4.173 µH 4.175 µH 4.181 µH 4.185 µH 4.19 µH 4.2 µH 4.204 µH 4.227 µH 4.233 µH 4.24 µH 4.267 µH 4.293 µH 4.3 µH 4.32 µH 4.347 µH 4.36 µH 4.39 µH 4.392 µH 4.4 µH 4.41 µH 4.42 µH 4.435 µH 4.44 µH 4.456 µH 4.46 µH 4.48 µH 4.485 µH 4.486 µH 4.5 µH 4.504 µH 4.507 µH 4.533 µH 4.54 µH 4.543 µH 4.57 µH 4.58 µH 4.59 µH 4.6 µH 4.62 µH 4.64 µH 4.65 µH 4.667 µH 4.673 µH 4.68 µH 4.69 µH 4.7 µH 4.709 µH 4.72 µH 4.744 µH 4.75 µH 4.76 µH 4.79 µH 4.8 µH 4.813 µH 4.827 µH 4.83 µH 4.84 µH 4.85 µH 4.86 µH 4.88 µH 4.9 µH 4.91 µH 4.975 µH 40 nH 40 µH 400 nH 4000 nH 403 nH 41 nH 415 nH 417 nH 42 nH 420 nH 424 nH 425 nH 427 nH 43 nH 43 µH 430 nH 435 nH 44 nH 440 nH 443 nH 445 nH 45 nH 45 µH 450 nH 454 nH 455 nH 46 nH 460 nH 465 nH 466 nH 47 nH 47.2 µH 470 nH 473 nH 48 nH 48 µH 480 nH 485 nH 486 nH 488 nH 49 nH 5 µH 5.02 µH 5.04 µH 5.05 µH 5.066 µH 5.07 µH 5.073 µH 5.08 µH 5.1 µH 5.11 µH 5.12 µH 5.14 µH 5.143 µH 5.15 µH 5.184 µH 5.19 µH 5.191 µH 5.2 µH 5.213 µH 5.24 µH 5.25 µH 5.28 µH 5.3 µH 5.335 µH 5.34 µH 5.35 µH 5.36 µH 5.387 µH 5.4 µH 5.41 µH 5.43 µH 5.44 µH 5.46 µH 5.465 µH 5.47 µH 5.489 µH 5.5 µH 5.52 µH 5.525 µH 5.533 µH 5.56 µH 5.6 µH 5.613 µH 5.62 µH 5.63 µH 5.64 µH 5.667 µH 5.67 µH 5.7 µH 5.707 µH 5.732 µH 5.733 µH 5.747 µH 5.75 µH 5.76 µH 5.78 µH 5.79 µH 5.8 µH 5.801 µH 5.813 µH 5.827 µH 5.83 µH 5.841 µH 5.85 µH 5.867 µH 5.9 µH 5.936 µH 5.956 µH 5.96 µH 5.973 µH 50 nH 50 µH 500 nH 508 nH 51 nH 510 nH 512 nH 515 nH 52 nH 520 nH 525 nH 53 nH 538 nH 54 nH 540 nH 55 nH 55 µH 550 nH 559 nH 56 nH 56 µH 560 nH 566 nH 57 nH 57 µH 58 nH 585 nH 587 nH 59 nH 59 µH 59.3 µH 592 nH 595 nH 599 nH 6 nH 6 µH 6.01 µH 6.013 µH 6.027 µH 6.029 µH 6.03 µH 6.04 µH 6.05 µH 6.053 µH 6.065 µH 6.07 µH 6.1 µH 6.11 µH 6.115 µH 6.131 µH 6.15 µH 6.199 µH 6.2 µH 6.207 µH 6.227 µH 6.23 µH 6.24 µH 6.25 µH 6.253 µH 6.27 µH 6.28 µH 6.281 µH 6.293 µH 6.3 µH 6.34 µH 6.35 µH 6.4 nH 6.4 µH 6.42 µH 6.425 µH 6.44 µH 6.447 µH 6.48 µH 6.5 µH 6.506 µH 6.52 µH 6.521 µH 6.54 µH 6.55 µH 6.568 µH 6.57 µH 6.575 µH 6.6 µH 6.616 µH 6.64 µH 6.644 µH 6.678 µH 6.68 µH 6.7 µH 6.707 µH 6.73 µH 6.736 µH 6.773 µH 6.8 µH 6.84 µH 6.845 µH 6.85 µH 6.867 µH 6.9 µH 6.918 µH 6.93 µH 6.95 µH 6.955 µH 6.96 µH 6.97 µH 60 nH 600 nH 61 nH 61.5 µH 610 nH 62 nH 626 nH 63 nH 630 nH 64 nH 64.6 µH 640 nH 642 nH 65 nH 65.5 µH 650 nH 66 nH 66 µH 66.5 nH 660 nH 67 nH 67 µH 674 nH 68 nH 680 nH 69 nH 7 nH 7 µH 7.01 µH 7.02 µH 7.021 µH 7.059 µH 7.07 µH 7.08 µH 7.09 µH 7.1 µH 7.13 µH 7.143 µH 7.15 µH 7.16 µH 7.2 µH 7.213 µH 7.219 µH 7.224 µH 7.267 µH 7.3 µH 7.303 µH 7.31 µH 7.32 µH 7.321 µH 7.34 µH 7.347 µH 7.35 µH 7.4 µH 7.435 µH 7.44 µH 7.447 µH 7.467 µH 7.47 µH 7.5 µH 7.52 µH 7.53 µH 7.54 µH 7.56 µH 7.57 µH 7.58 µH 7.6 µH 7.643 µH 7.66 µH 7.666 µH 7.68 µH 7.7 µH 7.71 µH 7.714 µH 7.72 µH 7.733 µH 7.736 µH 7.745 µH 7.77 µH 7.78 µH 7.784 µH 7.8 nH 7.8 µH 7.825 µH 7.853 µH 7.867 µH 7.875 µH 7.9 µH 7.917 µH 7.94 µH 7.97 µH 70 nH 700 nH 71 nH 711 nH 716 nH 719 nH 72 nH 720 nH 725 nH 727 nH 73 nH 730 nH 735 nH 74 nH 740 nH 745 nH 75 nH 750 nH 76 nH 760 nH 770 nH 78 nH 780 nH 79 nH 790 µH 794 nH 8 nH 8 µH 8.01 µH 8.03 µH 8.051 µH 8.06 µH 8.075 µH 8.093 µH 8.1 µH 8.13 µH 8.14 µH 8.173 µH 8.19 µH 8.195 µH 8.2 µH 8.22 µH 8.266 µH 8.3 µH 8.35 µH 8.354 µH 8.365 µH 8.4 µH 8.408 µH 8.413 µH 8.476 µH 8.48 µH 8.494 µH 8.498 µH 8.5 µH 8.56 µH 8.6 µH 8.625 µH 8.68 µH 8.7 µH 8.762 µH 8.8 µH 8.803 µH 8.89 µH 8.97 µH 8.972 µH 80 nH 800 nH 81 nH 81 µH 812 nH 816 nH 82 nH 820 nH 825 nH 83 nH 830 nH 834 nH 84 nH 840 nH 85 nH 850 nH 86 nH 860 nH 863 nH 864 nH 87 nH 87.6 µH 870 nH 88 nH 88 µH 880 nH 885 nH 89 nH 892 nH 893 nH 894 nH 9 nH 9 µH 9.01 µH 9.028 µH 9.073 µH 9.085 µH 9.086 µH 9.1 µH 9.12 µH 9.15 µH 9.16 µH 9.2 µH 9.25 µH 9.3 µH 9.4 µH 9.467 µH 9.48 µH 9.5 µH 9.541 µH 9.55 µH 9.6 µH 9.66 µH 9.67 µH 9.7 µH 9.74 µH 9.8 µH 9.81 µH 9.821 µH 9.86 µH 9.87 µH 9.9 nH 9.988 µH 9.997 µH 90 nH 900 nH 901 nH 909 nH 91 nH 914 nH 92 nH 920 nH 93 nH 94 nH 94 µH 940 nH 945 nH 949 nH 95 nH 950 nH 96 nH 964 nH 965 nH 97 nH 970 nH 973 nH 98 nH 980 nH 99 nH 990 nH 991 nH	- -0.25% -20%, +30% -25%, +20% -25%, +35% -30%, +25% -30%, +40% -30%, ±25% -35%, +30% ±0.25% ±10% ±12% ±15% ±2% ±20% ±25% ±3% ±30% ±4% ±5% ±6% ±7% ±8%	- 0.031" (0.79mm) 0.039" (1.00mm) 0.040" (1.02mm) 0.043" (1.10mm) 0.050" (1.27mm) 0.051" (1.29mm) 0.052" (1.32mm) 0.055" (1.40mm) 0.057" (1.45mm) 0.058" (1.47mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.55mm) 0.063" (1.60mm) 0.064" (1.62mm) 0.065" (1.65mm) 0.066" (1.68mm) 0.067" (1.70mm) 0.069" (1.75mm) 0.070" (1.78mm) 0.071" (1.80mm) 0.072" (1.82mm) 0.078" (1.97mm) 0.079" (2.00mm) 0.080" (2.03mm) 0.082" (2.08mm) 0.083" (2.10mm) 0.085" (2.16mm) 0.089" (2.25mm) 0.091" (2.30mm) 0.093" (2.36mm) 0.094" (2.40mm) 0.096" (2.45mm) 0.098" (2.50mm) 0.099" (2.52mm) 0.100" (2.54mm) 0.101" (2.56mm) 0.101" (2.57mm) 0.104" (2.65mm) 0.106" (2.70mm) 0.108" (2.75mm) 0.110" (2.79mm) 0.110" (2.80mm) 0.112" (2.85mm) 0.113" (2.87mm) 0.114" (2.90mm) 0.115" (2.92mm) 0.116" (2.95mm) 0.117" (2.97mm) 0.118" (3.00mm) 0.119" (3.02mm) 0.120" (3.05mm) 0.121" (3.07mm) 0.122" (3.10mm) 0.124" (3.15mm) 0.125" (3.18mm) 0.126" (3.20mm) 0.128" (3.25mm) 0.130" (3.30mm) 0.131" (3.33mm) 0.132" (3.35mm) 0.133" (3.38mm) 0.134" (3.40mm) 0.135" (3.43mm) 0.136" (3.45mm) 0.138" (3.50mm) 0.139" (3.54mm) 0.140" (3.55mm) 0.142" (3.60mm) 0.144" (3.65mm) 0.145" (3.68mm) 0.145" (3.69mm) 0.146" (3.70mm) 0.147" (3.73mm) 0.148" (3.75mm) 0.150" (3.81mm) 0.151" (3.83mm) 0.153" (3.89mm) 0.154" (3.90mm) 0.156" (3.96mm) 0.157" (4.00mm) 0.158" (4.02mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.163" (4.15mm) 0.164" (4.17mm) 0.165" (4.20mm) 0.167" (4.25mm) 0.169" (4.29mm) 0.173" (4.40mm) 0.174" (4.42mm) 0.175" (4.45mm) 0.176" (4.47mm) 0.177" (4.50mm) 0.179" (4.55mm) 0.181" (4.60mm) 0.183" (4.65mm) 0.185" (4.70mm) 0.187" (4.75mm) 0.188" (4.78mm) 0.189" (4.80mm) 0.191" (4.85mm) 0.193" (4.90mm) 0.194" (4.93mm) 0.195" (4.95mm) 0.196" (4.98mm) 0.197" (5.00mm) 0.198" (5.03mm) 0.199" (5.06mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.203" (5.15mm) 0.205" (5.20mm) 0.206" (5.23mm) 0.207" (5.25mm) 0.208" (5.29mm) 0.209" (5.30mm) 0.210" (5.34mm) 0.211" (5.36mm) 0.213" (5.40mm) 0.215" (5.45mm) 0.216" (5.50mm) 0.217" (5.51mm) 0.218" (5.54mm) 0.219" (5.55mm) 0.220" (5.60mm) 0.222" (5.65mm) 0.224" (5.70mm) 0.225" (5.72mm) 0.226" (5.75mm) 0.228" (5.80mm) 0.230" (5.84mm) 0.232" (5.89mm) 0.232" (5.90mm) 0.234" (5.95mm) 0.236" (6.00mm) 0.237" (6.02mm) 0.240" (6.10mm) 0.243" (6.18mm) 0.244" (6.20mm) 0.246" (6.25mm) 0.248" (6.30mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.258" (6.55mm) 0.260" (6.60mm) 0.264" (6.70mm) 0.264" (6.71mm) 0.265" (6.75mm) 0.268" (6.80mm) 0.270" (6.85mm) 0.272" (6.91mm) 0.274" (6.95mm) 0.275" (7.00mm) 0.276" (7.00mm) 0.280" (7.11mm) 0.281" (7.15mm) 0.285" (7.24mm) 0.287" (7.30mm) 0.290" (7.37mm) 0.291" (7.40mm) 0.293" (7.43mm) 0.295" (7.49mm) 0.295" (7.50mm) 0.300" (7.60mm) 0.302" (7.66mm) 0.306" (7.78mm) 0.307" (7.80mm) 0.309" (7.85mm) 0.311" (7.90mm) 0.312" (7.92mm) 0.315" (8.00mm) 0.316" (8.03mm) 0.317" (8.05mm) 0.319" (8.10mm) 0.320" (8.13mm) 0.321" (8.15mm) 0.323" (8.20mm) 0.324" (8.25mm) 0.325" (8.26mm) 0.327" (8.30mm) 0.329" (8.35mm) 0.330" (8.38mm) 0.331" (8.40mm) 0.334" (8.48mm) 0.335" (8.50mm) 0.337" (8.55mm) 0.342" (8.69mm) 0.343" (8.70mm) 0.345" (8.76mm) 0.346" (8.79mm) 0.350" (8.90mm) 0.352" (8.95mm) 0.354" (9.00mm) 0.362" (9.20mm) 0.366" (9.30mm) 0.368" (9.35mm) 0.370" (9.40mm) 0.372" (9.45mm) 0.374" (9.50mm) 0.375" (9.53mm) 0.380" (9.65mm) 0.381" (9.69mm) 0.382" (9.70mm) 0.384" (9.78mm) 0.386" (9.80mm) 0.390" (9.90mm) 0.392" (9.95mm) 0.394" (10.00mm) 0.395" (10.03mm) 0.397" (10.08mm) 0.398" (10.10mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.404" (10.25mm) 0.406" (10.30mm) 0.407" (10.34mm) 0.410" (10.42mm) 0.412" (10.46mm) 0.413" (10.50mm) 0.415" (10.54mm) 0.417" (10.60mm) 0.419" (10.65mm) 0.420" (10.67mm) 0.421" (10.40mm) 0.424" (10.77mm) 0.425" (10.80mm) 0.427" (10.85mm) 0.429" (10.90mm) 0.430" (10.92mm) 0.431" (10.95mm) 0.433" (11.00mm) 0.434" (11.02mm) 0.436" (11.08mm) 0.437" (11.10mm) 0.440" (11.18mm) 0.441" (11.20mm) 0.447" (11.35mm) 0.449" (11.40mm) 0.450" (11.45mm) 0.457" (11.60mm) 0.462" (11.73mm) 0.465" (11.80mm) 0.468" (11.89mm) 0.469" (11.90mm) 0.470" (11.94mm) 0.472" (12.00mm) 0.482" (12.25mm) 0.484" (12.30mm) 0.485" (12.32mm) 0.486" (12.35mm) 0.487" (12.38mm) 0.488" (12.40mm) 0.492" (12.50mm) 0.494" (12.55mm) 0.500" (12.70mm) 0.502" (12.74mm) 0.504" (12.80mm) 0.508" (12.90mm) 0.510" (12.95mm) 0.511" (12.99mm) 0.512" (13.00mm) 0.516" (13.10mm) 0.520" (13.20mm) 0.520" (13.21mm) 0.522" (13.25mm) 0.525" (13.34mm) 0.528" (13.40mm) 0.530" (13.46mm) 0.530" (13.47mm) 0.531" (13.50mm) 0.533" (13.55mm) 0.535" (13.60mm) 0.537" (13.65mm) 0.538" (13.67mm) 0.539" (13.70mm) 0.542" (13.77mm) 0.543" (13.80mm) 0.545" (13.84mm) 0.547" (13.90mm) 0.550" (13.97mm) 0.551" (14.00mm) 0.555" (14.10mm) 0.557" (14.15mm) 0.559" (14.20mm) 0.561" (14.25mm) 0.565" (14.35mm) 0.567" (14.40mm) 0.570" (14.48mm) 0.571" (14.50mm) 0.573" (14.80mm) 0.576" (14.64mm) 0.577" (14.65mm) 0.579" (14.70mm) 0.582" (14.78mm) 0.585" (14.86mm) 0.587" (14.90mm) 0.591" (15.00mm) 0.593" (15.05mm) 0.594" (15.10mm) 0.596" (15.15mm) 0.597" (15.17mm) 0.598" (15.19mm) 0.598" (15.20mm) 0.600" (15.24mm) 0.602" (15.30mm) 0.605" (15.37mm) 0.606" (15.40mm) 0.608" (15.45mm) 0.610" (15.50mm) 0.614" (15.60mm) 0.616" (15.65mm) 0.618" (15.70mm) 0.620" (15.75mm) 0.621" (15.78mm) 0.622" (15.80mm) 0.625" (15.88mm) 0.626" (15.90mm) 0.630" (16.00mm) 0.632" (16.05mm) 0.634" (16.10mm) 0.635" (16.13mm) 0.637" (16.19mm) 0.638" (16.20mm) 0.640" (16.26mm) 0.642" (16.30mm) 0.646" (16.40mm) 0.650" (16.50mm) 0.650" (16.51mm) 0.654" (16.60mm) 0.655" (16.64mm) 0.657" (16.70mm) 0.661" (16.80mm) 0.663" (16.85mm) 0.664" (16.86mm) 0.665" (16.90mm) 0.669" (17.00mm) 0.670" (17.02mm) 0.673" (17.10mm) 0.677" (17.20mm) 0.681" (17.30mm) 0.683" (17.35mm) 0.685" (17.40mm) 0.687" (17.45mm) 0.689" (17.50mm) 0.693" (17.60mm) 0.701" (17.80mm) 0.704" (17.88mm) 0.705" (17.91mm) 0.708" (17.99mm) 0.709" (18.00mm) 0.710" (18.03mm) 0.712" (18.08mm) 0.717" (18.20mm) 0.720" (18.30mm) 0.725" (18.42mm) 0.728" (18.50mm) 0.729" (18.60mm) 0.736" (18.70mm) 0.740" (18.80mm) 0.742" (18.85mm) 0.744" (18.90mm) 0.745" (18.92mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.752" (19.10mm) 0.756" (19.20mm) 0.760" (19.30mm) 0.768" (19.50mm) 0.772" (19.60mm) 0.780" (19.80mm) 0.783" (19.90mm) 0.787" (20.00mm) 0.788" (20.02mm) 0.790" (20.07mm) 0.791" (20.10mm) 0.793" (20.15mm) 0.795" (20.20mm) 0.799" (20.30mm) 0.800" (20.32mm) 0.807" (20.50mm) 0.809" (20.55mm) 0.811" (20.60mm) 0.812" (20.63mm) 0.813" (20.65mm) 0.815" (20.70mm) 0.820" (20.83mm) 0.823" (20.90mm) 0.827" (21.00mm) 0.830" (21.08mm) 0.831" (21.10mm) 0.835" (21.20mm) 0.837" (21.25mm) 0.839" (21.30mm) 0.843" (21.40mm) 0.846" (21.50mm) 0.850" (21.59mm) 0.854" (21.70mm) 0.856" (21.75mm) 0.858" (21.80mm) 0.866" (21.99mm) 0.866" (22.00mm) 0.870" (22.10mm) 0.878" (22.30mm) 0.882" (22.40mm) 0.886" (22.50mm) 0.898" (22.80mm) 0.900" (22.86mm) 0.906" (23.00mm) 0.921" (23.40mm) 0.929" (23.60mm) 0.945" (24.00mm) 0.949" (24.10mm) 0.950" (24.13mm) 0.953" (24.20mm) 0.959" (24.35mm) 0.965" (24.50mm) 0.972" (24.70mm) 0.974" (24.75mm) 0.980" (24.90mm) 0.984" (25.00mm) 0.992" (25.20mm) 0.994" (25.26mm) 0.996" (25.30mm) 1.000" (25.40mm) 1.004" (25.50mm) 1.012" (25.70mm) 1.016" (25.81mm) 1.018" (25.86mm) 1.020" (25.91mm) 1.022" (25.96mm) 1.024" (26.00mm) 1.026" (26.05mm) 1.031" (26.20mm) 1.035" (26.29mm) 1.035" (26.30mm) 1.039" (26.40mm) 1.043" (26.50mm) 1.045" (26.55mm) 1.047" (26.60mm) 1.049" (26.65mm) 1.055" (26.80mm) 1.057" (26.85mm) 1.060" (26.92mm) 1.062" (26.97mm) 1.063" (27.00mm) 1.071" (27.20mm) 1.083" (27.50mm) 1.085" (27.56mm) 1.087" (27.60mm) 1.094" (27.80mm) 1.098" (27.90mm) 1.100" (27.94mm) 1.102" (28.00mm) 1.118" (28.40mm) 1.122" (28.50mm) 1.126" (28.60mm) 1.128" (28.65mm) 1.142" (29.00mm) 1.157" (29.40mm) 1.161" (29.50mm) 1.165" (29.60mm) 1.181" (30.00mm) 1.185" (30.10mm) 1.193" (30.30mm) 1.195" (30.35mm) 1.201" (30.50mm) 1.205" (30.60mm) 1.210" (30.73mm) 1.220" (31.00mm) 1.228" (31.20mm) 1.232" (31.30mm) 1.240" (31.50mm) 1.244" (31.60mm) 1.250" (31.75mm) 1.260" (32.00mm) 1.280" (32.51mm) 1.285" (32.64mm) 1.291" (32.80mm) 1.292" (32.82mm) 1.295" (32.90mm) 1.299" (33.00mm) 1.305" (33.15mm) 1.307" (33.20mm) 1.313" (33.35mm) 1.339" (34.00mm) 1.342" (34.09mm) 1.358" (34.50mm) 1.364" (34.65mm) 1.366" (34.70mm) 1.368" (34.75mm) 1.378" (35.00mm) 1.386" (35.20mm) 1.400" (35.56mm) 1.402" (35.60mm) 1.409" (35.80mm) 1.414" (35.92mm) 1.417" (36.00mm) 1.437" (36.50mm) 1.476" (37.50mm) 1.496" (38.00mm) 1.500" (38.10mm) 1.516" (38.50mm) 1.525" (38.74mm) 1.535" (39.00mm) 1.551" (39.40mm) 1.565" (39.75mm) 1.567" (39.80mm) 1.575" (40.00mm) 1.594" (40.50mm) 1.614" (41.00mm) 1.634" (41.50mm) 1.654" (42.00mm) 1.713" (43.50mm) 1.755" (44.58mm) 1.772" (45.00mm) 1.811" (46.00mm) 1.818" (46.18mm) 1.821" (46.25mm) 1.831" (46.50mm) 1.929" (49.00mm) 1.967" (49.95mm) 1.969" (50.00mm) 2.000" (50.80mm) 2.028" (51.50mm) 2.047" (52.00mm) 2.067" (52.50mm) 2.106" (53.50mm) 2.248" (57.10mm) 2.256" (57.30mm) 2.323" (59.00mm) 2.339" (59.40mm) 2.362" (60.00mm) 2.402" (61.00mm) 2.480" (63.00mm) 2.543" (64.60mm) 2.579" (65.50mm) 2.598" (66.00mm) 2.677" (68.00mm) 2.756" (70.00mm) 2.953" (75.00mm) 2.972" (75.50mm) 2.992" (76.00mm) 3.091" (78.50mm) 3.150" (80.00mm) 3.268" (83.00mm) 3.366" (85.50mm) 3.386" (86.00mm) 3.406" (86.50mm) 3.583" (91.00mm) 3.661" (93.00mm) 3.701" (94.00mm) 4.331" (110.00mm) 4.626" (117.50mm)	- Distributed Gapped Gapped Ungapped	- 100.0 1000.0 10000.0 1010.0 102.0 1020.0 103.0 1030.0 1032.0 104.0 1040.0 105.0 1050.0 106.0 1060.0 1070.0 1080.0 1086.0 109.0 1090.0 110.0 1100.0 1105.0 111.0 1110.0 112.0 1120.0 113.0 1130.0 114.0 1140.0 115.0 1150.0 116.0 1163.0 1170.0 118.0 1180.0 1182.0 119.0 1190.0 1195.0 120.0 1200.0 12000.0 121.0 1210.0 1213.0 122.0 1225.0 1227.0 123.0 1230.0 1235.0 124.0 125.0 1250.0 126.0 1260.0 127.0 1270.0 1280.0 129.0 1290.0 1294.0 130.0 1300.0 131.0 1310.0 1320.0 133.0 1330.0 134.0 1340.0 135.0 1350.0 136.0 1360.0 1365.0 1366.0 137.0 1370.0 138.0 1380.0 1390.0 14.0 140.0 1400.0 141.0 1410.0 142.0 1420.0 1430.0 144.0 1440.0 145.0 1450.0 146.0 1460.0 1461.0 147.0 1470.0 1475.0 148.0 1480.0 149.0 1490.0 150.0 1500.0 1505.0 151.0 1510.0 1515.0 152.0 1520.0 1525.0 153.0 1530.0 1535.0 154.0 1540.0 1545.0 155.0 1550.0 1560.0 1562.0 1563.0 1565.0 157.0 1570.0 1574.0 158.0 1580.0 159.0 1590.0 1596.0 1599.0 160.0 1600.0 161.0 1610.0 1620.0 1625.0 1630.0 1640.0 165.0 1650.0 166.0 1660.0 1670.0 1677.0 1680.0 169.0 1690.0 1698.0 170.0 1700.0 171.0 1710.0 1720.0 1730.0 1735.0 1737.0 1740.0 175.0 1750.0 1755.0 176.0 1760.0 1765.0 1770.0 1777.0 1780.0 1790.0 1796.0 18.0 180.0 1800.0 1810.0 182.0 1820.0 1825.0 1829.0 183.0 1830.0 1832.0 184.0 1840.0 185.0 1850.0 1855.0 186.0 1860.0 1865.0 1868.0 1872.0 1880.0 1884.0 189.0 1890.0 1895.0 19.0 19.9 190.0 1900.0 1910.0 1912.0 1917.0 1919.0 192.0 1920.0 193.0 1930.0 194.0 1940.0 1944.0 1950.0 196.0 1960.0 1970.0 198.0 1980.0 199.0 1990.0 1998.0 20.0 200.0 2000.0 201.0 2019.0 2020.0 203.0 2030.0 2040.0 205.0 2050.0 2060.0 2070.0 2080.0 2090.0 210.0 2100.0 2104.0 2120.0 2129.0 213.0 2138.0 2139.0 2140.0 2145.0 215.0 2150.0 216.0 2160.0 217.0 2170.0 2180.0 219.0 22.0 220.0 2200.0 221.0 2230.0 225.0 2258.0 2260.0 227.0 2270.0 2290.0 2299.0 230.0 2300.0 232.0 2333.0 234.0 2370.0 24.0 24.2 240.0 2400.0 243.0 2430.0 245.0 246.0 2460.0 247.0 2470.0 2476.0 2483.0 249.0 2490.0 25.0 250.0 251.0 2520.0 253.0 2530.0 254.0 255.0 2560.0 2573.0 2578.0 258.0 2590.0 26.0 260.0 2600.0 2613.0 262.0 2621.0 263.0 266.0 2670.0 2680.0 2690.0 27.0 27.4 270.0 2700.0 271.0 2720.0 273.0 2730.0 274.0 2765.0 279.0 28.0 280.0 281.0 2810.0 282.0 2860.0 2870.0 29.0 290.0 2900.0 291.0 298.0 299.0 300.0 3000.0 302.0 3020.0 303.0 3040.0 306.0 3080.0 31.0 31.8 310.0 311.0 314.0 318.0 32.0 321.0 330.0 335.0 336.0 3370.0 338.0 34.0 340.0 3400.0 342.0 35.0 3560.0 36.0 361.0 3610.0 3620.0 3640.0 3660.0 3670.0 37.0 37.8 370.0 3700.0 3770.0 380.0 3800.0 3820.0 3860.0 3880.0 390.0 391.0 3910.0 3920.0 3930.0 3950.0 396.0 3960.0 398.0 40.0 41.0 42.0 43.0 43.2 430.0 4300.0 4380.0 44.0 45.0 450.0 4540.0 46.0 460.0 4600.0 47.0 470.0 4700.0 4750.0 48.0 4800.0 483.0 4830.0 485.0 4860.0 49.0 4920.0 4930.0 4950.0 4980.0 499.0 4990.0 50.0 50.2 5000.0 51.0 5100.0 5130.0 52.0 5200.0 527.0 53.0 5350.0 5370.0 54.0 5400.0 550.0 5500.0 56.0 5600.0 5630.0 5648.0 5680.0 57.0 5700.0 5710.0 572.0 5720.0 58.0 580.0 5820.0 583.0 587.0 59.0 590.0 5900.0 5910.0 5990.0 5998.0 60.0 60.4 600.0 6010.0 6060.0 610.0 616.0 618.0 62.0 620.0 63.0 630.0 6310.0 6330.0 6360.0 638.0 64.0 640.0 6400.0 6480.0 6490.0 65.0 650.0 6500.0 6540.0 655.0 657.0 6590.0 66.0 660.0 662.0 6630.0 665.0 667.0 6680.0 670.0 675.0 68.0 68.5 680.0 6800.0 684.0 685.0 6890.0 690.0 6900.0 6910.0 70.0 700.0 7000.0 702.0 7020.0 7040.0 7070.0 7090.0 710.0 715.0 716.0 72.0 720.0 7220.0 7221.0 73.0 730.0 74.0 740.0 75.0 750.0 7500.0 7520.0 756.0 76.0 760.0 762.0 7620.0 7630.0 7650.0 77.0 770.0 7700.0 78.0 78.3 780.0 7800.0 79.0 79.6 792.0 799.0 80.0 800.0 802.0 8029.0 81.0 811.0 814.0 817.0 82.0 820.0 821.0 822.0 830.0 84.0 840.0 8400.0 85.0 86.0 860.0 8610.0 87.0 8700.0 877.0 88.0 880.0 89.0 894.0 90.0 900.0 91.0 916.0 92.0 920.0 93.0 930.0 9340.0 940.0 95.0 950.0 9500.0 951.0 96.0 960.0 97.0 970.0 98.0 99.0 990.0	- 15 20 25 28 31 33 35 36 37 39 3B1 3C11 3C90 3C91 3C92 3C94 3C95 3C96 3C97 3D3 3E10 3E12 3E25 3E26 3E27 3E5 3E6 3E65 3F3 3F36 3F4 3F46 3H3 3S1 3S4 40 42 43 44 46 4A11 4B1 4C65 4F1 4S2 5000 5099 50ALL 52 61 67 68 7070 7099 75 76 77 78 79 80 8040 95 Amorphous C DNW45 E Edge F GT3 H5A H5C2 H5C3 HF HF40 HF70 High DCB Edge High Flux HP1 HP2 HP2F HP3 HS72 J K1 K10 Kool Mu Kool Mu HF Kool Mu MAX Kool Mµ L L6 LP10 LP3 LP3A LP3S LP9 M M13 M33 MPP N001 N22 N27 N30 N41 N45 N48 N49 N72 N87 N88 N92 N95 N97 Nanocrystalline P PC200 PC40 PC44 PC47 PC95 Q5B R T T35 T37 T38 T46 T57 T65 T66 V W X FLUX ULTRA XFlux XFLUX HIGH DCB	- 100 1000 10000 10300 10400 10500 120 125 1300 13000 14 1400 14000 147 1500 15000 16 160 1600 1700 173 1800 1835 19 200 2000 2200 2300 2400 250 2500 26 2700 2800 300 3000 31000 3300 3700 3800 40 4000 4160 4200 4300 4500 4600 4700 4900 5000 5100 5200 5300 550 5500 5600 5700 60 600 6000 6100 630 650 6500 6610 700 7000 75 750 7500 80 800 8000 80000 850 8500 90 900 9900	- 0.00897 0.00923 0.01107 0.01146 0.01934 0.02067 0.0212 0.02209 0.02214 0.02911 0.06259 0.06337 0.1 0.116 0.12 0.13 0.136 0.156 0.16 0.161 0.162 0.17 0.172 0.181 0.191 0.2 0.21 0.218 0.22 0.224 0.225 0.226 0.227 0.228 0.25 0.251 0.257 0.259 0.26 0.261 0.264 0.268 0.27 0.272 0.274 0.278 0.28 0.282 0.29 0.291 0.293 0.294 0.3 0.307 0.31 0.314 0.32 0.323 0.324 0.33 0.331 0.332 0.335 0.34 0.341 0.342 0.345 0.35 0.352 0.353 0.36 0.363 0.37 0.372 0.373 0.375 0.38 0.381 0.383 0.388 0.39 0.4 0.401 0.409 0.41 0.412 0.414 0.415 0.42 0.426 0.439 0.44 0.441 0.447 0.448 0.45 0.451 0.454 0.46 0.462 0.464 0.467 0.47 0.484 0.49 0.497 0.498 0.5 0.503 0.504 0.507 0.508 0.509 0.51 0.514 0.517 0.52 0.522 0.53 0.534 0.538 0.54 0.548 0.55 0.553 0.56 0.563 0.57 0.579 0.58 0.589 0.59 0.594 0.596 0.597 0.6 0.604 0.605 0.607 0.61 0.62 0.641 0.65 0.651 0.658 0.66 0.664 0.67 0.68 0.683 0.69 0.697 0.7 0.71 0.718 0.72 0.73 0.731 0.737 0.74 0.75 0.76 0.769 0.77 0.77374 0.78 0.781 0.784 0.789 0.79 0.8 0.807 0.81 0.82 0.83 0.84 0.85 0.856 0.857 0.86 0.863 0.87 0.88 0.886 0.89 0.9 0.903 0.91 0.911 0.9136 0.91627 0.919 0.92 0.93 0.931 0.935 0.936 0.94 0.947 0.95 0.956 0.96 0.969 0.97 0.978 0.98 0.987 0.99 1.0 1.01 1.02 1.03 1.04 1.05 1.059 1.07 1.076 1.08 1.09 1.1 1.11 1.12 1.123 1.13 1.1361 1.14 1.15 1.16 1.17 1.19 1.2 1.21 1.23 1.24 1.25 1.27 1.29 1.2947 1.3 1.34 1.35 1.37 1.38 1.39 1.4 1.42 1.43 1.44 1.45 1.48 1.49 1.52 1.54 1.56 1.58 1.59 1.6 1.61 1.62 1.6226 1.65 1.66 1.67 1.68 1.69 1.7 1.72 1.76 1.77 1.78 1.81 1.83 1.87 1.89 1.9 1.92 1.937 1.94 1.95 1.98 1.9811 10.91 103.0 104.0 105.0 108.0 109.0 111.0 112.0 113.0 114.0 116.0 118.0 12.3 120.0 128.0 134.0 138.0 139.0 14.0 144.0 15.4 150.0 152.0 156.0 168.0 176.0 181.0 193.0 198.0 2.0 2.0033 2.03 2.06 2.0692 2.07 2.08 2.0842 2.09 2.1 2.11 2.13 2.131 2.19 2.2 2.21 2.213 2.26 2.2618 2.27 2.29 2.2904 2.31 2.33 2.39 2.4 2.45 2.46 2.5 2.53 2.563 2.59 2.6 2.67 2.7 2.72 2.82 2.826 2.84 2.85 2.8549 2.855 2.86 2.95 2.97 2.98 207.0 208.0 213.0 223.0 234.0 239.0 259.0 27.0 28.0 286.0 29.0 3.0 3.04 3.07 3.08 3.082 3.1 3.14 3.149 3.2 3.21 3.22 3.29 3.35 3.63 3.7 3.72 3.75 30.0 32.0 32.7 327.0 33.0 35.0 35.6 35.9 37.2 38.0 39.0 4.19 4.194 4.41 4.44 4.445 4.45 4.53 4.65 4.74 4.85 4.97 41.0 41.7 43.0 44.0 45.9 47.0 48.0 48.2 49.0 5.17 5.18 5.53 5.65 5.651 5.86 5.92 52.0 52.3 53.0 55.3 56.0 6.04 6.207 6.277 6.28 6.337 6.34 6.3677 6.37 6.56 6.62 6.63 6.73 6.83 60.0 67.0 69.0 7.12 7.138 7.7 7.75 7.93 72.0 73.0 79.0 8.29 8.56 8.74 8.76 8.77 80.0 81.0 82.0 87.0 876.0 9.06 9.15 9.41 9.55 90.7 93.0 95.0	- Coated Epoxy Nylon Parylene Plastic Polyester Uncoated	- 1.3 10.0 10.2 10.28 10.4 10.6 100.0 102.0 102.6 103.0 103.5 103.6 105.0 107.0 107.4 109.0 11.8 11.9 110.0 110.4 111.0 111.3 113.0 113.5 114.0 114.4 114.7 115.0 115.2 116.0 116.2 117.0 118.0 12.08 12.1 12.2 12.4 12.5 12.8 12.85 12.96 12.99 12.991 120.4 121.2 122.0 123.0 123.2 124.0 125.0 125.1 125.6 126.0 127.0 127.3 128.0 13.0 13.026 13.03 13.1 13.4 13.5 13.6 13.9 130.3 131.0 132.0 133.0 134.0 134.4 135.0 137.0 138.7 139.0 14.0 14.1 14.2 14.4 14.7 14.8 14.83 14.9 14.93 141.0 143.0 143.6 144.0 144.6 145.0 146.0 147.0 147.6 148.0 149.0 15.0 15.2 15.21 15.25 15.3 15.4 15.5 15.7 15.9 152.0 152.1 152.4 154.0 154.8 157.6 158.0 158.1 16.2 16.3 16.4 16.5 16.6 16.7 162.0 163.0 165.0 166.0 167.0 168.0 168.1 17.0 17.3 17.4 17.42 17.5 17.6 17.8 17.9 174.0 175.0 177.0 177.2 178.0 178.6 179.0 18.5 18.7 183.8 184.0 185.0 189.0 19.0 19.2 19.3 19.8 195.6 196.0 196.1 199.0 20.0 20.1 20.2 20.3 20.5 20.6 20.7 20.72 20.8 20.9 200.0 204.0 207.0 208.0 21.0 21.1 21.3 21.4 21.7 21.79 21.8 210.0 212.0 213.9 214.0 214.9 215.0 217.3 217.5 219.0 22.0 22.1 22.5 22.7 22.9 225.0 23.0 23.1 23.2 23.3 23.5 23.6 23.7 23.8 23.9 230.0 232.0 236.0 237.0 24.07 24.1 24.2 24.3 24.6 242.7 243.0 245.0 25.0 25.1 25.2 25.3 25.6 25.7 25.8 25.9 251.0 255.0 255.3 255.32 258.0 259.0 259.31 259.4 26.1 26.4 26.6 26.7 26.8 26.9 26.98 262.0 27.0 27.2 27.3 27.5 27.7 27.8 272.0 273.0 274.0 28.4 28.5 28.6 28.7 280.0 283.0 284.0 29.0 29.2 29.3 29.32 29.4 29.5 29.51 29.6 29.7 29.8 294.0 3.7 30.0 30.09 30.1 30.4 30.5 30.6 30.8 302.0 305.0 308.0 31.0 31.03 31.06 31.17 31.2 31.22 31.4 31.5 31.6 31.7 31.8 310.0 313.0 314.0 32.2 32.3 32.4 32.5 32.7 32.8 32.9 324.0 324.3 33.2 33.3 33.8 33.9 34.0 34.3 34.4 34.91 34.96 34.98 342.0 35.0 35.1 35.2 35.3 35.5 35.8 353.0 354.0 36.2 36.75 36.8 36.9 361.0 37.0 37.2 37.4 37.6 37.7 375.8 38.0 38.2 38.3 38.4 38.5 38.52 38.7 38.9 381.5 382.0 386.5 387.0 39.0 39.3 39.6 39.8 39.9 393.0 398.0 4.01 4.45 40.0 40.1 40.2 40.3 40.8 401.0 407.0 41.0 41.1 41.2 41.4 41.5 41.6 41.7 41.8 412.0 412.4 416.0 418.0 42.0 42.3 42.4 421.0 422.0 424.0 43.5 43.55 43.6 43.7 43.8 44.0 44.3 44.4 44.6 44.7 44.8 45.0 45.1 45.2 45.3 45.4 45.6 45.7 456.0 456.7 46.0 46.1 46.2 46.3 46.4 47.0 47.3 47.4 47.6 47.9 477.0 48.0 48.1 48.2 48.4 48.5 480.0 49.0 49.1 49.2 49.5 5.1 5.49 5.5 5.53 5.531 5.93 5.988 5.99 50.0 50.2 50.3 50.32 50.4 50.8 50.9 51.1 51.8 51.9 5110.0 52.0 52.3 52.4 52.9 520.0 53.2 53.4 53.5 53.6 53.7 5340.0 54.0 54.1 54.15 54.2 54.3 54.6 54.7 54.8 55.3 55.4 55.5 55.7 55.8 55.9 550.5 56.3 56.6 56.7 56.82 56.9 564.0 57.0 57.5 57.6 57.8 57.9 58.0 58.5 58.8 59.0 59.5 6.02 6.1 6.2 6.64 6.938 60.07 60.1 60.2 60.4 61.1 61.3 61.5 61.7 61.9 617.3 62.0 62.1 62.9 63.0 63.5 63.8 63.9 64.0 64.2 64.3 64.4 65.1 65.6 66.0 66.2 66.5 67.0 67.1 67.7 67.8 68.0 68.3 68.5 68.6 68.9 69.1 69.3 69.4 69.6 69.7 7.4 7.51 7.57 7.6 7.619 7.62 7.65 7.9 70.0 70.4 70.7 71.0 72.0 72.3 73.0 73.2 73.5 73.7 73.78 73.8 74.0 74.4 74.5 74.6 74.7 74.8 75.0 75.3 75.4 75.5 75.7 76.0 76.1 76.4 76.7 77.0 77.02 77.4 77.5 78.0 78.5 78.6 79.0 79.2 79.7 79.9 8.05 8.054 8.06 8.097 8.1 8.47 8.71 8.9 80.2 80.6 80.7 80.9 81.0 81.4 82.06 82.1 82.8 82.9 82.97 83.4 83.5 83.6 84.0 84.4 84.9 85.2 86.0 86.1 86.4 87.9 88.0 88.2 88.4 88.9 89.0 89.1 89.3 89.5 89.6 89.65 89.7 89.8 9.16 9.165 9.18 9.196 9.2 9.21 9.42 9.63 9.7 9.73 9.9 90.1 90.8 91.1 91.3 91.8 92.2 92.4 92.5 93.0 93.3 94.0 94.3 94.7 94.9 95.0 95.8 96.0 96.29 96.3 97.0 97.9 98.0 98.1 98.4 98.5 98.6 98.7 98.8 99.0	- 0.059" (1.50mm) 0.071" (1.81mm) 0.087" (2.20mm) 0.118" (3.00mm) 0.136" (3.45mm) 0.137" (3.48mm) 0.142" (3.60mm) 0.144" (3.65mm) 0.157" (4.00mm) 0.177" (4.50mm) 0.197" (5.00mm) 0.205" (5.20mm) 0.207" (5.25mm) 0.236" (6.00mm) 0.242" (6.15mm) 0.248" (6.30mm) 0.262" (6.65mm) 0.276" (7.00mm) 0.277" (7.04mm) 0.285" (7.25mm) 0.287" (7.30mm) 0.295" (7.50mm) 0.315" (8.00mm) 0.340" (8.64mm) 0.354" (9.00mm) 0.362" (9.20mm) 0.368" (9.35mm) 0.370" (9.40mm) 0.371" (9.43mm) 0.374" (9.50mm) 0.390" (9.90mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.409" (10.40mm) 0.413" (10.50mm) 0.425" (10.80mm) 0.427" (10.85mm) 0.429" (10.90mm) 0.433" (11.00mm) 0.453" (11.50mm) 0.465" (11.80mm) 0.472" (12.00mm) 0.488" (12.40mm) 0.492" (12.50mm) 0.496" (12.60mm) 0.500" (12.70mm) 0.504" (12.80mm) 0.512" (13.00mm) 0.520" (13.20mm) 0.522" (13.25mm) 0.525" (13.34mm) 0.545" (13.85mm) 0.551" (14.00mm) 0.563" (14.30mm) 0.571" (14.50mm) 0.573" (14.80mm) 0.575" (14.60mm) 0.579" (14.70mm) 0.587" (14.90mm) 0.590" (14.98mm) 0.591" (15.00mm) 0.598" (15.20mm) 0.606" (15.40mm) 0.610" (15.50mm) 0.630" (16.00mm) 0.646" (16.40mm) 0.661" (16.80mm) 0.690" (17.50mm) 0.693" (17.60mm) 0.701" (17.90mm) 0.709" (18.00mm) 0.715" (18.15mm) 0.720" (18.30mm) 0.724" (18.40mm) 0.728" (18.50mm) 0.740" (18.80mm) 0.746" (18.95mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.752" (19.10mm) 0.753" (19.13mm) 0.760" (19.30mm) 0.787" (20.00mm) 0.799" (20.30mm) 0.803" (20.40mm) 0.807" (20.50mm) 0.815" (20.70mm) 0.819" (20.80mm) 0.831" (21.10mm) 0.839" (21.30mm) 0.858" (21.80mm) 0.866" (22.00mm) 0.870" (22.10mm) 0.874" (22.20mm) 0.896" (22.75mm) 0.900" (22.86mm) 0.913" (23.20mm) 0.921" (23.39mm) 0.921" (23.40mm) 0.945" (24.00mm) 0.965" (24.50mm) 0.976" (24.80mm) 0.984" (25.00mm) 0.988" (25.10mm) 0.996" (25.30mm) 1.000" (25.40mm) 1.004" (25.50mm) 1.043" (26.50mm) 1.067" (27.10mm) 1.071" (27.20mm) 1.075" (27.30mm) 1.096" (27.85mm) 1.102" (28.00mm) 1.110" (28.19mm) 1.122" (28.50mm) 1.124" (28.55mm) 1.142" (29.00mm) 1.169" (29.70mm) 1.181" (30.00mm) 1.185" (30.10mm) 1.205" (30.60mm) 1.213" (30.80mm) 1.219" (30.95mm) 1.220" (31.00mm) 1.230" (31.24mm) 1.232" (31.30mm) 1.237" (31.42mm) 1.250" (31.75mm) 1.260" (32.00mm) 1.264" (32.10mm) 1.289" (32.75mm) 1.299" (33.00mm) 1.339" (34.00mm) 1.346" (34.20mm) 1.350" (34.30mm) 1.358" (34.50mm) 1.360" (34.54mm) 1.362" (34.60mm) 1.374" (34.90mm) 1.378" (35.00mm) 1.382" (35.10mm) 1.390" (35.30mm) 1.394" (35.40mm) 1.398" (35.50mm) 1.400" (35.56mm) 1.402" (35.61mm) 1.417" (36.00mm) 1.421" (36.10mm) 1.425" (36.20mm) 1.449" (36.80mm) 1.457" (37.00mm) 1.472" (37.40mm) 1.480" (37.60mm) 1.496" (38.00mm) 1.500" (38.10mm) 1.524" (38.70mm) 1.531" (38.90mm) 1.575" (40.00mm) 1.594" (40.50mm) 1.598" (40.60mm) 1.600" (40.64mm) 1.609" (40.87mm) 1.620" (41.15mm) 1.625" (41.28mm) 1.634" (41.50mm) 1.638" (41.60mm) 1.645" (41.78mm) 1.646" (41.80mm) 1.654" (42.00mm) 1.657" (42.10mm) 1.659" (42.15mm) 1.661" (42.20mm) 1.669" (42.40mm) 1.687" (42.85mm) 1.693" (43.00mm) 1.700" (43.20mm) 1.701" (43.20mm) 1.724" (43.80mm) 1.772" (45.00mm) 1.811" (46.00mm) 1.819" (46.20mm) 1.846" (46.90mm) 1.870" (47.50mm) 1.890" (48.00mm) 1.909" (48.50mm) 1.929" (49.00mm) 1.961" (49.80mm) 1.969" (50.00mm) 1.988" (50.50mm) 2.000" (50.80mm) 2.008" (51.00mm) 2.024" (51.40mm) 2.055" (52.20mm) 2.094" (53.20mm) 2.106" (53.50mm) 2.146" (54.50mm) 2.156" (54.50mm) 2.160" (54.86mm) 2.161" (54.90mm) 2.165" (55.00mm) 2.209" (56.10mm) 2.213" (56.20mm) 2.270" (57.65mm) 2.299" (58.40mm) 2.300" (58.42mm) 2.323" (59.00mm) 2.336" (59.34mm) 2.337" (59.35mm) 2.354" (59.80mm) 2.362" (60.00mm) 2.382" (60.50mm) 2.480" (63.00mm) 2.500" (63.50mm) 2.512" (63.80mm) 2.520" (64.00mm) 2.559" (65.00mm) 2.565" (65.15mm) 2.579" (65.51mm) 2.618" (66.50mm) 2.650" (67.30mm) 2.692" (68.37mm) 2.756" (70.00mm) 2.776" (70.50mm) 2.823" (71.70mm) 2.850" (72.39mm) 2.913" (74.00mm) 3.000" (76.20mm) 3.110" (79.00mm) 3.142" (79.80mm) 3.150" (80.00mm) 3.169" (80.50mm) 3.185" (80.90mm) 3.197" (81.20mm) 3.228" (82.00mm) 3.232" (82.10mm) 3.661" (93.00mm) 3.673" (93.30mm) 3.740" (95.00mm) 3.937" (100.00mm) 3.949" (100.30mm) 3.976" (101.00mm) 4.000" (101.60mm) 4.016" (102.00mm) 4.094" (104.00mm) 4.173" (106.00mm) 4.213" (107.00mm) 4.331" (110.00mm) 4.488" (114.00mm) 4.500" (114.30mm) 4.516" (114.70mm) 4.646" (118.00mm) 4.724" (120.00mm) 4.961" (126.00mm) 5.118" (130.00mm) 5.130" (130.30mm) 5.315" (135.00mm) 5.512" (140.00mm) 5.551" (141.00mm) 5.906" (150.00mm) 6.102" (155.00mm) 6.201" (157.50mm) 6.299" (160.00mm) 6.300" (160.02mm) 6.457" (164.00mm) 7.874" (200.00mm) 8.220" (208.80mm) 8.583" (218.00mm) 9.646" (245.00mm)	- 1.12 1.795 10.0 10.5 10100.0 101000.0 10140.0 102.0 10200.0 102000.0 10230.0 1029.0 1040.0 10400.0 10440.0 1050.0 10500.0 1060.0 10600.0 107.0 1070.0 10700.0 107200.0 10800.0 1090.0 11000.0 1110.0 11100.0 1114.0 1117.0 1120.0 11300.0 1136.0 11400.0 11430.0 11461.0 11500.0 115000.0 1164.0 11740.0 11800.0 11850.0 1190.0 11900.0 12.0 12.485 12.69 12.7 12.9 120.0 1200.0 12000.0 12070.0 12100.0 121000.0 12168.0 1218.0 122.0 12200.0 12370.0 1238.0 124.0 12400.0 1242.0 12468.0 1248.0 125.0 12500.0 126.0 1260.0 12600.0 1261.0 126500.0 1270.0 13.6 1300.0 1302.0 131.0 1310.0 13100.0 13172.0 13200.0 1325.0 133000.0 133351.0 133485.0 134.0 1340.0 13440.0 13600.0 13630.0 13650.0 1370.0 13700.0 13800.0 13810.0 13832.0 138686.0 13900.0 1393.0 1395.0 14.748 14.8 1400.0 14000.0 1415.0 1416.0 1417.0 142.0 1420.0 14205.0 14270.0 1430.0 14360.0 14370.0 144.0 1440.0 14420.0 145000.0 1460.0 14600.0 1465.0 147.0 14800.0 149.0 1490.0 15.5 15.7 150.0 1500.0 15000.0 15010.0 151.0 1510.0 15100.0 15196.0 152.0 15298.0 15300.0 1540.0 15600.0 15680.0 1580.0 158000.0 15848.0 159.0 15900.0 159000.0 16000.0 16063.0 161086.0 161100.0 16130.0 162.0 16300.0 164.0 16466.0 165.0 1650.0 16559.0 166.0 16600.0 16676.0 167.0 16700.0 1680.0 16800.0 17.5 171.0 17100.0 17122.0 1722.0 172440.0 17300.0 1733.0 17346.0 174.0 1740.0 174000.0 17430.0 17500.0 175000.0 17600.0 1763.0 177.0 177651.0 1780.0 17800.0 1782.6 1783.0 17900.0 17940.0 1800.0 18000.0 1810.0 1820.0 18200.0 1825.0 18260.0 18270.0 18400.0 1850.0 18560.0 1860.0 1870.0 18745.0 188.0 18800.0 18900.0 18969.0 19.0 19.3 19.9 1900.0 1901.0 1910.0 19152.0 19190.0 19200.0 19289.0 1930.0 19300.0 19304.0 1960.0 197000.0 19717.0 1990.0 19900.0 199000.0 19927.0 1997.0 20.029 2000.0 201390.0 20146.0 202000.0 203.0 20300.0 2033.0 2040.0 2050.0 20500.0 206.0 2060.0 206422.0 20650.0 20700.0 2080.0 20800.0 208155.0 20829.0 2083.0 21.3 2100.0 21000.0 21100.0 212000.0 2130.0 21300.0 21428.0 2144.0 215.0 21500.0 2160.0 21620.0 217.0 217000.0 2180.0 2182110.0 219000.0 220.0 22000.0 220000.0 22100.0 222.0 22300.0 22350.0 22378.0 2250.0 22500.0 226.0 227.0 2270.0 22700.0 22774.0 22797.0 2280.0 22800.0 2284.0 22980.0 23.38 230.0 23000.0 23080.0 231.0 2310.0 23100.0 23200.0 23230.0 233.0 2330.0 23300.0 2340.0 23500.0 23560.0 2360.0 2361.0 2367.0 2370.0 23700.0 237000.0 237048.0 2380.0 240.0 24000.0 2410.0 24100.0 2419.0 242.0 243.0 2430.0 244.0 2440.0 24420.0 24500.0 2451.0 2460.0 24600.0 248.0 25.309 25.6 251.0 252.0 2520.0 2526.0 253.0 2540.0 255.0 2550.0 25500.0 2560.0 257.0 2570.0 2590.0 26.0 26.38 26.4 26.6 26.7 26.775 26.8 2600.0 26000.0 262000.0 2630.0 2632.0 264.0 26580.0 26660.0 2679.0 268800.0 26900.0 27.0 270.0 2700.0 27000.0 2702.0 2704.0 27200.0 2750.0 276.0 27600.0 278.0 27800.0 2789.0 279.0 2790.0 27900.0 2798.0 28.3 28.7 2810.0 2811.0 283.0 2830.0 2834.0 284.0 2843.0 28453.0 28460.0 2850.0 286.0 28600.0 2880.0 288288.0 289.0 28900.0 29020.0 2921.0 2944.0 2950.0 2960.0 2967.0 29700.0 297000.0 2981.0 2990.0 3.0 3.07 3.85 30.0 30.2 30.3 300.0 3000.0 300000.0 30100.0 30115.0 30116.0 3020.0 304.0 30405.0 30597.0 3060.0 30710.0 3079.0 308.0 30820.0 309.0 3090.0 31.0 31.5 310.0 31000.0 311.0 312.0 3120.0 31200.0 31250.0 31300.0 315.0 3150.0 3170.0 318.0 3180.0 319.0 319000.0 3199.0 322.0 3230.0 324620.0 325.0 3290.0 3293.0 330.0 3300.0 3310.0 3320.0 333.0 33300.0 334.0 335030.0 3360.0 3370.0 3380.0 33900.0 340.0 3400.0 3410.0 34200.0 343.0 34300.0 34400.0 344000.0 345.0 34500.0 3460.0 3470.0 34741.0 34771.0 348.0 349.0 3490.0 350.0 35288.0 35298.0 3530.0 35300.0 3532.0 3534.0 35500.0 35539.0 35600.0 357.0 3570.0 3580.0 3590.0 35900.0 360.0 36000.0 361.0 3620.0 36200.0 36300.0 3640.0 36630.0 366700.0 367.0 36700.0 367000.0 368.0 369.0 37.0 37100.0 372.0 37200.0 37270.0 374.0 3740.0 3750.0 37500.0 376.0 3760.0 37630.0 378.0 380.0 3800.0 381.0 38100.0 382.0 3847.0 385.0 3880.0 3910.0 3940.0 39700.0 398.0 39800.0 4.15 4.286 4.3 4.5 40.3 40.992 4000.0 40000.0 401.0 40100.0 40200.0 405.4 40582.0 40700.0 407000.0 408000.0 40852.0 4130.0 41400.0 4145.0 4150.0 41500.0 4170.0 4190.0 41900.0 42133.0 4260.0 42680.0 42700.0 42800.0 42900.0 430.0 4306.0 431.0 4310.0 43100.0 4320.0 433.0 43400.0 435.0 4360.0 4370.0 43900.0 44000.0 4410.0 442.0 442337.0 44667.0 447.0 449.0 450.0 4500.0 45000.0 451.0 451.2 4510.0 4512.0 45226.0 455.0 45598.0 4560.0 457.0 4570.0 46.5 460.0 4619.0 46360.0 46400.0 4644.0 465.0 46500.0 46530.0 466.0 466560.0 470.0 4700.0 472.0 47360.0 48000.0 4826.0 4830.0 48800.0 491200.0 492.0 495.0 49520.0 496.7 49668.0 497.0 4970.0 49700.0 49750.0 498.0 4980.0 500.0 5000.0 50200.0 50300.0 503700.0 50400.0 505.0 505000.0 506.7 5060.0 507.0 5070.0 507280.0 50897.0 510.0 51000.0 5110.0 51200.0 51300.0 5150.0 51500.0 51800.0 52.6 5200.0 52000.0 5210.0 52100.0 5220.0 5240.0 525.0 5250.0 526.0 5260.0 53.0 531.0 53200.0 5340.0 5350.0 53600.0 5380.0 5385.0 539.0 5398.0 54.753 5400.0 5410.0 5418.0 5423.0 5435.0 5470.0 548.0 5480.0 5481.0 549.0 5490.0 55.0 55.8 550.0 5534.0 5547.0 555.0 5574.0 558.0 5590.0 55900.0 56.0 560.0 5610.0 5616.0 56237.0 5661.0 5680.0 57200.0 5731.0 5734.0 574.0 5750.0 580.0 582.0 5820.0 5830.0 5834.0 5900.0 59100.0 5940.0 5990.0 6.09 6.3 6.345 6.4 603.0 6080.0 6090.0 61000.0 6110.0 6120.0 6140.0 6142.0 6150.0 6157.0 6160.0 6190.0 6192.0 6195.0 6200.0 62000.0 62460.0 628.0 6337.0 63500.0 6359.0 63700.0 637000.0 64.0 64.9 6400.0 6440.0 645.0 646.0 65.0 6500.0 6530.0 6550.0 66.8 66079.0 6630.0 667.0 6670.0 66825.0 671.0 6720.0 6740.0 676530.0 677000.0 67745.0 6778.0 6780.0 6790.0 6820.0 68200.0 68220.0 68221.0 68821.0 69.0 69200.0 6959.0 6960.0 6991.0 7.0 7.3 7.755 7.8 7.87 70.0 7000.0 70000.0 70099.0 7020.0 7024.0 70500.0 70595.0 706.0 7070.0 71800.0 7187.0 72000.0 72300.0 73552.0 739.0 7410.0 7460.0 750.0 756.0 7560.0 760.0 762.0 7630.0 7640.0 7650.0 766.0 7680.0 770.0 7700.0 774.0 78.0 7800.0 78100.0 78600.0 78650.0 78840.0 7900.0 79000.0 791.0 793.0 79400.0 79410.0 79800.0 799591.0 8.37 8.82 800.0 802.0 8070.0 80700.0 80717.0 809.0 80900.0 810.0 811.0 81165.0 813.0 815.0 81500.0 819.0 81950.0 82.0 820.0 830.0 8320.0 8340.0 8366.0 837.0 83900.0 840.0 8440.0 8460.0 8540.0 85400.0 8596.0 8597.0 8600.0 863.0 8675.0 86900.0 87000.0 87100.0 8740.0 878.0 88200.0 8821.0 884.0 88700.0 891.0 8950.0 899.0 8995.0 9.1 9.248 9.677 9.68 9.7 9.9 900.0 9000.0 9030.0 9100.0 914.0 91400.0 91600.0 917.0 9180.0 9250.0 930.0 933.0 9420.0 9440.0 9462.0 950.0 9513.0 9576.0 960.0 96000.0 96013.0 9644.0 9652.0 966.0 97000.0 9710.0 972.0 9720.0 9780.0 9860.0 9862.0 9944.0 9950.0 999.0	- 0.442 0.49 0.5 0.6 0.64 0.68 0.77 0.775 0.785 0.83 0.96 0.961 1.03 1.05 1.052 1.06 1.08 1.1 1.11 1.118 1.2 1.21 1.214 1.23 1.25 1.3 1.37 1.4 1.41 1.5 1.51 1.52 1.54 1.639 1.64 1.66 1.7 1.77 1.82 1.821 1.9 1.97 10.0 10.1 10.12 10.2 10.3 10.42 10.7 10.8 10.9 10.96 100.0 100.5 101.0 102.5 104.0 105.0 107.0 108.0 1080.0 109.0 11.0 11.2 11.3 11.4 11.5 11.8 11.9 110.0 110.5 111.0 112.0 112.1 112.2 113.1 114.0 114.2 114.3 115.6 116.0 116.2 117.0 117.7 118.0 118.9 119.0 119.8 12.0 12.02 12.2 12.23 12.27 12.3 12.32 12.4 12.5 12.6 12.7 12.8 12.83 12.9 120.0 120.3 1200.0 1205.0 121.0 122.0 122.3 1220.0 12200.0 1225.0 123.0 124.0 1240.0 125.0 125.1 125.3 127.0 128.0 128.7 129.0 13.0 13.2 13.4 13.7 13.8 130.0 131.0 131.2 1312.0 132.0 133.7 134.0 135.0 135.4 135.9 136.0 137.0 138.0 14.0 14.01 14.06 14.1 14.2 14.3 14.4 14.5 14.66 14.7 14.9 14.96 140.0 141.0 142.0 1428.0 143.0 143.5 144.0 1440.0 145.0 145.5 1450.0 146.0 147.5 148.0 149.0 149.1 15.0 15.2 15.3 15.4 15.5 15.6 15.78 15.9 15.96 1504.0 152.0 152.3 152.4 153.0 153.8 1537.0 154.2 155.0 156.0 157.0 157.4 158.0 16.0 16.17 16.2 16.3 16.4 16.5 16.6 16.7 160.0 160.1 1600.0 161.0 161.8 162.0 164.0 164.2 166.0 167.0 168.0 1681.0 169.0 169.7 17.1 17.17 17.2 17.3 17.5 17.6 17.7 170.0 171.0 172.0 1720.0 173.0 174.0 174.9 175.0 176.0 177.0 178.0 179.5 18.47 18.96 180.0 180.5 181.0 183.0 184.0 186.0 187.0 188.3 188.8 189.0 19.0 19.2 19.3 19.5 19.6 19.7 19.73 19.8 19.9 190.0 192.0 194.0 195.0 195.7 196.0 196.8 197.0 198.0 199.0 2.0 2.04 2.054 2.055 2.06 2.1 2.11 2.119 2.12 2.16 2.185 2.19 2.22 2.53 2.8 2.85 20.0 20.1 20.2 20.3 20.5 20.8 200.0 201.0 202.0 206.0 207.0 208.0 21.0 21.04 21.2 210.0 211.0 212.0 213.0 213.5 214.0 215.0 216.7 217.0 219.0 22.0 22.1 22.5 22.6 22.7 22.8 22.9 221.0 225.0 227.0 228.0 228.6 229.0 23.0 23.2 23.3 23.8 230.0 2300.0 231.0 232.0 232.48 233.0 234.0 235.0 236.0 237.0 239.0 24.0 24.2 24.3 24.4 24.5 24.6 24.8 240.0 244.0 245.0 247.0 248.0 25.0 25.1 25.3 25.6 25.7 25.8 250.0 255.0 26.0 26.1 26.17 26.2 26.9 260.0 262.0 264.0 265.0 266.0 267.0 267.2 267.3 27.0 27.3 27.7 270.0 274.0 275.0 277.0 279.0 28.3 28.4 28.7 280.0 285.0 288.0 29.9 290.0 294.0 297.0 3.0 3.06 3.09 3.1 3.14 3.142 3.3 3.71 3.84 30.0 30.2 30.8 30.9 300.0 305.0 305.9 306.0 308.0 31.0 31.2 31.3 31.7 31.74 310.0 314.0 318.0 319.0 32.0 32.1 32.2 32.3 32.5 32.6 320.27 324.0 328.0 329.0 33.14 33.3 33.6 33.63 33.7 33.9 330.0 332.0 334.0 337.0 337.2 338.1 34.0 34.2 34.4 345.0 349.0 35.5 35.7 35.78 35.9 350.0 353.0 354.0 357.0 358.0 36.0 36.6 36.9 360.0 362.0 368.0 37.0 37.1 37.2 37.4 37.5 370.0 370.27 375.0 377.0 38.0 38.4 38.5 38.8 388.0 389.0 39.0 39.5 39.7 390.0 392.0 4.04 4.07 4.1 4.2 4.215 4.22 4.28 4.3 4.31 4.4 4.44 4.7 4.76 4.91 40.0 40.1 40.3 40.4 40.6 40.8 402.0 41.0 417.0 419.0 42.0 42.1 42.2 42.6 420.0 422.0 422.3 423.0 427.0 43.0 43.1 43.3 43.4 44.1 44.2 44.5 44.8 440.0 447.0 448.0 45.0 45.3 45.5 45.6 450.0 451.5 458.9 46.0 46.4 46.6 46.7 47.0 47.5 475.0 477.0 4778.0 48.0 48.2 48.6 48.9 483.0 485.0 49.0 49.7 490.0 492.0 497.0 498.0 5.0 5.8 5.94 5.99 50.0 50.2 50.3 50.9 51.15 51.2 51.26 51.8 51.9 511.0 514.0 514.3 514.5 516.0 518.0 519.0 52.0 52.3 52.5 52.9 520.0 53.4 531.0 534.2 534.83 535.0 538.0 540.0 542.0 55.6 55.9 56.0 56.1 560.0 57.0 57.2 57.9 570.0 58.0 58.3 584.0 59.0 59.8 597.0 6.01 6.75 6.95 60.0 60.1 60.8 60.9 600.0 604.0 608.6 61.0 61.2 61.5 61.9 610.0 62.0 62.1 62.2 62.5 62.6 62.9 620.0 63.0 63.4 63.9 63.93 64.0 64.66 64.8 64.9 645.0 65.4 65.6 66.08 660.0 669.0 67.0 67.8 67.9 677.0 678.0 68.0 68.8 683.0 69.0 693.0 7.0 7.07 7.1 7.18 7.2 7.25 7.28 7.3 7.49 7.5 7.52 7.7 7.8 7.83 706.0 71.0 716.0 717.0 72.1 72.6 73.0 73.1 73.2 73.4 73.6 73.9 735.0 738.0 74.0 74.9 75.0 76.0 76.1 76.5 76.7 76.89 76.98 760.0 77.0 77.1 778.0 78.0 78.3 78.4 78.5 78.7 78.9 79.0 79.2 790.0 8.0 8.07 8.28 8.47 8.7 8.81 8.93 80.0 80.2 80.4 80.6 80.8 81.4 81.9 82.1 82.6 83.0 83.2 83.3 836.0 84.0 84.3 840.0 85.2 85.4 85.5 85.6 85.9 86.0 86.3 86.4 86.7 87.0 89.7 89.8 9.0 9.06 9.2 9.39 9.45 9.56 9.57 9.9 9.96 90.3 90.6 905.0 91.1 91.7 91.8 910.0 914.0 917.0 92.0 93.0 93.3 93.9 94.0 94.9 948.0 95.75 95.8 95.89 95.9 950.0 96.0 96.6 97.0 97.1 97.2 97.5 98.0 987.0 99.0 99.1 99.5 990.0	- 1.52 10.1 10.3 10.7 10.8 10.9 100.0 101.0 105.4 106.0 108.0 108.7 108.8 109.0 11.3 11.4 11.5 111.0 112.0 113.1 114.0 116.0 117.0 117.7 119.0 12.2 12.4 12.5 12.6 12.7 1200.0 1205.0 121.0 1215.0 123.0 1230.0 124.7 125.0 125.3 126.7 127.0 127.5 128.0 129.0 13.1 13.2 13.7 13.9 130.0 135.0 1380.0 139.0 14.1 14.3 14.5 14.66 14.7 14.8 14.9 140.0 140.1 140.4 1400.0 141.0 142.0 143.0 146.5 1494.0 15.0 15.9 1537.0 1580.0 1585.0 159.9 1590.0 161.0 161.7 162.0 163.0 166.0 168.0 17.0 17.3 17.6 170.0 170.9 172.0 173.0 174.0 175.0 176.0 18.0 18.1 18.4 18.9 180.0 181.0 19.2 19.3 19.4 19.7 19.8 19.9 191.0 192.0 194.0 2.27 2.3 2.6 20.0 201.0 202.0 209.0 21.2 21.6 210.0 211.0 214.0 215.0 217.0 22.1 22.4 22.6 223.0 225.0 226.0 227.0 228.6 229.0 23.2 23.5 23.6 23.8 231.0 232.0 233.0 234.0 240.0 248.0 25.2 25.5 25.8 263.0 265.0 270.0 28.3 280.0 281.0 29.0 290.0 3.6 3.66 30.0 30.1 30.2 308.0 31.0 31.2 31.9 310.0 314.0 314.2 32.0 32.9 323.0 33.5 33.63 33.9 330.0 337.0 337.2 338.1 34.4 342.0 345.0 35.9 351.0 36.0 36.3 36.9 360.0 363.0 368.0 37.0 37.5 37.6 37.8 370.0 38.4 38.5 38.9 388.0 39.0 39.5 39.6 39.7 39.9 392.0 40.0 40.3 40.4 40.7 401.0 411.0 419.0 42.5 420.0 427.0 43.0 445.0 447.0 448.0 45.4 451.5 47.7 470.0 4760.0 49.0 5.57 5.9 50.0 50.9 51.26 51.5 51.8 511.0 514.0 514.5 515.0 516.0 518.0 519.0 52.9 524.5 525.0 529.0 53.0 53.3 53.6 530.0 531.0 54.1 54.4 55.0 55.4 56.7 560.0 57.0 57.6 58.1 59.1 59.3 591.0 6.5 6.6 60.0 60.1 60.8 62.7 62.8 630.0 64.2 645.0 65.3 65.4 66.0 67.4 676.0 690.0 692.0 693.0 7.29 7.6 7.79 7.83 7.9 70.9 700.0 71.0 71.3 710.0 72.5 72.6 73.0 73.1 74.0 76.0 76.5 76.8 77.0 77.4 77.9 78.4 78.5 79.0 79.4 8.0 8.1 8.5 8.55 80.0 80.5 80.6 80.8 81.4 82.8 83.0 83.2 840.0 86.4 87.0 88.4 89.1 89.7 896.0 9.3 90.0 90.5 91.6 917.0 92.0 93.8 95.0 95.1 96.0 98.5 99.4	- 0.055" (1.40mm) 0.071" (1.80mm) 0.079" (2.00mm) 0.079" (2.01mm) 0.080" (2.03mm) 0.083" (2.10mm) 0.085" (2.15mm) 0.091" (2.30mm) 0.096" (2.45mm) 0.106" (2.70mm) 0.112" (2.85mm) 0.116" (2.95mm) 0.118" (3.00mm) 0.124" (3.15mm) 0.125" (3.18mm) 0.138" (3.50mm) 0.140" (3.56mm) 0.146" (3.70mm) 0.150" (3.81mm) 0.154" (3.90mm) 0.157" (4.00mm) 0.160" (4.06mm) 0.165" (4.20mm) 0.167" (4.25mm) 0.175" (4.45mm) 0.177" (4.50mm) 0.180" (4.57mm) 0.181" (4.60mm) 0.183" (4.65mm) 0.185" (4.70mm) 0.187" (4.75mm) 0.188" (4.78mm) 0.189" (4.80mm) 0.191" (4.85mm) 0.197" (5.00mm) 0.201" (5.10mm) 0.209" (5.30mm) 0.211" (5.37mm) 0.213" (5.40mm) 0.228" (5.80mm) 0.232" (5.90mm) 0.236" (6.00mm) 0.244" (6.20mm) 0.246" (6.25mm) 0.247" (6.27mm) 0.248" (6.30mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.260" (6.60mm) 0.262" (6.65mm) 0.264" (6.70mm) 0.268" (6.80mm) 0.275" (7.00mm) 0.278" (7.05mm) 0.278" (7.06mm) 0.285" (7.25mm) 0.287" (7.30mm) 0.291" (7.40mm) 0.295" (7.49mm) 0.295" (7.50mm) 0.300" (7.60mm) 0.307" (7.80mm) 0.309" (7.85mm) 0.311" (7.90mm) 0.315" (8.00mm) 0.323" (8.20mm) 0.335" (8.50mm) 0.343" (8.70mm) 0.346" (8.80mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.366" (9.30mm) 0.368" (9.35mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.375" (9.53mm) 0.382" (9.70mm) 0.386" (9.80mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.409" (10.40mm) 0.421" (10.70mm) 0.424" (10.77mm) 0.425" (10.80mm) 0.433" (11.00mm) 0.437" (11.10mm) 0.439" (11.14mm) 0.441" (11.20mm) 0.443" (11.25mm) 0.445" (11.30mm) 0.449" (11.40mm) 0.453" (11.50mm) 0.457" (11.60mm) 0.460" (11.68mm) 0.469" (11.90mm) 0.470" (11.94mm) 0.472" (12.00mm) 0.475" (12.07mm) 0.484" (12.30mm) 0.488" (12.40mm) 0.492" (12.50mm) 0.493" (12.52mm) 0.500" (12.70mm) 0.504" (12.80mm) 0.512" (13.00mm) 0.524" (13.30mm) 0.528" (13.40mm) 0.531" (13.50mm) 0.541" (13.75mm) 0.543" (13.80mm) 0.551" (14.00mm) 0.563" (14.30mm) 0.567" (14.40mm) 0.579" (14.70mm) 0.583" (14.80mm) 0.587" (14.90mm) 0.591" (15.00mm) 0.598" (15.20mm) 0.600" (15.25mm) 0.602" (15.30mm) 0.608" (15.44mm) 0.610" (15.50mm) 0.614" (15.60mm) 0.615" (15.62mm) 0.622" (15.80mm) 0.626" (15.90mm) 0.630" (16.00mm) 0.634" (16.10mm) 0.646" (16.40mm) 0.657" (16.70mm) 0.661" (16.80mm) 0.665" (16.90mm) 0.669" (17.00mm) 0.673" (17.09mm) 0.677" (17.20mm) 0.679' (17.25mm) 0.689" (17.50mm) 0.693" (17.60mm) 0.701" (17.80mm) 0.707" (17.95mm) 0.709" (18.00mm) 0.728" (18.50mm) 0.732" (18.60mm) 0.740" (18.80mm) 0.744" (18.90mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.760" (19.30mm) 0.768" (19.50mm) 0.772" (19.60mm) 0.774" (19.65mm) 0.780" (19.80mm) 0.787" (20.00mm) 0.788" (20.02mm) 0.795" (20.20mm) 0.799" (20.30mm) 0.800" (20.32mm) 0.801" (20.35mm) 0.811" (20.60mm) 0.812" (20.62mm) 0.827" (21.00mm) 0.839" (21.30mm) 0.852" (21.65mm) 0.864" (21.95mm) 0.866" (22.00mm) 0.870" (22.10mm) 0.886" (22.50mm) 0.912" (23.16mm) 0.913" (23.20mm) 0.921" (23.40mm) 0.925" (23.50mm) 0.939" (23.85mm) 0.945" (24.00mm) 0.969" (24.61mm) 0.980" (24.90mm) 0.984" (25.00mm) 1.000" (25.40mm) 1.024" (26.00mm) 1.043" (26.50mm) 1.063" (27.00mm) 1.071" (27.20mm) 1.079" (27.40mm) 1.083" (27.50mm) 1.094" (27.80mm) 1.098" (27.90mm) 1.102" (28.00mm) 1.118" (28.40mm) 1.170" (29.72mm) 1.181" (30.00mm) 1.185" (30.10mm) 1.193" (30.30mm) 1.220" (31.00mm) 1.248" (31.70mm) 1.260" (32.00mm) 1.276" (32.40mm) 1.376" (34.94mm) 1.378" (35.00mm) 1.476" (37.50mm) 1.496" (38.00mm) 1.500" (38.10mm) 1.535" (39.00mm) 1.559" (39.60mm) 1.560" (39.62mm) 1.575" (40.00mm) 1.614" (41.00mm) 1.732" (44.00mm) 1.772" (45.00mm) 1.969" (50.00mm) 1.980" (50.30mm) 2.000" (50.80mm) 2.008" (51.00mm) 2.120" (53.85mm) 2.165" (55.00mm) 2.559" (65.00mm) 2.756" (70.00mm) 2.992" (76.00mm) 3.110" (79.00mm) 3.150" (80.00mm) 3.346" (85.00mm) 3.543" (90.00mm) 3.661" (93.00mm) 3.937" (100.00mm) 3.976" (101.00mm) 4.331" (110.00mm) 4.724" (120.00mm) 5.217" (132.50mm) 6.702" (190.0mm)

全部重置

全部应用

结果

厂商料号	库存情况	价格	数量	数据表	系列	包装	产品状态	核心类型	供应商设备封装	直径	电感因子 (Al)	容差	高度	气隙	有效磁导率 (µe)	材质	初始磁导率 (µi)	磁芯因子 (ΣI/A) mm⁻¹	表面处理	有效长度 (le) mm	长度	有效磁体积 (Ve) mm³	有效面积 (Ae) mm²	最小磁芯横截面积 (Amin) mm²	宽度

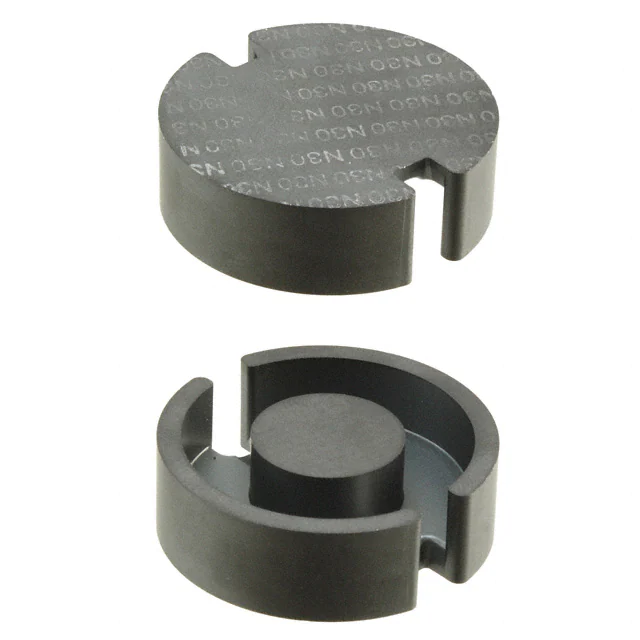

B65611W0000R030 FERRITE CORE P 15.2UH N30 2PCS EPCOS - TDK Electronics	9	-	询价单	数据表	P36/22	Box	Active	P (Pot Core)	P 36 x 22	1.417" (36.00mm)	15.2 µH	-20%, +30%	0.433" (11.00mm)	Ungapped	3040.0	N30	4300	0.25	Uncoated	53.5	-	11400.0	213.0	173.0	-
TX42/26/18-3C94 FERRITE CORE TOROID 3C94 Ferroxcube	0	-	询价单	数据表	-	Bulk	Active	Toroid	TX 42 x 26 x 18	1.697" (43.15mm)	-	±25%	0.736" (18.70mm)	Ungapped	2300.0	3C94	-	0.769	Epoxy	103.0	-	13810.0	134.0	-	-
TX51/32/19-3C94 FERRITE CORE TOROID 3C94 Ferroxcube	17	-	询价单	数据表	-	Bulk	Active	Toroid	TX 51 x 32 x 19	2.069" (52.55mm)	-	-	0.783" (19.90mm)	-	-	3C94	-	-	Epoxy	-	-	-	-	-	-
P30/19-3F46 FERRITE CORE P 3F46 2PC SET Ferroxcube	0	-	询价单	数据表	-	Bulk	Active	P (Pot Core)	P 30 x 19	1.181" (30.00mm)	-	-	0.740" (18.80mm)	-	-	3F46	-	-	Uncoated	-	-	-	-	-	-
B66397G0200X187 FERRITE CORE ETD N87 EPCOS - TDK Electronics	0	-	询价单	数据表	ETD59/31/22	Box	Active	ETD	ETD 59 x 31 x 22	-	-	-	1.228" (31.20mm)	Gapped	-	N87	2200	0.38	Uncoated	139.0	2.354" (59.80mm)	51200.0	368.0	368.0	0.870" (22.10mm)
TX50/30/19-3C94 FERRITE CORE TOROID 3C94 Ferroxcube	0	-	询价单	数据表	-	Bulk	Active	Toroid	TX 50 x 30 x 19	2.018" (51.25mm)	-	±25%	0.791" (20.10mm)	Ungapped	2300.0	3C94	-	0.65	Epoxy	120.4	-	22378.0	186.0	-	-

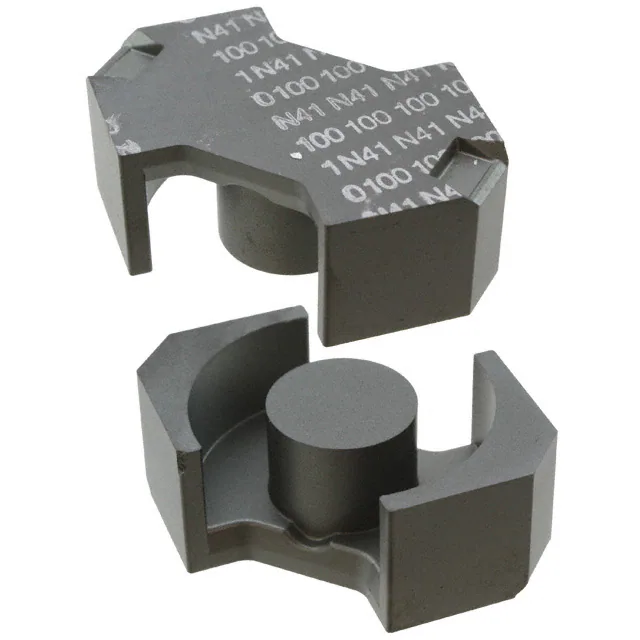

B65887E1000J041 FERRITE CORE RM 1UH N41 2PCS EPCOS - TDK Electronics	0	-	询价单	数据表	RM14	Box	Active	RM	RM 14	-	1 µH	±5%	0.594" (15.10mm)	Gapped	279.0	N41	2800	0.35	Uncoated	70.0	1.661" (42.20mm)	14000.0	200.0	170.0	0.748" (19.00mm)
PC95PQ40/40Z-12 FERRITE CORE PQ 6.4UH PCS95 2PC TDK Corporation	0	-	询价单	数据表	PQ	Tray	Active	PQ	PQ 40 x 40	-	6.4 µH	±25%	1.565" (39.75mm)	Ungapped	-	PC95	-	0.51	Uncoated	102.0	1.594" (40.50mm)	20500.0	201.0	-	1.102" (28.00mm)
B66371Q0250K187 FERRITE CORE E 250NH N87 EPCOS - TDK Electronics	0	-	询价单	数据表	E70/33/32	Bulk	Active	E	E 70 x 33 x 32	-	250 nH	±10%	1.307" (33.20mm)	Distributed Gapped	-	N87	2200	0.22	Uncoated	149.0	2.776" (70.50mm)	102000.0	683.0	676.0	1.260" (32.00mm)
B64290L0082X037 FERRITE CORE TOROID 12UH T37 EPCOS - TDK Electronics	0	-	询价单	数据表	TX50/30/20	Box	Active	Toroid	-	2.040" (51.80mm)	12 µH	±25%	0.839" (21.30mm)	Ungapped	-	T37	6000	0.62	Epoxy	120.4	-	23560.0	195.7	-	-
PC95PQ50/50Z-12 FERRITE CORE PQ 9.7UH PCS95 2PC TDK Corporation	0	-	询价单	数据表	PQ	Tray	Active	PQ	PQ 50 x 50	-	9.7 µH	±25%	1.967" (49.95mm)	Ungapped	-	PC95	-	0.35	Uncoated	113.0	1.969" (50.00mm)	37200.0	328.0	-	1.260" (32.00mm)
B66371Q0250K195 FERRITE CORE E 250NH N95 EPCOS - TDK Electronics	0	-	询价单	数据表	B66371	Bulk	Active	E	E 70 x 33 x 32	-	250 nH	±10%	1.307" (33.20mm)	Gapped	-	N95	2200	0.22	Uncoated	149.0	2.776" (70.50mm)	102000.0	683.0	676.0	1.260" (32.00mm)
B65981Q0100K095 FERRITE CORE PQ 100NH N95 EPCOS - TDK Electronics	0	-	询价单	数据表	PQ50/50	Bulk	Active	PQ	PQ 50 x 50	-	100 nH	±10%	0.984" (25.00mm)	Distributed Gapped	-	N95	3000	0.342	Uncoated	113.0	1.969" (50.00mm)	37630.0	332.0	314.0	1.260" (32.00mm)
LRF624520MKCX FERRITE CORE TOROID 31.5UH Chemi-Con	0	-	询价单	数据表	FL-V	Bulk	Active	Toroid	-	2.598" (66.00mm)	31.5 µH	-	-	Ungapped	-	Nanocrystalline	-	-	Uncoated	-	0.071" (1.81mm)	-	1681.0	-	0.945" (24.00mm)
TX102/66/15-3C90 FERRITE CORE TOROID 3C90 Ferroxcube	0	-	询价单	数据表	-	Bulk	Active	Toroid	-	4.031" (102.40mm)	-	-	0.602" (15.30mm)	-	-	3C90	-	-	Epoxy	-	-	-	-	-	-
B65982Q0100K095 FERRITE CORE PQ 100NH N95 EPCOS - TDK Electronics	0	-	询价单	数据表	PQ65/60	Bulk	Active	PQ	PQ 65 x 60	-	100 nH	±10%	1.181" (30.00mm)	Distributed Gapped	-	N95	3000	0.228	Uncoated	137.0	2.559" (65.00mm)	81950.0	171.0	531.0	1.772" (45.00mm)
8995151521 FERRITE CORE EFD 95 SET Fair-Rite Products Corp.	0	-	询价单	数据表	-	Bulk	Active	EFD	-	-	-	±25%	0.295" (7.50mm)	Ungapped	-	95	3000	223.0	Uncoated	34.4	-	531.0	15.4	12.7	0.183" (4.65mm)
B66317G0500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	0	-	询价单	数据表	E25/13/7	Box	Active	E	E 25 x 13 x 7	-	-	-	0.504" (12.80mm)	Gapped	-	N27	-	-	Uncoated	-	0.984" (25.00mm)	-	-	-	0.295" (7.50mm)
5977000501 FERRITE CORE TOROID 77 Fair-Rite Products Corp.	0	-	询价单	数据表	-	Bulk	Active	Toroid	-	0.825" (20.96mm)	-	±25%	0.468" (11.89mm)	Ungapped	-	77	2000	-	Uncoated	52.0	-	2360.0	46.0	-	-

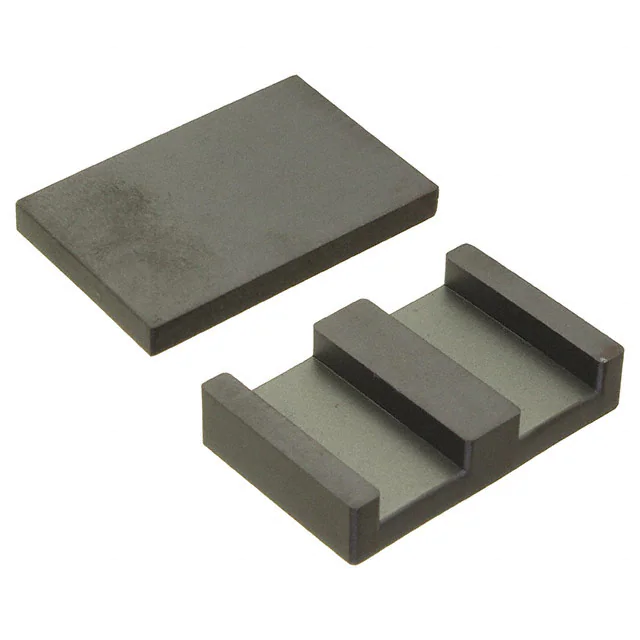

7898400321 FERRITE CORE E SET Fair-Rite Products Corp.	0	-	询价单	数据表	-	Bulk	Active	E	-	-	-	±25%	0.224" (5.70mm)	Ungapped	-	-	2400	33.0	Uncoated	26.1	0.858" (21.80mm)	2060.0	79.0	79.0	-

共 10616 条记录«上一页 1... 26 27 28 293031 32 33...531 下一页»
