直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9TS48P0G001FAN IMP MTRZD 225X99MM 48VDC |
14 | - |
|
数据表 |
San Ace C225 | Box | Active | 48VDC | Round - 225mm Dia | 991.8 CFM (27.77m³/min) | 3.457 in H2O (861.1 Pa) | Ball | 2.6 lbs (1.2 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.00mm | 74.5dB(A) | 175.2 W | CSA, TUV, UL | 3550 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
G1G160-BH29-52FAN BLOWER 226.8X130.0MM 24VDC |
2 | - |
|
数据表 |
G1G160 | Bulk | Active | 24VDC | Rectangular/Rounded - 226.8mm L x 262mm H | - | - | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | 130.0mm | - | 105 W | CSA, EAC, UL | 1750 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP42 |
|
R3G310-AN12-30FAN IMP MTRZD 318MM BALL 48VDC |
23 | - |
|
数据表 |
R3G310 | Bulk | Active | 48VDC | Round - 318mm Dia | 753.9 CFM (21.11m³/min) | - | Ball | - | Motorized Impellers | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | - | 71.0dB(A) | 190 W | CCC, CE, CSA, EAC, UL | 2000 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Ferrules | IP42 |
|

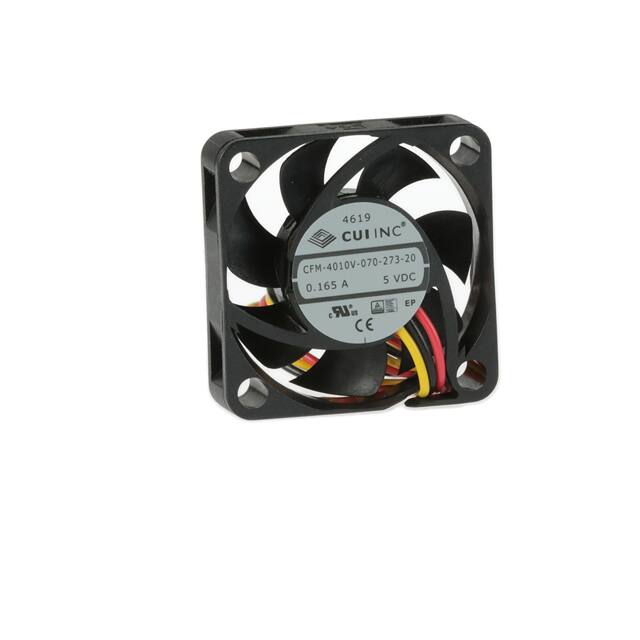

CFM-4010V-070-273-20FAN AXIAL 40X10MM 5VDC WIRE |
96 | - |
|
数据表 |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | omniCOOL™ Magnetic Sleeve | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 27.3dB(A) | 790 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FAD1-08025DHHW11-AFAN AXIAL 80X25MM 24VDC WIRE |
94 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Hydrodynamic | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 35.8dB(A) | 2.4 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025DHMW11-AFAN AXIAL 80X25MM 24VDC WIRE |
52 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 30.5 CFM (0.854m³/min) | 0.112 in H2O (27.9 Pa) | Hydrodynamic | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.44 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-4020CF-255-212-20FAN AXIAL 40X20MM 24VDC WIRE |
87 | - |
|
数据表 |
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 21.2dB(A) | 1.2 W | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-6015CF-225-204-20FAN AXIAL 60X15.5MM 24VDC WIRE |
93 | - |
|
数据表 |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 11.0 CFM (0.308m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.50mm | 20.5dB(A) | 960 mW | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-6015CF-235-278-20FAN AXIAL 60X15.5MM 24VDC WIRE |
41 | - |
|
数据表 |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.4 CFM (0.431m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.50mm | 27.8dB(A) | 1.44 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FAD1-08025DHLW11-AFAN AXIAL 80X25MM 24VDC WIRE |
88 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 24.4 CFM (0.683m³/min) | 0.068 in H2O (17.0 Pa) | Hydrodynamic | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 23.6dB(A) | 1.44 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025DBHW12-AFAN AXIAL 80X25MM 24VDC WIRE |
46 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 35.8dB(A) | 2.4 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6010V-135-250FAN AXIAL 60X10MM 12VDC WIRE |
96 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 14.3 CFM (0.400m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.051 lb (23.13 g) | Tubeaxial | Auto Restart | 10.00mm | 25.0dB(A) | 1.05 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-4020V-060-210-20FAN AXIAL 40X20MM 5VDC WIRE |
94 | - |
|
数据表 |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 21.0dB(A) | 620 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8015CF-230-301-20FAN AXIAL 80X15.4MM 24VDC WIRE |
47 | - |
|
数据表 |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.40mm | 30.1dB(A) | 5.04 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-7015V-123-215-20FAN AXIAL 70X15MM 12VDC WIRE |
52 | - |
|
数据表 |
CFM-70V | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 19.0 CFM (0.532m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.091 lb (41.28 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 21.5dB(A) | 660 mW | CE, cURus, TUV | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-6025CF-235-274FAN AXIAL 60X25.4MM 24VDC WIRE |
99 | - |
|
数据表 |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 25.40mm | 27.5dB(A) | 1.92 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-3510CF-160-188FAN AXIAL 35X10.3MM 12VDC WIRE |
43 | - |
|
数据表 |
CFM-35CF | Tray | Active | 12VDC | Square - 35mm L x 35mm H | 3.9 CFM (0.109m³/min) | 0.080 in H2O (19.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 10.30mm | 18.8dB(A) | 720 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-8025C-125-290FAN AXIAL 80X25MM 12VDC WIRE |
45 | - |
|
数据表 |
CFM-80C | Box | Active | 12VDC | Square - 80mm L x 80mm H | 30.9 CFM (0.865m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 25.00mm | 29.0dB(A) | 1.44 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
03515SS-12N-AT-00FAN AXIAL 35X15MM 12VDC WIRE |
52 | - |
|
数据表 |
03515SS | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 5.6 CFM (0.157m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | 0.028 lb (12.7 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 24.0dB | 840 mW | - | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MF60101V1-1000U-F99FAN AXIAL 60X10MM 12VDC WIRE |
54 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 16.3 CFM (0.456m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | 0.051 lb (23.13 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 28.5dB(A) | 1.3 W | cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
