直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-2507CF-0100-240DC AXIAL FAN, 25 MM SQUARE, 7 MM |
0 | - |
|
数据表 |
CFM-25CF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | - | 7.00mm | 24.1dB(A) | 1.2 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-2507CF-050-089DC AXIAL FAN, 25 MM SQUARE, 7 MM |
0 | - |
|
数据表 |
CFM-25CF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.1 CFM (0.031m³/min) | 0.030 in H2O (7.5 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | - | 7.00mm | 9.0dB(A) | 300 mW | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-6010C-130-215DC AXIAL FAN, 60 MM SQUARE, 10 M |
0 | - |
|
数据表 |
CFM-60C | Box | Active | 12VDC | Square - 60mm L x 60mm H | 8.5 CFM (0.238m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | - | 10.50mm | 25.5dB(A) | 720 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KD1206PTB1 H.M.FAN AXIAL 60X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 22.5 CFM (0.630m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.13 lb (58.97 g) | Tubeaxial | Speed Sensor (Tach) | 25.50mm | 34.0dB(A) | 2 W | CE, CSA, TUV, UL | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
EE92251S2-1000U-999FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
EE | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | 0.203 lb (92.08 g) | Tubeaxial | - | 25.00mm | 32.0dB(A) | 1.59 W | CE, CUR, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-5015V-132-154-11FAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-50V | Tray | Obsolete | 12VDC | Square - 50mm L x 50mm H | 7.7 CFM (0.216m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.073 lb (33.11 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 15.4dB(A) | 0.4 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FAD1-06025BALW12FAN AXIAL 60X25MM 5VDC WIRE |
0 | - |
|
数据表 |
FAD1-06025 | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | 1 Ball/1 Sleeve | 0.117 lb (53.07 g) | Tubeaxial | - | 25.00mm | 18.1dB(A) | 400 mW | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

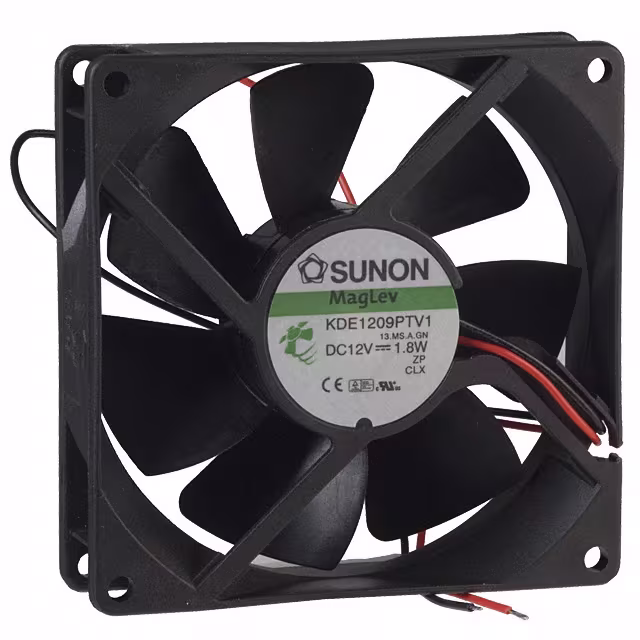

KDE1209PTV1.13.MS.A.GNFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 49.0 CFM (1.37m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | 0.209 lb (94.8 g) | Tubeaxial | - | 25.00mm | 34.0dB(A) | 1.9 W | CE, CUR, TUV, UL | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AUB0712HHDFAN AXIAL 70X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AUB | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 40.4 CFM (1.13m³/min) | 0.222 in H2O (55.3 Pa) | Superflo | 0.15 lb (68.04 g) | Tubeaxial | - | 20.00mm | 40.5dB(A) | 2.64 W | CE, CSA, UL, VDE | 4400 RPM | - | 2 Wire Leads | - |
|
05015SS-24R-WT-00FAN AXIAL 50X15.35MM 24VDC WIRE |
0 | - |
|
数据表 |
05015SS | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 14.8 CFM (0.414m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | 0.055 lb (24.95 g) | Tubeaxial | Speed Sensor (Tach) | 15.35mm | 35.5dB | 2.16 W | - | 6550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
ASB0312HA-CFAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
ASB | Box | Obsolete | 12VDC | Square - 30mm L x 30mm H | 4.3 CFM (0.120m³/min) | 0.214 in H2O (53.3 Pa) | Sleeve | 0.017 lb (7.71 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 27.0dB(A) | 840 mW | CE, cURus, VDE | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-4010C-065-251FAN AXIAL 40X10.5MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-40C | Box | Active | 5VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 10.50mm | 25.1dB(A) | 850 mW | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

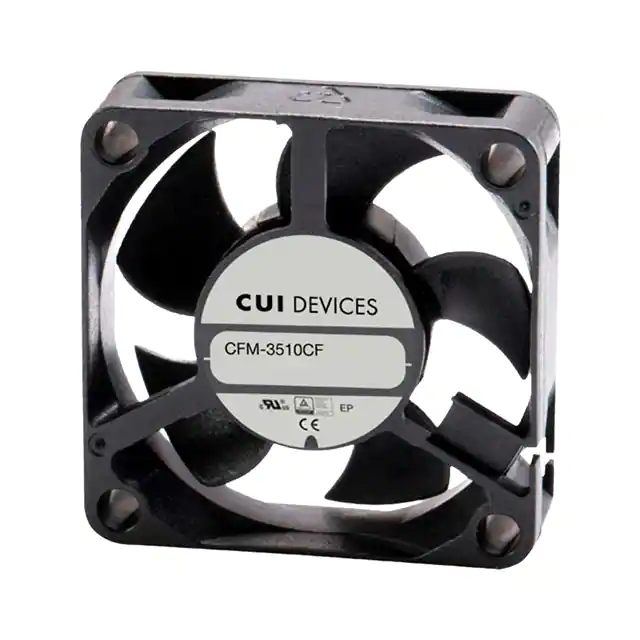

CFM-3510CF-170-222-22FAN AXIAL 35X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-35CF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 4.6 CFM (0.129m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 10.30mm | 22.3dB(A) | 960 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
2410RL-04W-B59-C00FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
2410RL | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.206 in H2O (51.3 Pa) | Ball | 0.143 lb (64.86 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 33.5dB | 1.8 W | CE, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
2410RL-04W-B79-C00FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
2410RL | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 28.5 CFM (0.798m³/min) | 0.277 in H2O (69.1 Pa) | Ball | 0.143 lb (64.86 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 38.0dB | 3.24 W | CE, UL, VDE | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
2410RL-05W-B79-C00FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
2410RL | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 28.5 CFM (0.798m³/min) | 0.277 in H2O (69.1 Pa) | Ball | 0.143 lb (64.86 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 38.0dB | 2.4 W | CE, UL, VDE | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
KD1206PHB1 H.MFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.086 lb (39.01 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 37.5dB(A) | 1.8 W | CE, CUR, TUV, UL | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
05015SS-12N-WA-00FAN AXIAL 50X15.35MM 12VDC WIRE |
0 | - |
|
数据表 |
05015SS | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.9 CFM (0.305m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 15.35mm | 27.5dB(A) | 1.2 W | - | 5050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-6010C-150-326DC AXIAL FAN, 60 MM SQUARE, 10 M |
0 | - |
|
数据表 |
CFM-60C | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.1 CFM (0.507m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 10.50mm | 36.3dB(A) | 2.76 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
ASB03505LA-AF00FAN AXIAL 35X10MM 5VDC WIRE |
0 | - |
|
数据表 |
ASB | Box | Obsolete | 5VDC | Square - 35mm L x 35mm H | 3.4 CFM (0.095m³/min) | 0.049 in H2O (12.2 Pa) | Sleeve | 0.023 lb (10.43 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 15.0dB(A) | 300 mW | CE, cURus, VDE | 4500 RPM | - | 3 Wire Leads | - |
