直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
612NLEFAN AXIAL 60X25.4MM 12VDC WIRE ebm-papst Inc. |
0 | - |
|
数据表 |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 12.4 CFM (0.347m³/min) | - | Ball | 0.146 lb (66.22 g) | Tubeaxial | - | 25.40mm | 16.0dB(A) | 400 mW | CE, CSA, UL, VDE | 2500 RPM | -4 ~ 185°F (-20 ~ 85°C) | 2 Wire Leads | - |
|
422JNFAN AXIAL 40X28MM 12VDC WIRE ebm-papst Inc. |
0 | - |
|
数据表 |
420J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 18.3 CFM (0.512m³/min) | - | Ball | 0.099 lb (44.91 g) | Tubeaxial | - | 28.00mm | 48.0dB(A) | 4 W | CSA, UL, VDE | 14000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
414J/2HHFAN AXIAL 40X25.4MM 24VDC WIRE ebm-papst Inc. |
0 | - |
|
数据表 |
400J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 14.1 CFM (0.395m³/min) | - | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 46.0dB(A) | 3.6 W | - | 13000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
4414MFAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
1 | - |
|
数据表 |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 108.3 CFM (3.03m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 42.0dB(A) | 4.1 W | - | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
8218JNFAN AXIAL 80X38MM 48VDC WIRE ebm-papst Inc. |
4 | - |
|
数据表 |
8200J | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 78.0 CFM (2.18m³/min) | - | Ball | 0.353 lb (160.12 g) | Tubeaxial | - | 38.00mm | 55.0dB(A) | 11 W | - | 8400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
3214JHFAN AXIAL 92X38MM 24VDC WIRE ebm-papst Inc. |
0 | - |
|
数据表 |
3200J | Box | Active | 24VDC | Square - 92mm L x 92mm H | 86.0 CFM (2.41m³/min) | - | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 38.00mm | 55.0dB(A) | 9 W | CSA, UL, VDE | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

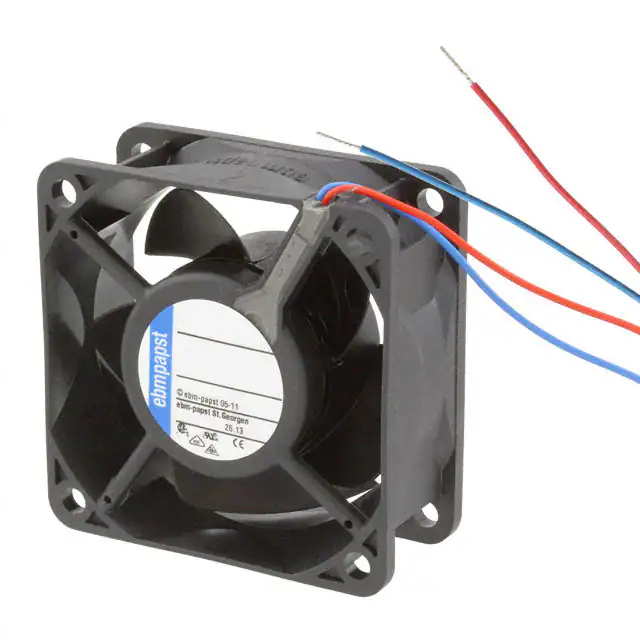

634NU-004FAN AXIAL 60X25.4MM 24VDC WIRE ebm-papst Inc. |
0 | - |
|
数据表 |
630U | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | - | Ball | 0.154 lb (69.85 g) | Tubeaxial | - | 25.40mm | 34.0dB(A) | 1.6 W | UL | 5900 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

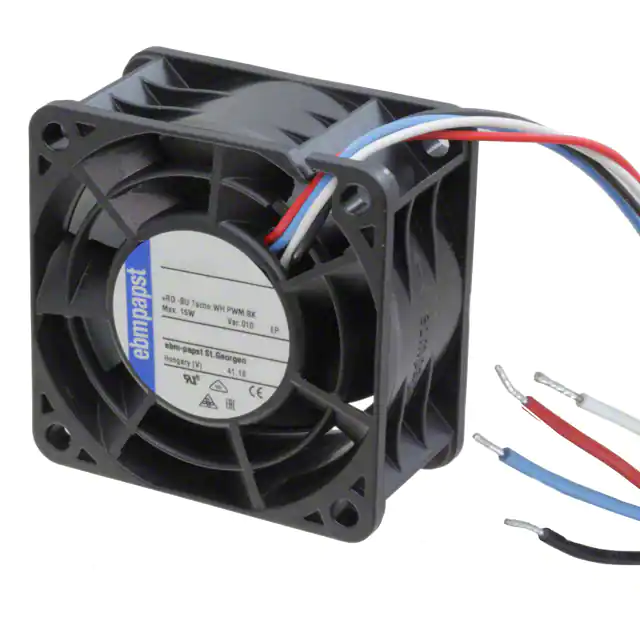

614J/2HHPR-010FAN AXIAL 60X32MM 24VDC WIRE ebm-papst Inc. |
0 | - |
|
数据表 |
600J | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 48.9 CFM (1.37m³/min) | 2.288 in H2O (570.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.00mm | 62.0dB(A) | 14.2 W | CE, UL, VDE | 15000 RPM | -40 ~ 172°F (-40 ~ 78°C) | 4 Wire Leads | - |
|
8315100162FAN AXIAL 80X38MM 24VDC WIRE ebm-papst Inc. |
0 | - |
|
数据表 |
AxiForce | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 126.5 CFM (3.54m³/min) | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 76.0dB(A) | 44 W | - | 16500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
8315100165FAN AXIAL 80X38MM 24VDC WIRE ebm-papst Inc. |
0 | - |
|
数据表 |
AxiForce | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 103.0 CFM (2.88m³/min) | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 71.0dB(A) | 25 W | - | 13200 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
