直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFC0912DE-AF00FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
AFC | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 160.2 CFM (4.49m³/min) | 1.002 in H2O (249.6 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 31.2 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
KFB2548HHUFAN IMP MTRZD 250X89MM 48VDC |
0 | - |
|
数据表 |
KFB | Bulk | Obsolete | 48VDC | Round - 250mm Dia | - | - | Ball | - | Motorized Impellers | - | 89.00mm | 72.0dB(A) | - | - | - | - | 2 Wire Leads | - |
|
|
BFB1212LFAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 24.7 CFM (0.692m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 0.508 lb (230.42 g) | Blower | Locked Rotor Protection | 32.00mm | 47.0dB(A) | 4.8 W | CE, CSA, UL, VDE | 2100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
AFB1524HH-AR00FAN AXIAL 172X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 214.9 CFM (6.02m³/min) | 0.524 in H2O (130.5 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 53.5dB(A) | 14.88 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB1224VHE-CR00FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 148.3 CFM (4.15m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 51.0dB(A) | 8.64 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0524HHB-R00FAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 36.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0912HD-F00FAN AXIAL 92X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 54.6 CFM (1.53m³/min) | 0.138 in H2O (34.3 Pa) | Ball | 0.203 lb (92.08 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 35.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0812H-R00FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 35.3 CFM (0.988m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 31.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB02512HHAYBJFAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 960 mW | - | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0712SH-ABF00FAN AXIAL 70X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 61.1 CFM (1.71m³/min) | 0.625 in H2O (155.7 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 50.5dB(A) | 7.8 W | CE, CSA, UL, VDE | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB1212EHE-CFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 212.6 CFM (5.95m³/min) | 0.844 in H2O (210.2 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 58.5dB(A) | 21.6 W | CE, CSA, UL, VDE | 4600 RPM | - | 2 Wire Leads | - |
|
|
AFB0605HHD-R00FAN AXIAL 60X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.229 in H2O (57.0 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 31.0dB(A) | 1.65 W | CE, CSA, UL, VDE | 4400 RPM | - | 3 Wire Leads | - |
|
CFM-2510B-170-140-22FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.4 CFM (0.040m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 14.1dB(A) | 720 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-2510B-0130-275-22FAN AXIAL 25X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.5 CFM (0.070m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 27.5dB(A) | 1.15 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-7530BF-240-454DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 | - |
|
数据表 |
CBM-75BF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 11.8 CFM (0.330m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Blower | Auto Restart | 24.50mm | 45.4dB(A) | 5.52 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-7530CF-220-282-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 | - |
|
数据表 |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 24.50mm | 28.2dB(A) | 1.44 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-7530CF-120-282-22DC BLOWER, 75.7 X 75.7 X 30 MM, |
0 | - |
|
数据表 |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.00mm | 28.2dB(A) | 0.84 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
GM0503PFV1-8.F.GNFAN AXIAL 30X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | 0.019 lb (8.62 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 23.0dB(A) | 700 mW | CE, CUR, TUV, UL | 9500 RPM | - | 3 Wire Leads | - |
|

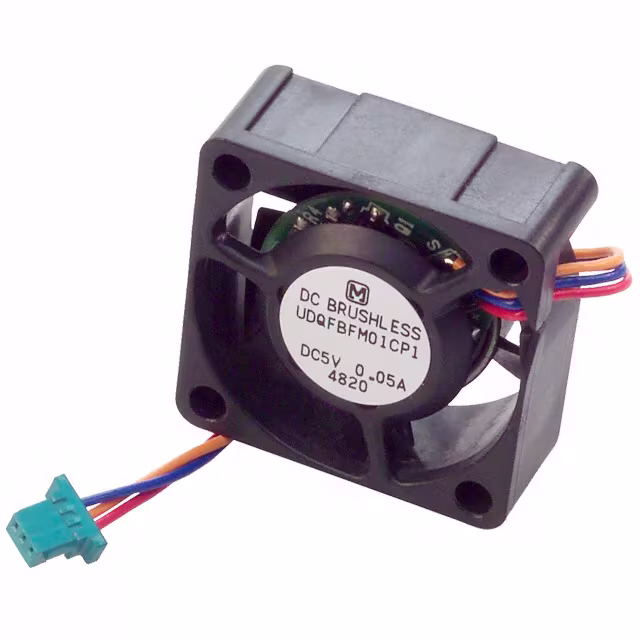

UDQFBFM01CP1FAN AXIAL 25X10MM 5VDC WIRE |
0 | - |
|
数据表 |
UDQF | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 1.4 CFM (0.039m³/min) | 0.096 in H2O (23.9 Pa) | Sleeve | 0.014 lb (6.35 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 17.0dB(A) | 200 mW | - | 7800 RPM | 32 ~ 158°F (0 ~ 70°C) | 3 Wire Leads | - |
|
BFB04512HHA-AFAN BLOWER 45X10MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Tray | Obsolete | 12VDC | Square - 45mm L x 45mm H | 3.3 CFM (0.092m³/min) | 0.555 in H2O (138.2 Pa) | Ball | 0.029 lb (13.15 g) | Blower | Locked Rotor Protection | 10.00mm | 35.5dB(A) | 960 mW | CE, CSA, UL, VDE | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
