直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF30100V2-1000U-F995VDC FAN 30X10MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.7 CFM (0.132m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 21.0dB(A) | 0.4 W | CCC, CE, cURus, TUV, UKCA | 9500 RPM | - | 3 Wire Leads | - |
|
|
MF30100V1-1000U-F995VDC FAN 30X10MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 23.0dB(A) | 0.6 W | CCC, CE, cURus, TUV, UKCA | 11000 RPM | - | 3 Wire Leads | - |
|
|
MF20060V1-1000U-F995VDC FAN 20X6MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 1.1 CFM (0.031m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 6.00mm | 24.5dB(A) | 0.32 W | CCC, CE, cURus, TUV, UKCA | 15500 RPM | - | 3 Wire Leads | - |
|
|
MF20060V3-1000U-F995VDC FAN 20X6MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 0.280 CFM (0.008m³/min) | 0.030 in H2O (7.5 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 6.00mm | 24.2dB(A) | 0.1 W | CCC, CE, cURus, TUV, UKCA | 6200 RPM | - | 3 Wire Leads | - |
|
|
MF30100V3-1000U-S995VDC FAN 30X10MM TACH/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 2.4 CFM (0.07m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 10.2dB(A) | 0.23 W | CCC, CE, cURus, TUV, UKCA | 6000 RPM | - | 4 Wire Leads | - |
|
|
AFB0505HDFAN AXIAL 50X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 15.8 CFM (0.442m³/min) | 0.182 in H2O (45.3 Pa) | Ball | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 33.0dB(A) | 1.65 W | CE, CSA, UL, VDE | 5600 RPM | - | 2 Wire Leads | - |
|

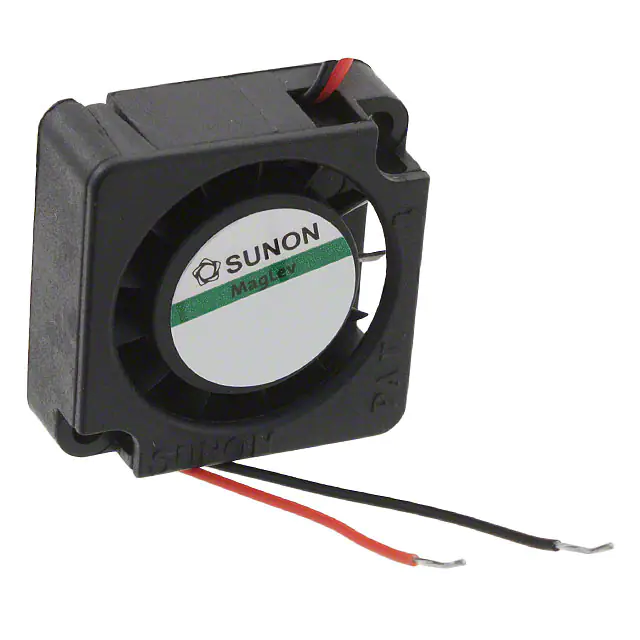

GB0502PFV1-8.B2393.GNFAN BLOWER 25X10MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® GB | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 1.0 CFM (0.028m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | 0.017 lb (7.71 g) | Blower | - | 10.00mm | 32.0dB(A) | 500 mW | CE, CUR, TUV, UL | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9GV0412G302FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 21.1 CFM (0.591m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | - | 28.00mm | 52.0dB(A) | 5.64 W | CSA, TUV, UL | 13000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9GV0412J302FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 24.0 CFM (0.672m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | - | 28.00mm | 55.0dB(A) | 7.2 W | CSA, TUV, UL | 14700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9GV0412K302FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 26.8 CFM (0.750m³/min) | 1.668 in H2O (415.5 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 58.0dB(A) | 10.08 W | CSA, TUV, UL | 16500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
9GV0612H1021FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 76.0 CFM (2.13m³/min) | 2.480 in H2O (617.7 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 63.0dB(A) | 24 W | CSA, TUV, UL | 14500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9GV0812J402FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 60.7 CFM (1.70m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 46.0dB(A) | 5.6 W | CSA, TUV, UL | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9GV0812J4021FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 60.7 CFM (1.70m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 46.0dB(A) | 5.6 W | CSA, TUV, UL | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
CBM-4010B-160-267-20FAN BLOWER 39.5X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 1.8 CFM (0.050m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 10.00mm | 26.7dB(A) | 1.32 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD3006-12LSS01AFAN AXIAL 30X6MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3006 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | - | - | Sealed Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 6.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD3006-12MSS01AFAN AXIAL 30X6MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3006 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | - | - | Sealed Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 6.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
BFB03512LA-AFAN BLOWER 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Protection | 10.00mm | 24.0dB(A) | 480 mW | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-4010B-150-195-22FAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 10.50mm | 19.5dB(A) | 600 mW | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-4010B-165-251-22FAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 10.50mm | 25.1dB(A) | 720 mW | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-7015B-250-406-20DC AXIAL FAN, 70 MM SQUARE, 15 M |
0 | - |
|
数据表 |
CFM-70B | Box | Active | 24VDC | Square - 70mm L x 70mm H | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.50mm | 40.6dB(A) | 4.08 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
