直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0648G1011FAN AXIAL 60X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 48VDC | Square - 60mm L x 60mm H | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 16.8 W | CSA, TUV, UL | 11800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

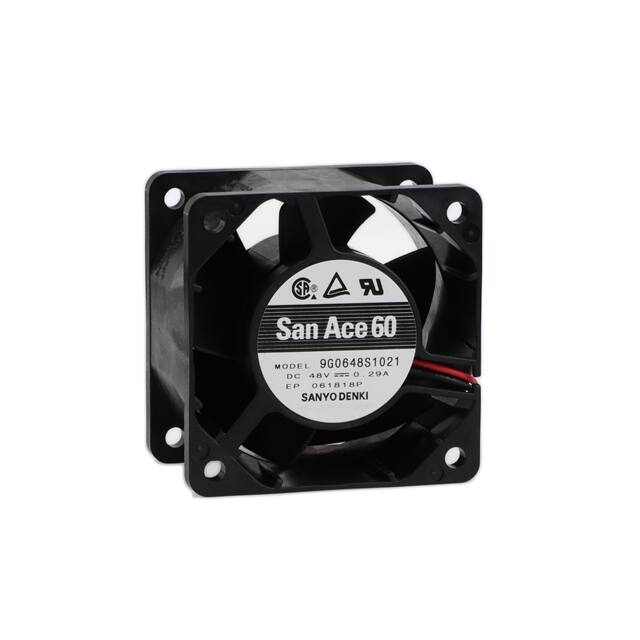

9G0648S1021FAN AXIAL 60X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 48VDC | Square - 60mm L x 60mm H | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 56.0dB(A) | 13.9 W | CSA, TUV, UL | 10800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
CBM-6015V-150FAN BLOWER 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-60V | Tray | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 5.7 CFM (0.160m³/min) | 0.440 in H2O (109.6 Pa) | omniCOOL™ Magnetic Sleeve | 0.079 lb (35.83 g) | Blower | Auto Restart | 15.00mm | 40.2dB(A) | 1.25 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9G0812K1021FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 107.3 CFM (3.00m³/min) | 1.285 in H2O (320.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 58.0dB(A) | 21.6 W | CSA, TUV, UL | 7800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
CBM-4010B-140-178FAN BLOWER 39.5X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 1.2 CFM (0.034m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Blower | Auto Restart | 10.00mm | 17.8dB(A) | 960 mW | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9G0812P1K081FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 107.3 CFM (3.00m³/min) | 1.285 in H2O (320.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 21.6 W | CSA, TUV, UL | 7800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
|
CBM-4010B-150-227FAN BLOWER 39.5X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 1.5 CFM (0.042m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Blower | Auto Restart | 10.00mm | 22.8dB(A) | 1.08 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

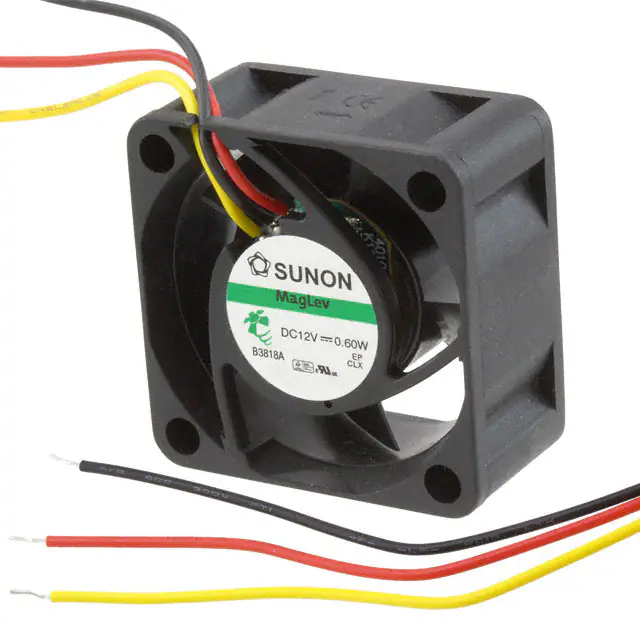

MB40201V2-000U-G99FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | 0.068 lb (30.84 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 21.0dB(A) | 600 mW | CE, CUR, TUV, UL | 6200 RPM | - | 3 Wire Leads | - |
|
|
CFM-6020B-240-320-20DC AXIAL FAN, 60 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-60B | Box | Active | 24VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 25.8dB(A) | 1.44 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
02510SS-12L-AT-00FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
02510SS | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | - | - | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
02510SS-05P-AL-00FAN AXIAL 25X10MM 5VDC WIRE |
0 | - |
|
数据表 |
02510SS | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 2.7 CFM (0.076m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 28.5dB | 900 mW | - | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
02510SS-12M-AT-00FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
02510SS | Box | Active | 12VDC | Square - 25mm L x 25mm H | - | - | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
02510SS-05M-AT-00FAN AXIAL 25X10MM 5VDC WIRE |
0 | - |
|
数据表 |
02510SS | Box | Active | 5VDC | Square - 25mm L x 25mm H | - | - | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
02510SS-12M-AL-00FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
02510SS | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 21.5dB | 480 mW | - | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
02510SS-05L-AL-00FAN AXIAL 25X10MM 5VDC WIRE |
0 | - |
|
数据表 |
02510SS | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.1 CFM (0.031m³/min) | 0.046 in H2O (11.4 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 22.0dB | 350 mW | - | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
02510SS-05M-AL-00FAN AXIAL 25X10MM 5VDC WIRE |
0 | - |
|
数据表 |
02510SS | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 21.5dB | 400 mW | - | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
02510SS-05L-AT-00FAN AXIAL 25X10MM 5VDC WIRE |
0 | - |
|
数据表 |
02510SS | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.1 CFM (0.031m³/min) | 0.046 in H2O (11.4 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 22.0dB | 350 mW | - | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9G0912P1G03FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 13.2 W | CSA, TUV, UR | 5000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
|
9G0912P1G031FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 13.2 W | CSA, TUV, UR | 5000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
|
9G0912P1H05FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 43.0dB(A) | 6.96 W | CSA, TUV, UL | 4000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
