直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE0502PFB2-8FAN AXIAL 25X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 2.0 CFM (0.056m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.015 lb (6.8 g) | Tubeaxial | - | 10.00mm | 24.0dB(A) | 600 mW | CE, CUR, TUV, UL | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE1202PFB2-8FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 2.0 CFM (0.056m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.015 lb (6.8 g) | Tubeaxial | - | 10.00mm | 30.0dB(A) | 700 mW | CUR, TUV, UL | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
KDE0503PFB2-8FAN AXIAL 30X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.017 lb (7.71 g) | Tubeaxial | - | 10.00mm | 25.0dB(A) | 600 mW | CUR, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MM2280H48B-FSRFAN AXIAL 222X80MM 48VDC WIRE |
0 | - |
|
数据表 |
MM2280 | Bulk | Obsolete | 48VDC | Round - 222mm Dia | 625.0 CFM (17.50m³/min) | 0.097 in H2O (24.3 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 80.00mm | 60.0dB(A) | - | cUL, TUV, UL | 3000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE1203PFB2-8FAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 12VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.017 lb (7.71 g) | Tubeaxial | - | 10.00mm | 25.0dB(A) | 800 mW | CUR, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF35100V3-1000U-A99Thermal Products |
0 | - |
|
数据表 |
MF | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 3.7 CFM (0.104m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 10.00mm | 13.1dB(A) | 230 mW | CE, CUR, TUV, UL | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MM2589H24B-FSRFAN AXIAL 255X89MM 24VDC WIRE |
0 | - |
|
数据表 |
MM2589 | Bulk | Obsolete | 24VDC | Round - 255mm Dia | 1030.0 CFM (28.84m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 89.00mm | 60.0dB(A) | - | CSA, cULus, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
|
MF25100V3-1000U-A99Thermal Products |
0 | - |
|
数据表 |
MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 10.00mm | 8.8dB(A) | 200 mW | CE, CUR, TUV, UL | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MM22580H24B-FSRFAN AXIAL 225X80MM 24VDC WIRE |
0 | - |
|
数据表 |
MM22580H | Bulk | Obsolete | 24VDC | Square - 225mm L x 225mm H | 755.0 CFM (21.14m³/min) | 1.400 in H2O (348.7 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 80.00mm | 65.0dB(A) | - | UL | 3600 RPM | - | 2 Wire Leads | - |
|
CFM-3510BF-190-277-22FAN AXIAL 35X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 5.9 CFM (0.165m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 10.30mm | 27.7dB(A) | 1.32 W | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
MM22580H48B-FSRFAN AXIAL 225X80MM 48VDC WIRE |
0 | - |
|
数据表 |
MM22580H | Bulk | Obsolete | 48VDC | Square - 225mm L x 225mm H | 755.0 CFM (21.14m³/min) | 1.400 in H2O (348.7 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 80.00mm | 65.0dB(A) | - | UL | 3600 RPM | - | 2 Wire Leads | - |
|
CFM-2510B-1130-275-22FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.5 CFM (0.070m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 27.5dB(A) | 1.32 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
2410SB-04W-B20-B00FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | 0.123 lb (55.79 g) | Tubeaxial | - | 25.00mm | 17.0dB(A) | 720 mW | CE, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

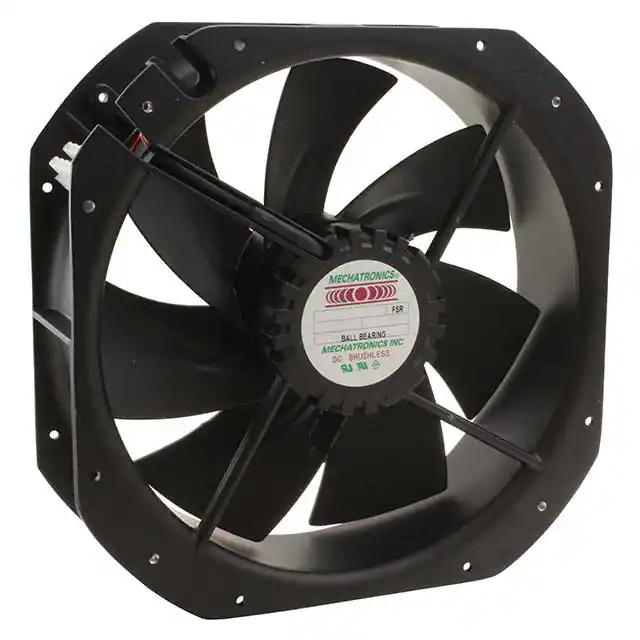

MM28080H24B-FSRFAN AXIAL 280X80MM 24VDC WIRE |
0 | - |
|
数据表 |
MM28080H | Bulk | Obsolete | 24VDC | Round - 280mm Dia | 1130.0 CFM (31.64m³/min) | 1.000 in H2O (249.1 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 80.00mm | 65.0dB(A) | - | cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
|
2410SB-05W-B20-B00FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | 0.123 lb (55.79 g) | Tubeaxial | - | 25.00mm | 17.0dB(A) | 720 mW | CE, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

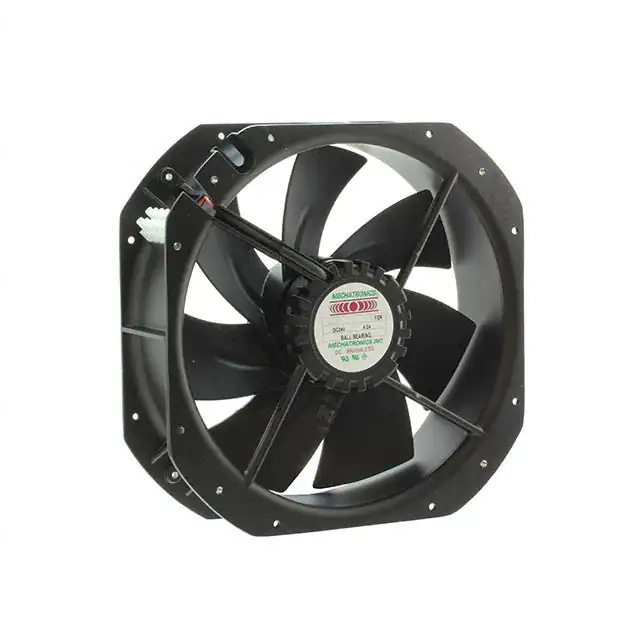

MM28080H48B-FSRFAN AXIAL 280X80MM 48VDC WIRE |
0 | - |
|
数据表 |
MM28080H | Bulk | Obsolete | 48VDC | Round - 280mm Dia | 1130.0 CFM (31.64m³/min) | 1.000 in H2O (249.1 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 80.00mm | 65.0dB(A) | - | cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
RER190-39/14/2TDMOFAN IMP MTRZD 190X69MM 24VDC |
0 | - |
|
数据表 |
RER190TD, S-Force | Bulk | Active | 24VDC | Round - 190mm Dia | 506.0 CFM (14.17m³/min) | - | Ball | 1.9 lbs (900.0 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | - | 110 W | - | 3900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
|
2410SB-05W-B30-B00FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.123 lb (55.79 g) | Tubeaxial | - | 25.00mm | 22.5dB(A) | 960 mW | CE, UL, VDE | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
RER190-39/18/2TDMLOFAN IMP MTRZD 190X69MM 48VDC |
0 | - |
|
数据表 |
RER190TD, S-Force | Bulk | Active | 48VDC | Round - 190mm Dia | 382.0 CFM (10.70m³/min) | - | Ball | 1.9 lbs (900.0 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | - | 56 W | - | 3000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
|
RER190-39/18/2TDOFAN IMP MTRZD 190X69MM 48VDC |
0 | - |
|
数据表 |
RER190TD, S-Force | Bulk | Active | 48VDC | Round - 190mm Dia | 571.3 CFM (16.00m³/min) | - | Ball | 1.9 lbs (900.0 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | - | 148 W | - | 4400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
