直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BM5125-01W-B30-L00FAN BLOWER 51X25MM 5VDC WIRE |
0 | - |
|
数据表 |
BM | Bulk | Obsolete | 5VDC | Square/Rounded - 51mm L x 51mm H | 3.5 CFM (0.098m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.077 lb (34.93 g) | Blower | - | 25.00mm | 27.0dB | 720 mW | CE, CSA, UL, VDE | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
BM5125-01W-B40-L00FAN BLOWER 51X25MM 5VDC WIRE |
0 | - |
|
数据表 |
BM | Bulk | Obsolete | 5VDC | Square/Rounded - 51mm L x 51mm H | 5.3 CFM (0.148m³/min) | 0.341 in H2O (85.0 Pa) | Ball | 0.077 lb (34.93 g) | Blower | - | 25.00mm | 34.0dB | 1.56 W | CE, CSA, UL, VDE | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
BM5125-04W-B30-L00FAN BLOWER 51X25MM 12VDC WIRE |
0 | - |
|
数据表 |
BM | Bulk | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 3.5 CFM (0.098m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.077 lb (34.93 g) | Blower | - | 25.00mm | 27.0dB | 720 mW | CE, CSA, UL, VDE | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
BM6015-04W-B50-L00FAN BLOWER 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
BM | Bulk | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 4.2 CFM (0.118m³/min) | 0.678 in H2O (168.9 Pa) | Ball | 0.066 lb (29.94 g) | Blower | - | 15.00mm | 42.0dB | 2.64 W | CSA | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FBA12G12U1BXFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 114.7 CFM (3.21m³/min) | 0.313 in H2O (78.0 Pa) | Hydro-wave (HWB) | 0.595 lb (269.89 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 45.5dB | 7.8 W | CSA, UL | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FBA09A12M1BXFAN AXIAL 92X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 48.0 CFM (1.34m³/min) | 0.118 in H2O (29.4 Pa) | Hydro-wave (HWB) | 0.243 lb (110.22 g) | Tubeaxial | Speed Sensor (Tach) | 25.50mm | 30.0dB | 1.8 W | CSA, UL | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1004KL-04W-B59-B00FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
1004KL | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 2.0 CFM (0.056m³/min) | 0.203 in H2O (50.6 Pa) | Ball | 0.017 lb (7.71 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 25.0dB | 720 mW | CE, CSA, UL, VDE | 11000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

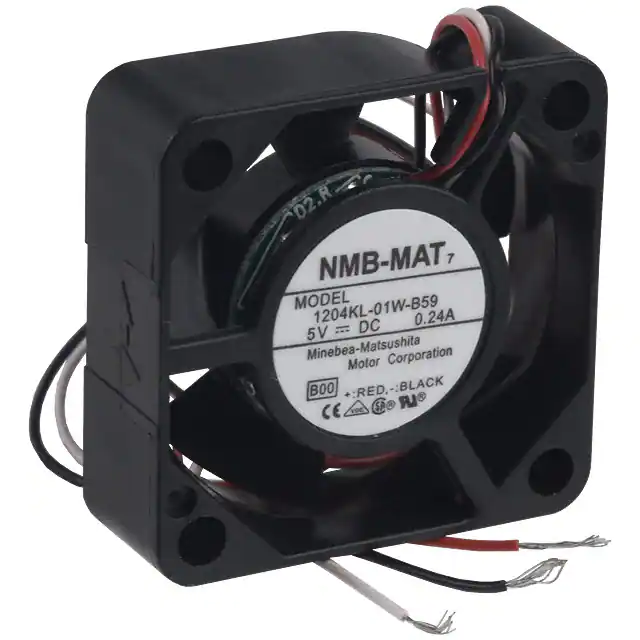

1204KL-01W-B59-B00FAN AXIAL 30X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
1204KL | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 3.8 CFM (0.106m³/min) | 0.216 in H2O (53.8 Pa) | Ball | 0.019 lb (8.62 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 27.0dB | 900 mW | CE, CSA, UL, VDE | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1204KL-04W-B59-B00FAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
1204KL | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 3.8 CFM (0.106m³/min) | 0.216 in H2O (53.8 Pa) | Ball | 0.019 lb (8.62 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 27.0dB | 960 mW | CE, CSA, UL, VDE | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1404KL-01W-B59-B50FAN AXIAL 35X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
1404KL | Bag | Obsolete | 5VDC | Square - 35mm L x 35mm H | 5.6 CFM (0.157m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 27.0dB | 1.05 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1404KL-04W-B59-B00FAN AXIAL 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
1404KL | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 5.6 CFM (0.157m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 27.0dB | 960 mW | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1604KL-01W-B59-B00FAN AXIAL 40X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
04010KA | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | 0.033 lb (14.97 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 29.0dB | 775 mW | CE, CSA, UL, VDE | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1604KL-04W-B59-B00FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
04010KA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | 0.033 lb (14.97 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 29.0dB | 880 mW | CE, CSA, UL, VDE | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

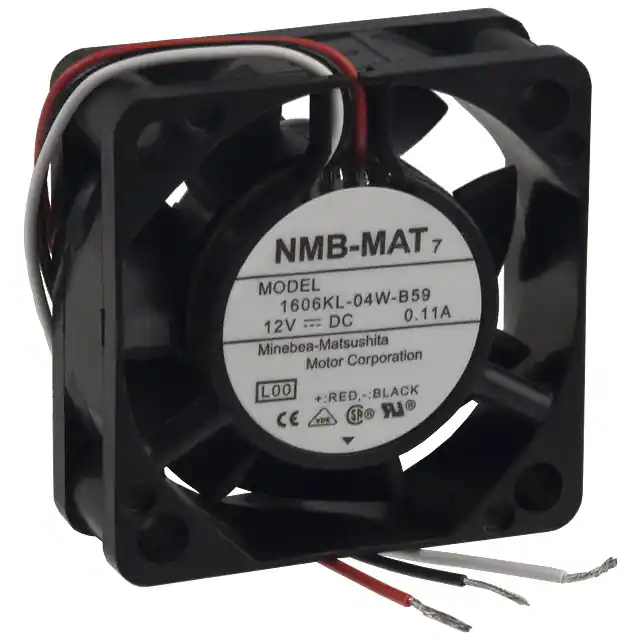

1606KL-04W-B59-L00FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
1606KL | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.044 lb (19.96 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 34.0dB | 1.02 W | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1606KL-05W-B59-L00FAN AXIAL 40X15MM 24VDC WIRE |
0 | - |
|
数据表 |
1606KL | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.044 lb (19.96 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 34.0dB | 1.49 W | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

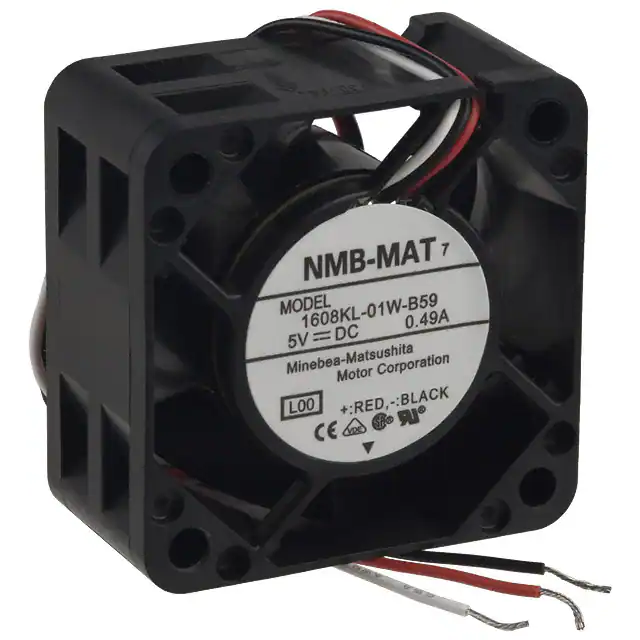

1608KL-01W-B59-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
1608KL | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 0.055 lb (24.95 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 33.0dB | 1.9 W | CE, CSA, UL, VDE | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1608KL-04W-B59-L00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 0.055 lb (24.95 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 33.0dB | 1.32 W | CE, CSA, UL, VDE | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1608KL-05W-B59-L00FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
1608KL | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 0.055 lb (24.95 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 33.0dB | 1.92 W | CE, CSA, UL, VDE | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

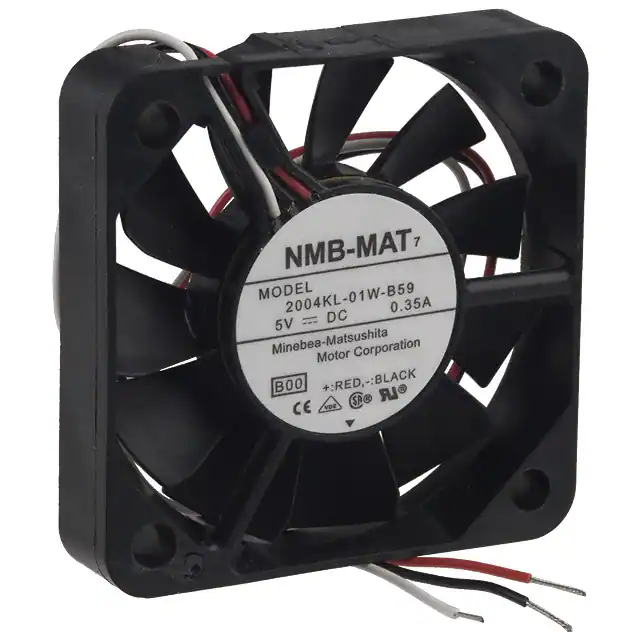

2004KL-01W-B59-B00FAN AXIAL 50X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
2004KL | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.2 CFM (0.286m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.044 lb (19.96 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 34.0dB | 1.5 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
2004KL-04W-B59-B00FAN AXIAL 50X10MM 12VDC WIRE |
0 | - |
|
数据表 |
2004KL | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.2 CFM (0.286m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.044 lb (19.96 g) | Tubeaxial | Locked Rotor Sensor | 10.00mm | 34.0dB | 1.2 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
