直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1248M1011FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 32.0dB(A) | 3.36 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV0648H10160X38MM 48V,GUIDE VANE DC TACH |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9RA1212F40011120X25MM 12VDC TACH |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 78.3 CFM (2.19m³/min) | 0.173 in H2O (43.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.04 W | cURus, TUV | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1212F4001120X25MM 12VDC TACH |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 78.3 CFM (2.19m³/min) | 0.173 in H2O (43.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.04 W | cURus, TUV | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
DC1203848V2B-3T1FAN 120X38MM 48VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 38.4 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|

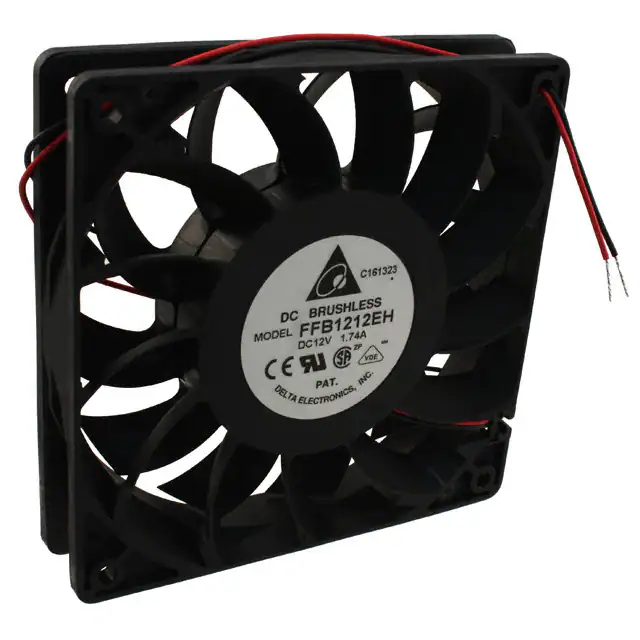

FFB1212EHFAN AXIAL 120X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 56.4dB(A) | 17.4 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9GL1248E102FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 8.16 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9GL1248G102FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 12 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0923824H2B-3T1FAN 92X38MM 24VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 28.8 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0923824U2B-3T1FAN 92X38MM 24VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 60 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|

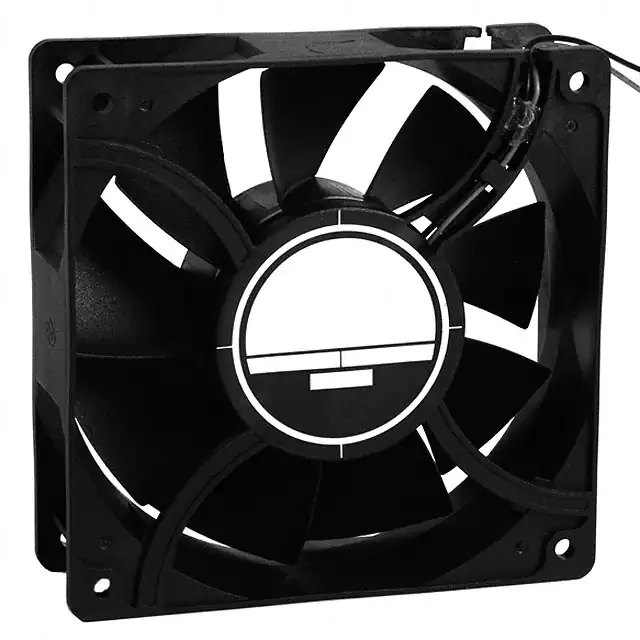

OD1238-12MBXCFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 175.0 CFM (4.90m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 57.0dB | 18 W | cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1238-48HBXCFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 200.0 CFM (5.60m³/min) | 0.640 in H2O (159.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 61.0dB | 25 W | cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1238-48HHBXCFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 220.0 CFM (6.16m³/min) | 0.750 in H2O (186.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 63.0dB | 32 W | cURus, TUV | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1238-48LBXCFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 150.0 CFM (4.20m³/min) | 0.380 in H2O (94.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 52.0dB | 11 W | cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1238-48MBXCFAN AXIAL 120X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 175.0 CFM (4.90m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 57.0dB | 17 W | cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
PMD2409PMB3-A (2).GN.IP55FAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 91.8 CFM (2.57m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.00mm | 50.3dB(A) | 6 W | CE, CUR, TUV, UL | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
PMD4809PMB1-A.(2).GNFAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PMD | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 120.2 CFM (3.37m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 0.419 lb (190.06 g) | Tubeaxial | - | 38.00mm | 57.6dB(A) | 11.5 W | CE, CUR, TUV, UL | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
PMD4806PMB3-A.(2).GNFAN AXIAL 60X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Obsolete | 48VDC | Square - 60mm L x 60mm H | 41.6 CFM (1.16m³/min) | 0.533 in H2O (132.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 47.0dB(A) | 6.2 W | - | 6000 RPM | - | 2 Wire Leads | - |
|
|
PMD4806PMB4-A.(2).GNFAN AXIAL 60X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 38.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
PMD4809PMB3-A.(2).GNFAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 91.8 CFM (2.57m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 50.3dB(A) | 5.8 W | - | 3800 RPM | - | 2 Wire Leads | - |
