直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0612H4D001FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 49.0dB(A) | 6 W | cURus, TUV | 9500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0612H40011FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 6 W | cURus, TUV | 9500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0612S4001FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.04 W | cURus, TUV | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0612H4D001160X25MM 12V,HIGH PERF.,LOW POWER |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
MR1238E24B2-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 67.9dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 3 Wire Leads | - |
|
|
MR1238E48B1-FSRFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 67.9dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 3 Wire Leads | - |
|
|
MR1238E48B2-FSRFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 67.9dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 3 Wire Leads | - |
|
|
MR1238H24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 64.6dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 3 Wire Leads | - |
|
|
MR1238H24B2-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 64.6dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 3 Wire Leads | - |
|
|
MR1238H48B1-FSRFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 64.6dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 3 Wire Leads | - |
|
|
MR1238L24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 58.5dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 3 Wire Leads | - |
|
|
MR1238L24B2-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 58.5dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 3 Wire Leads | - |
|
|
MR1238L48B1-FSRFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 58.5dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 3 Wire Leads | - |
|
|
MR1238L48B2-FSRFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 58.5dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 3 Wire Leads | - |
|
|
MR1238M24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 61.7dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
MR1238M24B2-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 61.7dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
MR1238M48B1-FSRFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 61.7dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
MR1238M48B2-FSRFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 61.7dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|

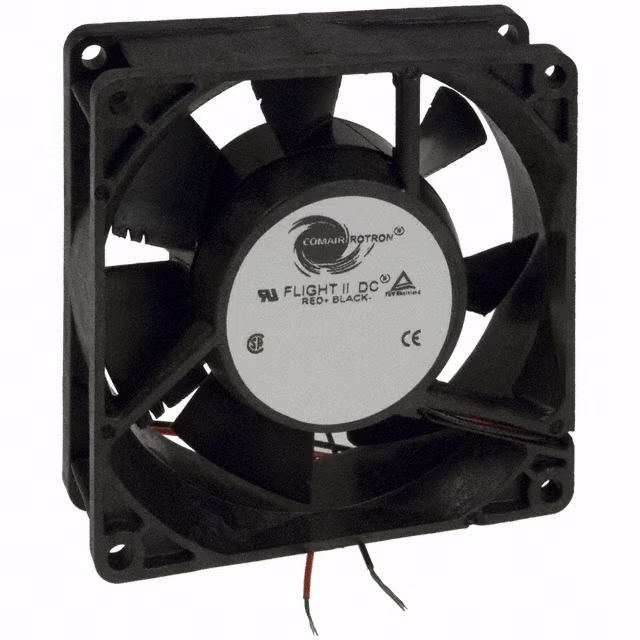

19031168AFAN AXIAL 92X25.4MM 12VDC FN12B3 |
0 | - |
|
数据表 |
Flight II 90 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 45.0 CFM (1.26m³/min) | 0.182 in H2O (45.3 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | - | 25.40mm | 38.1dB(A) | 2.4 W | - | 2784 RPM | - | 2 Wire Leads | - |
|

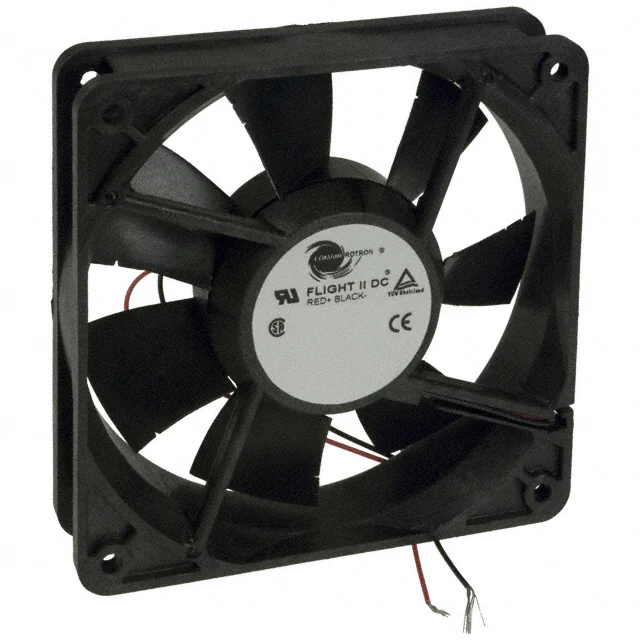

19031174AFAN AXIAL 120.1X25.6MM FT12B3 |
0 | - |
|
数据表 |
Flight II 120 | - | Obsolete | 12VDC | Square - 120.1mm L x 120.1mm H | 90.0 CFM (2.52m³/min) | 0.211 in H2O (52.6 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | - | 25.60mm | 42.9dB(A) | 4.1 W | - | 2924 RPM | - | 2 Wire Leads | - |
