交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2E133-DM47-01FAN BLWR CENT 204X270MM 230VAC ebm-papst Inc. |
5 | - |
|
数据表 |
D2E133 | Bulk | Active | 230VAC | Rectangular - 204mm L x 213mm H (133mm Dia) | 353.0 CFM (9.88m³/min) | - | Ball | 9.7 lbs (4.4 kg) | Blower, Centrifugal | - | 270.0mm | 55.0dB(A) | 195W | CCC, CE | 2200 RPM | -40 ~ 176°F (-40 ~ 80°C) | 2 Wire Leads | - |
|
D2E133-DM67-78FAN BLWR CENT 204X270MM 115VAC ebm-papst Inc. |
9 | - |
|
数据表 |
D2E133 | Bulk | Active | 115VAC | Rectangular/Rounded - 204mm L x 213mm H | 420.0 CFM (11.76m³/min) | - | Ball | - | Blower, Centrifugal | - | 270.0mm | 55.0dB(A) | 205W | CSA, UL, VDE | - | 32°F ~ 104°F (0°C ~ 40°C) | 2 Wire Leads | - |
|
A2D300-AD02-01AC AXIAL FAN ebm-papst Inc. |
6 | - |
|
数据表 |
A2D250 | Bulk | Active | 230/400VAC | Round - 300mm Dia | 1625.6 CFM (45.52m³/min) | 0.401 in H2O (100.0 Pa) | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 104.0mm | 76.0dB(A) | 270W | CCC, CE, EAC | 2800 RPM | -13 ~ 95°F (-25 ~ 35°C) | 7 Wire Leads with Splice Terminals | IP44 |
|
A2D300-AD02-02AC AXIAL FAN ebm-papst Inc. |
5 | - |
|
数据表 |
A2D250 | Bulk | Active | 230/400VAC | Round - 300mm Dia | 1731.7 CFM (48.49m³/min) | 0.401 in H2O (100.0 Pa) | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 104.0mm | 77.0dB(A) | 270W | CCC, CE, EAC | 2800 RPM | -13 ~ 95°F (-25 ~ 35°C) | 7 Wire Leads with Splice Terminals | IP44 |
|
R3G220-RC05-03MOTORIZED IMPELLER ebm-papst Inc. |
13 | - |
|
数据表 |
R3G220 | Bulk | Active | 230VAC | Round - 220mm Dia | - | - | Ball | - | Motorized Impellers | Electronic Commutation (EC), PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 71.00mm | - | 85.0W | CCC, CE, CSA, EAC, UL | 2580 RPM | -13 ~ 140°F (-25 ~ 60°C) | 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals | IP54 - Dust Protected, Water Resistant |
|
G2E120-AR38-01MOTORIZED IMPELLER ebm-papst Inc. |
10 | - |
|
数据表 |
G2E120 | Bulk | Active | 230VAC | Rectangular/Rounded - 178mm L x 193.5mm H | - | - | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | 115.0mm | - | 110W | CE | 2600 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP44 |
|

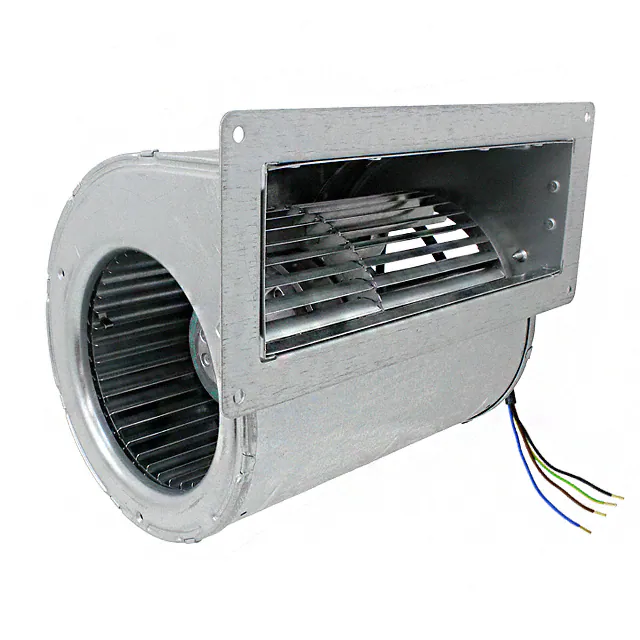

D2E133-AM47-A3FAN BLWR CENT 172X254MM 230VAC ebm-papst Inc. |
12 | - |
|
数据表 |
D2E133 | Bulk | Active | 230VAC | Rectangular/Rounded - 171.5mm L x 198mm H | 353.0 CFM (9.88m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 7.8 lbs (3.5 kg) | Blower, Centrifugal | Capacitor, Thermal Overload Protection (TOP) | 254.0mm | 55.0dB(A) | 200W | CCC, CE, UL | 1800 RPM | -13 ~ 77°F (-25 ~ 25°C) | 4 Wire Leads | IP44 |
|
G2E146-DW07-01AC CENTRIFUGAL BLOWER ebm-papst Inc. |
4 | - |
|
数据表 |
- | Bulk | Active | 230 ~ 240VAC | Rectangular/Rounded - 227mm L x 248mm H | - | 0.401 in H2O (100.0 Pa) | Ball | 6.3 lbs (2.9 kg) | Blower, Centrifugal | - | 130.0mm | - | 155W | CCC, CE, EAC | 1750 RPM | -13 ~ 113°F (-25 ~ 45°C) | 4 Wire Leads | IP44 |
|

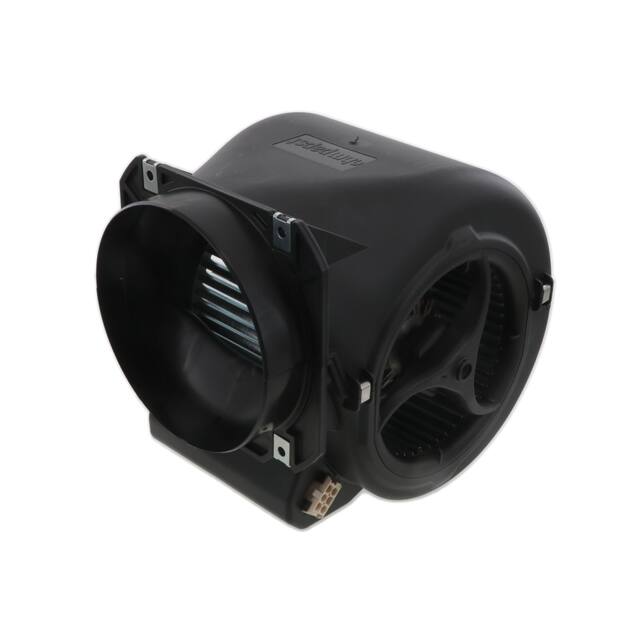

D2E146-HT67-39BLOWER ebm-papst Inc. |
11 | - |
|
数据表 |
D2E146 | Bulk | Active | 230VAC | Rectangular/Rounded - 220mm L x 216mm H | - | 0.803 in H2O (200.0 Pa) | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | 199.0mm | - | 400W | - | 2100 RPM | -13 ~ 122°F (-25 ~ 50°C) | 6 Position Rectangular Connector | IP20 |
|
W3G200-HD01-03FAN 200-240VAC 54W 560CFM 225MM ebm-papst Inc. |
20 | - |
|
数据表 |
W3G200 | Box | Active | 230VAC | Square - 225mm L x 225mm H | - | 0.385 in H2O (96.0 Pa) | Ball | 3.7 lbs (1.7 kg) | Tubeaxial | - | 80.00mm | - | 54.0W | CE, cURus, VDE | 2900 RPM | -13 ~ 140°F (-25 ~ 60°C) | Terminal Block | IP54 - Dust Protected, Water Resistant |
