交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2D250-AI02-01AC AXIAL FAN ebm-papst Inc. |
15 | - |
|
数据表 |
A2D250 | Bulk | Active | 230/400VAC | Round - 250mm Dia | 1148.6 CFM (32.16m³/min) | 0.602 in H2O (150.0 Pa) | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 83.00mm | 70.0dB(A) | 140W | CCC, CE, EAC | 2650 RPM | -13 ~ 113°F (-25 ~ 45°C) | 7 Wire Leads with Splice Terminals | IP44 |
|
D2E097-BE01-02BLOWER ebm-papst Inc. |
5 | - |
|
数据表 |
D2E097 | Bulk | Active | 230VAC | Rectangular/Rounded - 161mm L x 165mm H | - | - | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | 146.0mm | - | 54.0W | CCC, CE, EAC | 1200 RPM | -13 ~ 122°F (-25 ~ 50°C) | 3 Wire Leads | IP22 |
|
A2D170-AA04-02AC AXIAL FAN ebm-papst Inc. |
20 | - |
|
数据表 |
- | Bulk | Active | 230/400VAC | Round - 170mm Dia | - | - | Ball | 2.6 lbs (1.2 kg) | Tubeaxial, 3 Phase | Dual Voltage | 62.50mm | - | 43.00W | CCC, CE | 3100 RPM | -13 ~ 158°F (-25 ~ 70°C) | 7 Wire Leads | IP44 |
|
A2D170-AA04-01AC AXIAL FAN ebm-papst Inc. |
12 | - |
|
数据表 |
A2D170 | Bulk | Active | - | Round - 170mm Dia | - | - | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 64.50mm | - | 43.00W | CCC, CE | 3100 RPM | -13 ~ 158°F (-25 ~ 70°C) | 7 Wire Leads with Splice Terminals | IP44 |
|
S2E250-AL06-70FAN AXIAL ebm-papst Inc. |
2 | - |
|
数据表 |
S2E250 | Bulk | Active | 230VAC | Round - 300mm Dia | - | 0.341 in H2O (85.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 84.70mm | - | 175W | CE, CSA, UL | 2600 RPM | -13 ~ 95°F (-25 ~ 35°C) | 4 Wire Leads with Splice Terminals | IP44 |
|

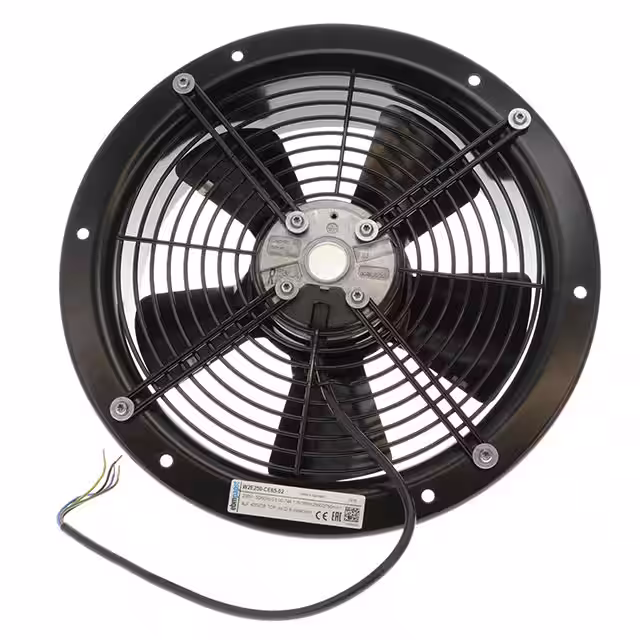

W2E250-CE65-02FAN AXIAL ebm-papst Inc. |
11 | - |
|
数据表 |
W2E250 | Bulk | Active | 230VAC | Round - 320mm Dia | - | 0.522 in H2O (130.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 85.00mm | - | 165W | CE, EAC | 2750 RPM | -13 ~ 122°F (-25 ~ 50°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
A2D250-AA02-02AC AXIAL FAN ebm-papst Inc. |
23 | - |
|
数据表 |
A2D250 | Bulk | Active | 400VAC | Round - 250mm Dia | 1086.7 CFM (30.43m³/min) | 1.204 in H2O (300.0 Pa) | Ball | - | Tubeaxial, 3 Phase | - | 83.00mm | 75.0dB(A) | 160W | CCC, CE, EAC | 2950 RPM | -13 ~ 104°F (-25 ~ 40°C) | 7 Wire Leads with Splice Terminals | IP44 |
|
A2D250-AA02-01AC AXIAL FAN ebm-papst Inc. |
11 | - |
|
数据表 |
A2D250 | Bulk | Active | 400VAC | Round - 250mm Dia | 992.5 CFM (27.79m³/min) | 1.204 in H2O (300.0 Pa) | Ball | - | Tubeaxial, 3 Phase | - | 83.00mm | 72.0dB(A) | 160W | CCC, CE, EAC | 2950 RPM | -13 ~ 104°F (-25 ~ 40°C) | 7 Wire Leads with Splice Terminals | IP44 |
|
K2E225-RA40-02FAN IMPELLER 115VAC 225MM ebm-papst Inc. |
6 | - |
|
数据表 |
K2E225 | Bulk | Active | 115VAC | Square - 270mm L x 270mm H | - | - | Ball | 7.0 lbs (3.2 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 112.0mm | - | 235W | CCC, CE, CSA | 2700 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Position Rectangular Connector | - |
|
S4E360-EC20-51FAN AXIAL 400X98MM 230VAC WIRE ebm-papst Inc. |
16 | - |
|
数据表 |
S4E300A | Bulk | Active | 230VAC | Round - 400mm Dia | 1556.0 CFM (43.57m³/min) | - | Ball | 6.6 lbs (3 kg) | Tubeaxial | - | 98.00mm | 59.0dB(A) | 120W | CSA, UL, VDE | - | - | 2 Wire Leads | - |
