交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3906MFAN AXIAL 92X25MM 115VAC TERM |
14 | - |
|
数据表 |
3900 | Bulk | Obsolete | 115VAC | Square - 92mm L x 92mm H | 31.2 CFM (0.874m³/min) | - | Ball | 0.617 lb (279.87 g) | Tubeaxial | - | 25.00mm | 34.0dB(A) | 5.00W | CE, CSA, UL, VDE | 2600 RPM | -40 ~ 176°F (-40 ~ 80°C) | 2 Terminals | - |
|
5930-507FAN AXIAL 127X38MM 115VAC |
0 | - |
|
数据表 |
5900 | Bulk | Obsolete | 115VAC | Square - 127mm L x 127mm H | 105.9 CFM (2.97m³/min) | - | Sintec | - | Tubeaxial | - | 38.00mm | 41.0dB(A) | 14.00W | - | - | - | 2 Terminals | - |
|
CF4113LBL-000U-AB9FAN AXIAL 120X38MM 100-240V IP55 |
4 | - |
|
数据表 |
CF | Bulk | Active | 110/230VAC | Square - 120mm L x 120mm H | 64.3 CFM (1.80m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.699 lb (317.06 g) | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 38.00mm | 31.4dB(A) | 1.80W | CE, CUR, TUV, UL | 2000 RPM | -13 ~ 158°F (-25 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
8886VAC AXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | Ball | - | - | - | - | - | - | - | - | - | - | - |
|
|
FA1751B11T5C-51AC Fan 170x51mm 115VAC |
14 | - |
|
数据表 |
51 | Tape & Box (TB) | Active | 115VAC | Round - 170mm Dia | 121.0 CFM (3.39m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 1.98 lbs (900 g) | Tubeaxial | - | 51.00mm | 44.0dB(A) | 17.00W | CE, cUL, UL | 1750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
|
FA1751B11T7C-31AC Fan 172x150x51mm 115VAC |
5 | - |
|
数据表 |
31 | Tape & Box (TB) | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 297.2 CFM (7.79m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 2.2 lbs (997.9 g) | Tubeaxial | - | 51.00mm | 60.1dB(A) | 50.0W | CE, cUL, UL | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
5900FAN AXIAL 127X38MM 115VAC |
5 | - |
|
数据表 |
5900 | Bulk | Obsolete | 115VAC | Square - 127mm L x 127mm H | 121.2 CFM (3.39m³/min) | - | Sintec | - | Tubeaxial | - | 38.00mm | 46.0dB(A) | 17.00W | - | - | - | 2 Terminals | - |
|
4806ZAC FAN |
8 | - |
|
数据表 |
4000Z | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 61.8 CFM (1.73m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 28.0dB(A) | 12.00W | CE, CSA, UL, VDE | 1800 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | IP54/IP65 - Dust Protected, Water Resistant, Dust Tight, Water Resistant |
|
|
CF4113LBT-000U-A99FAN AXIAL 120X38MM 100-240V |
13 | - |
|
数据表 |
CF | Bulk | Obsolete | 110/230VAC | Square - 120mm L x 120mm H | 64.3 CFM (1.80m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.595 lb (269.89 g) | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 38.00mm | 31.4dB(A) | 1.80W | CE, CUR, TUV, UL | 2000 RPM | -13 ~ 158°F (-25 ~ 70°C) | 2 Terminals | - |
|

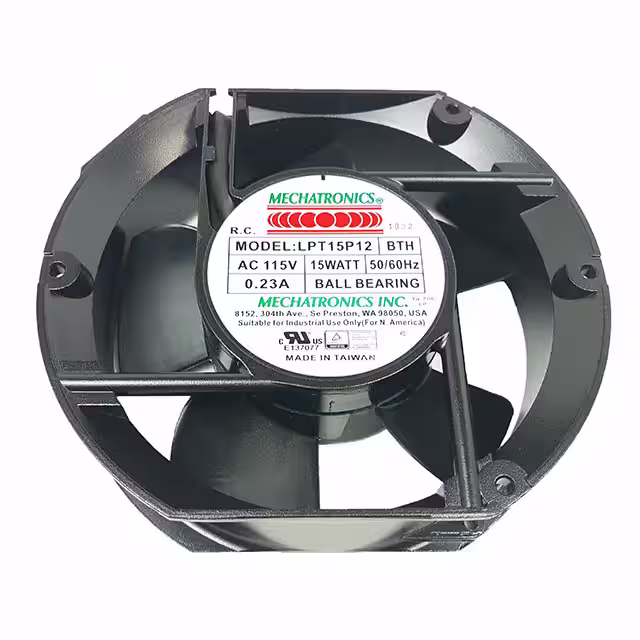

LPT15P12-BTHRFAN AXIAL 172X150X51MM 115VAC |
5 | - |
|
数据表 |
LPT15P12 | Bulk | Obsolete | 115VAC | Rectangular - 172mm L x 150mm H | - | - | Ball | - | - | Auto Restart, Electronic Commutation (EC) | 51.00mm | - | - | CE, cUL, TUV, UL | - | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
R87F-A6A13HPFAN AXIAL 120X25MM 230VAC TERM |
9 | - |
|
数据表 |
R87F | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 78.5 CFM (2.20m³/min) | 0.177 in H2O (44.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | - | 25.00mm | 39.0dB | 14.00W | CSA, UL | 2400 RPM | -22 ~ 158°F (-30 ~ 70°C) | 2 Terminals | - |
|

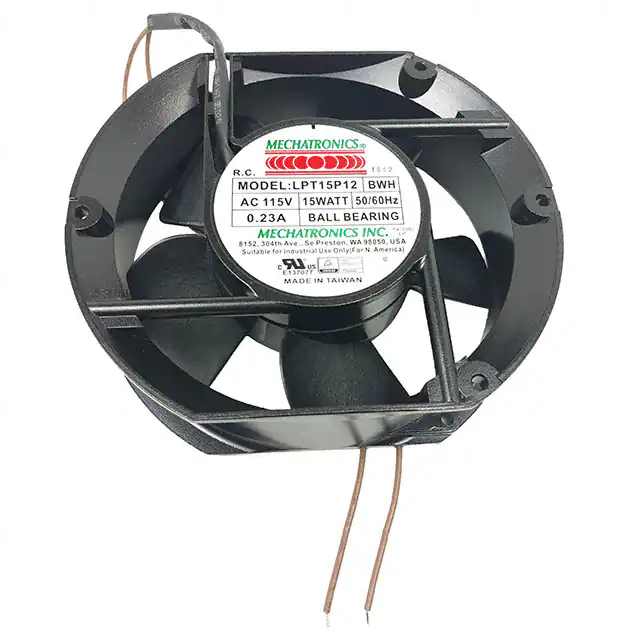

LPT15P12-BWHREC FAN AXIAL 172X150X51MM 120VAC |
2 | - |
|
数据表 |
LPT15P | Bulk | Obsolete | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 220.0 CFM (6.16m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 1.543 lb (700.0 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 51.00mm | 57.0dB(A) | 15.00W | - | 3000 RPM | - | 2 Wire Leads | - |
|

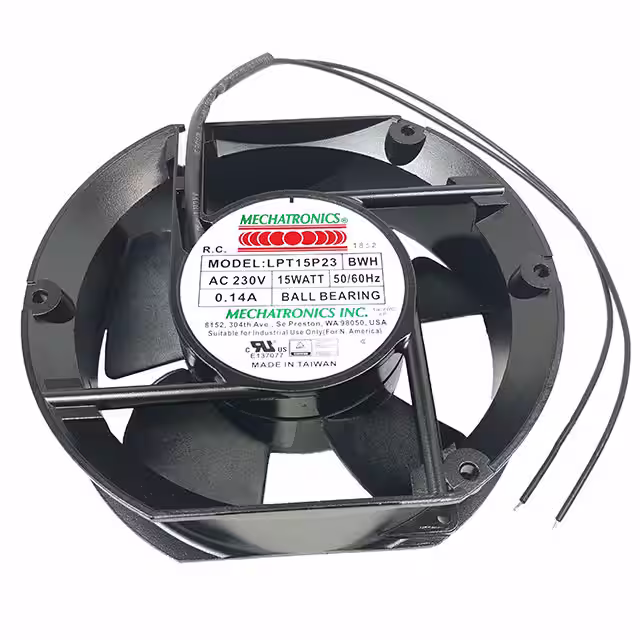

LPT15P23-BWHREC FAN AXIAL 172X150X51MM 230VAC |
2 | - |
|
数据表 |
LPT15P | Bulk | Obsolete | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 220.0 CFM (6.16m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 1.543 lb (700.0 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 51.00mm | 57.0dB(A) | 15.00W | - | 3000 RPM | - | 2 Wire Leads | - |
|
|
UF15KM12-BTHR-F-B1FAN 120VAC 172X150X55 W/TACH |
16 | - |
|
数据表 |
UF15KM | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 55.00mm | 53.0dB(A) | 42.00W | CE, cUL, TUV, UL | 3250 RPM | -40 ~ 194°F (-40 ~ 90°C) | 3 Terminals | - |
|
ACI4400HFAN AXIAL 119X38MM 100-240VAC |
0 | - |
|
数据表 |
Green Tech ACi4400 | Bulk | Obsolete | 100 ~ 240VAC | Square - 119mm L x 119mm H | 103.0 CFM (2.88m³/min) | - | Ball | 0.606 lb (274.88 g) | Tubeaxial | Electronic Commutation (EC), Locked Rotor Sensor | 38.00mm | 43.0dB(A) | 3.80W | CSAus, cURus | 3000 RPM | -40 ~ 167°F (-40 ~ 75°C) | 2 Terminals | IP20 |
|
R87F-A4A15MPFAN AXIAL 120X38MM 200VAC TERM |
7 | - |
|
数据表 |
R87F | Bulk | Active | 200VAC | Square - 120mm L x 120mm H | 88.3 CFM (2.50m³/min) | 0.255 in H2O (63.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 39.0dB | 15.00W | CSA, UL | 2450 RPM | -22 ~ 158°F (-30 ~ 70°C) | 2 Terminals | - |
|
|
109S472UL-30120X38MM 230V,SAN ACE,SNSR VLT 9 |
18 | - |
|
数据表 |
San Ace 120 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 16.00W | CE, CSA, PSE, TUV, UR | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
R87T-A6A15MPFAN AXIAL 120X38MM 230VAC TERM |
5 | - |
|
数据表 |
R87T | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 71.5 CFM (2.00m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 38.00mm | 40.0dB | 14.00W | CSA, UL | 2750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
APA12-H2C2A.jpg)
|
UF180(55)APA12-H2C2AIMPELLER 182X55MM 115VAC |
9 | - |
|
数据表 |
UF180(55)APA | Bulk | Active | 115VAC | Round - 182mm Dia | 290.0 CFM (8.12m³/min) | 1.400 in H2O (348.7 Pa) | Ball | 2.7 lbs (1.2 kg) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.00mm | 67.0dB(A) | 78.0W | CE, cETL, ETL, TUV | 2800 RPM | -40 ~ 122°F (-40 ~ 50°C) | 4 Wire Leads | - |
|

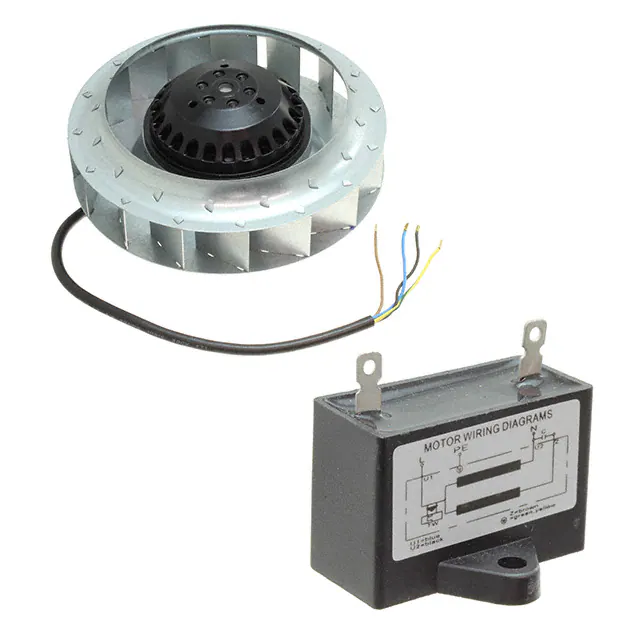

UF175AMA12-H1C2AFAN IMP MTRZD 175X55MM BALL WIRE |
4 | - |
|
数据表 |
UF175AMA | Bulk | Active | 115VAC | Round - 175mm Dia | 265.0 CFM (7.42m³/min) | 1.300 in H2O (323.6 Pa) | Ball | 2.8 lbs (1.3 kg) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.00mm | 70.0dB(A) | 66.0W | CE, cUL, TUV, UL | 2900 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads | - |
