交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFL22AUHW-P0AXIAL 222X80MM 115/230VAC IP56 Delta Electronics |
161 | - |
|
数据表 |
AFL | Box | Active | 115/230VAC | Round - 222mm Dia | 323.9 CFM (9.07m³/min) | 0.630 in H2O (156.9 Pa) | Ball | - | Tubeaxial | Dual Speed, Dual Voltage, Locked Rotor Protection, Thermal Overload Protector (TOP) | 85.70mm | 57.0dB(A) | 8.00W, 17.00W | ATEX, CE, cURus, TUV | 1800 RPM/2500 RPM | -40°C ~ 55°C | 3 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
|
AFL25AUHW-P0AXIAL 250X80MM 115/230 VAC IP56 Delta Electronics |
267 | - |
|
数据表 |
AFL | Box | Active | 115/230VAC | Round - 250mm Dia | 445.0 CFM (12.46m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Dual Speed, Dual Voltage, Locked Rotor Protection, Thermal Overload Protector (TOP) | 85.70mm | 57.0dB(A) | 9.00W, 21.00W | ATEX, CE, cURus, TUV | 1600 RPM/2200 RPM | -40°C ~ 55°C | 3 Wire Leads | IP56 - Dust Protected, Water Resistant |
|

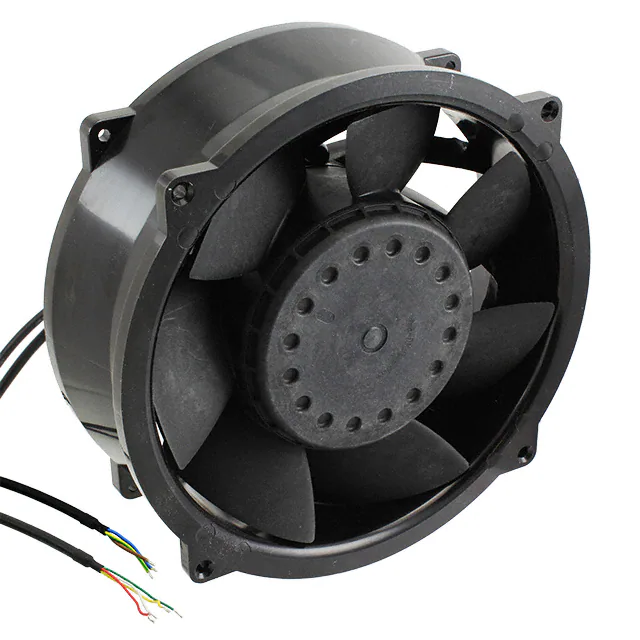

GTW020EUB12FAN AXIAL 200X122MM BALL 230VAC Delta Electronics |
45 | - |
|
数据表 |
GTW | Box | Obsolete | 230VAC | Round - 200mm Dia | 636.0 CFM (17.81m³/min) | 4.163 in H2O (1037.0 Pa) | Ball | 6 lbs (2.7 kg) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 122.0mm | 70.0dB(A) | 240W | TUV, UL | 6000 RPM | -13 ~ 140°F (-25 ~ 60°C) | - | IP54 - Dust Protected, Water Resistant |
|
GTW012FU804120X120X38MM 100 /240V AC FAN W/ Delta Electronics |
22 | - |
|
数据表 |
GTW | Box | Active | 220VAC | Square - 120mm L x 120mm H | 145.0 CFM (4.06m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC), Locked Rotor Sensor, PWM Control | 38.00mm | 54.9dB(A) | 11.00W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 5 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
MR83AUPE-144S20MOTOR 83X81MM 115/230 VAC IP54 Delta Electronics |
73 | - |
|
数据表 |
MR | Box | Active | 115/230VAC | Square - 83mm L x 83mm H | - | - | Ball | - | Motorized Impellers | Electronic Commutation (EC), Locked Rotor Protection | 81.00mm | - | 15.00W | ATEX, cURus | 1550 RPM | -40°C ~ 55°C | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
AFL25AUHW-P1250X250X78 115 / 230V AC FAN W/I Delta Electronics |
0 | - |
|
数据表 |
AFL, EST | Box | Active | 115/230VAC | Round - 250mm Dia | 445.0 CFM (12.46m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Dual Speed, Dual Voltage, Electronic Commutation (EC), Locked Rotor Protection, Thermal Overload Protector (TOP) | 85.70mm | 57.0dB(A) | 9.00W, 21.00W | cURus | 1600/2200 RPM | -40 ~ 131°F (-40 ~ 55°C) | 3 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
|
AFL22AUHW-R220DHAXIAL ROUND-222MM DIAMETER X 80M Delta Electronics |
0 | - |
|
数据表 |
AFL | Bulk | Active | 115/230VAC | Round - 222mm Dia | 275.0 CFM (7.70m³/min) | 0.533 in H2O (132.8 Pa) | Ball | - | Tubeaxial | Dual Speed, Dual Voltage, Locked Rotor Protection, Thermal Overload Protector (TOP) | 87.00mm | 53.0dB(A) | 13.00W | CE, cURus, TUV | 1850 RPM, 2200 RPM | -40 ~ 131°F (-40 ~ 55°C) | 3 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
AFL28A2LU-BRA01FAN AXIAL 280X105MM 230VAC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFL | Box | Active | 230VAC | Round - 280mm Dia | 460.0 CFM (12.88m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 2.5 lbs (1.1 kg) | Tubeaxial | - | 105.0mm | 55.0dB(A) | 16.00W | TUV, UL | 1400 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
GTB019FUA07R-V E1BLOWER ROUND 190MM X 69MM, W/ IN Delta Electronics |
0 | - |
|
数据表 |
GTB | Bulk | Active | 230VAC | Round - 190mm Dia | 443.0 CFM (12.40m³/min) | 3.376 in H2O (841.0 Pa) | Ball | - | Motorized Impellers | Electronic Commutation (EC), Locked Rotor Protection, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 68.61mm | 70.0dB(A) | 85.0W | CE, cURus, TUV | 3100 RPM | -13 ~ 140°F (-25 ~ 60°C) | 3 Wire Leads with Ferrules, 4 Wire Leads with Ferrules | IP54 - Dust Protected, Water Resistant |
|
|
GTM019FUA07R-VBLOWER ROUND 190MM X 69MM, W/ IN Delta Electronics |
0 | - |
|
数据表 |
GTM | Bulk | Active | 230VAC | Square - 225mm L x 225mm H | 443.0 CFM (12.40m³/min) | 3.376 in H2O (841.0 Pa) | Ball | - | Motorized Impellers | Electronic Commutation (EC), Locked Rotor Protection, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 85.00mm | 70.0dB(A) | 85.0W | CE, cURus, TUV | 3100 RPM | -13 ~ 140°F (-25 ~ 60°C) | 3 Wire Leads with Ferrules, 4 Wire Leads with Ferrules | IP54 - Dust Protected, Water Resistant |
