交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K3G200-AD11-02FAN 115VAC 245.5X90MM 506CFM 65W |
0 | - |
|
数据表 |
K3G200-AD | Bulk | Active | 115VAC | Square - 245.5mm L x 245.5mm H | 506.0 CFM (14.17m³/min) | 0.720 in H2O (179.3 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | Speed Sensor (Tach) | 90.00mm | - | 65.0W | UL | 2850 RPM | -13 ~ 140°F (-25 ~ 60°C) | Terminal Block | IP54 - Dust Protected, Water Resistant |
|
R2E225-BA47-09MOTORIZED IMPELLER |
4 | - |
|
数据表 |
R2E225 | Bulk | Active | 230VAC | Round - 227mm Dia | - | - | Ball | - | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 99.00mm | - | 205W | - | 3000 RPM | -13 ~ 167°F (-25 ~ 75°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
9ADW1TS11P0H001225X99MM, ACDC, 115V, SPLASH PRO |
3 | - |
|
数据表 |
San Ace 225AD | Box | Active | 115VAC | Round - 225mm Dia | 787.0 CFM (22.04m³/min) | 3.050 in H2O (759.7 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 73.0dB(A) | 140W | CE, cURus, TUV | 3100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
9ADW1TS11P0M001225X99MM, ACDC, 115V, SPLASH PRO |
6 | - |
|
数据表 |
San Ace 225AD | Box | Active | 115VAC | Round - 225mm Dia | 597.0 CFM (16.72m³/min) | 1.770 in H2O (440.9 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 67.0dB(A) | 61W | CE, cURus, TUV | 2350 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
W4E400-CP02-70FAN AXIAL 528X80MM 230VAC WIRE |
8 | - |
|
数据表 |
W4E400A | Bulk | Active | 230VAC | Round - 528mm Dia | 2910.0 CFM (81.48m³/min) | - | Ball | 9.3 lbs (4.2 kg) | Tubeaxial | - | 80.00mm | 73.0dB(A) | 240W | CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
D4E160-DA01-22BLOWER |
7 | - |
|
数据表 |
D4E160 | Bulk | Active | 230VAC | Rectangular/Rounded - 225mm L x 241mm H | - | - | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | 214.0mm | - | 140W | CCC, CE, EAC | 1200 RPM | -13 ~ 104°F (-25 ~ 40°C) | 4 Wire Leads | IP44 |
|
EE1G-230-180-06BLOWER |
3 | - |
|
数据表 |
EE1G180 | Bulk | Active | 230VAC | Rectangular/Rounded - 287mm L x 357mm H | 500.0 CFM (14.00m³/min) | - | Ball | - | Blower, Centrifugal | Capacitor | 177.0mm | 64.0dB(A) | 180W | - | - | 140°F (60°C) | 3 Wire Leads | - |
|
D2E146-CD51-09BLOWER |
3 | - |
|
数据表 |
D2E146 | Bulk | Active | 230VAC | Rectangular/Rounded - 225mm L x 241mm H | - | - | Ball | - | Blower | Capacitor, Thermal Overload Protector (TOP) | 176.0mm | - | 230W | CCC, CE | 1850 RPM | -13 ~ 86°F (-25 ~ 30°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
9ADW1TS23P0M001225X99MM, ACDC, 230V, SPLASH PRO |
8 | - |
|
数据表 |
San Ace 225AD | Box | Active | 230VAC | Round - 225mm Dia | 597.0 CFM (16.72m³/min) | 1.770 in H2O (440.9 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 67.0dB(A) | 61W | CE, cURus, TUV | 2350 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
9ADTS23P0F001225X99MM, ACDC, 230V, CENTRIFUGA |
16 | - |
|
数据表 |
San Ace 225AD | Box | Active | 230VAC | Round - 225mm Dia | 621.0 CFM (17.39m³/min) | 1.930 in H2O (480.8 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 68.0dB(A) | 70.0W | CE, cURus, TUV | 2450 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
9ADW1TS23P0H001225X99MM, ACDC, 230V, SPLASH PRO |
7 | - |
|
数据表 |
San Ace 225AD | Box | Active | 230VAC | Round - 225mm Dia | 787.0 CFM (22.04m³/min) | 3.050 in H2O (759.7 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 73.0dB(A) | 140W | CE, cURus, TUV | 3100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
9ADTS23P0G001225X99MM, ACDC, 230V, CENTRIFUGA |
4 | - |
|
数据表 |
San Ace 225AD | Box | Active | 230VAC | Round - 225mm Dia | 812.0 CFM (22.74m³/min) | 3.400 in H2O (846.9 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 74.0dB(A) | 155W | CE, cURus, TUV | 3200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|

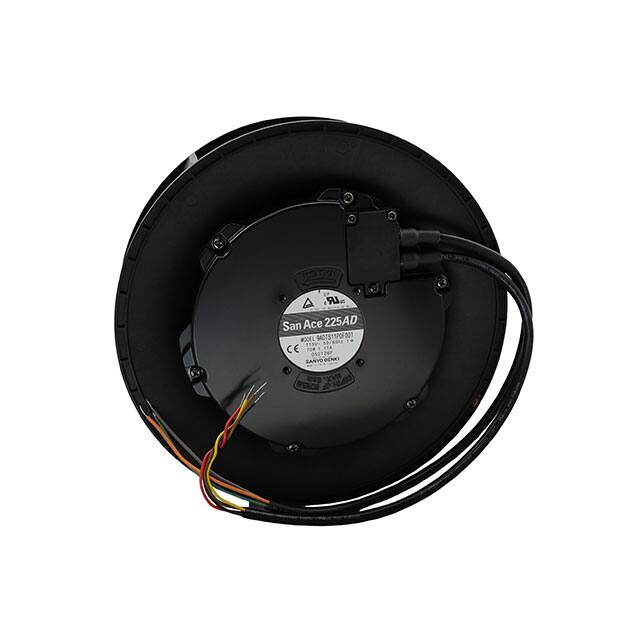

9ADTS11P0F001225X99MM, ACDC, 115V, CENTRIFUGA |
4 | - |
|
数据表 |
San Ace 225AD | Box | Active | 115VAC | Round - 225mm Dia | 621.0 CFM (17.39m³/min) | 1.930 in H2O (480.8 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 68.0dB(A) | 70.0W | CE, cURus, TUV | 2450 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
FAA1-09225QBHT31FAN AXIAL 92X25MM 230VAC TERM |
22 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 34.0 CFM (0.952m³/min) | 0.116 in H2O (28.9 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 30.1dB(A) | 10.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
CHACB2H-A-12038BAC 220V 120*120*38 BALL; 110CFM |
30 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
11938MB-A1N-NP-00FAN 119MM X 38MM 115VAC TERMINAL |
8 | - |
|
数据表 |
11938MB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 41.0dB | 14.50W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-09225QBMW31FAN AXIAL 92X25MM 230VAC WIRE |
74 | - |
|
数据表 |
FAA1-09225 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 30.5 CFM (0.854m³/min) | 0.089 in H2O (22.2 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 25.00mm | 26.8dB(A) | 11.50W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
11938FB-B3J-EA-00FAN 119MM X 38MM 230VAC TERMINAL |
8 | - |
|
数据表 |
11938FB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 33.0dB | 9.00W | - | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038QBLT31-AFAN AXIAL 119.5X38.5MM 230VAC |
37 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 71.5 CFM (2.00m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 37.9dB(A) | 9.40W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038QBJT31-AFAN AXIAL |
8 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 103.5 CFM (2.90m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 47.0dB(A) | 17.60W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
