交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPH12A99-BWHR-B1EC FAN AXIAL 120X120X38MM 100-24 |
7 | - |
|
数据表 |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | 0.631 lb (286.20 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach) | 38.50mm | 49.0dB(A) | 9.50W | - | 3500 RPM | - | 3 Wire Leads | - |
|
109S006ULFAN 120X38MM 100VAC |
18 | - |
|
数据表 |
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 53.0 CFM (1.48m³/min) | 0.071 in H2O (17.6 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 28.0dB(A) | 7.00W | CE, CSA, PSE, TUV, UL | 1700 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
UF90DPB23-H1S2ABLOWER 120X37MM 230VAC |
39 | - |
|
数据表 |
UF90DPB | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 21.0 CFM (0.588m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 1.4 lbs (635 g) | Blower, Centrifugal | Thermal Overload Protector (TOP) | 37.20mm | 51.0dB(A) | 18.00W | CE, cUL, TUV, UL | 2700 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
FKA1-17251QBHW31FAN AXIAL 172X50.8MM 230VAC WIRE |
8 | - |
|
数据表 |
FKA1-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 189.0 CFM (5.29m³/min) | 0.408 in H2O (101.6 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 50.80mm | 57.7dB(A) | 50.6W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
4580NFAN AXIAL 119X38MM 230VAC TERM |
0 | - |
|
数据表 |
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 72.3 CFM (2.02m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 41.0dB(A) | 18.00W | CE, CSA, UL, VDE | 2350 RPM | 14 ~ 131°F (-10 ~ 55°C) | 2 Terminals | - |
|
4850ZWFAN AXIAL 119X38MM 230VAC WIRE |
55 | - |
|
数据表 |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 58.9 CFM (1.65m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 26.0dB(A) | 13.00W | - | 1700 RPM | 14 ~ 149°F (-10 ~ 65°C) | 2 Wire Leads | - |
|
UF15PE12-BWHRFAN AXIAL 172X51MM 115VAC WIRE |
15 | - |
|
数据表 |
UF15PE | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 51.00mm | 58.0dB(A) | - | CE, TUV | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
8880NFAN AXIAL 80X38MM 230VAC WIRE |
80 | - |
|
数据表 |
8000N | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 17.7 CFM (0.496m³/min) | - | Sintec | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 18.0dB(A) | 9.00W | CE, CSA, UL, VDE | 1750 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Wire Leads | - |
|
OA80AP-22-1TB1855FAN AXIAL 80X38MM 230VAC TERM |
23 | - |
|
数据表 |
OA80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.95 lb (430.91 g) | Tubeaxial | - | 38.00mm | 35.0dB | 13.00W | cURus, TUV | 3200 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
UF80AM23-BTHR-FAC FAN AXIAL 80X80X38MM 230V, HI |
31 | - |
|
数据表 |
UF80AM | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 40.0dB(A) | 11.00W | - | 3250 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Terminals | - |
|

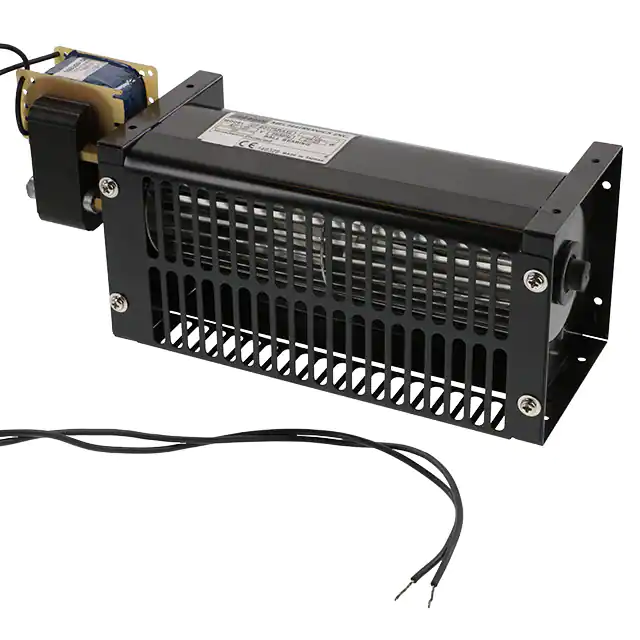

UF6017SBA12H-LFAN BLWR CF 120VAC 266X98X90MM |
24 | - |
|
数据表 |
UF6017 | Bulk | Active | 120VAC | Rectangular - 266mm L x 90mm H | 89.0 CFM (2.49m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 2.8 lbs (1.3 kg) | Blower, Cross Flow | - | 98.00mm | 42.0dB(A) | 25.00W | CE, TUV | 2000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
|
109S487-30FAN 120X25MM 230VAC ALARM |
52 | - |
|
数据表 |
San Ace 120 | Box | Active | 230VAC | Square - 119mm L x 119mm H | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | Ball | 0.86 lb (390.09 g) | Tubeaxial | Alarm | 25.00mm | 41.0dB(A) | 12.00W | CE, PSE, TUV, UL | 2900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
09225PB-A0L-EA-00FAN 92MM X 25MM 100VAC TERMINAL |
21 | - |
|
数据表 |
09225PB | Bulk | Active | 100VAC | Square - 92.5mm L x 92.5mm H | 34.5 CFM (0.966m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 38.0dB | 10.00W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
8880AFAN AXIAL 80X38MM 230VAC TERM |
9 | - |
|
数据表 |
8000A | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 17.1 CFM (0.479m³/min) | - | Sintec | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 26.0dB(A) | 9.00W | CE, CSA, UL, VDE | 1750 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Terminals | - |
|
109S091FAN 92X25MM 100VAC |
18 | - |
|
数据表 |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 25.00mm | 38.0dB(A) | 7.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
|
109S082FAN 120X25MM 200VAC |
15 | - |
|
数据表 |
San Ace 120 | Box | Active | 200VAC | Square - 119mm L x 119mm H | 63.6 CFM (1.78m³/min) | 0.106 in H2O (26.4 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | - | 25.00mm | 35.0dB(A) | 8.50W | CE, CSA, PSE, TUV, UL | 2350 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
FMA1-17251WBHW32EC FAN, 172X150X51MM, 2-BALL BEA |
24 | - |
|
数据表 |
FMA1-17251 | Bulk | Active | 100 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 228.4 CFM (6.39m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 51.00mm | 55.4dB(A) | 22.50W | CE, cURus | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
8556AFAN AXIAL 80X38MM 230VAC TERM |
8 | - |
|
数据表 |
8000A | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 28.3 CFM (0.792m³/min) | - | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 37.0dB(A) | 12.00W | CE, CSA, UL, VDE | 2800 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Terminals | - |
|
|
109S008ULFAN 120X38MM 200VAC |
21 | - |
|
数据表 |
San Ace 120 | Box | Active | 200VAC | Square - 119mm L x 119mm H | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 43.0dB(A) | 12.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
|
LPH15P99-BWHR-PCEC FAN AXIAL 172 X 150 X 51MM W/ |
12 | - |
|
数据表 |
LPH15P99 | Bulk | Active | 100 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 228.0 CFM (6.38m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC), Parylene Coating | 51.50mm | 55.0dB(A) | 22.50W | - | 3200 RPM | - | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
