交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17002187ACRB250B1B1650 AC CENTRIFUGAL FAN Comair Rotron |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 250mm Dia | 415.0 CFM (11.62m³/min) | 0.960 in H2O (239.1 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 90.00mm | 65.0dB(A) | 50.0W | CE, UL | 1650 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
17002186ACRB250A1B3000 AC CENTRIFUGAL FAN Comair Rotron |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 250mm Dia | 735.0 CFM (20.58m³/min) | 3.270 in H2O (814.5 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 99.00mm | 72.0dB(A) | 180W | CE, UL | 3000 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
17002188ACRB280A1B1550 AC CENTRIFUGAL FAN Comair Rotron |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 250mm Dia | 735.0 CFM (20.58m³/min) | 3.270 in H2O (814.5 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 99.00mm | 72.0dB(A) | 180W | CE, UL | 3000 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|

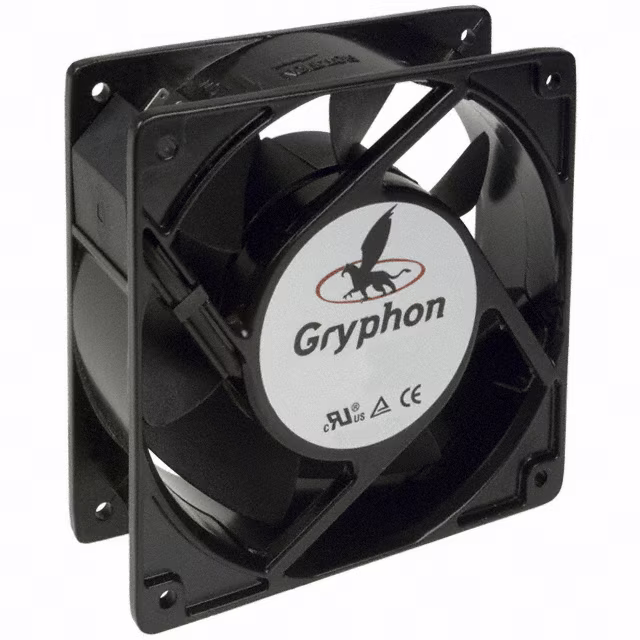

GAA1238-115BBFAN AXIAL 120X38MM 115VAC TERM Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 111.0 CFM (3.11m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 44.0dB(A) | 24.00W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
GAA8038-115BBFAN AXIAL 80X38MM 115VAC TERM Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 29.0 CFM (0.812m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.75 lb (340.19 g) | Tubeaxial | - | 38.00mm | 34.0dB(A) | 14.00W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
GAA1238-230BBFAN AXIAL 120X38MM 230VAC TERM Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 230VAC | Square - 120mm L x 120mm H | 111.0 CFM (3.11m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 44.0dB(A) | 10.00W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

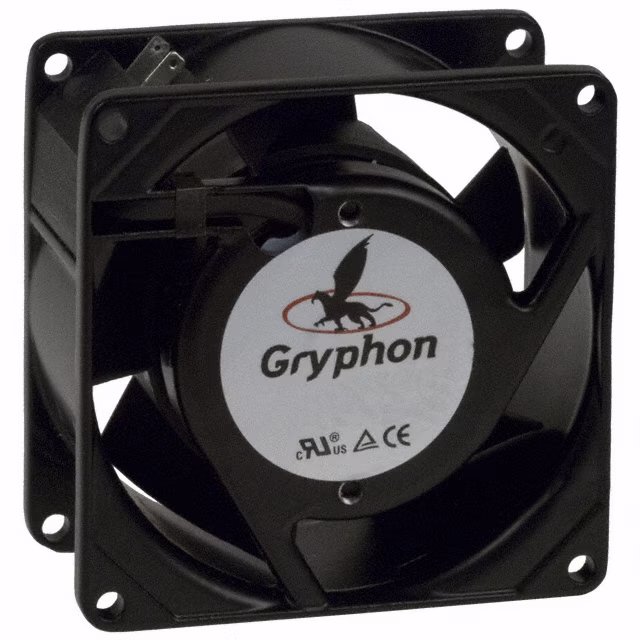

GAA8038-230BBFAN AXIAL 80X38MM 230VAC TERM Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 230VAC | Square - 80mm L x 80mm H | 29.0 CFM (0.812m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.75 lb (340.19 g) | Tubeaxial | - | 38.00mm | 34.0dB(A) | 10.00W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

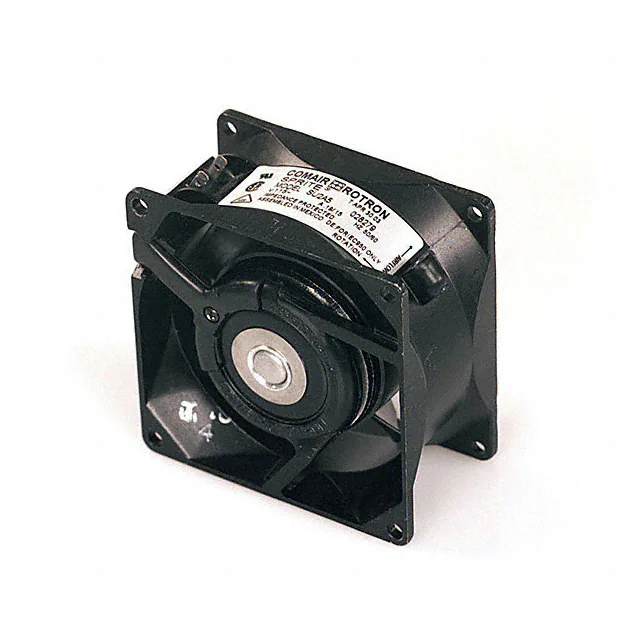

19028279AFAN AXIAL 80X42MM 115VAC SU2A5 Comair Rotron |
0 | - |
|
数据表 |
Sprite AC | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.149 in H2O (37.1 Pa) | Sleeve | 1.1 lbs (499.0 g) | Tubeaxial | - | 42.00mm | 40.3dB(A) | 11.00W | - | 3250 RPM | - | 2 Terminals | - |
|
|
19028326AFAN AXIAL 119.1X39.1MM MX3A1 Comair Rotron |
0 | - |
|
数据表 |
Muffin XL AC | Box | Obsolete | 220VAC | Square - 120mm L x 120mm H | 100.0 CFM (2.80m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 39.10mm | 51.0dB(A) | 18.00W | CE, cUL, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

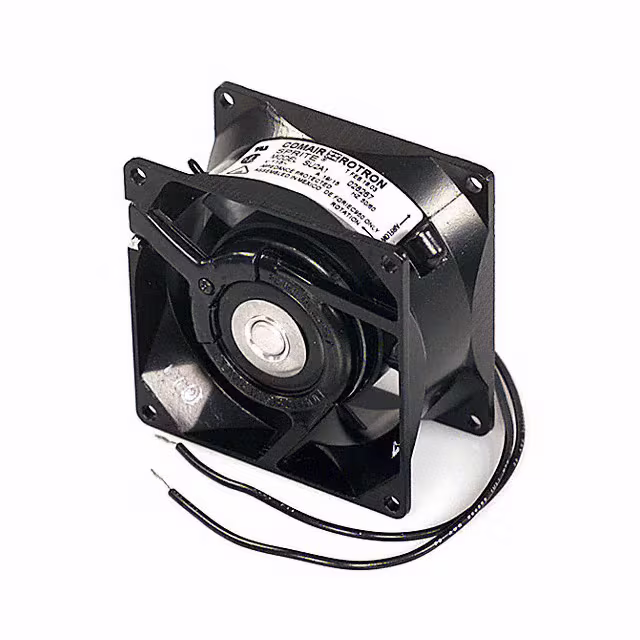

19028267AFAN AXIAL 80X42MM 115VAC SU2A1 Comair Rotron |
0 | - |
|
数据表 |
Sprite AC | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.149 in H2O (37.1 Pa) | Sleeve | 1.1 lbs (499.0 g) | Tubeaxial | - | 42.00mm | 40.3dB(A) | 11.00W | - | 3250 RPM | - | 2 Wire Leads | - |
