交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109S478UL-20FAN 120X38MM 200VAC ALARM |
28 | - |
|
数据表 |
San Ace 120 | Box | Active | 200VAC | Square - 119mm L x 119mm H | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | Alarm | 38.00mm | 45.0dB(A) | 16.00W | CE, PSE, TUV, UL | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
OA172EC-UR-1WBIP68AFAN 172X150X51MM 115/230VAC |
60 | - |
|
数据表 |
OA172 | Bulk | Active | 115 ~ 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 240.0 CFM (6.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 51.00mm | 57.3dB(A) | 20.50W | CE, cURus, TUV, UKCA, UR | 3200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
19039203AFAN AXIAL 254X107MM 230V CLE3T5 |
94 | - |
|
数据表 |
Caravel XL AC | Box | Active | 230VAC | Round - 254mm Dia | 950.0 CFM (26.60m³/min) | 0.570 in H2O (142.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 106.9mm | 63.3dB(A) | 135W | CE, cUL, UL | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
109S474UL-20FAN 120X38MM 115VAC ALARM |
27 | - |
|
数据表 |
San Ace 120 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | Alarm | 38.00mm | 45.0dB(A) | 16.00W | CE, PSE, TUV, UL | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
ECO225CB126072220FAN MOTOR IMPELLER ECO225CB ROUN |
192 | - |
|
数据表 |
ECO | Bulk | Active | 120VAC | Round - 225mm Dia | 393.0 CFM (11.00m³/min) | 1.770 in H2O (440.9 Pa) | Ball | - | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.00mm | - | 170W | - | 2910 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals | IP54 - Dust Protected, Water Resistant |
|
|
17001581AFAN AXIAL 120X38MM 220VAC MX3B2 |
50 | - |
|
数据表 |
Muffin XL | Box | Active | 198 ~ 242VAC | Square - 120mm L x 120mm H | 100.0 CFM (2.80m³/min) | 0.340 in H2O (84.7 Pa) | Ball | - | Tubeaxial | - | 38.10mm | 51.0dB(A) | 18.00W | CE, cUL, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

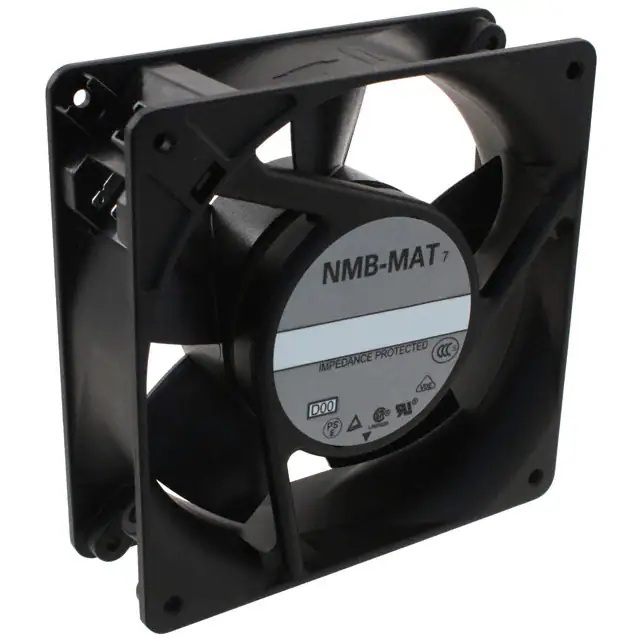

4715FS-12T-B50-D00FAN AXIAL 119X38MM 115VAC TERM |
5,090 | - |
|
数据表 |
FS | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB | 14.40W | CE, CSA, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4715MS-23T-B20-A00FAN AXIAL 119X38MM 230VAC TERM |
625 | - |
|
数据表 |
MS | Bulk | Obsolete | 230VAC | Square - 119mm L x 119mm H | 67.0 CFM (1.88m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 30.0dB | 7.50W | CE, CSA, TUV, UL, VDE | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
ADT08025115BH80X25MM 115V BALL 3600/4000 TERM |
110 | - |
|
数据表 |
ADT8025 | Box | Active | 115VAC/230VAC | Square - 80mm L x 80mm H | 55.0 CFM (1.54m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 45.5dB(A) | - | - | 4000 RPM | - | 2 Wire Leads | - |
|
3115PS-12T-B30-A00FAN AXIAL 80X38MM 115VAC TERM |
885 | - |
|
数据表 |
PS | Bulk | Obsolete | 115VAC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.59 lb (267.62 g) | Tubeaxial | - | 38.00mm | 38.0dB | 7.00W | CE, CSA, TUV, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
3115FS-12T-B30-A00FAN AXIAL 80X38MM 115VAC TERM |
699 | - |
|
数据表 |
FS | Bulk | Obsolete | 115VAC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | - | 38.00mm | 44.0dB | 8.50W | CE, CSA, TUV, UL, VDE | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
3115PS-12W-B30-A00FAN AXIAL 80X38MM 115VAC WIRE |
678 | - |
|
数据表 |
PS | Bulk | Obsolete | 115VAC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.59 lb (267.62 g) | Tubeaxial | - | 38.00mm | 38.0dB | 7.00W | CE, CSA, TUV, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
3115PS-23W-B20-A00FAN AXIAL 80X38MM 230VAC WIRE |
395 | - |
|
数据表 |
PS | Bulk | Obsolete | 230VAC | Square - 80mm L x 80mm H | 26.0 CFM (0.728m³/min) | 0.140 in H2O (35.2 Pa) | Ball | 0.59 lb (267.62 g) | Tubeaxial | - | 38.00mm | 34.0dB | 6.00W | CE, CSA, TUV, UL, VDE | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
3115FS-12T-B00-A00FAN AXIAL 80X38MM 115VAC TERM |
135 | - |
|
数据表 |
FS | Bulk | Obsolete | 115VAC | Square - 80mm L x 80mm H | 18.0 CFM (0.504m³/min) | 0.070 in H2O (17.5 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | - | 38.00mm | 31.0dB | 4.00W | CE, CSA, TUV, UL, VDE | 1850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4710PS-23T-B30-A00FAN AXIAL 119X25.5MM 230VAC TERM |
614 | - |
|
数据表 |
PS | Bulk | Obsolete | 230VAC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 0.8 lb (362.87 g) | Tubeaxial | - | 25.50mm | 38.0dB | 11.00W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4710PS-12T-B30-A00FAN AXIAL 119X25.5MM 115VAC TERM |
208 | - |
|
数据表 |
PS | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.8 lb (362.87 g) | Tubeaxial | - | 25.50mm | 38.0dB | 11.00W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4715MS-12T-B30-A00FAN AXIAL 119X38MM 115VAC TERM |
2,366 | - |
|
数据表 |
MS | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 88.2 CFM (2.47m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 37.0dB | 10.00W | CE, CSA, TUV, UL, VDE | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4715MS-12T-B20-A00FAN AXIAL 119X38MM 115VAC TERM |
1,225 | - |
|
数据表 |
MS | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 67.0 CFM (1.88m³/min) | 0.098 in H2O (24.5 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 30.0dB | 7.00W | CE, CSA, TUV, UL, VDE | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
OA109AP-22-1WB03FAN AC, 220V BALL W/THERMAL CT |
190 | - |
|
数据表 |
OA109 | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 104.0 CFM (2.91m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Temperature Sensor | 38.50mm | 42.0dB(A) | 15.00W | CE, cURus, TUV, UR | 3000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
|
FA1238B11T7-97120x120x38mm 115V AC Fan |
400 | - |
|
数据表 |
97 | Tape & Box (TB) | Active | 115VAC | Square - 120mm L x 120mm H | 104.0 CFM (2.91m³/min) | 0.251/0.350 in H2O (62.5/81.2 Pa) | Ball | 1.08 lb (490 g) | Tubeaxial | - | 38.00mm | 41.0/44.0dB(A) | 19.00W, 25.00W | CE, cUL, UL | 2500/2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
