交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA109AP-11-1TSFAN AXIAL 120X38MM 115VAC TERM Orion Fans |
285 | - |
|
数据表 |
OA109 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 42.0dB | 15.00W | CE, cURus, TUV, UR | 3000 RPM | 14 ~ 113°F (-10 ~ 45°C) | 2 Terminals | - |
|
OA825AP-22-1TBFAN AXIAL 80X27MM 230VAC TERM Orion Fans |
3,076 | - |
|
数据表 |
OA825 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 25.0 CFM (0.700m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.573 lb (259.91 g) | Tubeaxial | - | 27.00mm | 25.0dB | 9.00W | cURus, TUV | 3000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|

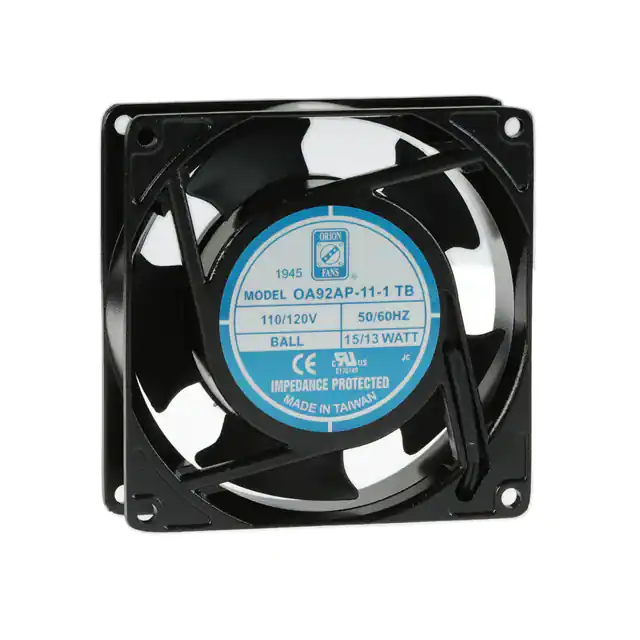

OA92AP-11-1TBFAN AXIAL 92X26MM 115VAC TERM Orion Fans |
677 | - |
|
数据表 |
OA92 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 35.0 CFM (0.980m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.644 lb (292.11 g) | Tubeaxial | - | 26.00mm | 30.0dB | 13.00W | cURus, TUV | 3000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|
OA125AP-22-1WBFAN AXIAL 119.5X26.2MM 230VAC Orion Fans |
1,018 | - |
|
数据表 |
OA125 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.73 lb (331.12 g) | Tubeaxial | - | 25.00mm | 42.0dB | 14.00W | cURus, TUV | 2900 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
OA938AP-22-1WBFAN AXIAL 92X38.5MM 230VAC WIRE Orion Fans |
326 | - |
|
数据表 |
OA938 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.992 lb (449.96 g) | Tubeaxial | - | 38.50mm | 32.0dB | 9.00W | cURus, TUV | 3100 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|

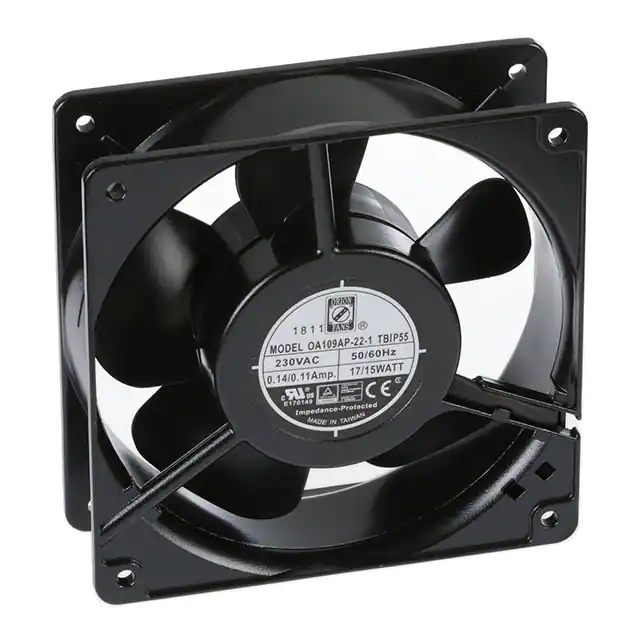

OA109AP-22-1TBIP55FAN AXIAL 120X38MM 230VAC TERM Orion Fans |
2,331 | - |
|
数据表 |
OA109 | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 46.0dB | 15.00W | cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|

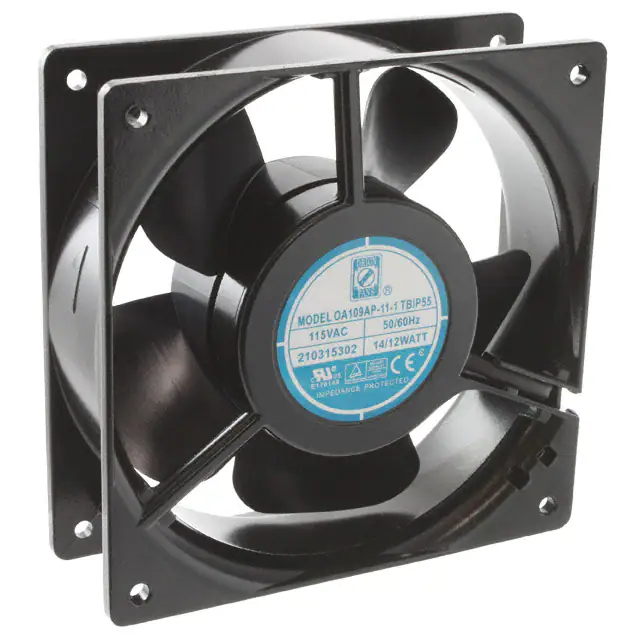

OA109AP-11-1TBIP55FAN AXIAL 120X38MM 115VAC TERM Orion Fans |
1,374 | - |
|
数据表 |
OA109 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 46.0dB | 12.00W | cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|

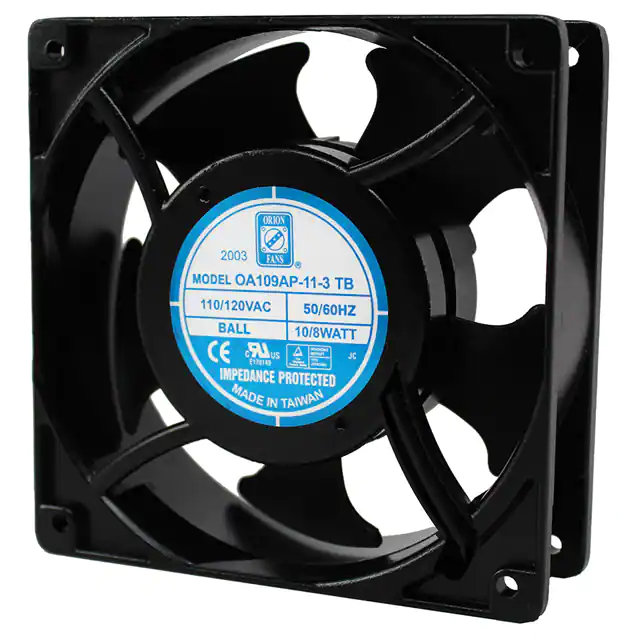

OA109AP-11-3TBFAN AXIAL 120X38MM 115VAC TERM Orion Fans |
1,028 | - |
|
数据表 |
OA109 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 51.0 CFM (1.43m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 25.0dB | 8.00W | CE, cURus, TUV, UR | 1600 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|

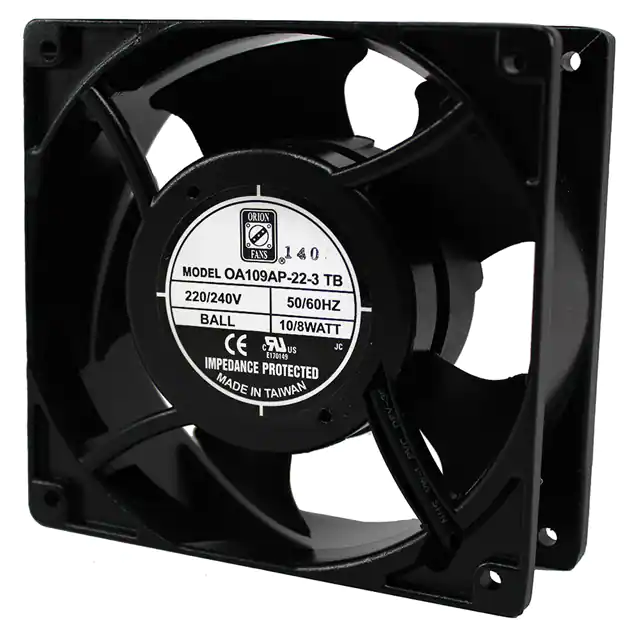

OA109AP-22-3TBFAN AXIAL 120X38MM 230VAC TERM Orion Fans |
145 | - |
|
数据表 |
OA109 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 51.0 CFM (1.43m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 25.0dB | 8.00W | CE, cURus, TUV, UR | 1600 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|
|
OA938AP-11-1WBFAN AXIAL 92X38.5MM 115VAC WIRE Orion Fans |
117 | - |
|
数据表 |
OA938 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.992 lb (449.96 g) | Tubeaxial | - | 38.50mm | 32.0dB | 9.00W | cURus, TUV | 3100 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
