交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA172SAP-11-3WBAC FAN 172MM X 51MM Orion Fans |
9 | - |
|
数据表 |
OA172SAP | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 115.0 CFM (3.22m³/min) | 0.430 in H2O (107.0 Pa) | Ball | - | Tubeaxial | - | 51.00mm | 33.2dB(A) | 16.00W | CE, cURus, TUV, UR | 1700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
OA2543AN-11-2WB1856FAN AC, 120V MTL BLD W/IP56 Orion Fans |
10 | - |
|
数据表 |
OA2543 | Bulk | Active | 115VAC | Round - 254mm Dia | 670.0 CFM (18.76m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 89.00mm | 56.0dB(A) | 80.0W | cURus, TUV | 2300 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
OA254EC-22-1TBXCIP68Thermal Products Orion Fans |
15 | - |
|
数据表 |
OA254EC | Bulk | Active | 230VAC | Round - 254mm Dia | 830.0 CFM (23.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 70.1dB(A) | 72.0W | CE, cURus, TUV, UR | 2750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
OA254EC-22-1TBXCIP68AEC FAN 254X89MM 230VAC IP68 Orion Fans |
3 | - |
|
数据表 |
OA254EC XC | Box | Obsolete | 230VAC | Round - 254mm Dia | 830.0 CFM (23.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 4.6 lbs (2.1 kg) | Tubeaxial | Electronic Commutation (EC) | 89.00mm | 70.0dB | 72.0W | CE, cURus, TUV, UR | 2750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
|
OA254EC-11-1TBXCIP68AEC FAN 254X89MM 115VAC IP68 Orion Fans |
3 | - |
|
数据表 |
OA254EC XC | Box | Obsolete | 115VAC | Round - 254mm Dia | 830.0 CFM (23.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 4.6 lbs (2.1 kg) | Tubeaxial | Electronic Commutation (EC) | 89.00mm | 70.0dB | 75.0W | CE, cURus, TUV, UR | 2750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|

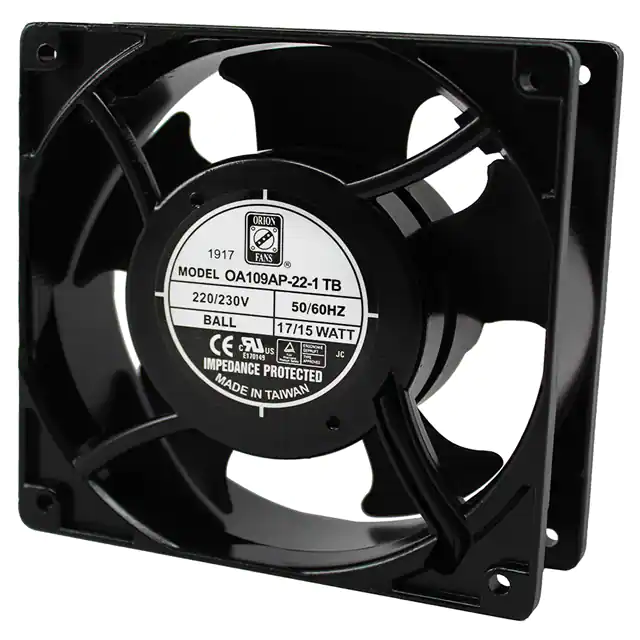

OA109AP-22-1TBFAN AXIAL 120X38MM 230VAC TERM Orion Fans |
0 | - |
|
数据表 |
OA109 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 42.0dB | 15.00W | CE, cURus, TUV, UR | 3000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|
OA2543AP-22-1TB1868FAN 230AC 254X254X89MM IP68 TERM Orion Fans |
0 | - |
|
数据表 |
OA2543AP | Box | Active | 230VAC | Round - 254mm Dia | 930.0 CFM (26.04m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 5.2 lbs (2.4 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 89.00mm | 67.0dB | 105W | CE, cURus, TUV, UR | 3300 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
|
OAB800AN-22-1WBFAN BLOWER 125X39MM 230VAC WIRE Orion Fans |
0 | - |
|
数据表 |
OAB800AN | Box | Active | 230VAC | Rectangular/Rounded - 125mm L x 126mm H | 30.0 CFM (0.840m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 1.2 lbs (544.3 g) | Blower | - | 39.00mm | 48.0dB | 18.00W | cURus, TUV | 2800 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
OA938AP-11-1WB1855FAN AXIAL 92X38MM 115VAC WIRE Orion Fans |
0 | - |
|
数据表 |
OA938 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 55.0 CFM (1.54m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 40.0dB | 15.00W | cURus, TUV | 3150 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
OA2547AP-22-1WB1869KAC FAN, IP69K, 254X254X89MM, 230 Orion Fans |
1 | - |
|
数据表 |
OA2547AP-IP69K | Box | Active | 230VAC | Round - 254mm Dia | 1000.0 CFM (28.00m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 5.6 lbs (2.5 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 89.00mm | 70.0dB | 105W | CE, cURus, TUV, UR | 3250 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
