交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA172AP-11-1WB1855FAN AXIAL 172X51MM 115VAC WIRE Orion Fans |
197 | - |
|
数据表 |
OA172AP | Box | Active | 115VAC | Round - 172mm Dia | 215.0 CFM (6.02m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 3 lbs (1.4 kg) | Tubeaxial | - | 51.00mm | 59.0dB | 42.00W | cURus | 3200 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
OA92AP-11-1WBFAN AXIAL 92X26MM 115VAC WIRE Orion Fans |
123 | - |
|
数据表 |
OA92 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 35.0 CFM (0.980m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.644 lb (292.11 g) | Tubeaxial | - | 26.00mm | 30.0dB | 13.00W | cURus, TUV | 3000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
OA109AP-24-1TB120X38MM 24VAC FAN TERM Orion Fans |
500 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OAB220-11-4563-SPEED 115VAC IMPELLER Orion Fans |
40 | - |
|
数据表 |
OAB220 | Box | Active | 115VAC | Round - 220mm Dia | 265.0 CFM (7.42m³/min) | 1.020 in H2O (254.1 Pa) | Ball | - | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 76.00mm | 62.0dB | 48.00W | CE, cURus, TUV, UR | 1430 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
OA172EC-UR-1WBIP68AFAN 172X150X51MM 115/230VAC Orion Fans |
60 | - |
|
数据表 |
OA172 | Bulk | Active | 115 ~ 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 240.0 CFM (6.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 51.00mm | 57.3dB(A) | 20.50W | CE, cURus, TUV, UKCA, UR | 3200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
OA109AP-22-1WB03FAN AC, 220V BALL W/THERMAL CT Orion Fans |
190 | - |
|
数据表 |
OA109 | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 104.0 CFM (2.91m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Temperature Sensor | 38.50mm | 42.0dB(A) | 15.00W | CE, cURus, TUV, UR | 3000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
|
OA254AN-22-2TB230VAC 254X89MM Orion Fans |
144 | - |
|
数据表 |
OA254AN | Bulk | Active | 230VAC | Round - 254mm Dia | 600.0 CFM (16.80m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 89.00mm | 55.0dB(A) | 45.00W | CE, cURus, TUV, UR | 2000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|
OA172EC-22-1WBIP68AFAN 172X150X51MM 230VAC IP68ATEX Orion Fans |
41 | - |
|
数据表 |
OA172EC | Box | Obsolete | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 220.0 CFM (6.16m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 1.5 lbs (680.4 g) | Tubeaxial | Electronic Commutation (EC), Thermal Overload Protector (TOP) | 51.00mm | 57.0dB | 15.00W | ATEX, CE, cURus, UR | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

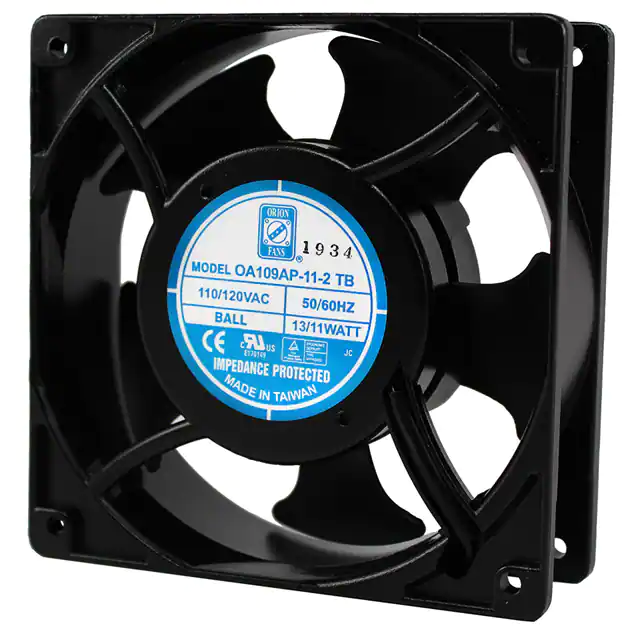

OA109AP-11-2TBFAN AXIAL 120X38MM 115VAC TERM Orion Fans |
0 | - |
|
数据表 |
OA109 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 71.0 CFM (1.99m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 35.0dB | 11.00W | CE, cURus, TUV, UR | 2300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|

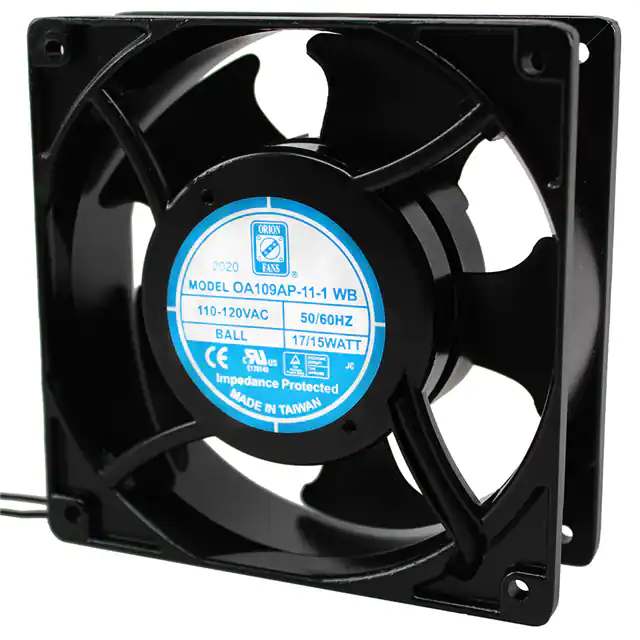

OA109AP-11-1WBFAN AXIAL 120X38MM 115VAC WIRE Orion Fans |
6 | - |
|
数据表 |
OA109 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 42.0dB | 15.00W | CE, cURus, TUV, UR | 3000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
