交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

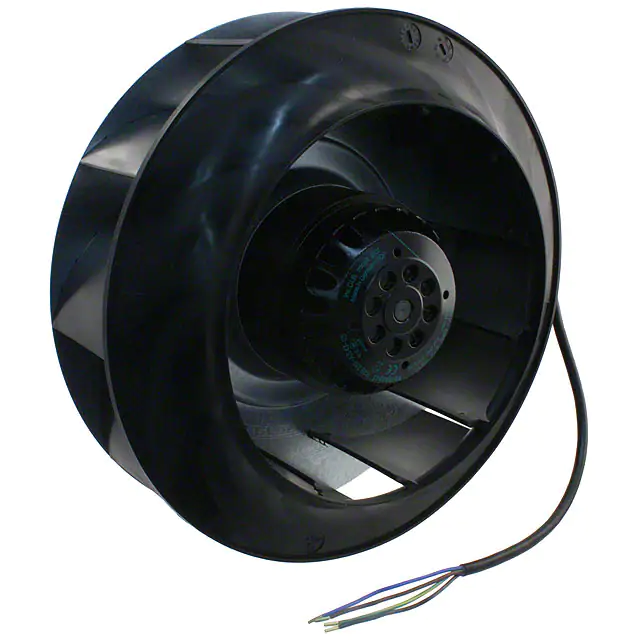

R2E250-AS47-05FAN IMP MTRZD 250X99MM 230VAC |
0 | - |
|
数据表 |
R2E250 | Box | Obsolete | 230VAC | Round - 250mm Dia | - | - | Ball | 6.6 lbs (3 kg) | Motorized Impellers | - | 99.00mm | 76.0dB(A) | 155W | CCC, GOST | 2600 RPM | -40 ~ 176°F (-40 ~ 80°C) | 4 Wire Leads | IP44 |
|
R4E310-AE05-17FAN IMP MTRZD 318X154MM 230VAC |
0 | - |
|
数据表 |
R4E310 | Box | Obsolete | 230VAC | Round - 318mm Dia | 1265.0 CFM (35.42m³/min) | - | Ball | 8.0 lbs (3.6 kg) | Motorized Impellers | Capacitor | 154.0mm | 68.0dB(A) | 165W | CCC, CSA, UL | - | - | 2 Wire Leads | - |
|

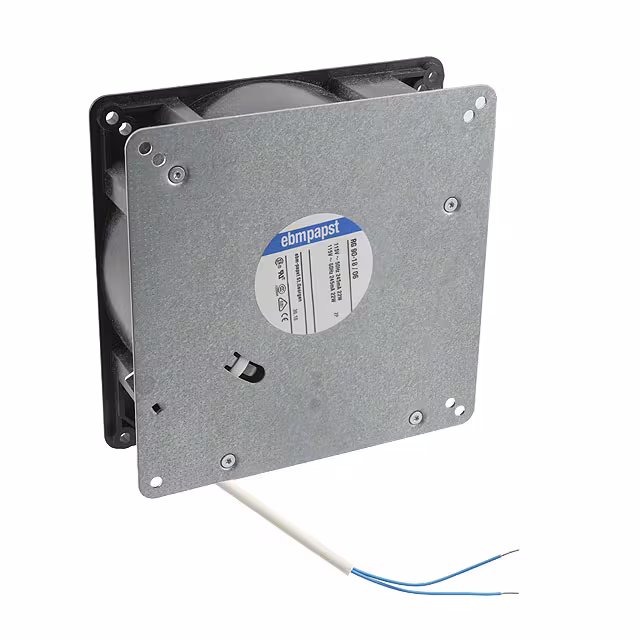

RG90-18/06FAN BLWR FLATPAK 135X38MM 115VAC |
0 | - |
|
数据表 |
RG90 | Box | Obsolete | 115VAC | Square - 135mm L x 135mm H | 27.7 CFM (0.776m³/min) | - | Ball | 1.3 lbs (589.7 g) | Blower, Flatpak | - | 38.00mm | 60.0dB(A) | 22.00W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
FAA1-08025NSHW31FAN AXIAL 80X25MM 115VAC WIRE |
0 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.125 in H2O (31.1 Pa) | Sleeve | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 27.8dB(A) | 7.00W | CE, cURus, TUV | 2800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
FAA1-08038NHHW31FAN AXIAL 80X38MM 115VAC WIRE |
0 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.166 in H2O (41.3 Pa) | Hydrodynamic | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 31.6dB(A) | 8.50W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAA1-08038QHMT31FAN AXIAL 80X38MM HYDRO 230VAC |
0 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.110 in H2O (27.4 Pa) | Hydrodynamic | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 26.2dB(A) | 5.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12025QSMT31FAN AXIAL 120X25MM 230VAC TERM |
0 | - |
|
数据表 |
FAA1-12025 | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 71.0 CFM (1.99m³/min) | 0.156 in H2O (38.8 Pa) | Sleeve | 0.749 lb (339.74 g) | Tubeaxial | - | 25.00mm | 44.1dB(A) | 20.70W | CE, cURus, TUV | 2300 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
FAA1-12038NSHT31-AFAN AXIAL 119.5X38.5MM 115VAC |
0 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 97.0 CFM (2.72m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 44.5dB(A) | 14.00W | CE, cURus, TUV | 2900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
|
FAA1-12038NHHT31-AFAN AXIAL 119.5X38.5MM 115VAC |
0 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 97.0 CFM (2.72m³/min) | 0.350 in H2O (87.2 Pa) | Hydrodynamic | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 44.5dB(A) | 14.00W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
FAA1-12038QSLW31-AFAN AXIAL 119.5X38.5MM 230VAC |
0 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 71.5 CFM (2.00m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 37.9dB(A) | 9.40W | CE, cURus, TUV | 2200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
FAA1-12038NSLT31-AFAN AXIAL 119.5X38.5MM 115VAC |
0 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 71.5 CFM (2.00m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 37.9dB(A) | 8.70W | CE, cURus, TUV | 2200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
FAA1-12038NSAT31-AFAN AXIAL 119.5X38.5MM 115VAC |
0 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 53.5 CFM (1.50m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 30.5dB(A) | 8.00W | CE, cURus, TUV | 1700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
FKA2-17689QBHT3FFAN AXIAL 176X89MM 230VAC TERM |
0 | - |
|
数据表 |
FKA2-17689 | Bulk | Active | 230VAC | Square - 176mm L x 176mm H | 380.0 CFM (10.64m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 4 lbs (1.8 kg) | Tubeaxial | - | 89.00mm | 70.0dB(A) | 49.50W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FKA2-18065NBHW3FFAN AXIAL 180X65MM 115VAC WIRE |
0 | - |
|
数据表 |
FKA2-18065 | Bulk | Active | 115VAC | Square - 180mm L x 180mm H | 410.0 CFM (11.48m³/min) | 0.850 in H2O (211.7 Pa) | Ball | 4 lbs (1.8 kg) | Tubeaxial | - | 65.00mm | 75.0dB(A) | 55.2W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FKA2-18065NBHT3FFAN AXIAL 180X65MM 115VAC TERM |
0 | - |
|
数据表 |
FKA2-18065 | Bulk | Active | 115VAC | Square - 180mm L x 180mm H | 410.0 CFM (11.48m³/min) | 0.850 in H2O (211.7 Pa) | Ball | 4 lbs (1.8 kg) | Tubeaxial | - | 65.00mm | 75.0dB(A) | 55.2W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
FKA2-18065QBHW3FFAN AXIAL 180X65MM 230VAC WIRE |
0 | - |
|
数据表 |
FKA2-18065 | Bulk | Active | 230VAC | Square - 180mm L x 180mm H | 410.0 CFM (11.48m³/min) | 0.850 in H2O (211.7 Pa) | Ball | 4 lbs (1.8 kg) | Tubeaxial | - | 65.00mm | 75.0dB(A) | 51.1W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FKA2-20572NBHT3FFAN AXIAL 205X72MM 115VAC TERM |
0 | - |
|
数据表 |
FKA2-20572 | Bulk | Active | 115VAC | Square - 205mm L x 205mm H | 665.0 CFM (18.62m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 4.6 lbs (2.1 kg) | Tubeaxial | - | 72.00mm | 75.4dB(A) | 100W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
FKA2-20572QBHW3FFAN AXIAL 205X72MM 230VAC WIRE |
0 | - |
|
数据表 |
FKA2-20572 | Bulk | Active | 230VAC | Square - 205mm L x 205mm H | 665.0 CFM (18.62m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 4.6 lbs (2.1 kg) | Tubeaxial | - | 72.00mm | 75.4dB(A) | 95.2W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FKA2-20572QBHT3FFAN AXIAL 205X72MM 230VAC TERM |
0 | - |
|
数据表 |
FKA2-20572 | Bulk | Active | 230VAC | Square - 205mm L x 205mm H | 665.0 CFM (18.62m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 4.6 lbs (2.1 kg) | Tubeaxial | - | 72.00mm | 75.4dB(A) | 95.2W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FKA2-28089NBHW3FFAN AXIAL 280X89MM 115VAC WIRE |
0 | - |
|
数据表 |
FKA2-28089 | Bulk | Active | 115VAC | Square - 280mm L x 280mm H | 1400.0 CFM (39.20m³/min) | 0.044 in H2O (11.0 Pa) | Ball | 7.7 lbs (3.5 kg) | Tubeaxial | - | 89.00mm | 78.0dB(A) | 260W | CE, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
