交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8880VFAN AXIAL 80X38MM 230VAC TERM |
0 | - |
|
数据表 |
8000V | Bulk | Obsolete | 230VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | - | Sintec | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 21.0dB(A) | 8.00W | - | - | - | 2 Terminals | - |
|
D2E097-CB11-26FAN BLWR CENT 144X140MM 115VAC |
0 | - |
|
数据表 |
D2E097 | Bulk | Obsolete | 115VAC | Rectangular - 144mm L x 137mm H (97mm Dia) | 120.0 CFM (3.36m³/min) | - | Ball | 2.7 lbs (1.2 kg) | Blower, Centrifugal | - | 140.0mm | 47.0dB(A) | 43.00W | - | - | - | 2 Wire Leads | - |
|
D2E133-DB21-46FAN BLWR CENT 204X270MM 115VAC |
0 | - |
|
数据表 |
D2E133 | - | Obsolete | 115VAC | Rectangular - 204mm L x 213mm H (133mm Dia) | 420.0 CFM (11.76m³/min) | - | Ball | - | Blower, Centrifugal | - | 270.0mm | 55.0dB(A) | 195W | - | - | - | 2 Wire Leads | - |
|
|
D2E140-HR97-05FAN BLWR CENT 216X142MM 230VAC |
0 | - |
|
数据表 |
D2E140 | Bulk | Obsolete | 230VAC | Round - 216mm Dia | 101.0 ~ 253.0 CFM (2.83 ~ 7.08m³/min) | - | - | - | Blower, Centrifugal | - | 142.0mm | 36 ~ 56dB(A) | 56.0W ~ 128W | CE, VDE | - | - | 6 Position Rectangular Connector | - |
|

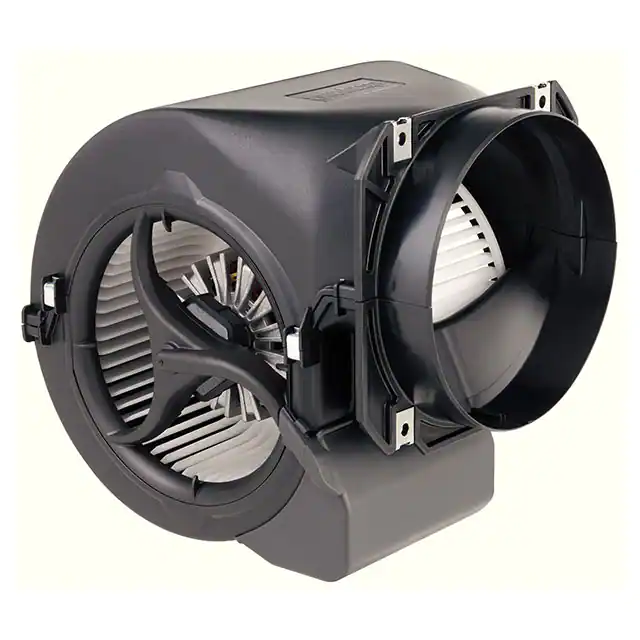

D2E146-HR25-13FAN BLWR CENT 220X178MM 115VAC |
0 | - |
|
数据表 |
D2E146 | - | Obsolete | 115VAC | Rectangular/Rounded - 220mm L x 216mm H (146mm Dia) | 152.0 ~ 350.0 CFM (4.26 ~ 9.80m³/min) | - | - | - | Blower, Centrifugal | - | 178.0mm | 33 ~ 52dB(A) | 83.0W ~ 192W | CE, VDE | - | - | 6 Position Rectangular Connector | - |
|
|
D2E146-HR93-01FAN BLWR CENT 220X178MM 230VAC |
0 | - |
|
数据表 |
D2E146 | Bulk | Active | 230VAC | Rectangular/Rounded - 220mm L x 216mm H (146mm Dia) | 93.0 ~ 205.0 CFM (2.60 ~ 5.74m³/min) | - | - | - | Blower, Centrifugal | - | 178.0mm | 46 ~ 63dB(A) | 70.0W ~ 160W | CE, VDE | - | - | 6 Position Rectangular Connector | - |
|
D4E146-AA25-34FAN BLWR CENT 206X270MM 115VAC |
0 | - |
|
数据表 |
D4E146 | Bulk | Obsolete | 115VAC | Rectangular/Rounded - 206mm L x 219mm H (146mm Dia) | 450.0 CFM (12.60m³/min) | - | Ball | 7.7 lbs (3.5 kg) | Blower, Centrifugal | - | 270.0mm | 55.0dB(A) | 128W | CE, VDE | - | - | 2 Wire Leads | - |
|
G1G170-AB05-11FAN BLWR COMB AIR 257X176 115VAC |
0 | - |
|
数据表 |
G1G170 | - | Obsolete | 115VAC | Rectangular - 257mm L x 273mm H (170mm Dia) | 362.0 CFM (10.14m³/min) | - | Ball | 11 lbs (5 kg) | Blower, Combustion Air | PWM Control, Speed Sensor (Tach) | 176.0mm | - | 300W | - | 5500 RPM | - | 3 or 5 Position Rectangular Connector | - |
|
G2E140-AL40-48FAN BLWR CENT 226X130MM 230VAC |
0 | - |
|
数据表 |
G2E140 | Bulk | Obsolete | 230VAC | Rectangular - 226mm L x 247mm H (140mm Dia) | 179.5 CFM (5.03m³/min) | - | Ball | 6.6 lbs (3 kg) | Blower, Centrifugal | - | 130.0mm | 60.0dB(A) | 145W | - | - | - | 2 Wire Leads | - |
|
G2S085-AA03-01FAN BLWR CENT 118X80MM 230VAC |
0 | - |
|
数据表 |
G2E085 | Bulk | Obsolete | 230VAC | Rectangular - 118mm L x 117mm H (85mm Dia) | 26.5 CFM (0.742m³/min) | - | Ball | 1.8 lbs (816.5 g) | Blower, Centrifugal | - | 80.00mm | 38.0dB(A) | 23.00W | - | - | - | 2 Wire Leads | - |
|
|
G2S085-AA19-15FAN BLWR CENT 118X80MM 115VAC |
0 | - |
|
数据表 |
G2E085 | Bulk | Obsolete | 115VAC | Rectangular - 118mm L x 117mm H (85mm Dia) | 26.5 CFM (0.742m³/min) | - | Ball | 1.8 lbs (816.5 g) | Blower, Centrifugal | - | 80.00mm | 38.0dB(A) | 22.00W | - | - | - | 2 Wire Leads | - |
|
G2S097-DB03-01FAN BLWR CENT 143X53MM 230VAC |
0 | - |
|
数据表 |
G2S097 | Bulk | Obsolete | 230VAC | Rectangular - 143mm L x 137mm H (97mm Dia) | 26.0 CFM (0.728m³/min) | - | Ball | 1.8 lbs (816.5 g) | Blower, Centrifugal | - | 53.00mm | 38.0dB(A) | 22.00W | - | - | - | 2 Wire Leads | - |
|
|
G2S097-DB61-08FAN BLWR CENT 143X53MM 115VAC |
0 | - |
|
数据表 |
G2S097 | Bulk | Obsolete | 115VAC | Rectangular - 143mm L x 137mm H (97mm Dia) | 26.0 CFM (0.728m³/min) | - | Ball | 1.8 lbs (816.5 g) | Blower, Centrifugal | - | 53.00mm | 37.0dB(A) | 23.00W | - | - | - | 2 Wire Leads | - |
|
|
QK08A-2/203530FAN BLOWER CF 500X200MM 115VAC |
0 | - |
|
数据表 |
QK08A | - | Obsolete | 115VAC | Rectangular - 640mm L x 175mm H (92mm Dia) | 620.0 CFM (17.36m³/min) | - | Ball | 10 lbs (4.5 kg) | Blower, Cross Flow | - | 200.0mm | 76.0dB(A) | 290W | - | - | - | Terminal Block | - |
|
|
QK08A-2/207886FAN BLOWER CF 350X160MM 115VAC |
0 | - |
|
数据表 |
QK08A | - | Obsolete | 115VAC | Rectangular - 467mm L x 130mm H (92mm Dia) | 445.0 CFM (12.46m³/min) | - | Ball | 10 lbs (4.5 kg) | Blower, Cross Flow | - | 160.0mm | 74.0dB(A) | 175W | - | - | - | Terminal Block | - |
|
|
QK08A-4/105638FAN BLOWER CF 350X160MM 230VAC |
0 | - |
|
数据表 |
QK08A | - | Obsolete | 230VAC | Rectangular - 447mm L x 130mm H (92mm Dia) | 250.0 CFM (7.00m³/min) | - | Ball | 13 lbs (5.9 kg) | Blower, Cross Flow | - | 160.0mm | 60.0dB(A) | 68.0W | - | - | - | Terminal Block | - |
|
|
QK10A-2/111589FAN BLOWER CF 480X200MM 115VAC |
0 | - |
|
数据表 |
QK10A | - | Obsolete | 115VAC | Rectangular - 645mm L x 175mm H (92mm Dia) | 940.0 CFM (26.32m³/min) | - | Ball | 20 lbs (9.1 kg) | Blower, Cross Flow | - | 200.0mm | 86.0dB(A) | 580W | - | - | - | Terminal Block | - |
|
|
QK10A-2/210955FAN BLOWER CF 480X200MM 230VAC |
0 | - |
|
数据表 |
QK10A | - | Obsolete | 230VAC | Rectangular - 645mm L x 175mm H (92mm Dia) | 900.0 CFM (25.20m³/min) | - | Ball | 21 lbs (9.5 kg) | Blower, Cross Flow | - | 200.0mm | 66.0dB(A) | 150W | - | - | - | Terminal Block | - |
|
|
QK10A-4/110756FAN BLOWER CF 378X200MM 230VAC |
0 | - |
|
数据表 |
QK10A | - | Obsolete | 230VAC | Rectangular - 488mm L x 175mm H (92mm Dia) | 410.0 CFM (11.48m³/min) | - | Ball | 10 lbs (4.5 kg) | Blower, Cross Flow | - | 200.0mm | 68.0dB(A) | 85.0W | - | - | - | Terminal Block | - |
|
|
QK10A-4/120844FAN BLOWER CF 980X200MM 230VAC |
0 | - |
|
数据表 |
QK10A | - | Obsolete | 230VAC | Rectangular - 1100mm L x 175mm H (92mm Dia) | 950.0 CFM (26.60m³/min) | - | Ball | 22 lbs (10 kg) | Blower, Cross Flow | - | 200.0mm | 86.0dB(A) | 670W | - | - | - | Terminal Block | - |
