交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A4D300-AT04-01AC FAN AXIAL |
0 | - |
|
数据表 |
S | Bulk | Active | 230/400VAC | Round - 300mm Dia | - | 0.301 in H2O (75.0 Pa) | Ball | 4.6 lbs (2.1 kg) | Tubeaxial, 3 Phase | Dual Voltage | 82.50mm | - | 90.0W | CE | 1530 RPM | -13 ~ 158°F (-25 ~ 70°C) | 7 Wire Leads | IP44 |
|
|
S4D450-AU01-01AC AXIAL FAN |
0 | - |
|
数据表 |
S4D450 | Bulk | Active | 400VAC | Round - 522mm Dia | 2126.3 CFM (59.54m³/min) | 0.341 in H2O (85.0 Pa) | Ball | - | Tubeaxial, 3 Phase | Thermal Overload Protection (TOP) | 172.5mm | - | 415W | CCC, CE, EAC | 1360 RPM | -40 ~ 122°F (-40 ~ 50°C) | Terminal Block | IP54 - Dust Protected, Water Resistant |
|
|
W4S300-DA02-02AC AXIAL FAN |
0 | - |
|
数据表 |
W4S300 | Bulk | Active | 230VAC | Square - 430mm L x 430mm H | - | - | Ball | - | Tubeaxial | - | 90.00mm | 62.0dB(A) | 94.0W | - | 1380 RPM | 86°F (30°C) | 2 Wire Leads | - |
|
|
R3G250-RE09-07250 MM EC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
RadiCal® R3G250RE | Bulk | Active | 230VAC | Round - 255mm Dia | 829.9 CFM (23.24m³/min) | - | Ball | 3.9 lbs (1.8 kg) | Motorized Impellers | Electronic Commutation (EC), PWM Control, Speed Sensor (Tach) | 99.00mm | 76.0dB(A) | 170W | UL | 2510 RPM | -40 ~ 176°F (-40 ~ 80°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
G3G146-CC11-14DC CENTRIFUGAL BLOWER |
0 | - |
|
数据表 |
G3G146 | Bulk | Active | 230VAC | Rectangular/Rounded - 241mm L x 225mm H | - | - | Ball | - | Blower, Centrifugal | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 90.00mm | - | 90.0W | - | 2260 RPM | -13 ~ 104°F (-25 ~ 40°C) | 3 Wire Leads, 4 Wire Leads | IP44 |
|
|
R3G220-RD21-03220 MM EC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
RadiCal® R3G220RD | Bulk | Active | 230VAC | Round - 220mm Dia | 747.5 CFM (20.93m³/min) | - | Ball | 3.2 lbs (1.5 kg) | Motorized Impellers | - | 92.00mm | 69.0dB(A) | 168W | UL | 3230 RPM | -13 ~ 113°F (-25 ~ 45°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
R6E400-AE11-09MOTORIZED IMPELLER |
0 | - |
|
数据表 |
R6E400 | Bulk | Obsolete | 230VAC | Round - 404mm Dia | - | - | Ball | - | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 179.5mm | - | 125W | CE | 720 RPM | -13 ~ 140°F (-25 ~ 60°C) | 10 Wire Leads | - |
|
|
D2E133-DM27-D8BLOWER |
0 | - |
|
数据表 |
D2E133 | Bulk | Active | 230VAC | Rectangular/Rounded - 203mm L x 213mm H | - | 0.602 in H2O (150.0 Pa) | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | 270.0mm | - | 220W | - | 1900 RPM | -13 ~ 86°F (-25 ~ 30°C) | Terminal Block | IP44 |
|
|
G3G108-BB01-02DC CENTRIFUGAL BLOWER |
0 | - |
|
数据表 |
G3G108 | Bulk | Obsolete | 230VAC | Rectangular/Rounded - 185mm L x 160mm H | - | - | Ball | - | Blower, Centrifugal | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 115.0mm | - | 50W | CCC, CE, EAC | 2800 RPM | -13 ~ 140°F (-25 ~ 60°C) | 3 Wire Leads, 4 Wire Leads | IP44 |
|

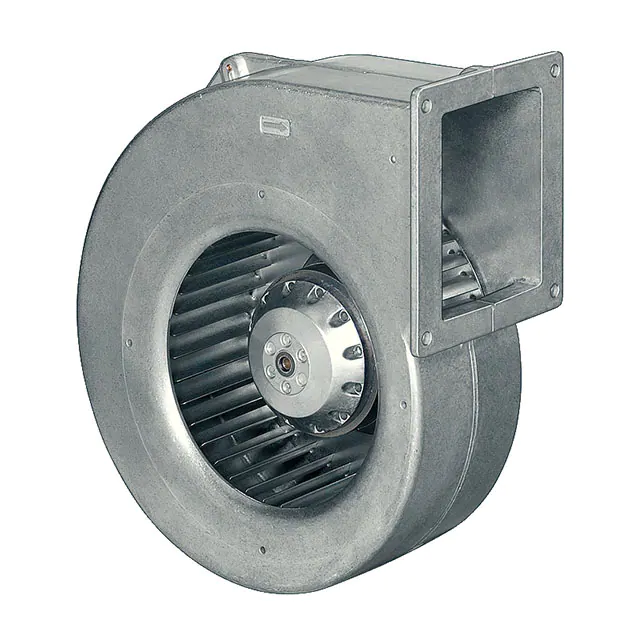

G4E180-AB01-01FAN BLWR CENT 261X125MM 230VAC |
0 | - |
|
数据表 |
G4E180 | Bulk | Active | 230VAC | Rectangular - 261mm L x 281mm H (180mm Dia) | 350.0 CFM (9.80m³/min) | - | Ball | 8.2 lbs (3.7 kg) | Blower, Centrifugal | - | 125.0mm | 65.0dB(A) | 145W | CCC, CE | 1300 RPM | -40 ~ 176°F (-40 ~ 80°C) | 2 Wire Leads | - |
|
|
S4D350-BA06-02AC AXIAL FAN |
0 | - |
|
数据表 |
S4D350 | Bulk | Active | 230VAC/400VAC | Round - 422mm Dia | 1943.7 CFM (54.42m³/min) | - | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 167.0mm | 72.0dB(A) | 190W | - | 1620 RPM | 104°F (40°C) | 2 Wire Leads | IP44 |
|
|
55416.17021AC FAN BLOWER CROSSFLOW |
1 | - |
|
数据表 |
- | Bulk | Obsolete | 115VAC | Rectangular - 239mm L x 155mm H | - | - | Sleeve | - | Blower, Cross Flow | - | 108.4mm | - | - | - | - | - | - | - |
|
|
R2D250-AI02-11AC BACKWARD-CURVED MOTORIZED IMP |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S4D450-HA14-01AC AXIAL FAN |
0 | - |
|
数据表 |
S4D450 | Bulk | Active | 400VAC | Round - 450mm Dia | - | - | Ball | - | Tubeaxial, 3 Phase | - | - | - | - | - | - | - | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
A8D630-AD01-01AC AXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GTB028EUB16FAN BLWR CENT 280X162MM 230VAC |
0 | - |
|
数据表 |
GTB | Box | Active | 230VAC | Round - 280mm Dia | 1308.0 CFM (36.62m³/min) | 2.285 in H2O (569.0 Pa) | Ball | 7.7 lbs (3.5 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 162.0mm | 73.0dB(A) | 180W | TUV, UL | 2020 RPM | -13 ~ 140°F (-25 ~ 60°C) | - | IP54 - Dust Protected, Water Resistant |
|
|
G3G140-AV03-02DC CENTRIFUGAL BLOWER |
0 | - |
|
数据表 |
G3G140 | Bulk | Obsolete | 230VAC | Rectangular/Rounded - 261.5mm L x 226.5mm H | 253.3 CFM (7.09m³/min) | - | Ball | - | Blower, Centrifugal | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 130.0mm | - | 66W | GOST | 1800 RPM | -13 ~ 140°F (-25 ~ 60°C) | 3 Wire Leads, 4 Wire Leads | IP44 |
|
|
G3G140-AW21-12DC CENTRIFUGAL BLOWER |
0 | - |
|
数据表 |
G3G140 | Bulk | Active | 115VAC | Rectangular/Rounded - 262.6mm L x 227.8mm H | - | - | Ball | - | Blower, Centrifugal | Thermal Overload Protection (TOP) | 130.0mm | - | 70W | GOST | 2370 RPM | 140°F (60°C) | 2 Wire Leads | IP44 |
|
|
S4D450-AP01-06AC AXIAL FAN |
0 | - |
|
数据表 |
S4D450 | Bulk | Active | 230VAC/400VAC | Round - 522mm Dia | 2235.3 CFM (62.59m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 200.5mm | - | 285W | CE | 1540 RPM | -13 ~ 122°C (-25 ~ 50°C) | Terminal Block | IP44 |
|
|
G2E180-EH03-11AC CENTRIFUGAL BLOWER |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
