交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S4E315-AP18-30AC AXIAL FAN |
0 | - |
|
数据表 |
S4E315 | Bulk | Active | 230VAC | Round - 375mm Dia | 1672.8 CFM (46.84m³/min) | 0.482 in H2O (120.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | 120.0mm | 64.0dB(A) | 120W | CCC, CE, GOST | 1650 RPM | 131°F (55°C) | 4 Wire Leads | IP44 |
|
|
R4E310-AO32-17MOTORIZED IMPELLER 915MM LEAD |
0 | - |
|
数据表 |
R4E310 | Bulk | Active | 115VAC | Round - 318mm Dia | - | - | Ball | 8.3 lbs (3.8 kg) | Motorized Impellers, 3 Phase | Capacitor, Thermal Overload Protection (TOP) | 128.0mm | - | 155W | CSA, UL | 1720 RPM | -13 ~ 149°F (-25 ~ 65°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
|
R4E180-AS11-09AC BACKWARD-CURVED MOTORIZED IMP |
0 | - |
|
数据表 |
R4E180 | Bulk | Active | 230VAC | Round - 180mm Dia | - | - | Ball | - | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | 121.0mm | - | 180W | CSA, CE, UL | 1500 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP44 |
|
|
S2E300-BP02-30FAN AXIAL |
0 | - |
|
数据表 |
S2E300 | Bulk | Active | 230VAC | Round - 360mm Dia | - | 0.201 in H2O (50.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 104.0mm | - | 350W | CCC, CE, EAC | 3000 RPM | -13 ~ 122°F (-25 ~ 50°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
|
D2E146-HT67-31BLOWER |
0 | - |
|
数据表 |
D2E146 | Bulk | Active | 230VAC | Rectangular/Rounded - 220mm L x 216mm H | - | 0.803 in H2O (200.0 Pa) | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | 199.0mm | - | 400W | - | 2100 RPM | -13 ~ 122°F (-25 ~ 50°C) | 6 Position Rectangular Connector | IP20 |
|
|
A2D200-AA02-16AC AXIAL FAN |
0 | - |
|
数据表 |
A2D200 | Bulk | Active | 230/400VAC | Round - 195mm Dia | - | 1.204 in H2O (300.0 Pa) | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 73.00mm | - | 70.0W | CCC, CE | 3150 RPM | -13 ~ 167°F (-25 ~ 75°C) | 7 Wire Leads with Splice Terminals | IP54 - Dust Protected, Water Resistant |
|
|
W4E250-CI02-01AC AXIAL FAN |
0 | - |
|
数据表 |
W4E250 | Bulk | Active | 230VAC | Round - 320mm Dia | - | 0.181 in H2O (45.1 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | 97.00mm | - | 45.00W | CE | 1630 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP44 |
|
|
W2E250-CL08-70FAN AXIAL 320X85MM 115VAC WIRE |
0 | - |
|
数据表 |
W2E250A | Bulk | Active | 115VAC | Round - 320mm Dia | 1100.0 CFM (30.80m³/min) | - | Ball | 3.1 lbs (1.4 kg) | Tubeaxial | - | 85.00mm | 71.0dB(A) | 160W | CE, CSA, UL | - | - | 2 Wire Leads | - |
|
|
R2D220-AC02-12AC BACKWARD-CURVED MOTORIZED IMP |
0 | - |
|
数据表 |
R2D220 | Bulk | Obsolete | 415VAC | Round - 252mm Dia | - | - | Ball | - | Motorized Impellers | - | 71.00mm | - | 100W | CE | 3000 RPM | 122°F (50°C) | 4 Position Rectangular Connector | IP44 |
|
|
S4E350-BP06-30AC AXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W4E315-CS22-71FAN AXIAL |
0 | - |
|
数据表 |
W4E315 | Bulk | Active | 115VAC | Round - 397mm Dia | - | 0.321 in H2O (80.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 117.0mm | - | 160W | CSA, UL | 1510 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
|
FC031-4/105119FAN AXIAL 430X161MM 230VAC WIRE |
0 | - |
|
数据表 |
FC031 | - | Obsolete | 230VAC | Square - 430mm L x 430mm H | 1300.0 CFM (36.40m³/min) | - | Ball | 12 lbs (5.4 kg) | Tubeaxial | - | 161.0mm | 66.0dB(A) | 160W | - | - | - | 2 Wire Leads | - |
|
W4E420-CP02-71FAN AXIAL 544X80MM 230VAC WIRE |
0 | - |
|
数据表 |
W4E420A | Bulk | Obsolete | 230VAC | Round - 544mm Dia | 3310.0 CFM (92.68m³/min) | - | Ball | 11 lbs (5 kg) | Tubeaxial | - | 80.00mm | 74.0dB(A) | 285W | CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
|

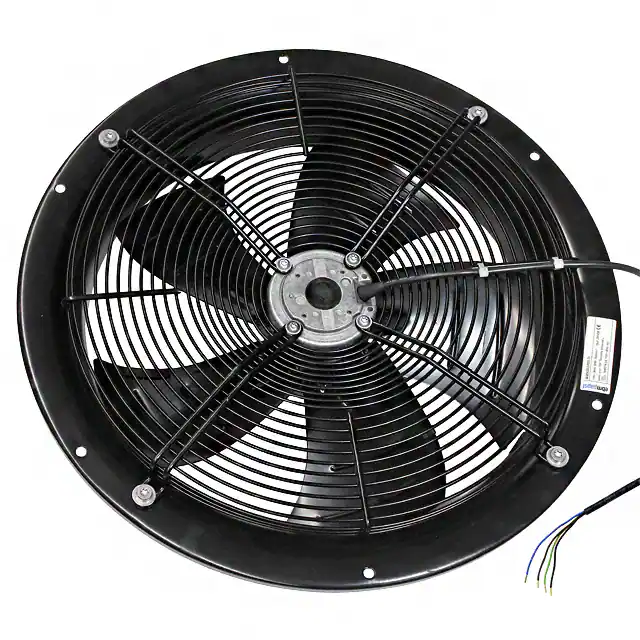

W4E420-CP03-71FAN AXIAL 544X80MM 115VAC WIRE |
0 | - |
|
数据表 |
W4E420A | Bulk | Obsolete | 115VAC | Round - 544mm Dia | 3310.0 CFM (92.68m³/min) | - | Ball | 11 lbs (5 kg) | Tubeaxial | - | 80.00mm | 74.0dB(A) | 285W | CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
|
W2E250-HJ32-10FAN AXIAL |
0 | - |
|
数据表 |
W2E250 | Bulk | Active | 115VAC | Square - 320mm L x 320mm H | - | 0.482 in H2O (120.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 80.00mm | - | 175W | CCC, UL | 2850 RPM | -13 ~ 167°F (-25 ~ 75°C) | Terminal Block | IP44 |
|
|
A2E300-AC47-02AC AXIAL FAN |
0 | - |
|
数据表 |
A2E300 | Bulk | Active | 230VAC | Round - 300mm Dia | - | 0.602 in H2O (149.9 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | 97.50mm | - | 190W | CCC, CE, EAC | 2900 RPM | -13 ~ 122°F (-25 ~ 50°C) | 4 Wire Leads | IP44 |
|
|
S4E350-BR06-30AC AXIAL FAN |
0 | - |
|
数据表 |
S4E350 | Bulk | Active | 230VAC | Round - 422mm Dia | 2144 CFM (60.03m³/min) | 0.261 in H2O (65.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | - | 67.0dB(A) | 180W | CCC, CE | 1530 RPM | 122°F (50°C) | 4 Wire Leads | IP44 |
|
|
W2E250-CM06-01FAN AXIAL |
0 | - |
|
数据表 |
W2E250 | Bulk | Active | 230VAC | Round - 320mm Dia | - | 0.341 in H2O (85.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 90.40mm | - | 150W | CE, EAC | 2600 RPM | -13 ~ 122°F (-25 ~ 50°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
|
D2E146-HT67-63BLOWER |
0 | - |
|
数据表 |
D2E146 | Bulk | Active | 230VAC | Rectangular/Rounded - 220mm L x 216mm H | - | 0.803 in H2O (200.0 Pa) | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | 199.0mm | - | 400W | - | 2100 RPM | -13 ~ 122°F (-25 ~ 50°C) | 6 Position Rectangular Connector | IP20 |
|
|
G2E120-CR21-20AC CENTRIFUGAL BLOWER |
0 | - |
|
数据表 |
G2E120 | Bulk | Active | 230VAC | Rectangular/Rounded - 180mm L x 170.5mm H | - | - | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protection (TOP) | 110.0mm | - | 100W | CE | 2050 RPM | -13 ~ 149°F (-25 ~ 65°C) | 4 Wire Leads | IP44 |
