交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1259-MBL.TC.N.GNThermal Products |
0 | - |
|
数据表 |
A | Bulk | Active | 115VAC | Round - 254mm Dia | 500.0 CFM (14.00m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 57.0dB(A) | 23.00W | - | 1600 RPM | - | 2 Terminals | - |
|
|
A2259-MBT.TC.N.GNThermal Products |
0 | - |
|
数据表 |
A | Bulk | Active | 220 ~ 240VAC | Round - 254mm Dia | 500.0 CFM (14.00m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 57.0dB(A) | 30.00W | - | 1600 RPM | - | 2 Terminals | - |
|
|
GTM019FUA07R-VBLOWER ROUND 190MM X 69MM, W/ IN |
0 | - |
|
数据表 |
GTM | Bulk | Active | 230VAC | Square - 225mm L x 225mm H | 443.0 CFM (12.40m³/min) | 3.376 in H2O (841.0 Pa) | Ball | - | Motorized Impellers | Electronic Commutation (EC), Locked Rotor Protection, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 85.00mm | 70.0dB(A) | 85.0W | CE, cURus, TUV | 3100 RPM | -13 ~ 140°F (-25 ~ 60°C) | 3 Wire Leads with Ferrules, 4 Wire Leads with Ferrules | IP54 - Dust Protected, Water Resistant |
|
|
UF250APA12-H1C4AFAN IMP MTRZD 250X98.1MM 115VAC |
0 | - |
|
数据表 |
UF250APA | Bulk | Active | 115VAC | Round - 250mm Dia | 770.0 CFM (21.56m³/min) | 2.200 in H2O (548.0 Pa) | Ball | 6.8 lbs (3.1 kg) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 98.10mm | 76.0dB(A) | - | CE, cUL, TUV, UL | - | -40 ~ 122°F (-40 ~ 50°C) | 4 Wire Leads | - |
|
|
A1259-MBT.TC.N.GN115VAC 254X89MM FAN |
0 | - |
|
数据表 |
A | Bulk | Active | 115VAC | Round - 254mm Dia | 500.0 CFM (14.00m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 57.0dB(A) | 23.00W | CE, CUR, TUV, UL | 1600 RPM | - | 2 Terminals | - |
|
|
A1259-HBT.TC.N.GNFAN AXIAL 254X89MM 115VAC TERM |
0 | - |
|
数据表 |
A | Bulk | Active | 115VAC | Round - 254mm Dia | 585.0 CFM (16.38m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 5 lbs (2.3 kg) | Tubeaxial | - | 89.00mm | 60.0dB(A) | 72.0W | CE, CUR, TUV, UL | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
R2E220-AA40-80FAN IMPELLER 230VAC 220MM |
0 | - |
|
数据表 |
R2E220 | Bulk | Obsolete | 230VAC | Round - 220mm Dia | 530.0 CFM (14.84m³/min) | - | Ball | 3.1 lbs (1.4 kg) | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 71.00mm | 74.0dB(A) | 90.0W | CCC, CE, CSA | 2700 RPM | 131°F (55°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
|
55416.32160AC CROSSFLOW BLOWER |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UF200BMB12-H2C2BFAN HD AXIAL 225X80MM 115VAC |
0 | - |
|
数据表 |
UF200BMB-H2 | Bulk | Active | 115VAC | Square - 225mm L x 225mm H | 625.0 CFM (17.50m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 3 lbs (1.4 kg) | Tubeaxial, Frameless | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 80.00mm | 61.0dB(A) | 100W | CE, cUL, TUV, UL | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Terminals | - |
|
|
A1259-XBL.TC.N.GNFAN AXIAL 254X89MM 115VAC |
0 | - |
|
数据表 |
A | Bulk | Active | 115VAC | Round - 254mm Dia | 870.0 CFM (24.36m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 5.2 lbs (2.4 kg) | Tubeaxial | - | 89.00mm | 70.0dB(A) | 120W | CE, CUR, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
A1259-XBT.TC.N.GNFAN AXIAL 254X89MM 115VAC |
0 | - |
|
数据表 |
A | Bulk | Active | 115VAC | Round - 254mm Dia | 870.0 CFM (24.36m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 5.2 lbs (2.4 kg) | Tubeaxial | - | 89.00mm | 70.0dB(A) | 120W | CE, CUR, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

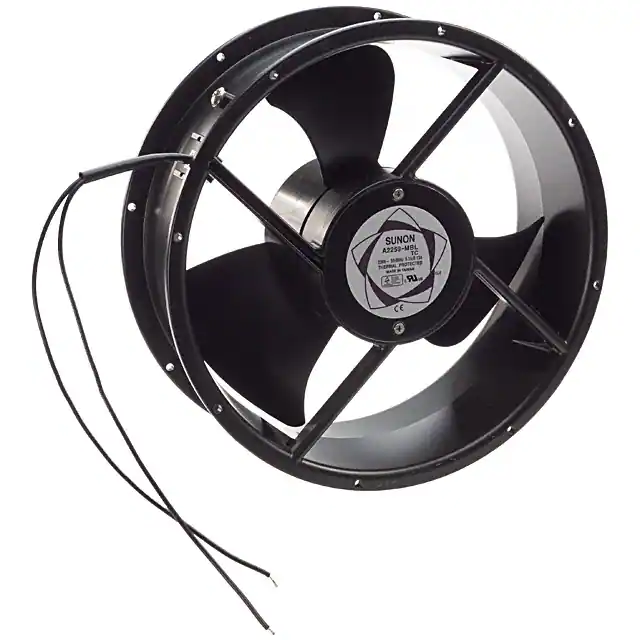

A2259-HBL.TC.N.GNFAN AXIAL 254X89MM 220/240VAC |
0 | - |
|
数据表 |
A | Bulk | Active | 240VAC | Round - 254mm Dia | 585.0 CFM (16.38m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 5 lbs (2.3 kg) | Tubeaxial | - | 89.00mm | 60.0dB(A) | 60.0W | CE, CUR, TUV, UL | 1900 RPM | - | 2 Wire Leads | - |
|
|
R2E220-AA44-97MOTORIZED IMPELLER |
0 | - |
|
数据表 |
R2E220 | Bulk | Obsolete | 115VAC | Round - 221.4mm Dia | - | - | Ball | - | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 71.00mm | - | 100W | CE, CSA, UL | 2700 RPM | -13 ~ 86°F (-25 ~ 30°C) | 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals | IP44 |
|

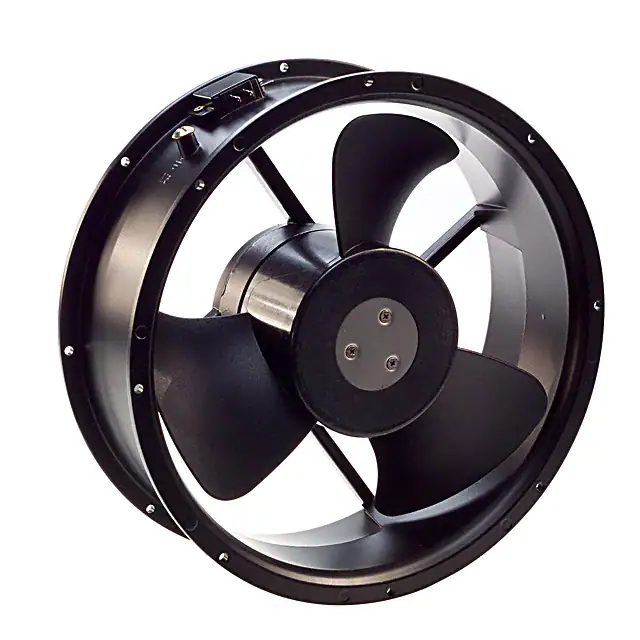

A2259-HBT.TC.N.GNFAN AXIAL 254X89MM 220/240VAC |
0 | - |
|
数据表 |
A | Bulk | Active | 220 ~ 240VAC | Round - 254mm Dia | 585.0 CFM (16.38m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 5 lbs (2.3 kg) | Tubeaxial | - | 89.00mm | 60.0dB(A) | 60.0W | CE, CUR, TUV, UL | 1900 RPM | - | 2 Terminals | - |
|
R2E220-RB06-01MOTORIZED IMPELLER |
0 | - |
|
数据表 |
R2E220 | Bulk | Active | 230VAC | Round - 220mm Dia | - | - | Ball | - | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 73.50mm | - | 135W | CCC, CE, EAC | 2650 RPM | -13 ~ 167°F (-25 ~ 75°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
|
OA254LFGS111TFAN TUBEAXIAL 317X317MM 115VAC |
0 | - |
|
数据表 |
OA254LFGS | Box | Active | 115VAC | Square - 317mm L x 317mm H | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | - | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 130.5mm | 55.0dB | 33.00W | cURus, TUV | 1650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals or 2 Wire Leads | - |
|
|
OA254LFGS221TFAN TUBEAXIAL 317X317MM 230VAC |
0 | - |
|
数据表 |
OA254LFGS | Box | Active | 230VAC | Square - 317mm L x 317mm H | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | - | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 130.5mm | 55.0dB | 33.00W | cURus, TUV | 1650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals or 2 Wire Leads | - |
|
|
OA254LFGS221TXCFAN TUBEAXIAL 317X317MM 230VAC |
0 | - |
|
数据表 |
OA254LFGS XC | Box | Active | 230VAC | Square - 317mm L x 317mm H | 850.0 CFM (23.80m³/min) | 0.780 in H2O (194.3 Pa) | Ball | - | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 130.5mm | 69.0dB | 75.0W | cURus, TUV | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals or 2 Wire Leads | - |
|
|
W2E200-CI38-70FAN AXIAL 280X80MM 230VAC WIRE |
0 | - |
|
数据表 |
W2E200A | - | Obsolete | 230VAC | Round - 280mm Dia | 600.0 CFM (16.80m³/min) | - | Ball | 3.1 lbs (1.4 kg) | Tubeaxial | - | 80.00mm | 62.0dB(A) | 77.0W | CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
W2E200-HH86-05FAN AXIAL 115VAC 225X80MM |
0 | - |
|
数据表 |
W2E200 | Bulk | Obsolete | 115VAC | Square - 225mm L x 225mm H | - | 0.482 in H2O (120.0 Pa) | Ball | 5 lbs (2.3 kg) | Tubeaxial | - | 80.00mm | - | 80.0W | CCC, CSA, UL, VDE | 2800 RPM | -13 ~ 150°F (-25 ~ 65°C) | 2 Terminals | IP44 |
