交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1175HBT-TCFAN AXIAL 171X51MM 115VAC TERM |
0 | - |
|
数据表 |
A | - | Obsolete | 115VAC | Rectangular - 171mm L x 151mm H | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 58.0dB(A) | 27.00W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Terminals | - |
|

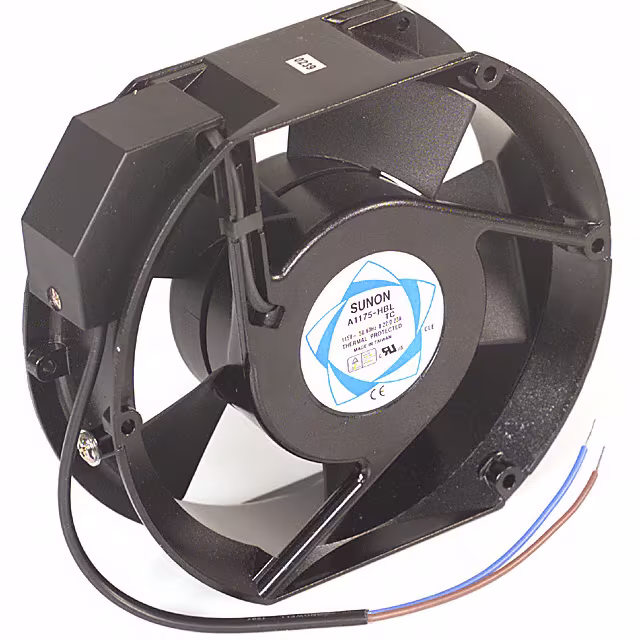

A1175HBL-TCFAN AXIAL 171X51MM 115VAC WIRE |
0 | - |
|
数据表 |
A | - | Obsolete | 115VAC | Rectangular - 171mm L x 151mm H | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 58.0dB(A) | 27.00W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Wire Leads | - |
|
A2175HBT-TCFAN AXIAL 171.5X51MM 220/240VAC |
0 | - |
|
数据表 |
A | - | Obsolete | 240VAC | Rectangular/Rounded - 171.5mm L x 151.5mm H | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 58.0dB(A) | 26.00W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Terminals | - |
|
19028280AFAN AXIAL 80X42MM 230VAC SU3A5 |
0 | - |
|
数据表 |
Sprite AC | - | Obsolete | 230VAC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.149 in H2O (37.1 Pa) | Sleeve | 1.1 lbs (499.0 g) | Tubeaxial | - | 42.00mm | 40.3dB(A) | 13.00W | - | 3250 RPM | - | 2 Terminals | - |
|
SF1212AD.BL.GNFAN AXL 119.5X38.5MM 115/230VAC |
0 | - |
|
数据表 |
SF | Bulk | Active | 115/240VAC | Square - 119.5mm L x 119.5mm H | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 1.2 lbs (550 g) | Tubeaxial | Dual Voltage | 38.50mm | 49.0dB(A) | 19.00W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
SP101AT-1122HBL.GNFAN AXIAL 119.5X25.5MM 115VAC |
0 | - |
|
数据表 |
SP | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 80.0 CFM (2.24m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 25.50mm | 48.0dB(A) | 18.00W | CE, CUR, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DP201AT-2122HBL.GNFAN AXIAL 119X25.5MM 220/240VAC |
0 | - |
|
数据表 |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 80.0 CFM (2.24m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.65 lb (294.84 g) | Tubeaxial | - | 25.50mm | 48.0dB(A) | 19.00W | CE, CUR, TUV, UL | 2500 RPM | - | 2 Wire Leads | - |
|
|
DP201AT-2122HBT.GNFAN AXIAL 119X25.5MM 220/240VAC |
0 | - |
|
数据表 |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 80.0 CFM (2.24m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.65 lb (294.84 g) | Tubeaxial | - | 25.50mm | 48.0dB(A) | 19.00W | CE, CUR, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
DP203AT-2122LBL.GNFAN AXIAL 119X25.5MM 220/240VAC |
0 | - |
|
数据表 |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 54.0 CFM (1.51m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 25.50mm | 40.0dB(A) | 13.00W | CE, CUR, TUV, UL | 1900 RPM | - | 2 Wire Leads | - |
|
|
DP203AT-2122LBT.GNFAN AXIAL 119X25.5MM 220/240VAC |
0 | - |
|
数据表 |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 54.0 CFM (1.51m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 25.50mm | 40.0dB(A) | 13.00W | CE, CUR, TUV, UL | 1900 RPM | - | 2 Terminals | - |
|
SP101AT-1122HBT.GNFAN AXIAL 119.5X25.5MM 115VAC |
0 | - |
|
数据表 |
SP | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 80.0 CFM (2.24m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 25.50mm | 48.0dB(A) | 18.00W | CE, CUR, TUV, UL | 2500 RPM | - | 2 Terminals | - |
|
SP103AT-1122LBL.GNFAN AXIAL 119X25.5MM 115VAC WIRE |
0 | - |
|
数据表 |
SP | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 54.0 CFM (1.51m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 25.50mm | 40.0dB(A) | 11.50W | CE, CUR, TUV, UL | 1900 RPM | - | 2 Wire Leads | - |
|
|
DP209WR-2123HBL.GNFAN AXIAL 120X38MM 220/240VAC |
0 | - |
|
数据表 |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119.5mm L x 119.5mm H | 100.0 CFM (2.80m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 1.03 lbs (467.2 g) | Tubeaxial | - | 38.50mm | 48.0dB(A) | 21.00W | CE, CUR, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19027117AFAN AXIAL 120X38MM 115VAC WR2A1 |
0 | - |
|
数据表 |
Whisper AC | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 56.0 CFM (1.57m³/min) | 0.070 in H2O (17.5 Pa) | Sleeve | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 33.9dB(A) | 7.00W | - | 1660 RPM | - | 2 Terminals | - |
|
|
19027119AFAN AXIAL 120X38MM 115VAC WR2H1 |
0 | - |
|
数据表 |
Whisper AC | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 72.0 CFM (2.02m³/min) | 0.128 in H2O (31.8 Pa) | Sleeve | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 37.6dB(A) | 10.00W | - | 2350 RPM | - | 2 Terminals | - |
|
19028316AFAN AXIAL 119X39MM 115VAC MX2A3 |
0 | - |
|
数据表 |
Muffin XL AC | - | Obsolete | 115VAC | Square - 119mm L x 119mm H | 105.0 CFM (2.94m³/min) | 0.223 in H2O (55.5 Pa) | Sleeve | 1.3 lbs (589.7 g) | Tubeaxial | - | 39.00mm | 47.6dB(A) | 15.00W | - | 3100 RPM | - | 2 Terminals | - |
|

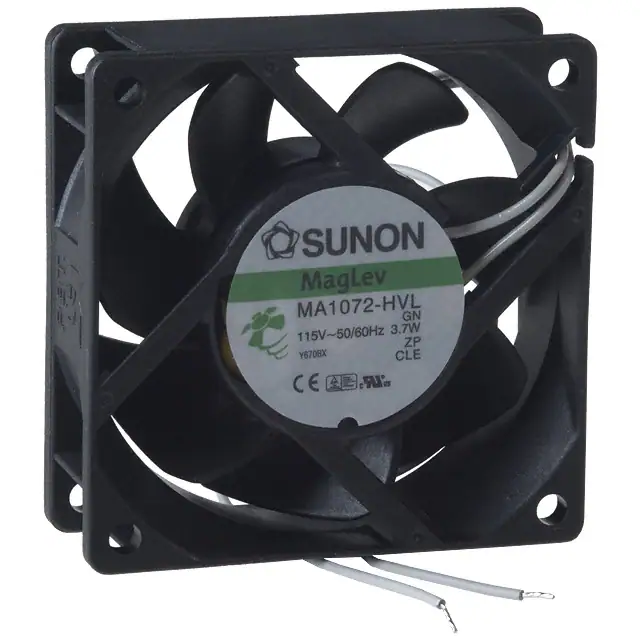

MA1072-HVL.GNFAN AXIAL 70X25MM 115VAC WIRE |
0 | - |
|
数据表 |
MagLev® MA | Box | Obsolete | 115VAC | Square - 70mm L x 70mm H | 29.0 CFM (0.812m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.209 lb (94.89 g) | Tubeaxial | - | 25.00mm | 31.0dB(A) | 3.70W | CUR, TUV, UL | 3900 RPM | - | 2 Wire Leads | - |
|
MA2072-HVL.GNFAN AXIAL 70X25MM 220/240VAC |
0 | - |
|
数据表 |
MagLev® MA | Box | Obsolete | 220 ~ 240VAC | Square - 70mm L x 70mm H | 29.0 CFM (0.812m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.209 lb (94.89 g) | Tubeaxial | - | 25.00mm | 31.0dB(A) | 4.40W | CUR, TUV, UL | 3900 RPM | - | 2 Wire Leads | - |
|
|
LPH12B99-BTMRFAN AXIAL 120X25MM 90-264VAC |
0 | - |
|
数据表 |
LPH12B99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 70.0 CFM (1.96m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 25.50mm | 41.0dB(A) | 3.80W | CE, cUL, TUV, UL | 2600 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
19028410AFAN 115AC SPRITE AC SU2B5 W/O FG |
0 | - |
|
数据表 |
Sprite AC | - | Active | 115VAC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.149 in H2O (37.1 Pa) | Ball | 1.1 lbs (499 g) | Tubeaxial | - | 42.00mm | 40.3dB(A) | 11.00W | - | 3250 RPM | - | 2 Terminals | - |
