紧急停止（E-Stop）开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 复位操作 | 开关功能 | 特性 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 电路 | 面板开孔尺寸 | 端接样式 | 防护等级 | 工作温度 | 照明电压（额定值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22EL-M-24A-02SW E-STOP TWIST RESET 10A 110V |
6 | - |
|
数据表 |
A22E | Bulk | Active | Panel Mount, Front | Twist | On-Off | Illuminated (Red) | 10A (AC/DC) | 110 V | 24 V | DPST-NC | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 24 VAC/DC |
|
ES-2011-T412-018ASWITCH E-STOP TWIST RESET 8A 32V |
12 | - |
|
数据表 |
ES | Box | Active | Panel Mount, Front | Twist | On-On | - | 8A (DC) | - | 32 V | DPDT | Circular - 30.50mm Dia | Wire Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | - |
|
XB4BS8444SWITCH ESTOP TWIST RESET 6A 120V |
20 | - |
|
数据表 |
Harmony XB4 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 6A (AC), 550mA (DC) | 120 V | 125 V | DPST-NC | Circular - 22.00mm Dia | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 70°C | - |
|
SSA-EB1P-02ECQ4SW ESTOP PULL/TWIST RESET 2A 24V |
14 | - |
|
数据表 |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | On-Off | Control Box Enclosure | 2A (DC) | - | 24 V | DPST-NC | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
87943-00SWITCH E-STOP PULL RESET 20A 14V |
9 | - |
|
数据表 |
87940 | Bulk | Active | Panel Mount, Rear | Pull | - | - | 20A (DC) | - | 14 V | DPST-NO/NC | - | Screw Terminal | Environment Sealed | -40°C ~ 100°C | - |
|
SSA-EB1PL2-12ED1Q8SW ESTOP PULL/TWIST RESET 2A 24V |
23 | - |
|
数据表 |
SSA-EB | Bulk | Active | Chassis Mount | Pull or Twist | On-Off, Off-On | Control Box Enclosure, Illuminated (Red) | 2A (DC) | - | 24 V | 3PST-2NC/1NO | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
A22E-M-12BSW E-STOP TWIST RESET 10A 110V |
5 | - |
|
数据表 |
A22E | Bulk | Active | Chassis Mount | Twist | On-Off, Off-On | - | 10A (AC/DC) | 110 V | 24 V | 3PST-2NC/1NO | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
1.22.114.212/0500SWITCH E-STOP TWIST RESET 100MA |
24 | - |
|
数据表 |
- | Bulk | Active | Free Hanging | Twist | On-Off, Off-On | Control Box Enclosure, Status Indicator, With Pushbutton Switch | 100mA (AC/DC) | - | - | DPST-NC + SPST-NO | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
SSA-EB1PLXR-02ECQ5BSW ESTOP PULL/TWIST RESET 2A 24V |
20 | - |
|
数据表 |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | On-Off | Control Box Enclosure, Illuminated (Red) | 2A (DC) | - | 24 V | DPST-NC | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
SSA-EB1PLYR-12ECQ8SWITCH E-STOP PULL RESET 2A 24V |
8 | - |
|
数据表 |
SSA-EB | Box | Active | Panel Mount, Front | Pull | On-Off | - | 2A (DC) | - | 24 V | SPST-NC | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
SSA-EB1PLGR-12ECQ8SW ESTOP PULL/TWIST RESET 2A 30V |
7 | - |
|
数据表 |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | On-Off, Off-On | - | 2A (DC) | - | 30 V | 3PST-2NC/1NO | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
SSA-EB1PLGR-0DED1Q8SW E-STOP TWIST RESET 100MA 24V |
4 | - |
|
数据表 |
SSA-EB | Box | Active | Chassis Mount | Twist | On-Off | - | 100mA (AC) | - | 24 V | DPST-NC | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 50°C | - |
|
|
SSA-EB1PLGR-12ECQ8-WCSW ESTOP PULL/TWIST RESET 2A 24V |
10 | - |
|
数据表 |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | On-Off, Off-On | - | 2A (DC) | - | 24 V | 3PST-2NC/1NO | Circular - 30.00mm Dia | Connector | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
.jpg)
|

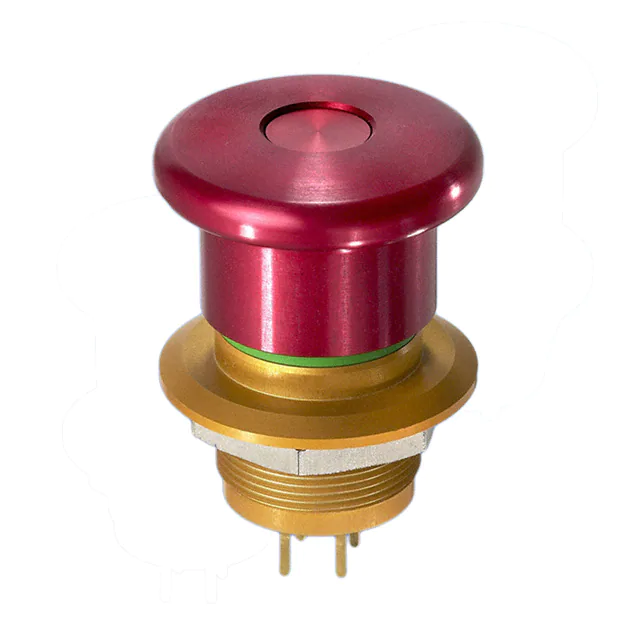

ES2S41653001SWITCH E-STOP PULL RESET 1A 24V |
24 | - |
|
数据表 |
ES | Bulk | Active | Panel Mount, Front | Pull | On-Off, Off-On | Push-Pull Marking, Status Indicator | 1A (DC) | - | 24 V | DPST-NO/NC | Circular - 22.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -40°C ~ 85°C | - |
|

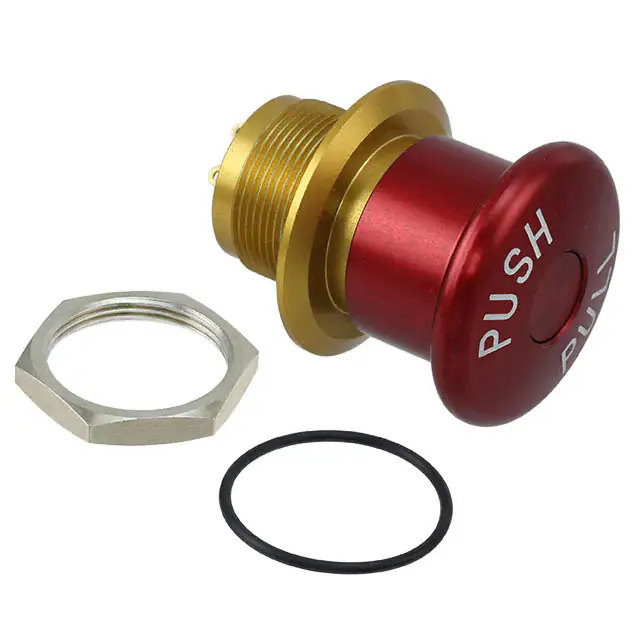

ES1S41653001SWITCH E-STOP PULL RESET 1A 24V |
23 | - |
|
数据表 |
ES | Bulk | Active | Panel Mount, Front | Pull | On-Off | Push-Pull Marking, Status Indicator | 1A (DC) | - | 24 V | DPST-NC | Circular - 22.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -40°C ~ 85°C | - |
|
A4EG-BE2R041SWITCH ESTOP TWIST RESET 5A 125V |
9 | - |
|
数据表 |
A4EG | Bulk | Active | Free Hanging | Twist | On-Off | - | 5A (AC) | 125 V | - | DPST-NC | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | -10°C ~ 55°C | - |
|
|
2416050-4PBES22 40 RB NO LAMP NO 000 000 |
63 | - |
|
数据表 |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | Off-On | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | SPST-NO | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
2416049-1PBES22 40 NO LAMP 000 NC |
61 | - |
|
数据表 |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | On-Off | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | SPST-NC | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
2416050-5PBES22 40 RB NO LAMP NO 000 NC |
58 | - |
|
数据表 |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | On-Off, Off-On | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | DPST-NO/NC | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
2416050-2PBES22 40 RB NO LAMP NC 000 NC |
8 | - |
|
数据表 |
PBES22 | Bulk | Active | Panel Mount, Front | Pull or Twist | On-Off | Push-Lock, Turn-Reset | 10A (AC), 8A (DC) | 120 V | 24 V | DPST-NC | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
