微控制器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 封装/外壳 | 系列 | 包装 | 产品状态 | 可编程 | 核心处理器 | 速度 | 连接性 | 外设 | 等级 | I/O 数量 | 程序存储器大小 | 核心大小 | 程序存储器类型 | EEPROM 大小 | 工作温度 | RAM 大小 | 认证 | 振荡器类型 | 电压 - 供应（Vcc/Vdd） | 数据转换器 | 安装类型 | 供应商设备封装 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

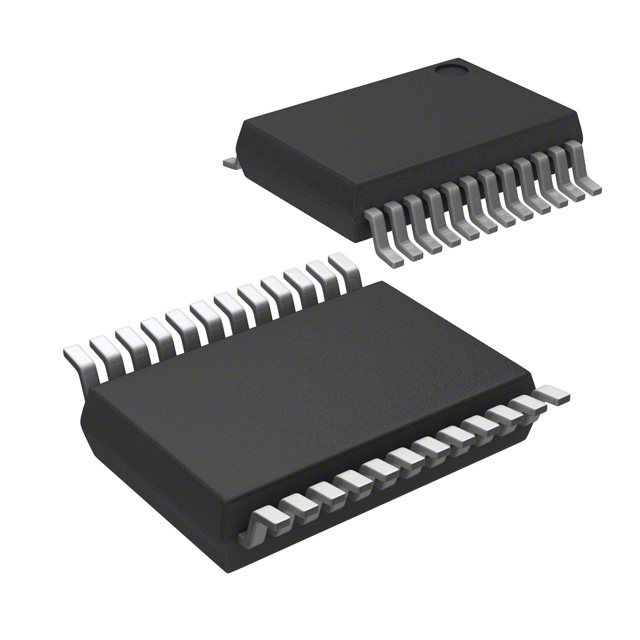

R5F213G1CDSP#U0IC MCU 16BIT 4KB FLASH 24LSSOP |
0 | - |
|
数据表 |
24-LSSOP (0.220", 5.60mm Width) | R8C/3x/3GC | Tray | Obsolete | Not Verified | R8C | 20MHz | I2C, LINbus, SIO, SSU, UART/USART | POR, PWM, Voltage Detect, WDT | - | 19 | 4KB (4K x 8) | 16-Bit | FLASH | 4K x 8 | -40°C ~ 85°C (TA) | 512 x 8 | - | Internal | 1.8V ~ 5.5V | A/D 8x10b; D/A 2x8b | Surface Mount | ||
|
R5F213G5CNNP#U0IC MCU 16BIT 24KB FLASH 24HWQFN |
0 | - |
|
数据表 |
24-WFQFN Exposed Pad | R8C/3x/3GC | Tray | Active | Not Verified | R8C | 20MHz | I2C, LINbus, SIO, SSU, UART/USART | POR, PWM, Voltage Detect, WDT | - | 19 | 24KB (24K x 8) | 16-Bit | FLASH | 4K x 8 | -20°C ~ 85°C (TA) | 2K x 8 | - | Internal | 1.8V ~ 5.5V | A/D 8x10b; D/A 2x8b | Surface Mount | ||
|
|
R5F213G6CNSP#U0IC MCU 16BIT 32KB FLASH 24LSSOP |
0 | - |
|
数据表 |
24-LSSOP (0.220", 5.60mm Width) | R8C/3x/3GC | Tray | Obsolete | Not Verified | R8C | 20MHz | I2C, LINbus, SIO, SSU, UART/USART | POR, PWM, Voltage Detect, WDT | - | 19 | 32KB (32K x 8) | 16-Bit | FLASH | 4K x 8 | -20°C ~ 85°C (TA) | 2.5K x 8 | - | Internal | 1.8V ~ 5.5V | A/D 8x10b; D/A 2x8b | Surface Mount | ||
|
|
R5F213G6DNSP#U0IC MCU 16BIT 32KB FLASH 24LSSOP |
0 | - |
|
数据表 |
24-LSSOP (0.220", 5.60mm Width) | R8C/3x/3GD | Tray | Obsolete | Not Verified | R8C | 20MHz | I2C, UART/USART | POR, PWM, Voltage Detect, WDT | - | 19 | 32KB (32K x 8) | 16-Bit | FLASH | - | -20°C ~ 85°C (TA) | 1K x 8 | - | Internal | 1.8V ~ 5.5V | A/D 8x10b | Surface Mount | ||
|
R5F2L387CNFP#30IC MCU 16BIT 48KB FLASH 80LQFP |
0 | - |
|
数据表 |
80-LQFP | R8C/Lx/38C | Tray | Obsolete | Not Verified | R8C | 20MHz | I2C, LINbus, SIO, SSU, UART/USART | LCD, POR, PWM, Voltage Detect, WDT | - | 68 | 48KB (48K x 8) | 16-Bit | FLASH | 4K x 8 | -20°C ~ 85°C (TA) | 6K x 8 | - | Internal | 1.8V ~ 5.5V | A/D 16x10b; D/A 2x8b | Surface Mount | ||
|
R5F56318DDFP#V0IC MCU 32BIT 512KB FLASH 100LQFP |
0 | - |
|
数据表 |
100-LQFP | RX600 | Tray | Discontinued at Digi-Key | Not Verified | RX | 100MHz | CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB | DMA, LVD, POR, PWM, WDT | - | 78 | 512KB (512K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 128K x 8 | - | Internal | 2.7V ~ 3.6V | A/D 8x10b, 14x12b; D/A 1x10b | Surface Mount | ||
|
R5F563TBADFB#V0IC MCU 32BIT 256KB FLASH 144LQFP |
0 | - |
|
数据表 |
144-LQFP | RX600 | Tray | Obsolete | Not Verified | RX | 100MHz | CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB | DMA, LVD, POR, PWM, WDT | - | 81 | 256KB (256K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 24K x 8 | - | Internal | 2.7V ~ 5.5V | A/D 20x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
|
R5F563TBADFP#V0IC MCU 32BIT 256KB FLASH 100LQFP |
0 | - |
|
数据表 |
100-LQFP | RX600 | Tray | Active | Not Verified | RX | 100MHz | CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB | DMA, LVD, POR, PWM, WDT | - | 57 | 256KB (256K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 24K x 8 | - | Internal | 2.7V ~ 5.5V | A/D 12x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
R5F563TBBDFA#V0IC MCU 32BIT 256KB FLASH 120LQFP |
0 | - |
|
数据表 |
120-LQFP | RX600 | Tray | Obsolete | Not Verified | RX | 100MHz | CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB | DMA, LVD, POR, PWM, WDT | - | 72 | 256KB (256K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 24K x 8 | - | Internal | 2.7V ~ 3.6V | A/D 12x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
|
R5F563TCADFA#V0IC MCU 32BIT 384KB FLASH 120LQFP |
0 | - |
|
数据表 |
120-LQFP | RX600 | Tray | Obsolete | Not Verified | RX | 100MHz | CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB | DMA, LVD, POR, PWM, WDT | - | 72 | 384KB (384K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 32K x 8 | - | Internal | 2.7V ~ 5.5V | A/D 12x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
|
R5F563TCADFB#V0IC MCU 32BIT 384KB FLASH 144LQFP |
0 | - |
|
数据表 |
144-LQFP | RX600 | Tray | Obsolete | Not Verified | RX | 100MHz | CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB | DMA, LVD, POR, PWM, WDT | - | 81 | 384KB (384K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 32K x 8 | - | Internal | 2.7V ~ 5.5V | A/D 20x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
|
R5F563TCADFP#V0IC MCU 32BIT 384KB FLASH 100LQFP |
0 | - |
|
数据表 |
100-LQFP | RX600 | Tray | Obsolete | Not Verified | RX | 100MHz | CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB | DMA, LVD, POR, PWM, WDT | - | 57 | 384KB (384K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 32K x 8 | - | Internal | 2.7V ~ 5.5V | A/D 12x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
|
R5F563TCBDFP#V0IC MCU 32BIT 384KB FLASH 100LQFP |
0 | - |
|
数据表 |
100-LQFP | RX600 | Tray | Obsolete | Not Verified | RX | 100MHz | CANbus, EBI/EMI, I2C, LINbus, SCI, SPI, USB | DMA, LVD, POR, PWM, WDT | - | 57 | 384KB (384K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 32K x 8 | - | Internal | 2.7V ~ 3.6V | A/D 12x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
R5F563TCDDFH#V0IC MCU 32BIT 384KB FLASH 112LQFP |
0 | - |
|
数据表 |
112-LQFP | RX600 | Tray | Obsolete | Not Verified | RX | 100MHz | EBI/EMI, I2C, LINbus, SCI, SPI | DMA, LVD, POR, PWM, WDT | - | 69 | 384KB (384K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 32K x 8 | - | Internal | 2.7V ~ 5.5V | A/D 12x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
|
R5F563TCEDFP#V0IC MCU 32BIT 384KB FLASH 100LQFP |
0 | - |
|
数据表 |
100-LQFP | RX600 | Tray | Obsolete | Not Verified | RX | 100MHz | EBI/EMI, I2C, LINbus, SCI, SPI | DMA, LVD, POR, PWM, WDT | - | 57 | 384KB (384K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 32K x 8 | - | Internal | 2.7V ~ 3.6V | A/D 12x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
|
R5F563TEDDFB#V0IC MCU 32BIT 512KB FLASH 144LQFP |
0 | - |
|
数据表 |
144-LQFP | RX600 | Tray | Discontinued at Digi-Key | Not Verified | RX | 100MHz | EBI/EMI, I2C, LINbus, SCI, SPI | DMA, LVD, POR, PWM, WDT | - | 81 | 512KB (512K x 8) | 32-Bit Single-Core | FLASH | 32K x 8 | -40°C ~ 85°C (TA) | 48K x 8 | - | Internal | 2.7V ~ 5.5V | A/D 20x10b, 8x12b; D/A 2x10b | Surface Mount | ||
|
R5S726A2P216FP#VZIC MCU 32BIT ROMLESS 120LQFP |
0 | - |
|
数据表 |
120-LQFP | SuperH® SH7260 | Tray | Active | Not Verified | SH2A-FPU | 216MHz | EBI/EMI, I2C, IEBus, SCI, SIO, SPI, USB | DMA, POR, PWM, WDT | - | 73 | - | 32-Bit Single-Core | ROMless | - | -40°C ~ 85°C (TA) | 1.3M x 8 | - | External | 3V ~ 3.6V | A/D 6x10b | Surface Mount | ||
|
|
R5S726A3D216FP#V0IC MCU 32BIT ROMLESS 120LQFP |
0 | - |
|
数据表 |
120-LQFP | SuperH® SH7260 | Tray | Active | Not Verified | SH2A-FPU | 216MHz | CANbus, EBI/EMI, I2C, IEBus, SCI, SIO, SPI, USB | DMA, POR, PWM, WDT | - | 73 | - | 32-Bit Single-Core | ROMless | - | -40°C ~ 85°C (TA) | 1.3M x 8 | - | External | 3V ~ 3.6V | A/D 6x10b | Surface Mount | ||
|
|
UPD70F3623GBA-GAH-QS-AXIC MCU 32BIT FLASH V850ES FE3 |
0 | - |
|
数据表 |
- | - | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
UPD70F3794F1-CAH-AIC MCU 32BIT 256KB FLSH 121LFBGA |
0 | - |
|
数据表 |
121-LFBGA | V850ES/JG3-L | Tray | Obsolete | Not Verified | V850ES | 20MHz | CSI, EBI/EMI, I2C, UART/USART, USB | DMA, LVD, PWM, WDT | - | 80 | 256KB (256K x 8) | 32-Bit Single-Core | FLASH | - | -40°C ~ 85°C (TA) | 40K x 8 | - | Internal | 2V ~ 3.6V | A/D 12x10b; D/A 2x8b | Surface Mount |
