DIP 开关

制造商	系列	包装	产品状态	电路	位置数量	电压额定值	执行器类型	执行器水平	触点材料	触点表面处理	电流额定值（安培）	板上高度	安装类型	工作温度	端接样式	特性	间距	可清洗
APEM Inc. Bourns Inc. C&K CIT Relay and Switch CTS Electrocomponents E-Switch GC Electronics Grayhill Inc. KaiFeng Electronics knitter-switch Nidec Components NKK Switches Omron Automation and Safety Omron Electronics Inc-EMC Div PTR HARTMANN Same Sky (Formerly CUI Devices) SparkFun Electronics TE Connectivity TE Connectivity ALCOSWITCH Switches TE Connectivity AMP Connectors Würth Elektronik	* - 193 194 195 204 206 206RA 208 208RA 209 210 218 219 219G 220 221 7000 7100 76 7600 76HP 78 7813 7814 7829 78C 78H 79A 79B 79C 90B 90GB 90HB 90HGB 94H 94R 97 A6A A6C A6D A6DR A6E A6E-N A6ER A6FR A6H A6HF A6HR A6K A6KS A6R A6RS A6RV A6S A6S-H A6SN A6SR A6T A6TN A6TR ADE ADF ADP ADPA AMP ARE ARF ARP ATT BD BDB BP BPA CAS CD CES CFP CFS CHP CHS CJS CMS CRD CRE CS-32 CS-4 CS-7 CVS DA DBP DBS DH DHN DHP 600 DHS DIP DIP-FIX DM DMR DP DPL DPU DR DR75 DRD DRR DRS DS DS01-254 DS02-254 DS03-254 DS04-254 DS04-254-SMT DS05-127-SMT DSR DSS DTS EDS EDSP FD01 FD02 FR01 FR02 GDB GDH GDHL GDP GDR GDS IKD IKE IKH IKN JS KAC KAD KAE KAG KAJ KAN KAP KAR KAS KAT KAW KC1901 KE KG KJ KP KR KT LDN LDNA MDG MGDH MPG MRD MRSS ND ND3 NDA NDI NDP NDPL NDS NHDS P25 P36 P36S P36SMJ P36SMT P36THR P56 P60A P60AS P65 P65SMT P65THR PI PT65 RD07 RD10 RDM RDS-1045 RDS-1045-SMT RDS-1055 RDS-1055-SMT RDS-7229-ASMT RDS-7229-CR RDS-7229-D RDS-7229-JSMT RDS-7229-SMT RDS-74365 RDS-74365-45A RDS-74385-45A-SMT RDS-74385-SMT RDS-74R-254 RDS-74R-508 RDS-74R45A-254 RDS-74R45A-508 RDS1-1065-D-67 RDS1-1065-SMT-67 RDS2-1012-RA-67 RDS3-1012-RA RDS3-1065-D RDS3-1065-SMT RDS4-1012-RA-67 RDS4-1065-D-67 RDS4-1065-SMT-67 RDS5-1011-RA-67 RDS5-1065-D-67 RDS5-1065-SMT-67 RDS6-1011-RA RDS6-1065-D RDS6-1065-SMT RDS7-1011-RA-67 RDS7-1065-D-67 RDS7-1065-SMT-67 RDT RM RRD RTE RTF RW, COMAX S-1000 S-1000A S-2000A S-2050 S-4000 S-7000 S-8000 SA-5000 SA-7000 SBP SBS SC SC-2000 SD SD-1000 SD-2000 SDA SDB SH-7000 SLV SMR SMS SP SPA SRJ SRK SRM SS-10 SSH SSV STR STV TDA TDD TDP TDS WS-DISU WS-DISV WS-DITU WS-DITV WS-ROSV WS-ROTU WS-ROTV	- Bag Box Bulk Cut Tape (CT) Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at InFortune Last Time Buy Obsolete	- 10PST 3PST 4PST 4PST-2NO/2NC BCD BCD Complement BCD with Complement DP3T DPDT DPST DPST-NO/NC Gray Code Hexadecimal Hexadecimal Complement Hexadecimal with Complement Octal Octal Complement Programmable SP10T SP3T SP4T SP5T SP6T SP8T SP9T SPDT SPST	- 1 10 11 12 14 16 2 24 25 3 4 5 6 64 7 8 9	- 15VDC 16VAC/DC 16VDC 2.4VDC 20VAC/DC 20VDC 24VDC 25VDC 28VDC 30VDC 42VAC 42VAC/DC 42VDC 50VDC 5VDC 6VDC	- Breakable (Shunt) Flush Piano Rocker Rotary for Tool Rotary with Knob Rotary with Shaft Slide (Standard) Standard Toggle	- Flush Flush, Recessed Raised	- Beryllium Copper Brass Bronze Copper Copper Alloy Glass Fabric Epoxy Resin Nickel Phosphor Bronze Stainless Steel	- Gold Gold Alloy Silver Tin	- 0.4VA 100mA 10mA 125mA 150mA 200mA 25mA 30mA 50mA 60mA	- 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.55mm) 0.062" (1.57mm) 0.063" (1.60mm) 0.064" (1.63mm) 0.067" (1.70mm) 0.079" (2.00mm) 0.081" (2.05mm) 0.083" (2.10mm) 0.087" (2.20mm) 0.089" (2.25mm) 0.091" (2.30mm) 0.091" (2.31mm) 0.093" (2.35mm) 0.094" (2.40mm) 0.098" (2.50mm) 0.100" (2.54mm) 0.102" (2.60mm) 0.104" (2.65mm) 0.106" (2.70mm) 0.110" (2.80mm) 0.112" (2.85mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.119" (3.02mm) 0.120" (3.05mm) 0.122" (3.10mm) 0.123" (3.12mm) 0.125" (3.17mm) 0.126" (3.20mm) 0.130" (3.30mm) 0.134" (3.40mm) 0.136" (3.45mm) 0.138" (3.50mm) 0.140" (3.55mm) 0.141" (3.58mm) 0.142" (3.60mm) 0.143" (3.63mm) 0.144" (3.65mm) 0.144" (3.66mm) 0.146" (3.70mm) 0.148" (3.75mm) 0.149" (3.78mm) 0.150" (3.80mm) 0.150" (3.81mm) 0.151" (3.84mm) 0.152" (3.85mm) 0.154" (3.90mm) 0.155" (3.94mm) 0.157" (4.00mm) 0.159" (4.05mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.162" (4.11mm) 0.163" (4.15mm) 0.164" (4.17mm) 0.165" (4.20mm) 0.166" (4.21mm) 0.167" (4.25mm) 0.168" (4.27mm) 0.169" (4.30mm) 0.170" (4.33mm) 0.173" (4.40mm) 0.174" (4.41mm) 0.175" (4.45mm) 0.176" (4.47mm) 0.177" (4.50mm) 0.178" (4.52mm) 0.179" (4.55mm) 0.180" (4.57mm) 0.181" (4.60mm) 0.183" (4.65mm) 0.184" (4.67mm) 0.185" (4.70mm) 0.189" (4.80mm) 0.190" (4.83mm) 0.195" (4.95mm) 0.196" (4.99mm) 0.197" (5.00mm) 0.199" (5.05mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.203" (5.15mm) 0.204" (5.18mm) 0.205" (5.20mm) 0.209" (5.30mm) 0.210" (5.33mm) 0.211" (5.35mm) 0.213" (5.40mm) 0.214" (5.45mm) 0.215" (5.45mm) 0.215" (5.46mm) 0.217" (5.50mm) 0.219" (5.55mm) 0.220" (5.59mm) 0.222" (5.64mm) 0.224" (5.70mm) 0.225" (5.72mm) 0.226" (5.74mm) 0.228" (5.80mm) 0.230" (5.85mm) 0.232" (5.90mm) 0.236" (6.00mm) 0.244" (6.20mm) 0.246" (6.25mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.258" (6.55mm) 0.260" (6.60mm) 0.262" (6.66mm) 0.264" (6.70mm) 0.265" (6.73mm) 0.267" (6.78mm) 0.268" (6.80mm) 0.268" (6.81mm) 0.270" (6.85mm) 0.271" (6.88mm) 0.272" (6.90mm) 0.273" (6.93mm) 0.274" (6.95mm) 0.275" (6.99mm) 0.276" (7.00mm) 0.277" (7.05mm) 0.278" (7.06mm) 0.280" (7.10mm) 0.283" (7.20mm) 0.284" (7.21mm) 0.287" (7.30mm) 0.290" (7.37mm) 0.291" (7.39mm) 0.291" (7.40mm) 0.292" (7.41mm) 0.293" (7.45mm) 0.294" (7.47mm) 0.295" (7.50mm) 0.297" (7.54mm) 0.298" (7.57mm) 0.299" (7.60mm) 0.301" (7.65mm) 0.303" (7.70mm) 0.305" (7.75mm) 0.307" (7.80mm) 0.308" (7.82mm) 0.309" (7.85mm) 0.311" (7.90mm) 0.312" (7.92mm) 0.315" (8.00mm) 0.316" (8.03mm) 0.317" (8.05mm) 0.319" (8.10mm) 0.321" (8.15mm) 0.322" (8.18mm) 0.327" (8.30mm) 0.329" (8.35mm) 0.330" (8.38mm) 0.331" (8.40mm) 0.334" (8.48mm) 0.335" (8.50mm) 0.337" (8.56mm) 0.340" (8.64mm) 0.343" (8.70mm) 0.344" (8.75mm) 0.346" (8.80mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.359" (9.12mm) 0.360" (9.14mm) 0.362" (9.20mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.378" (9.60mm) 0.380" (9.64mm) 0.381" (9.68mm) 0.385" (9.78mm) 0.386" (9.80mm) 0.390" (9.90mm) 0.393" (9.98mm) 0.394" (10.00mm) 0.394" (10.01mm) 0.395" (10.02mm) 0.398" (10.10mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.406" (10.30mm) 0.409" (10.39mm) 0.413" (10.50mm) 0.414" (10.51mm) 0.417" (10.60mm) 0.420" (10.67mm) 0.425" (10.80mm) 0.426" (10.82mm) 0.430" (10.92mm) 0.433" (11.00mm) 0.434" (11.02mm) 0.437" (11.10mm) 0.460" (11.68mm) 0.463" (11.75mm) 0.464" (11.79mm) 0.465" (11.80mm) 0.467" (11.86mm) 0.469" (11.90mm) 0.470" (11.94mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.495" (12.57mm) 0.508" (12.91mm) 0.520" (13.20mm) 0.531" (13.49mm) 0.535" (13.59mm) 0.543" (13.80mm) 0.555" (14.10mm) 0.618" (15.70mm) 0.626" (15.90mm) 0.634" (16.10mm) 0.638" (16.20mm) 1.104" (28.05mm) 1.476" (37.50mm)	- Panel Mount Panel Mount, Right Angle Surface Mount Surface Mount, Right Angle Through Hole Through Hole, Reverse Through Hole, Right Angle	- -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 85°C -20°C ~ 60°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 75°C -25°C ~ 80°C -25°C ~ 85°C -25°C ~ 95°C -30°C ~ 60°C -30°C ~ 80°C -30°C ~ 85°C -30°C ~ 90°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 80°C -40°C ~ 85°C -50°C ~ 125°C -55°C ~ 105°C -55°C ~ 125°C -55°C ~ 85°C -60°C ~ 125°C	- Gull Wing J Lead PC Pin	- Epoxy Sealed Terminals Epoxy Sealed Terminals, Tape Seal IP64 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof Position Identification Line Position Identification Line, Tape Seal Process Sealed Sealed Sealed - Flux Protection Tape Seal	- 0.039" (1.00mm) 0.042" (1.08mm) 0.050" (1.27mm), Half 0.051" (1.30mm) 0.083" (2.10mm) 0.100" (2.54mm) 0.100" (2.54mm), Full 0.200" (5.08mm)	- No Yes

全部重置

全部应用

结果

厂商料号	库存情况	价格	数量	数据表	系列	包装	产品状态	电路	位置数量	电压额定值	执行器类型	执行器水平	触点材料	触点表面处理	电流额定值（安培）	板上高度	安装类型	工作温度	端接样式	特性	间距	可清洗
A6SN-5104-P SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	1,352	-	询价单	数据表	A6SN	Tape & Reel (TR)	Active	SPST	5	24VDC	Slide (Standard)	Raised	-	-	25mA	0.214" (5.45mm)	Surface Mount	-30°C ~ 85°C	Gull Wing	-	0.100" (2.54mm), Full	Yes
EDS10SNRNTU04Q SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	470	-	询价单	数据表	EDS	Tube	Active	SPST	10	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	25mA	0.136" (3.45mm)	Surface Mount	-20°C ~ 85°C	J Lead	-	0.100" (2.54mm), Full	No

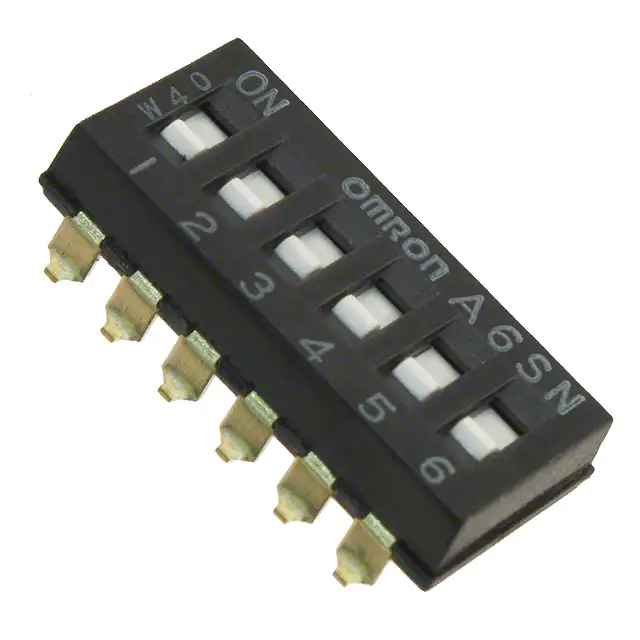

A6SN-6102-P SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	330	-	询价单	数据表	A6SN	Tape & Reel (TR)	Active	SPST	6	24VDC	Slide (Standard)	Flush, Recessed	-	-	25mA	0.175" (4.45mm)	Surface Mount	-30°C ~ 85°C	Gull Wing	Tape Seal	0.100" (2.54mm), Full	Yes
CFS-0800MB SWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation	197	-	询价单	数据表	CFS	Tube	Active	SPST	8	6VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	100mA	0.146" (3.70mm)	Surface Mount	-40°C ~ 85°C	Gull Wing	Tape Seal	0.100" (2.54mm), Full	Yes
SD10H1SB SWITCH SLIDE DIP SPST 0.1A 25V C&K	907	-	询价单	数据表	SD	Tube	Active	SPST	10	25VDC	Slide (Standard)	Raised	Beryllium Copper	Gold	100mA	0.180" (4.57mm)	Surface Mount	-40°C ~ 85°C	Gull Wing	Tape Seal	0.100" (2.54mm), Full	Yes
RDS-16S-7229-A-D SWITCH ROTARY DIP HEX 0.1A 50V Same Sky (Formerly CUI Devices)	488	-	询价单	数据表	RDS-7229-D	Tube	Active	Hexadecimal	16	50VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	100mA	0.114" (2.90mm)	Through Hole	-40°C ~ 85°C	PC Pin	IP67 - Dust Tight, Waterproof	0.100" (2.54mm), Full	No
RDS-10S-7229-A-D SWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices)	300	-	询价单	数据表	RDS-7229-D	Tube	Active	BCD	10	50VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	100mA	0.114" (2.90mm)	Through Hole	-40°C ~ 85°C	PC Pin	IP67 - Dust Tight, Waterproof	0.100" (2.54mm), Full	No

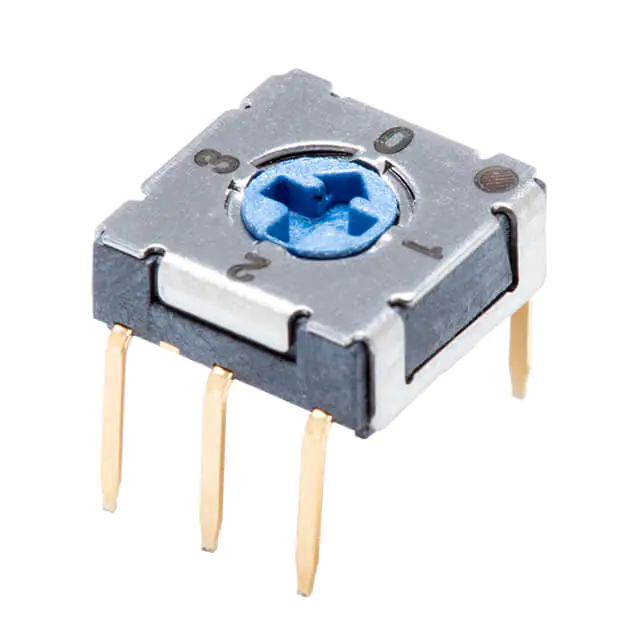

RDS-4S-7229-C-D SWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices)	287	-	询价单	数据表	RDS-7229-D	Tube	Active	BCD	4	50VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	100mA	0.114" (2.90mm)	Through Hole	-40°C ~ 85°C	PC Pin	IP67 - Dust Tight, Waterproof	0.100" (2.54mm), Full	No
RDS-10S-7229-C-D SWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices)	217	-	询价单	数据表	RDS-7229-D	Tube	Active	BCD	10	50VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	100mA	0.114" (2.90mm)	Through Hole	-40°C ~ 85°C	PC Pin	IP67 - Dust Tight, Waterproof	0.100" (2.54mm), Full	No
EDS06SNNNTR04Q SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	1,578	-	询价单	数据表	EDS	Tape & Reel (TR)	Active	SPST	6	24VDC	Slide (Standard)	Raised	Copper Alloy	Gold	25mA	0.152" (3.85mm)	Surface Mount	-20°C ~ 85°C	J Lead	-	0.100" (2.54mm), Full	No
EDSP10SGRNSTU04 SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	1,008	-	询价单	数据表	EDSP	Tube	Active	SPST	10	24VDC	Piano	Flush, Recessed	Copper Alloy	Gold	25mA	0.197" (5.00mm)	Surface Mount, Right Angle	-20°C ~ 85°C	Gull Wing	-	0.100" (2.54mm), Full	Yes
EDS06SNRNTR04Q SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	888	-	询价单	数据表	EDS	Tape & Reel (TR)	Active	SPST	6	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	25mA	0.136" (3.45mm)	Surface Mount	-20°C ~ 85°C	J Lead	-	0.100" (2.54mm), Full	No
RD10RA10RGT SWITCH ROTARY DIP BCD 0.15A 50V CIT Relay and Switch	274	-	询价单	数据表	RD10	Tube	Active	BCD	10	50VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	150mA	0.268" (6.80mm)	Surface Mount	-40°C ~ 85°C	Gull Wing	-	0.100" (2.54mm), Full	Yes

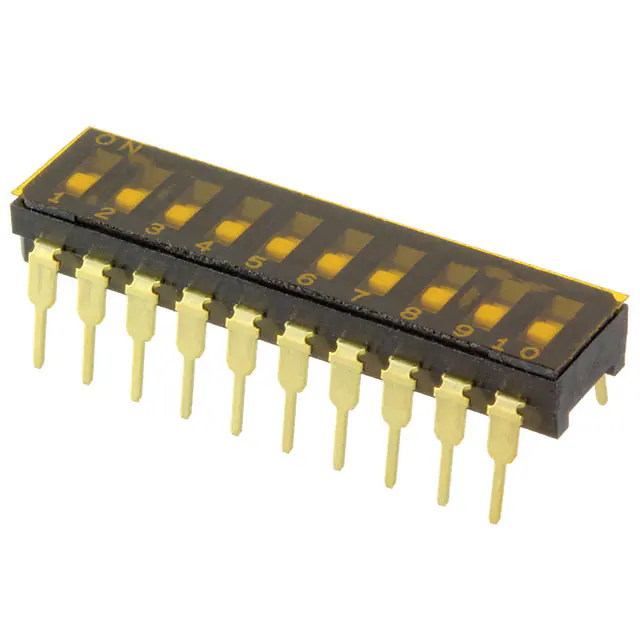

CFS-1000MC SWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation	144	-	询价单	数据表	CFS	Tube	Active	SPST	10	6VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	100mA	0.177" (4.50mm)	Through Hole	-40°C ~ 85°C	PC Pin	Tape Seal	0.100" (2.54mm), Full	Yes
RDS-16S-1045-SMT-TR SWITCH ROTARY DIP HEX 0.025A 24V Same Sky (Formerly CUI Devices)	832	-	询价单	数据表	RDS-1045-SMT	Tape & Reel (TR)	Active	Hexadecimal	16	24VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	25mA	0.177" (4.50mm)	Surface Mount	-40°C ~ 85°C	Gull Wing	-	0.100" (2.54mm), Full	No
RDS-16S-7229-R-D SWITCH ROTARY DIP HEX 0.1A 50V Same Sky (Formerly CUI Devices)	207	-	询价单	数据表	RDS-7229-D	Tube	Active	Hexadecimal	16	50VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	100mA	0.232" (5.90mm)	Through Hole	-40°C ~ 85°C	PC Pin	IP67 - Dust Tight, Waterproof	0.100" (2.54mm), Full	No
RD07A16RTT SWITCH ROTARY DIP HEX 0.1A 50V CIT Relay and Switch	630	-	询价单	数据表	RD07	Tube	Active	Hexadecimal	16	50VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	100mA	0.144" (3.65mm)	Through Hole	-40°C ~ 85°C	PC Pin	-	0.100" (2.54mm), Full	Yes
A6SR-8104 SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	167	-	询价单	数据表	A6SR	Tube	Active	SPST	8	24VDC	Piano	Raised	-	Gold	25mA	0.197" (5.00mm)	Surface Mount, Right Angle	-20°C ~ 70°C	Gull Wing	-	0.100" (2.54mm), Full	No
RD10RA10CTT SW ROTARY DIP BCD COMP 0.15A 50V CIT Relay and Switch	167	-	询价单	数据表	RD10	Tube	Active	BCD Complement	10	50VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	150mA	0.256" (6.50mm)	Through Hole	-40°C ~ 85°C	PC Pin	-	0.100" (2.54mm), Full	Yes
EDS08SNNNTU04Q SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	950	-	询价单	数据表	EDS	Tube	Active	SPST	8	24VDC	Slide (Standard)	Raised	Copper Alloy	Gold	25mA	0.152" (3.85mm)	Surface Mount	-20°C ~ 85°C	J Lead	-	0.100" (2.54mm), Full	No

共 8311 条记录«上一页 1... 64 65 66 676869 70 71...416 下一页»
