共模扼流圈
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 封装/外壳 | 滤波器类型 | 行数 | 电流额定值（最大值） | 直流电阻 (DCR)（最大值） | 电压额定值 - 直流 | 电压额定值 - 交流 | 工作温度 | 阻抗 @ 频率 | 额定值 | 认证机构 | 特性 | 高度（最大值） | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82746S4203A020RING CORE DBL CHOKE 75MH 20A EPCOS - TDK Electronics |
110 | - |
|
数据表 |
Horizontal, 6 PC Pin | Power Line | 3 | 750 µH @ 100 kHz | 20A | 2.7mOhm | - | 500/300V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82767S4123N030RING CORE CHOKE 4X1.45MH 12A EPCOS - TDK Electronics |
109 | - |
|
数据表 |
Horizontal, 8 PC Pin | Power Line | 4 | 1.45 mH @ 10 kHz | 12A | 7.1mOhm (Typ) | - | 500/300V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82793C0206N265CMC 20MH 100MA 2LN SMD EPCOS - TDK Electronics |
3,878 | - |
|
数据表 |
Horizontal, 4 Gull Wing | Signal Line | 2 | 20 mH @ 100 kHz | 100mA | 1.8Ohm (Typ) | 80V | 42V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82793C0476N265CMC 47MH 100MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics |
655 | - |
|
数据表 |
Horizontal, 4 Gull Wing | Signal Line | 2 | 47 mH @ 10 kHz | 100mA | 3.7Ohm (Typ) | 80V | 42V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82722S0193A040CMC 380UH 19A 2LN SMD EPCOS - TDK Electronics |
4,251 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | 380 µH @ 100 kHz | 19A | 3mOhm | 80V | 48V | - | - | - | - | - | - | - |
|
B82727E6443A040CMC 1MH 44A 2LN TH EPCOS - TDK Electronics |
3,547 | - |
|
数据表 |
Vertical, 8 PC Pin | Power Line | 2 | 1 mH @ 100 kHz | 44A | 1.35mOhm (Typ) | 1000V (1kV) | 600V | - | -40°C ~ 125°C | - | UR | - | - | - |
|
|
B82727E6403A040CMC 1.5MH 40A 2LN TH EPCOS - TDK Electronics |
3,618 | - |
|
数据表 |
Vertical, 8 PC Pin | Power Line | 2 | 1.5 mH @ 10 kHz | 40A | 1.7mOhm (Typ) | 1000V (1kV) | 600V | - | -40°C ~ 125°C | - | UR | - | - | - |
|
B82790C0502N201CMC 5UH 1A 2LN SMD AEC-Q200 EPCOS - TDK Electronics |
3,424 | - |
|
数据表 |
Horizontal, 4 Gull Wing | Signal Line | 2 | 5 µH @ 100 kHz | 1A | 60mOhm (Typ) | 80V | 42V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

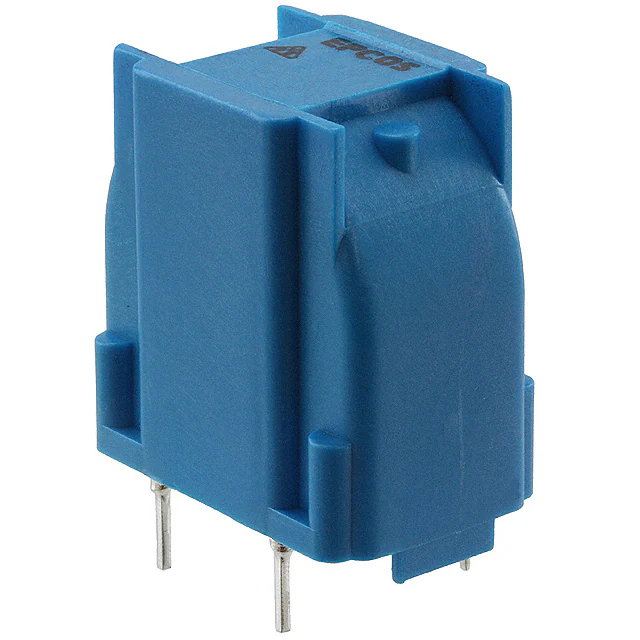

B82723J2202N001CMC 5.6MH 2A 2LN TH EPCOS - TDK Electronics |
2,362 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 5.6 mH @ 10 kHz | 2A | 160mOhm (Typ) | - | 250V | - | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82725J2602N020CMC 3.9MH 6A 2LN TH EPCOS - TDK Electronics |
2,325 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 3.9 mH @ 10 kHz | 6A | 30mOhm (Typ) | - | 250V | - | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
