共模扼流圈
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 封装/外壳 | 滤波器类型 | 行数 | 电流额定值（最大值） | 直流电阻 (DCR)（最大值） | 电压额定值 - 直流 | 电压额定值 - 交流 | 工作温度 | 阻抗 @ 频率 | 额定值 | 认证机构 | 特性 | 高度（最大值） | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCM-0905-102Y-ECMC 1MH 700MA 2LN SMD |
2,381 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | 1 mH @ 100 kHz | 700mA | 300mOhm | 80V | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-9070M-222CMC 2.5A 2LN 2.2K OHM SMD |
4,342 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 2.5A | 60mOhm | 50V | - | 2.2 kOhms @ 100 MHz | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-9070M-102CMC 4A 2LN 1K OHM SMD |
1,570 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 4A | 13mOhm | 50V | - | 1 kOhms @ 100 MHz | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCI-2012-900CMC 330MA 2LN 90 OHM SMD |
1,823 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 330mA | 350mOhm | 50V | - | 90 Ohms @ 100 MHz | -25°C ~ 85°C | - | - | - | - | - |
|
|
MCM-0905S-202Y-FCMC 2MH 600MA 2LN SMD |
3,405 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 600mA | 420mOhm | 80V | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-9070M-701CMC 5A 2LN 700 OHM SMD |
2,558 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 5A | 10mOhm | 50V | - | 700 Ohms @ 100 MHz | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-0905S-102Y-FCMC 1MH 800MA 2LN SMD |
1,574 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 800mA | 310mOhm | 80V | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-0905-501-ECMC 500UH 2A 2LN 1K OHM SMD |
3,198 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 2A | 120mOhm | 50V | - | 1 kOhms @ 10 MHz | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-7060M-302CMC 900MA 2LN 3K OHM SMD |
2,267 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 900mA | 75mOhm | 125V | - | 3 kOhms @ 100 MHz | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-1513M-701CMC 10A 2LN 500 OHM SMD |
4,741 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 10A | 7mOhm | 80V | - | 500 Ohms @ 100 MHz | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCF06052T200-TCMC 2LN 20 OHM SMD |
3,906 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | - | - | - | 20 Ohms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF06052E900ZTCMC 100MA 2LN 90 OHM SMD |
4,309 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 100mA | 3.9Ohm | 10V | - | 90 Ohms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF20104H900-TCMC 100MA 4LN 90 OHM SMD |
4,825 | - |
|
数据表 |
0804 (2010 Metric), Array, 8 PC Pad | Power Line | 4 | - | 100mA | 3Ohm | 5V | - | 90 Ohms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF12102G900PTCMC 150MA 2LN 90 OHM SMD |
2,201 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 150mA | 4.5Ohm | 5V | - | 90 Ohms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF12102S900-TCMC 2LN 90 OHM SMD |
3,528 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | - | - | - | 90 Ohms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF12102H900PTCMC 150MA 2LN 90 OHM SMD |
2,037 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 150mA | 2.5Ohm | 5V | - | 90 Ohms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
|

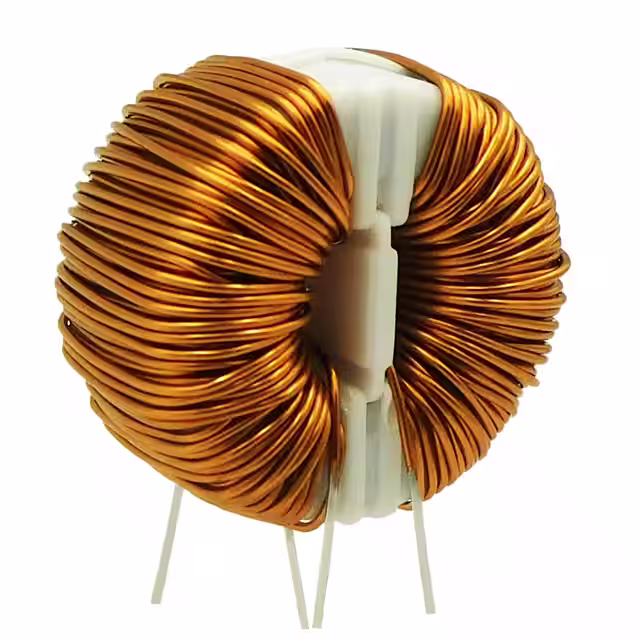

LPTC-V-42.5-2-200CMC 42.5MH 2A 2LN TH |
2,604 | - |
|
数据表 |
Vertical, No Base, 4 PC Pin | Power Line | 2 | 42.5 mH @ 1 kHz | 2A | 200mOhm | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
MCI-2012-121CMC 370MA 2LN 120 OHM SMD |
1,910 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 370mA | 300mOhm | 50V | - | 120 Ohms @ 100 MHz | -25°C ~ 85°C | - | - | - | - | - |
|
|
MCM-7060M-132CMC 2.5A 2LN 1.3K OHM SMD |
4,739 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 2.5A | 21mOhm | 125V | - | 1.3 kOhms @ 100 MHz | -40°C ~ 125°C | - | - | - | - | - |
|
SCM30S-601T-RCCMC 1.5A 2LN 600 OHM SMD |
4,963 | - |
|
数据表 |
Horizontal, 4 PC Pad | - | 2 | - | 1.5A | 240mOhm | 50V | - | 600 Ohms @ 100 MHz | -40°C ~ 125°C | - | - | - | - | - |
