共模扼流圈
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 封装/外壳 | 滤波器类型 | 行数 | 电流额定值（最大值） | 直流电阻 (DCR)（最大值） | 电压额定值 - 直流 | 电压额定值 - 交流 | 工作温度 | 阻抗 @ 频率 | 额定值 | 认证机构 | 特性 | 高度（最大值） | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-67540CMC 4LN SMD |
2,411 | - |
|
数据表 |
Vertical, 8 Gull Wing | Signal Line | 4 | - | - | 600mOhm | - | - | - | - | - | - | - | - | - |
|
PE-67539CMC 4LN TH |
2,026 | - |
|
数据表 |
Vertical, 8 PC Pin | Signal Line | 4 | - | - | 600mOhm | - | - | - | - | - | - | - | - | - |
|
ACM3225-800-2P-T001CMC 400MA 2LN 80 OHM SMD |
1,899 | - |
|
数据表 |
1210 (3225 Metric), 4 Leads | Signal Line | 2 | - | 400mA | 150mOhm | 20V | - | 80 Ohms @ 100 MHz | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACM3225-161-2P-T001CMC 350MA 2LN 160 OHM SMD |
2,418 | - |
|
数据表 |
1210 (3225 Metric), 4 Leads | Signal Line | 2 | - | 350mA | 200mOhm | 20V | - | 160 Ohms @ 100 MHz | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACM3225-271-2P-T001CMC 300MA 2LN 270 OHM SMD |
1,392 | - |
|
数据表 |
1210 (3225 Metric), 4 Leads | Signal Line | 2 | - | 300mA | 300mOhm | 20V | - | 270 Ohms @ 100 MHz | -25°C ~ 85°C | - | - | - | - | - |
|
ZJYS81R5-2P24T-G01CMC 500MA 2LN 1KOHM SMD AEC-Q200 |
2,707 | - |
|
数据表 |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 500mA | 150mOhm | 80V | - | 1 kOhms @ 100 MHz | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ZJYS51R5-2PT-G01CMC 2A 2LN 200 OHM SMD |
4,361 | - |
|
数据表 |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 2A | 120mOhm | 50V | - | 200 Ohms @ 100 MHz | -25°C ~ 85°C | - | - | - | - | - |
|

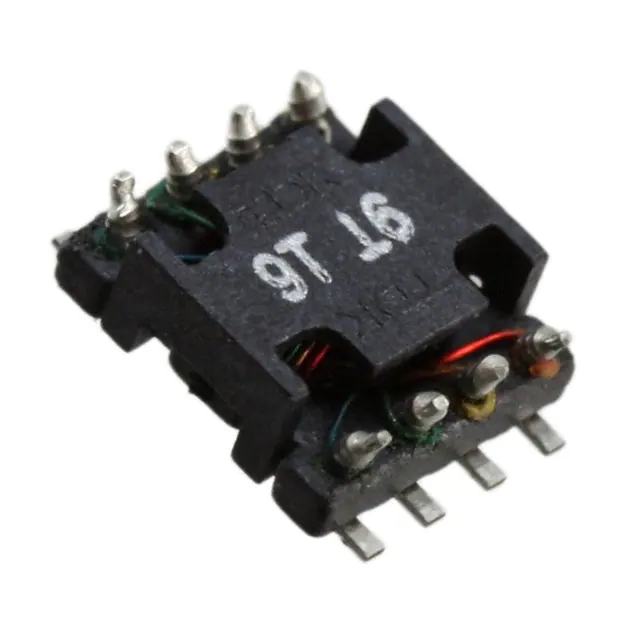

ZCYS51R5-M4PAT-01CMC 500MA 4LN 200 OHM SMD |
4,682 | - |
|
数据表 |
- | Signal Line | 4 | - | 500mA | 200mOhm | 50V | - | 200 Ohms @ 100 MHz | -25°C ~ 85°C | - | - | - | - | - |
|
UF1717V-600Y1R0-03CMC 60UH 1A 2LN TH |
1,327 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 60 µH @ 1 kHz | 1A | 300mOhm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717H-702Y0R3-01CMC 7MH 300MA 2LN TH |
3,592 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | 7 mH @ 1 kHz | 300mA | 2.5Ohm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717V-342Y0R4-01CMC 3.4MH 400MA 2LN TH |
4,980 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 3.4 mH @ 1 kHz | 400mA | 1.3Ohm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717V-152Y0R6-01CMC 1.5MH 600MA 2LN TH |
1,122 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 1.5 mH @ 1 kHz | 600mA | 550mOhm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717H-152Y0R6-01CMC 1.5MH 600MA 2LN TH |
1,670 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | 1.5 mH @ 1 kHz | 600mA | 550mOhm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717H-342Y0R4-01CMC 3.4MH 400MA 2LN TH |
3,984 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | 3.4 mH @ 1 kHz | 400mA | 1.3Ohm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
UF1717V-702Y0R3-01CMC 7MH 300MA 2LN TH |
1,912 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 7 mH @ 1 kHz | 300mA | 2.5Ohm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
UF1815SG-351Y1R0-01CMC 350UH 1A 2LN TH |
4,608 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | 350 µH @ 1 kHz | 1A | 300mOhm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
CM1812R600R-10CMC 5A 2LN 60 OHM SMD |
4,304 | - |
|
数据表 |
1812 (4532 Metric) | Power, Signal Line | 2 | - | 5A | 5mOhm | - | - | 60 Ohms @ 100 MHz | - | - | - | - | - | - |
|
|
CM1812X330R-10CMC 10A 2LN 33 OHM SMD |
2,698 | - |
|
数据表 |
1812 (4532 Metric) | - | 2 | - | 10A | 3mOhm | - | - | 33 Ohms @ 100 MHz | - | - | - | - | - | - |
|
CM1922X330R-10CMC 10A 2LN 33 OHM SMD |
3,577 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | - | 10A | 3mOhm | - | - | 33 Ohms @ 100 MHz | -40°C ~ 125°C | - | - | - | - | - |
|
CM3322U610R-10CMC 7A 2LN 61 OHM SMD |
4,792 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | - | 7A | 15mOhm | - | - | 61 Ohms @ 100 MHz | -40°C ~ 125°C | - | - | - | - | - |
