共模扼流圈
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 封装/外壳 | 滤波器类型 | 行数 | 电流额定值（最大值） | 直流电阻 (DCR)（最大值） | 电压额定值 - 直流 | 电压额定值 - 交流 | 工作温度 | 阻抗 @ 频率 | 额定值 | 认证机构 | 特性 | 高度（最大值） | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82799C334N1CMC 330UH 200MA 2LN SMD AEC-Q200 |
1,390 | - |
|
数据表 |
Horizontal, 4 L-Lead | Signal Line | 2 | 330 µH @ 100 kHz | 200mA | 250mOhm (Typ) | 80V | 42V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799C513N1CMC 51UH 200MA 2LN SMD AEC-Q200 |
4,356 | - |
|
数据表 |
Horizontal, 4 L-Lead | Signal Line | 2 | 51 µH @ 100 kHz | 200mA | 250mOhm (Typ) | 80V | 42V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

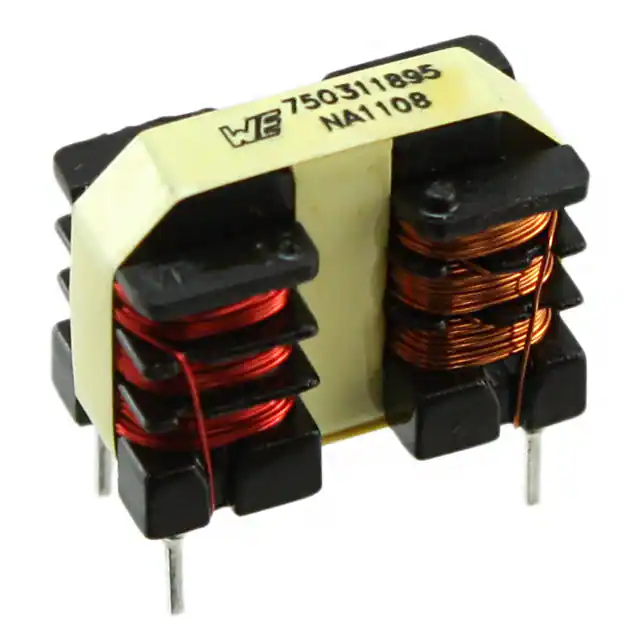

750311895CMC 6MH 450MA 2LN TH |
4,611 | - |
|
数据表 |
Vertical, 4 PC Pin | - | 2 | 6 mH @ 10 kHz | 450mA | 1.6Ohm | - | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-10-102B1MH @ 10 KHZ 2 LINE COMMON MODE |
4,988 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 1 mH @ 10 kHz | 1A | 70mOhm | - | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TF3424HU-301Y20R0-01CMC 20A 2LN TH |
2,107 | - |
|
数据表 |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 20A | 10mOhm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3435VU-301Y20R0-01CMC 20A 2LN TH |
2,570 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | - | 20A | 10mOhm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3424HU-102Y10R0-01CMC 10A 2LN TH |
1,530 | - |
|
数据表 |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 10A | 30mOhm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3435VU-102Y10R0-01CMC 10A 2LN TH |
2,939 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | - | 10A | 30mOhm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3424HU-102Y15R0-01CMC 15A 2LN TH |
1,108 | - |
|
数据表 |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 15A | 20mOhm | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
HHBC8S-0R6A0024VCMC 24UH 2A 2LN TH |
3,722 | - |
|
数据表 |
Vertical, No Base, 2 PC Pin | - | 2 | 24 µH @ 100 kHz | 2A | 41.1mOhm | - | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LG01-1006NF1LFTRCMC 100UH 2CH EXT TEMP 8P SMD T/ |
2,288 | - |
|
数据表 |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7115CMC 5MH 2A 2LN TH |
3,272 | - |
|
数据表 |
Vertical, No Base, 2 PC Pin | - | 2 | 5 mH @ 1 kHz | 2A | 110mOhm | - | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7117CMC 1MH 5A 2LN TH |
4,499 | - |
|
数据表 |
Vertical, No Base, 2 PC Pin | - | 2 | 1 mH @ 1 kHz | 5A | 35mOhm | - | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CAV-0.4-47CMC 47MH 400MA 2LN TH |
3,678 | - |
|
数据表 |
Vertical, 4 PC Pin | Signal Line | 2 | 47 mH @ 10 kHz | 400mA | 1.942Ohm | - | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DKFP-A21A-D64MDKFP COMP.CHOKE THT P V 0.6A 2X4 |
3,893 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | - | 600mA | 380mOhm (Typ) | - | 250V | - | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B22B-D615DKFP COMP.CHOKE THT P O 0.6A 2X1 |
3,432 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | - | 600mA | 453mOhm (Typ) | - | 250V | - | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B22B-D810DKFP COMP.CHOKE THT P O 0.8A 2X1 |
4,483 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | - | 800mA | 336mOhm (Typ) | - | 250V | - | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-A21A-D312DKFP COMP.CHOKE THT P V 0.3A 2X1 |
3,119 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | - | 300mA | 1.28Ohm (Typ) | - | 250V | - | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B22B-D527DKFP COMP.CHOKE THT P O 0.5A 2X2 |
1,144 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | - | 500mA | 841mOhm (Typ) | - | 250V | - | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-A21A-0103DKFP COMP.CHOKE THT P V 2X3MH |
3,365 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | - | 1A | 200mOhm (Typ) | - | 250V | - | -40°C ~ 125°C | - | cURus | - | - | - |
