共模扼流圈
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 封装/外壳 | 滤波器类型 | 行数 | 电流额定值（最大值） | 直流电阻 (DCR)（最大值） | 电压额定值 - 直流 | 电压额定值 - 交流 | 工作温度 | 阻抗 @ 频率 | 额定值 | 认证机构 | 特性 | 高度（最大值） | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMCU-6029CMC 1.3A 2LN TH |
1,000 | - |
|
数据表 |
- | Power Line | 2 | 3 mH @ 1 kHz | 1.3A | 260mOhm | - | 250V | - | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCU-4009CMC 750MA 2LN TH |
2,284 | - |
|
数据表 |
- | Power Line | 2 | 0.8 mH @ 1 kHz | 750mA | 220mOhm | - | 250V | - | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCU-7039CMC 2A 2LN TH |
1,000 | - |
|
数据表 |
- | Power Line | 2 | 0.9 mH @ 1 kHz | 2A | 120mOhm | - | 250V | - | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCE-0056CMC 2.25A 2LN TH |
1,840 | - |
|
数据表 |
- | Power Line | 2 | 5.6 mH @ 1 kHz | 2.25A | 80mOhm | - | 3750V (3.75kV) | - | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCU-8009CMC 1A 2LN TH |
1,000 | - |
|
数据表 |
- | Power Line | 2 | 10 mH @ 1 kHz | 1A | 520Ohm | 100V | 300V | - | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCU-2056CMC 1.4A 2LN TH |
2,446 | - |
|
数据表 |
- | Power Line | 2 | 5.6 mH @ 1 kHz | 1.4A | 150mOhm | - | 250V | - | -40°C ~ 80°C | - | - | - | - | - |
|
|
TSD-4547CMC 2LN TH |
150 | - |
|
数据表 |
- | - | 2 | - | - | - | - | 1000V (1kV) | - | 130°C | - | - | - | - | - |
|
|
TSD-4546CMC 2LN TH |
150 | - |
|
数据表 |
- | - | 2 | - | - | - | - | 2500V (2.5kV) | - | 130°C | - | - | - | - | - |
|
ACM2520-601-2P-T002CMC 300MA 2LN 600 OHM SMD |
768 | - |
|
数据表 |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 300mA | 450mOhm | 20V | - | 600 Ohms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
|
ACM4520-142-2P-T000CMC 1.7A 2LN 1.4K OHM SMD |
516 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.7A | 80mOhm | 50V | - | 1.4 kOhms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
|
DR221-474AECMC 470UH 100MA 2LN SMD |
2,248 | - |
|
数据表 |
Horizontal, 4 Flat Lead | Signal Line | 2 | 470 µH @ 10 kHz | 100mA | 350mOhm | 50V | 100V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMS1-14-RCMC 205UH 850MA 2LN SMD |
4,353 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | 205 µH @ 100 kHz | 850mA | 186mOhm (Typ) | - | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

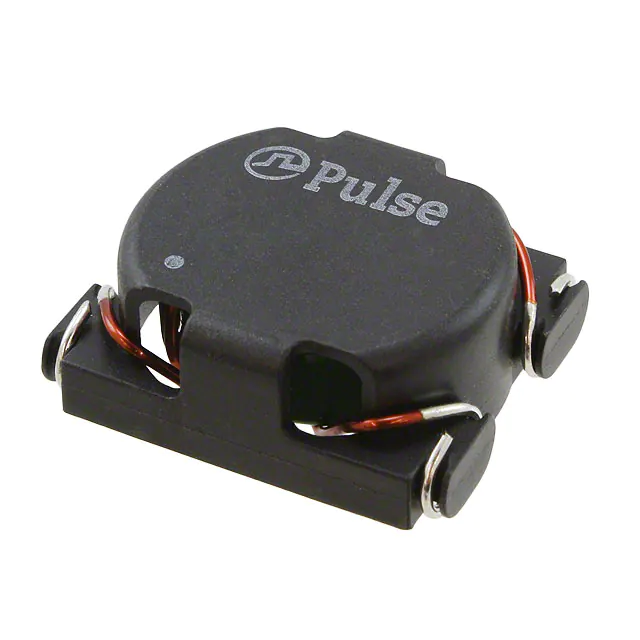

PA2757NLCMC 9A 2LN SMD |
4,140 | - |
|
数据表 |
Horizontal, 4 PC Pad | - | 2 | - | 9A | 9.75mOhm | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
P0502NLCMC 14A 2LN SMD |
4,244 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 14A | 8mOhm | - | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
TCK-053CMC 830UH 3.3A 2LN TH |
1,577 | - |
|
数据表 |
Horizontal, 4 PC Pin | - | 2 | 830 µH @ 100 kHz | 3.3A | 31mOhm | 500V | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
P0502NLTCMC 14A 2LN SMD |
119 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | - | 14A | 8mOhm | - | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
B82722S0193A040CMC 380UH 19A 2LN SMD |
4,251 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | 380 µH @ 100 kHz | 19A | 3mOhm | 80V | 48V | - | - | - | - | - | - | - |
|
8113-RCCMC 5MH 8.9A 2LN TH |
3,364 | - |
|
数据表 |
Vertical, 4 PC Pin | - | 2 | 5 mH @ 1 kHz | 8.9A | 22mOhm | - | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

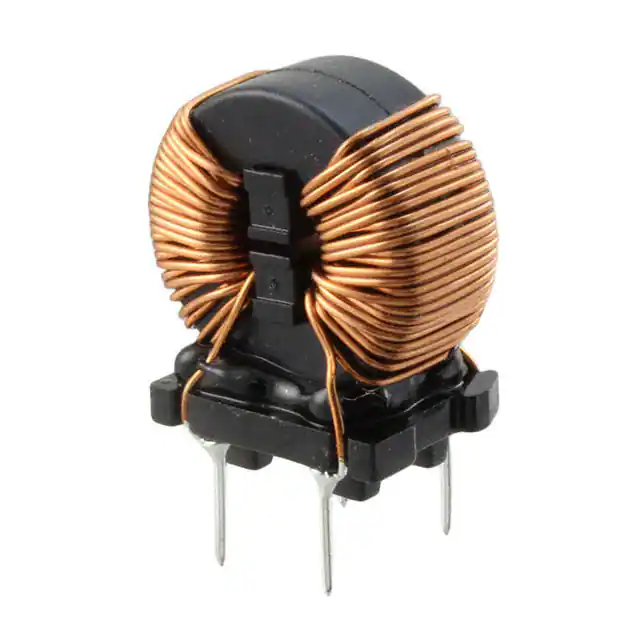

7448030333CMC 33MH 2.5A 2LN TH |
1,793 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 33 mH @ 10 kHz | 2.5A | 94mOhm | - | 300V | - | -55° C ~ 125°C | - | - | - | - | - |
|
8121-RCCMC 1MH 20A 2LN TH |
3,445 | - |
|
数据表 |
Vertical, 4 PC Pin | - | 2 | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | - | -55°C ~ 105°C | - | - | - | - | - |
