单个双极晶体管
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 晶体管类型 | 电流 - 集电极 (Ic)（最大值） | 集电极饱和电压 (Vce)（最大值）@ Ib, Ic | 电流 - 集电极截止（最大值） | 直流电流增益（hFE）（最小值）@ Ic, Vce | 功率 - 最大值 | 频率 - 跃迁 | 电压 - 集电极发射极击穿（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_straightlead.jpg)
|
2N4403GTRANS PNP 40V 0.6A TO92 |
4,266 | - |
|
数据表 |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | PNP | 600 mA | 750mV @ 50mA, 500mA | - | 100 @ 150mA, 2V | 625 mW | 200MHz | 40 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
2N4403RLRMGTRANS PNP 40V 0.6A TO92 |
3,105 | - |
|
数据表 |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Box (TB) | Obsolete | PNP | 600 mA | 750mV @ 50mA, 500mA | - | 100 @ 150mA, 2V | 625 mW | 200MHz | 40 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
2N4919TRANS PNP 60V 1A TO-126 |
8,728 | - |
|
数据表 |
- | TO-225AA, TO-126-3 | Bulk | Obsolete | PNP | 1 A | 600mV @ 100mA, 1A | 500µA | 30 @ 500mA, 1V | 30 W | 3MHz | 60 V | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-126 |
|
|
2N5087GTRANS PNP 50V 0.05A TO92 |
8,326 | - |
|
数据表 |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | PNP | 50 mA | 300mV @ 1mA, 10mA | 50nA (ICBO) | 250 @ 100µA, 5V | 625 mW | 40MHz | 50 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N5088RLRAGTRANS NPN 30V 0.05A TO92 |
5,445 | - |
|
数据表 |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | NPN | 50 mA | 500mV @ 1mA, 10mA | 50nA (ICBO) | 300 @ 100µA, 5V | 625 mW | 50MHz | 30 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N5401GTRANS PNP 150V 0.6A TO92 |
8,247 | - |
|
数据表 |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | PNP | 600 mA | 500mV @ 5mA, 50mA | 50nA (ICBO) | 60 @ 10mA, 5V | 625 mW | 300MHz | 150 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N5550RLRPGTRANS NPN 140V 0.6A TO92 |
6,902 | - |
|
数据表 |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Box (TB) | Obsolete | NPN | 600 mA | 250mV @ 5mA, 50mA | 100nA (ICBO) | 60 @ 10mA, 5V | 625 mW | 300MHz | 140 V | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
2N6286GTRANS PNP DARL 80V 20A TO204 |
7,770 | - |
|
数据表 |
- | TO-204AA, TO-3 | Tray | Obsolete | PNP - Darlington | 20 A | 3V @ 200mA, 20A | 1mA | 750 @ 10A, 3V | 160 W | - | 80 V | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204 (TO-3) |
|
|
2N6287GTRANS PNP DARL 100V 20A TO204 |
8,142 | - |
|
数据表 |
- | TO-204AA, TO-3 | Tray | Obsolete | PNP - Darlington | 20 A | 3V @ 200mA, 20A | 1mA | 750 @ 10A, 3V | 160 W | - | 100 V | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204 (TO-3) |
|
2N6288TRANS NPN 30V 7A TO-220 |
7,403 | - |
|
数据表 |
- | TO-220-3 | Tube | Obsolete | NPN | 7 A | 3.5V @ 3A, 7A | 1mA | 30 @ 3A, 4V | 40 W | 4MHz | 30 V | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|

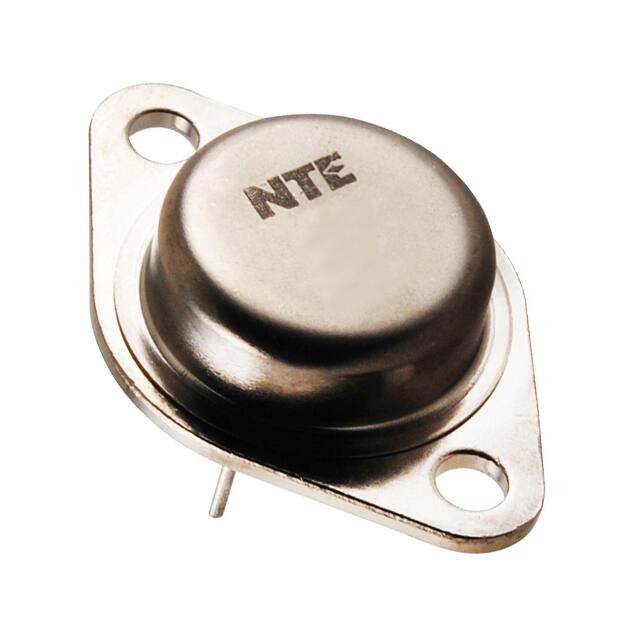

2N6338TRANS NPN 100V 25A TO204 |
2,587 | - |
|
数据表 |
- | TO-204AA, TO-3 | Tray | Obsolete | NPN | 25 A | 1.8V @ 2.5A, 25A | 50µA | 30 @ 10A, 2V | 200 W | 40MHz | 100 V | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204 (TO-3) |
|
BC848A-AQTRANS NPN 30V 0.1A SOT23-3 |
5,109 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN | 100 mA | 600mV @ 5mA, 100mA | 15nA (ICBO) | 110 @ 2mA, 5V | 250 mW | 300MHz | 30 V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
BC848C-AQTRANS NPN 30V 0.1A SOT23-3 |
4,211 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN | 100 mA | 600mV @ 5mA, 100mA | 15nA (ICBO) | 420 @ 2mA, 5V | 250 mW | 300MHz | 30 V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
BC857A-AQTRANS PNP 45V 0.1A SOT23-3 |
3,726 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | PNP | 100 mA | 650mV @ 5mA, 100mA | 15nA (ICBO) | 125 @ 2mA, 5V | 250 mW | 100MHz | 45 V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
BC859B-AQTRANS PNP 30V 0.1A SOT23-3 |
3,997 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | PNP | 100 mA | 650mV @ 5mA, 100mA | 15nA (ICBO) | 220 @ 2mA, 5V | 250 mW | 100MHz | 30 V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
BC850B-AQTRANS NPN 45V 0.1A SOT23-3 |
6,809 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN | 100 mA | 600mV @ 5mA, 100mA | 15nA (ICBO) | 200 @ 2mA, 5V | 250 mW | 300MHz | 45 V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
BC850A-AQTRANS NPN 45V 0.1A SOT23-3 |
4,052 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN | 100 mA | 600mV @ 5mA, 100mA | 15nA (ICBO) | 110 @ 2mA, 5V | 250 mW | 300MHz | 45 V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
BC849B-AQTRANS NPN 30V 0.1A SOT23-3 |
5,836 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN | 100 mA | 600mV @ 5mA, 100mA | 15nA (ICBO) | 200 @ 2mA, 5V | 250 mW | 300MHz | 30 V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
BC 856BW H6327TRANS PNP 65V 0.1A PG-SOT323 |
7,023 | - |
|
数据表 |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | PNP | 100 mA | 650mV @ 5mA, 100mA | 15nA (ICBO) | 220 @ 2mA, 5V | 250 mW | 250MHz | 65 V | 150°C (TJ) | - | - | Surface Mount | PG-SOT323 |
|
PMBT3904-QRTRANS NPN 40V 0.2A TO-236AB |
7,610 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN | 200 mA | 300mV @ 5mA, 50mA | 50nA (ICBO) | 100 @ 10mA, 1V | 250 mW | 300MHz | 40 V | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
