双极射频晶体管
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 晶体管类型 | 电压 - 集电极发射极击穿（最大值） | 噪声系数（典型值 dB @ f） | 增益 | 功率 - 最大值 | 直流电流增益（hFE）（最小值）@ Ic, Vce | 电流 - 集电极 (Ic)（最大值） | 频率 - 跃迁 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

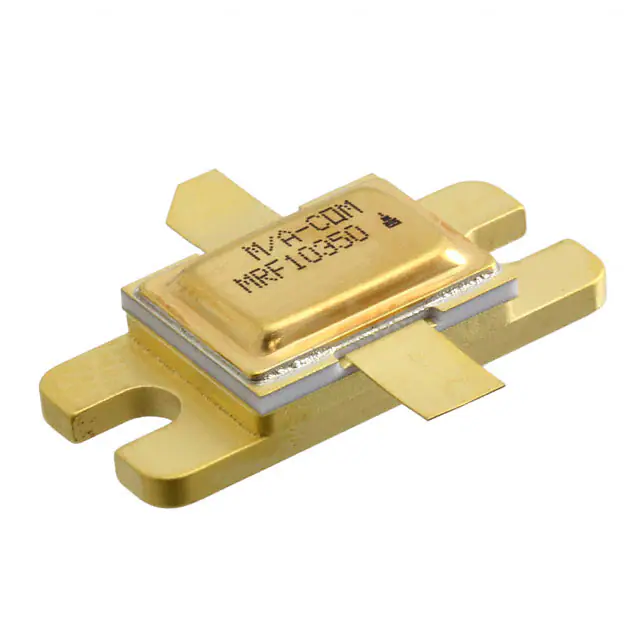

MRF10350RF TRANS NPN 65V 355E-01 |
3,746 | - |
|
数据表 |
- | 355E-01 | Tray | Active | NPN | 65V | - | 9dB | 350W | 20 @ 5A, 5V | 31A | - | 200°C (TJ) | - | - | Chassis Mount | 355E-01, Style 1 |
|
TAN350RF TRANS NPN 65V 1.215GHZ 55ST |
8,064 | - |
|
数据表 |
- | 55ST | Bulk | Obsolete | NPN | 65V | - | 7dB ~ 7.5dB | 1450W | 10 @ 1A, 5V | 40A | 960MHz ~ 1.215GHz | 230°C (TJ) | - | - | Chassis Mount | 55ST |
|
|
MAPR-001090-350S00TRANSISTOR,350WPK,1.09GHZ |
3,080 | - |
|
数据表 |
- | 2L-FLG | Bulk | Active | NPN | 65V | - | 9dB | 1100W | - | 25A | - | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
|
MAPR-001011-850S00TRANSISTOR,850W,1025-1150MHZ,50V |
5,208 | - |
|
数据表 |
- | 2L-FLG | Bulk | Active | NPN | 80V | - | 7.8dB | 11600W | - | 250A | 1.15GHz | 200°C | - | - | Chassis Mount | 2L-FLG |
|
|
BLA6H0912-DTS,112BLA6H0912-DTS/SOT634/TRAY |
6,803 | - |
|
数据表 |
- | - | Tray | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MDS500LRF TRANS NPN 70V 1.09GHZ 55ST |
8,389 | - |
|
数据表 |
- | 55ST | Bulk | Obsolete | NPN | 70V | - | 9.2dB | 833W | 20 @ 1A, 5V | 24A | 1.03GHz ~ 1.09GHz | 200°C (TJ) | - | - | Chassis Mount | 55ST |
|
MRF10502RF TRANS NPN 65V 355J-02 |
3,536 | - |
|
数据表 |
- | 355J-02 | Tray | Active | NPN | 65V | - | 9dB | 500W | 20 @ 5A, 5V | 29A | - | 200°C (TJ) | - | - | Chassis Mount | 355J-02, STYLE 1 |
|
|
TPR1000RF TRANS NPN 65V 1.09GHZ 55KV |
6,515 | - |
|
数据表 |
- | 55KV | Bulk | Obsolete | NPN | 65V | - | 6dB | 2900W | 10 @ 1A, 5V | 80A | 1.09GHz | 200°C (TJ) | - | - | Chassis Mount | 55KV |
|
|
PH2729-110MTRANSISTOR,110W,2.7-2.9GHZ,100US |
3,969 | - |
|
数据表 |
- | 2L-FLG | Bulk | Active | NPN | 63V | - | 6.8dB | 330W | - | 8A | 2.7GHz ~ 2.9GHz | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
PH2731-75LRF TRANS NPN 65V |
6,300 | - |
|
数据表 |
- | - | Tray | Active | NPN | 65V | - | 8.16dB ~ 8.86dB | 75W | - | 7A | - | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
ITC1100RF TRANS NPN 65V 1.03GHZ 55SW |
9,591 | - |
|
数据表 |
- | 55SW | Bulk | Obsolete | NPN | 65V | - | 10dB ~ 10.5dB | 3400W | 10 @ 5A, 5V | 80A | 1.03GHz | 200°C (TJ) | - | - | Chassis Mount | 55SW |
|
|
PH2729-65MTRANSISTOR,BIPOLAR,65W,36V,2.70- |
3,059 | - |
|
数据表 |
- | 2L-FLG | Bulk | Active | NPN | 65V | - | 8.5dB | 330W | - | 8A | 2.7GHz ~ 2.9GHz | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
|
MDS800RF TRANS NPN 65V 1.09GHZ 55ST-1 |
8,520 | - |
|
数据表 |
- | 55ST-1 | Bulk | Obsolete | NPN | 65V | - | 8.6dB | 1458W | 20 @ 1A, 5V | 60A | 1.09GHz | 200°C (TJ) | - | - | Chassis Mount | 55ST-1 |
|
|
PH3135-90STRANSISTOR,90W,3.1-3.5GHZ,2US,10 |
7,424 | - |
|
数据表 |
- | 2L-FLG | Bulk | Active | NPN | 65V | - | 7.5dB | 580W | - | 10.7A | - | 200°C (TJ) | - | - | Chassis Mount | - |
|
PH2729-130MRF TRANS NPN 63V |
9,560 | - |
|
数据表 |
- | - | Tray | Active | NPN | 63V | - | 9.73dB ~ 8.85dB | 130W | - | 12.5A | - | 200°C (TJ) | - | - | Chassis Mount | - |
|
MAPRST0912-350RF TRANS NPN 65V 1.215GHZ |
7,529 | - |
|
数据表 |
- | - | Tray | Active | NPN | 65V | - | 9.4dB | 350W | - | 32.5A | 1.215GHz | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
TCS800RF TRANS NPN 65V 1.03GHZ 55SM |
6,967 | - |
|
数据表 |
- | 55SM | Bulk | Obsolete | NPN | 65V | - | 8dB ~ 9dB | 1944W | 20 @ 5A, 5V | 50A | 1.03GHz | 230°C (TJ) | - | - | Chassis Mount | 55SM |
|
|
PH1214-220MTRANSISTOR,220W,1.2-1.4GHZ,150US |
2,248 | - |
|
数据表 |
- | 2L-FLG | Bulk | Active | NPN | 70V | - | 7.4dB | 700W | - | 21A | 1.4GHz | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
MAPR-000912-500S00RF TRANS NPN 80V |
4,341 | - |
|
数据表 |
- | - | Tray | Active | NPN | 80V | - | 9.44dB ~ 9.77dB | 500W | - | 52.5A | - | 200°C (TJ) | - | - | Chassis Mount | - |
|
PH1090-350LRF TRANS NPN 80V |
4,960 | - |
|
数据表 |
- | - | Tray | Active | NPN | 80V | - | 8.32dB | 350W | - | 17A | - | 200°C (TJ) | - | - | Chassis Mount | - |
