阵列、信号变压器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 线圈数量 | 电感 - 并联连接 | 容差 | 电流额定值 - 并联 | 电流额定值 - 串联 | 高度 | 饱和电流 - 并联 | 饱和电流 - 串联 | 电感 - 串联连接 | 直流电阻 (DCR) - 并联 | 直流电阻 (DCR) - 串联 | 尺寸 / 尺寸 | 屏蔽 | 安装类型 | 额定值 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX15-1-RINDUCT ARRAY 2 COIL 14.4UH SMD |
1,100 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.4 µH | ±20% | 1.1 A | 550 mA | 0.165" (4.19mm) | - | - | 57.6 µH | 80mOhm Max | 319mOhm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
CTX100-4P-RINDUCT ARRAY 2 COIL 99.09UH SMD |
637 | - |
|
数据表 |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.09 µH | ±20% | 720 mA | 360 mA | 0.250" (6.35mm) | - | - | 396.38 µH | 565mOhm Max | 2.259Ohm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX2-4A-RINDUCT ARRAY 2 COIL 2.18UH SMD |
2,312 | - |
|
数据表 |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.18 µH | ±25% | 8.38 A | 4.19 A | 0.250" (6.35mm) | 9 A | 4.5 A | 8.7 µH | 6.3mOhm Max | 25.1mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX300-1P-RINDUCT ARRAY 2 COIL 299.87UH SMD |
1,025 | - |
|
数据表 |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 299.87 µH | ±20% | 320 mA | 160 mA | 0.165" (4.19mm) | - | - | 1.199 mH | 1.525Ohm Max | 6.1Ohm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|

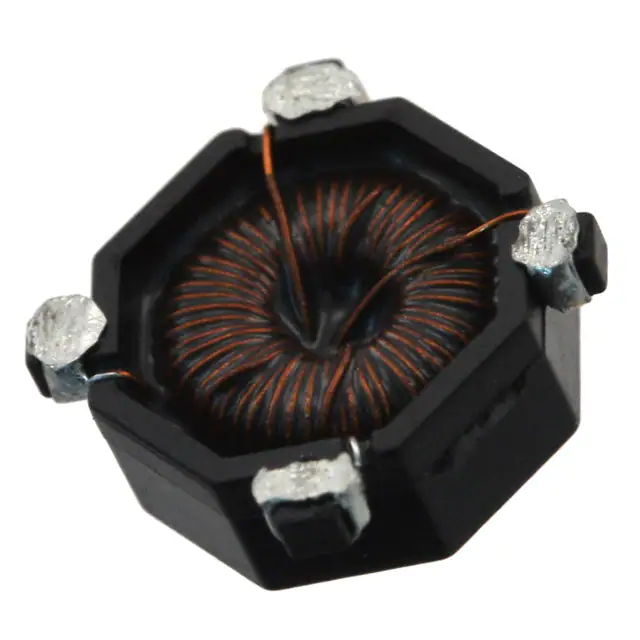

CTX20-1-RINDUCT ARRAY 2 COIL 19.6UH SMD |
1,678 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.6 µH | ±20% | 1 A | 500 mA | 0.165" (4.19mm) | - | - | 78.4 µH | 146mOhm Max | 583mOhm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
CTX5-4A-RINDUCT ARRAY 2 COIL 4.26UH SMD |
120 | - |
|
数据表 |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.26 µH | ±25% | 7.21 A | 3.61 A | 0.250" (6.35mm) | 6.43 A | 3.21 A | 17.05 µH | 8.5mOhm Max | 33.9mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
CTX150-1-RINDUCT ARRAY 2 COIL 148.23UH SMD |
2,277 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 148.23 µH | ±20% | 380 mA | 190 mA | 0.165" (4.19mm) | - | - | 592.9 µH | 965mOhm Max | 3.861Ohm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
74485540350INDUCT ARRAY 2 COIL 3.5UH SMD |
474 | - |
|
数据表 |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 3.5 µH | ±20% | 14 A | 7 A | 0.413" (10.50mm) | 27 A | 13.5 A | 14 µH | 12mOhm Max | - | 0.610" L x 0.520" W (15.50mm x 13.20mm) | Shielded | Surface Mount | - | -40°C ~ 150°C |
|
|
74485540290INDUCT ARRAY 2 COIL 2.9UH SMD |
244 | - |
|
数据表 |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 2.9 µH | ±20% | 17 A | 8.5 A | 0.413" (10.50mm) | 29 A | 14.5 A | 11.6 µH | 8.96mOhm Max | - | 0.610" L x 0.520" W (15.50mm x 13.20mm) | Shielded | Surface Mount | - | -40°C ~ 150°C |
|
CTX50-1-RINDUCT ARRAY 2 COIL 50.63UH SMD |
865 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.63 µH | ±20% | 640 mA | 320 mA | 0.165" (4.19mm) | - | - | 202.5 µH | 365mOhm Max | 1.461Ohm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX300-2-RINDUCT ARRAY 2 COIL 300.8UH SMD |
720 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 300.8 µH | ±20% | 380 mA | 190 mA | 0.235" (5.97mm) | - | - | 1.2 mH | 1.231Ohm Max | 4.929Ohm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
CTX50-2-RINDUCT ARRAY 2 COIL 51.18UH SMD |
460 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 51.18 µH | ±20% | 920 mA | 460 mA | 0.235" (5.97mm) | - | - | 204.73 µH | 210mOhm Max | 839mOhm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|

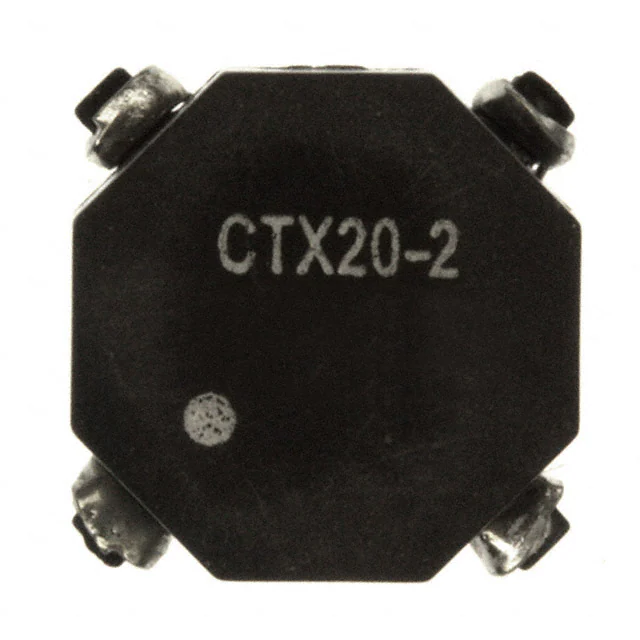

CTX20-2-RINDUCT ARRAY 2 COIL 20.73UH SMD |
1,188 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.73 µH | ±20% | 1.3 A | 650 mA | 0.235" (5.97mm) | - | - | 82.91 µH | 107mOhm Max | 426mOhm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
CTX150-4A-RINDUCT ARRAY 2 COIL 153.5UH SMD |
600 | - |
|
数据表 |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 153.5 µH | ±25% | 1.1 A | 550 mA | 0.250" (6.35mm) | 1.07 A | 540 mA | 613.9 µH | 365mOhm Max | 1.462Ohm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX200-1P-RINDUCT ARRAY 2 COIL 198.41UH SMD |
1,100 | - |
|
数据表 |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 198.41 µH | ±20% | 360 mA | 180 mA | 0.165" (4.19mm) | - | - | 793.65 µH | 1.208Ohm Max | 4.831Ohm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX300-4P-RINDUCT ARRAY 2 COIL 298.93UH SMD |
600 | - |
|
数据表 |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.93 µH | ±20% | 540 mA | 270 mA | 0.250" (6.35mm) | - | - | 1.2 mH | 1.003Ohm Max | 4.011Ohm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
CTX25-4-RINDUCT ARRAY 2 COIL 25.92UH SMD |
693 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 25.92 µH | ±20% | 2 A | 1 A | 0.250" (6.35mm) | - | - | 103.68 µH | 63mOhm Max | 253mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX15-4-RINDUCT ARRAY 2 COIL 14.16UH SMD |
1,266 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.16 µH | ±20% | 3 A | 1.5 A | 0.250" (6.35mm) | - | - | 56.64 µH | 24mOhm Max | 96mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
74485542820INDUCT ARRAY 2 COIL 8.2UH SMD |
142 | - |
|
数据表 |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 8.2 µH | ±20% | 13 A | - | 0.531" (13.50mm) | 24 A | - | - | 8.4mOhm | - | 0.827" L x 0.728" W (21.00mm x 18.50mm) | Shielded | Surface Mount | - | -40°C ~ 150°C |
|
|
74485542680INDUCT ARRAY 2 COIL 6.8UH SMD |
113 | - |
|
数据表 |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 6.8 µH | ±20% | 13.5 A | - | 0.531" (13.50mm) | 26 A | - | - | 6.1mOhm | - | 0.827" L x 0.728" W (21.00mm x 18.50mm) | Shielded | Surface Mount | - | -40°C ~ 150°C |
