交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSP150M-AHAAC/DC DESKTOP ADAPTER 12V 150W FSP Technology Inc. |
64 | - |
|
数据表 |
FSP150M (150W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 12.5A | - | 150 W | 210mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C14 | Level VI | 6.69" L x 3.35" W x 1.67" H (170.0mm x 85.0mm x 42.5mm) | 59" (1.50m) | 0°C ~ 40°C | Power DIN, 4 Pin | CE, cURus, FCC, TUV, VCCI |
|
FSP250M-KHAAC/DC DESKTOP ADAPTER 12V 220W FSP Technology Inc. |
88 | - |
|
数据表 |
FSP250M (220W) | Box | Active | International | Desktop (Class I) | 80 ~ 264 VAC | 12V | 18.34A | - | 220 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C14 | Level VI | 8.30" L x 3.45" W x 1.63" H (210.8mm x 87.6mm x 41.5mm) | 36" (0.91m) | -20°C ~ 60°C | Rectangular, 8 Position | CE, cULus, FCC, TUV, VCCI |
|
FSP250M-KAAAC/DC DESKTOP ADAPTER 24V 250W FSP Technology Inc. |
27 | - |
|
数据表 |
FSP250M (220W) | Box | Active | International | Desktop (Class I) | 80 ~ 264 VAC | 24V | 10.42A | - | 250 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C14 | Level VI | 8.30" L x 3.45" W x 1.63" H (210.8mm x 87.6mm x 41.5mm) | 36" (0.91m) | -20°C ~ 60°C | Rectangular, 6 Position | CE, cULus, FCC, TUV, VCCI |
|
FSP120-AHAN3AC/DC DESKTOP ADAPTER 12V 120W FSP Technology Inc. |
95 | - |
|
数据表 |
FSP120-AxxN3 (120W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 10A | - | 120 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI, CoC Tier 2 | 5.96" L x 2.98" W x 1.00" H (151.3mm x 75.6mm x 25.4mm) | 59" (1.50m) | 0°C ~ 70°C | Power DIN, 4 Pin | CB, CE, CCC, cULus, FCC, GS, TUV, VCCI |
|

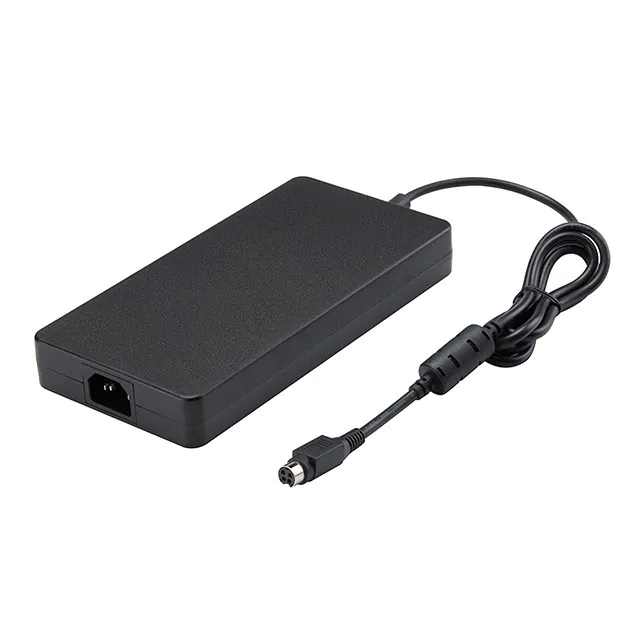

FSP330-AAAN3AC/DC DESKTOP ADAPTER 24V 330W FSP Technology Inc. |
5 | - |
|
数据表 |
FSP330-AAAN3 (330W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 13.75A | - | 330 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI, CoC Tier 2 | 7.87" L x 3.94" W x 1.06" H (200.0mm x 100.0mm x 27.0mm) | 47.2" (1.20m) | 0°C ~ 70°C | Power DIN, 4 Pin | CB, CE, CCC, cULus, FCC, GS, TUV, VCCI |
|
FSP036-DHAN3AC/DC DESKTOP ADAPTER 12V 36W FSP Technology Inc. |
45 | - |
|
数据表 |
FSP036-DHAN3 (36W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 500mW | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | 88.30% | 4.33" L x 1.97" W x 1.26" H (110.0mm x 50.0mm x 32.0mm) | 59" (1.50m) | 0°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CCC, CE, cULus, FCC, GS, TUV |
|
FSP060-DAAN3AC/DC DESKTOP ADAPTER 24V 60W FSP Technology Inc. |
23 | - |
|
数据表 |
FSP060-DAAN3 (60W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 2.5A | - | 60 W | 75mW | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | 89% | 4.33" L x 2.44" W x 1.24" H (110.0mm x 62.0mm x 31.5mm) | 47" (1.20m) | 0°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CCC, CE, cULus, FCC, GS, TUV |
|
FSP045-D3MR3ADATPER, 5/9/12/15/20V, 3/3/3/3/ FSP Technology Inc. |
43 | - |
|
数据表 |
FSP045-D3MR3 (45W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 2.25A, 3A, 3A, 3A, 3A | - | 45 W | 75mW | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level VI | 2.99" L x 1.72" W x 1.57" H (76.0mm x 43.6mm x 40.0mm) | 59" (1.50m) | 0°C ~ 40°C | USB C Power Delivery (PD) | CCC, CE, cULus, FCC, GS, TUV |
|
FSP030-DWAN3AC/DC DESKTOP ADAPTER 54V 30W FSP Technology Inc. |
47 | - |
|
数据表 |
FSP0XX-DF(W)AN3 (30W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 54V | 560mA | - | 30 W | 75mW | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | 87.7% | 4.33" L x 1.97" W x 1.26" H (110.0mm x 50.0mm x 32.0mm) | 47" (1.20m) | 0°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CCC, CE, cULus, FCC, GS, TUV |
|
FSP040-DWAN3AC/DC DESKTOP ADAPTER 54V 40W FSP Technology Inc. |
83 | - |
|
数据表 |
FSP0XX-DF(W)AN3 (40W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 54V | 740mA | - | 40 W | 75mW | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | 88.59% | 4.33" L x 1.97" W x 1.26" H (110.0mm x 50.0mm x 32.0mm) | 47" (1.20m) | 0°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CCC, CE, cULus, FCC, GS, TUV |
