交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DTMF400-48SX-F-W6AC/DC DESKTOP ADAPTER 48V 400W ETA-USA |
1 | - |
|
数据表 |
DTMF400-xxSX-F-W6 (400W) | Retail Package | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 48V | 8.33A | - | 400 W | 500mW | Cord (Sold Separately) | - | ITE (Commercial), Medical | IEC 320-C14 | Level VI | 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm) | 31.5" (0.80m) | -30°C ~ 60°C | Rectangular, 10 Position | CB, CE, cUL, FCC, TUV |
|

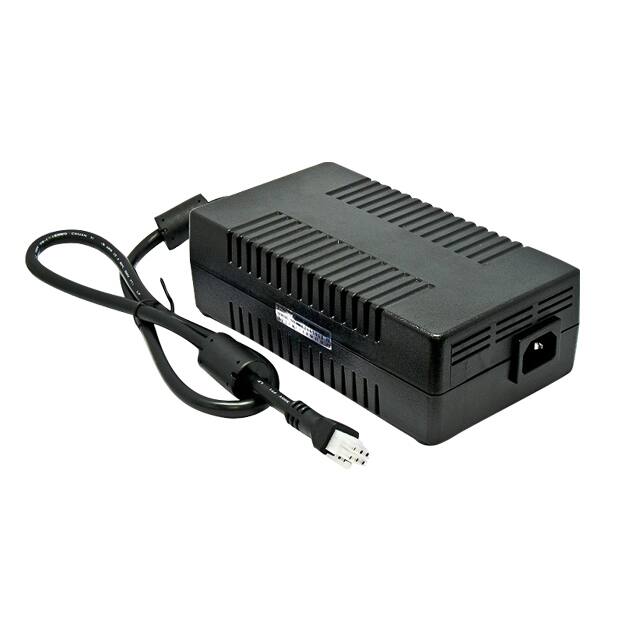

DTB47-3X-WAC/DC DSKTP ADAPTER 5V +/-12 57W ETA-USA |
0 | - |
|
数据表 |
- | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 5V, 12V, -12V | 7A, 1.5A, 300mA | - | 57 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | 70% | 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | 41.34" (1.05m) | 0°C ~ 60°C | Power DIN, 8 Pin | CB, CE, CSA, FCC, TUV, UL |
|
DTA27-3X-WAC/DC DSKTP ADAPTER 5V +/-12 28W ETA-USA |
0 | - |
|
数据表 |
- | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 5V, 12V, -12V | 3A, 800mA, 250mA | - | 28 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | 70% | 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | 59" (1.50m) | 0°C ~ 60°C | Power DIN, 5 Pin | CB, CE, CSA, FCC, TUV, UL |
|
DTMF300-24SX-F-W6AC/DC DESKTOP ADAPTER 24V 300W ETA-USA |
0 | - |
|
数据表 |
- | Bulk | Active | International | Desktop (Class I), Desktop (Class II) | 90 ~ 264 VAC | 24V | 12.5A | - | 300 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial), Medical | IEC 320-C14, IEC 320-C18 | Level VI | 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm) | 31.5" (0.8m) | 0°C ~ 60°C | Rectangular, 10 Position | CCC, CE, TUV, UL |
|
MTE140-12SX-F-W6AC/DC DESKTOP ADAPTER 12V 130W ETA-USA |
0 | - |
|
数据表 |
- | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 10.84A | - | 130 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C14 | Level VI | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) | 39.4" (1.00m) | -20°C ~ 60°C | Power DIN, 4 Pin | CB, CE, cUL, FCC, TUV, UL |
|
MDL65-05SX-W6AC/DC DESKTOP ADAPTER 5V 40W ETA-USA |
0 | - |
|
数据表 |
MDL65-SX-W6 (65W) | Bag | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 5V | 8A | - | 40 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C14 | Level VI, CoC Tier 2 | 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | 39.4" (1.00m) | -20°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | CE, FCC |
|
DTC80-24SX-W6AC/DC DESKTOP ADAPTER 24V 80W ETA-USA |
0 | - |
|
数据表 |
- | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 3.34A | - | 80 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | 88% | 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | 41.34" (1.05m) | 0°C ~ 60°C (With Derating) | Barrel Plug, 7.4mm I.D. x 9.4mm O.D. x 14.4mm | CE, CSA, TUV, UL |
|
DTD120-48SX-F-W6AC/DC DESKTOP ADAPTER 48V 120W ETA-USA |
26 | - |
|
数据表 |
- | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 48V | 2.5A | - | 120 W | 300mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) | 39.4" (1.00m) | 0°C ~ 40°C | Power DIN, 4 Pin | CE, CSA, TUV, UL |
|
DTL65-15SX-W6AC/DC DESKTOP ADAPTER 15V 65W ETA-USA |
24 | - |
|
数据表 |
- | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 15V | 4.33A | - | 65 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | 39.4" (1.00m) | 0°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | CB, CE, NEMKO, TUV |
|
DTL65-12SX-W6AC/DC DESKTOP ADAPTER 12V 65W ETA-USA |
23 | - |
|
数据表 |
- | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 5.41A | - | 65 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | 39.4" (1.00m) | 0°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | CB, CE, NEMKO, TUV |
