交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMM30-12-4-MUBAC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 100mW (Max) | Multi-Blade (Included) | - | Medical | Multi-Blade (Included) | Level VI | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | USB Micro | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
SDM50-15-UDW-P6AC-DC, 15 VDC, 3.33 A, SW, C8 DE |
0 | - |
|
数据表 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 3.33A | - | 50 W | 100mW | Cord (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | 47" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, TUV | |
|
|
SDM50-12-UDW-P6RAC-DC, 12 VDC, 4.16 A, SW, C8 DE |
0 | - |
|
数据表 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 4.16A | - | 50 W | 100mW | Cord (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | 47" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, TUV | |
|
|
SDM50-12-UDW-P5RAC-DC, 12 VDC, 4.16 A, SW, C8 DE |
0 | - |
|
数据表 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 4.16A | - | 50 W | 100mW | Cord (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | 47" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, TUV | |
|
|
SDM50-15-UDW-P6RAC-DC, 15 VDC, 3.33 A, SW, C8 DE |
0 | - |
|
数据表 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 3.33A | - | 50 W | 100mW | Cord (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | 47" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, TUV | |
|
|
SDM50-12-UDW-P6AC-DC, 12 VDC, 4.16 A, SW, C8 DE |
0 | - |
|
数据表 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 4.16A | - | 50 W | 100mW | Cord (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | 47" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, TUV | |
|
|
SDM50-15-UDW-P5AC-DC, 15 VDC, 3.33 A, SW, C8 DE |
0 | - |
|
数据表 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 3.33A | - | 50 W | 100mW | Cord (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | 47" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, TUV | |
|
|
SDM50-12-UDW-P5AC-DC, 12 VDC, 4.16 A, SW, C8 DE |
0 | - |
|
数据表 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 4.16A | - | 50 W | 100mW | Cord (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | 47" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, TUV | |
|
|
SDM50-15-UDW-P5RAC-DC, 15 VDC, 3.33 A, SW, C8 DE |
0 | - |
|
数据表 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 3.33A | - | 50 W | 100mW | Cord (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | 47" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, TUV | |
|
SDI65-12-UD-P6AC/DC DESKTOP ADAPTER 12V 60W |
0 | - |
|
数据表 |
SDI65-UD (65W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 5A | - | 60 W | 210mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|
SDI65-12-UD-STAC/DC DESKTOP ADAPTER 12V 60W |
0 | - |
|
数据表 |
SDI65-UD (65W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 5A | - | 60 W | 210mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | 59" (1.50m) | 0°C ~ 40°C | Stripped, Tinned Wire Leads | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|

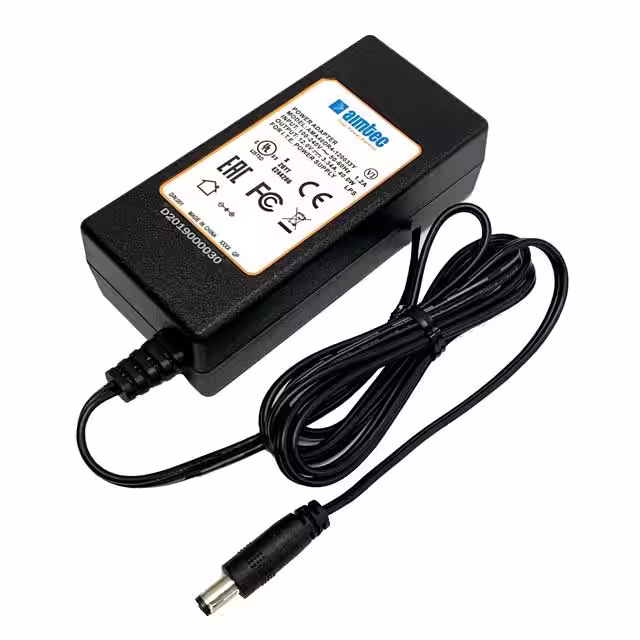

AMA40DR5-120033YAC/DC DESKTOP ADAPTER 12V 40W |
5 | - |
|
数据表 |
AMA40D-Y | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3.34A | - | 40 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.37" L x 2.05" W x 1.26" H (111.0mm x 52.0mm x 32.0mm) | 60.2" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, UL | |
|
SWC45-P59121520-NB-CAC/DC WALL MNT ADAPT 5V-20V 45W |
0 | - |
|
数据表 |
SWC45-N (45W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 3A, 3A, 3A, 3A, 2.25A | - | 45 W | 100mW (Max) | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level VI | 2.36" L x 1.10" W x 2.26" H (60.0mm x 28.0mm x 57.3mm) | 47.2" (1.20m) | 0°C ~ 40°C | USB C Power Delivery (PD) | CSA, FCC, UL | |
|
|
SMM30-12-4-P5AC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-12-4-P6AC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-12-4-P6RAC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-12-4-P5RAC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-12-4-P7AC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | Medical | Multi-Blade (Included) | Level VI | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
TRH70A120-11E01 VIAC/DC DESKTOP ADAPTER 12V 70W |
0 | - |
|
数据表 |
TRH70A (70W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 5.8A | - | 70 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI, CoC Tier 2 | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | 28.35" (720mm) | -20°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cURus, FCC, NEMKO, PSE | |
|
|
TRH70A150-11E02 VIAC/DC DESKTOP ADAPTER 15V 70W |
0 | - |
|
数据表 |
TRH70A (70W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 15V | 4.65A | - | 70 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI, CoC Tier 2 | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | 48" (1.22m) | -20°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cURus, FCC, NEMKO, PSE |
