交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WR9QA3000EJ1IMR6WPWR SUPP, BATT, COND |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

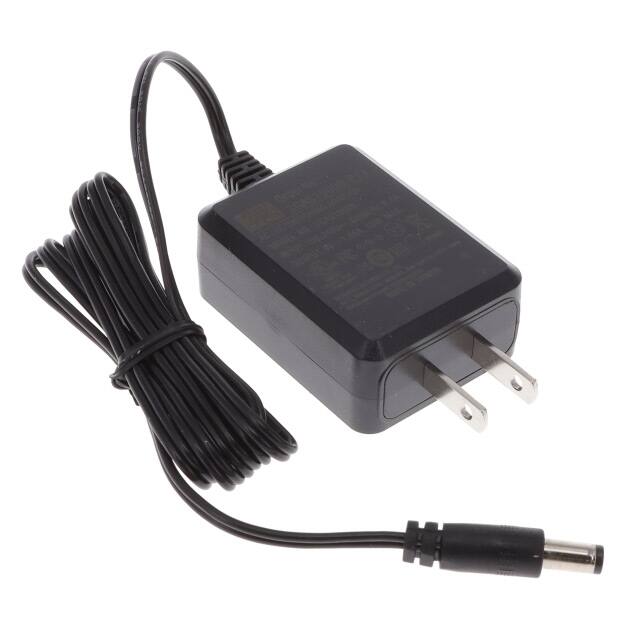

SGAS15U09-P1JAC/DC WALL MOUNT ADAPTER 9V 15W |
0 | - |
|
数据表 |
SGAS15U (15W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.66A | - | 15 W | 75mW | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | 84% | 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm) | 47" (1.20m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CB, cULus, EAC, FCC | |
|
FWA020005A-10AAC/DC DESKTOP ADAPTER 5V 20W |
0 | - |
|
数据表 |
FWA020 (20W) | Bulk | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 5V | 4A | - | 20 W | 300mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm) | 48" (1.22m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, GS, TUV | |
|
|
SWI36-24-BW-P5RAC-DC, 24 VDC, 1.5 A, SW, WALL-P |
0 | - |
|
数据表 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1.5A | - | 36 W | 75mW | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | 59" (1.50m) | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, UKCA | |
|
|
SWI36-24-BW-P6AC-DC, 24 VDC, 1.5 A, SW, WALL-P |
0 | - |
|
数据表 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1.5A | - | 36 W | 75mW | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | 59" (1.50m) | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, UKCA | |
|
|
SWI36-12-B-P11AC-DC, 12 VDC, 3 A, SW, WALL-PLU |
0 | - |
|
数据表 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 75mW | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | 59" (1.50m) | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, UKCA | |
|
|
SWI36-48-B-P10AC-DC, 48 VDC, 0.75 A, SW, WALL- |
0 | - |
|
数据表 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 48V | 750mA | - | 36 W | 75mW | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | 59" (1.50m) | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, UKCA | |
|
|
SWI36-24-BW-P5AC-DC, 24 VDC, 1.5 A, SW, WALL-P |
0 | - |
|
数据表 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1.5A | - | 36 W | 75mW | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | 59" (1.50m) | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, UKCA | |
|
|
SWI36-12-B-P10AC-DC, 12 VDC, 3 A, SW, WALL-PLU |
0 | - |
|
数据表 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 75mW | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | 59" (1.50m) | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, UKCA | |
|
|
SWI36-24-BW-P6RAC-DC, 24 VDC, 1.5 A, SW, WALL-P |
0 | - |
|
数据表 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1.5A | - | 36 W | 75mW | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | 59" (1.50m) | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, UKCA | |
|
|
SWI36-48-B-P11AC-DC, 48 VDC, 0.75 A, SW, WALL- |
0 | - |
|
数据表 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 48V | 750mA | - | 36 W | 75mW | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | 59" (1.50m) | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, UKCA | |
|
SDI30-12-U2-P5AC/DC DESKTOP ADAPTER 12V 30W |
0 | - |
|
数据表 |
SDI30-U (30W) | Box | Obsolete | Europe | Desktop (Class I) | 90 ~ 264 VAC | 12V | 2.5A | - | 30 W | 75mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-12-U2-P5RAC/DC DESKTOP ADAPTER 12V 30W |
0 | - |
|
数据表 |
SDI30-U (30W) | Box | Obsolete | Europe | Desktop (Class I) | 90 ~ 264 VAC | 12V | 2.5A | - | 30 W | 75mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-12-U2-P6AC/DC DESKTOP ADAPTER 12V 30W |
0 | - |
|
数据表 |
SDI30-U (30W) | Box | Obsolete | Europe | Desktop (Class I) | 90 ~ 264 VAC | 12V | 2.5A | - | 30 W | 75mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-12-U2-P6RAC/DC DESKTOP ADAPTER 12V 30W |
0 | - |
|
数据表 |
SDI30-U (30W) | Box | Obsolete | Europe | Desktop (Class I) | 90 ~ 264 VAC | 12V | 2.5A | - | 30 W | 75mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
SMI36-12-E-P5RAC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SMI36 (36W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 3.09" L x 1.39" W x 2.60" H (78.5mm x 35.3mm x 66.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
MWA020009A-10AAC/DC DESKTOP ADAPTER 9V 20W |
0 | - |
|
数据表 |
MWA020 (20W) | Bulk | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 9V | 2.22A | - | 20 W | 300mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C14 | Level V | 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus | |
|
|
GSM12E09-P1JAC/DC WALL MNT MED ADPT EU CBL C |
2 | - |
|
数据表 |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 9V | 1.33A | - | 12 W | - | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | 47" (1.20m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, EAC, TUV, UKCA | |
|
SDI24-48-UC-P5AC/DC DESKTOP ADAPTER 48V 24W |
0 | - |
|
数据表 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | 90 ~ 264 VAC | 48V | 500mA | - | 24 W | 75mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI, CoC Tier 2 | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI24-48-UC-P5RAC/DC DESKTOP ADAPTER 48V 24W |
0 | - |
|
数据表 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | 90 ~ 264 VAC | 48V | 500mA | - | 24 W | 75mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI, CoC Tier 2 | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL |
