交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRG1509-S-01E03 VIAC/DC WALL MOUNT ADAPTER 9V 13W Cincon Electronics Co. LTD |
22 | - |
|
数据表 |
TRG15 (15W) | Box | Active | Australia | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.4A | - | 13 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | AS 3112 | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | - | CE, cULus, FCC, GS, PSE, TUV |
|
TRG1512-S-01E03 VIAC/DC WALL MOUNT ADAPTER 12V 12W Cincon Electronics Co. LTD |
20 | - |
|
数据表 |
TRG15 (15W) | Box | Active | Australia | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | AS 3112 | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | - | CE, cULus, FCC, GS, PSE, TUV |
|
TRG1509-A-11E03 VIAC/DC WALL MOUNT ADAPTER 9V 13W Cincon Electronics Co. LTD |
72 | - |
|
数据表 |
TRG15 (15W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.4A | - | 13 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV |
|
TRG1512-01-E-01E03 VIAC/DC WALL MNT ADAPTER 13.6V 14W Cincon Electronics Co. LTD |
50 | - |
|
数据表 |
TRG15 (15W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 13.6V | 1A | - | 14 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | KSC 8305 | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | - | CE, cULus, FCC, GS, PSE, TUV |
|

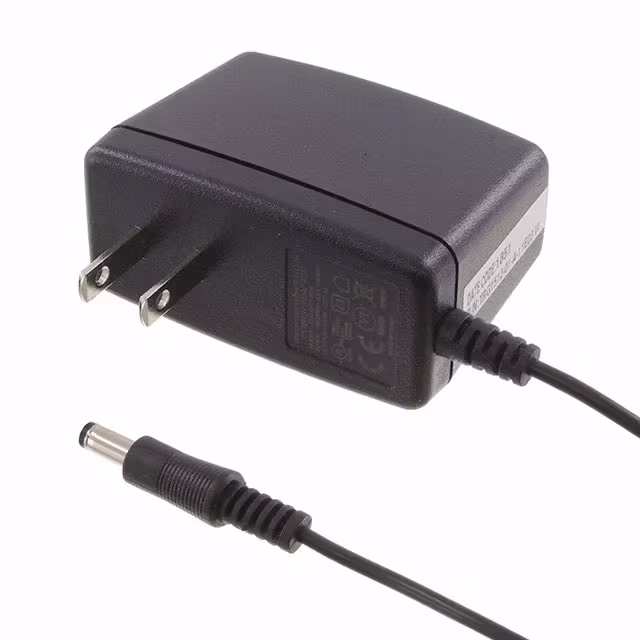

TRG1512-01-A-11E03 VIAC/DC WALL MNT ADAPTER 13.6V 12W Cincon Electronics Co. LTD |
47 | - |
|
数据表 |
TRG15 (15W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 13.6V | 1A | - | 12 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV |
|
TRG1515-S-01E03 VIAC/DC WALL MOUNT ADAPTER 15V 15W Cincon Electronics Co. LTD |
37 | - |
|
数据表 |
TRG15 (15W) | Box | Active | Australia | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1A | - | 15 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | AS 3112 | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | - | CE, cULus, FCC, GS, PSE, TUV |
|
TRG1524-S-01E03 VIAC/DC WALL MOUNT ADAPTER 24V 15W Cincon Electronics Co. LTD |
34 | - |
|
数据表 |
TRG15 (15W) | Box | Active | Australia | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 630mA | - | 15 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | AS 3112 | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | - | CE, cULus, FCC, GS, PSE, TUV |
|
TRG1518-S-01E03 VIAC/DC WALL MOUNT ADAPTER 18V 15W Cincon Electronics Co. LTD |
22 | - |
|
数据表 |
TRG15 (15W) | Box | Active | Australia | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 830mA | - | 15 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | AS 3112 | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | - | CE, cULus, FCC, GS, PSE, TUV |
|
TRG1505-A-01E03 VIAC/DC WALL MOUNT ADAPTER 5V 10W Cincon Electronics Co. LTD |
22 | - |
|
数据表 |
TRG15 (15W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | - | CE, cULus, FCC, GS, PSE, TUV |
|
TRG1518-A-11E03 VIAC/DC WALL MOUNT ADAPTER 18V 15W Cincon Electronics Co. LTD |
20 | - |
|
数据表 |
TRG15 (15W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 830mA | - | 15 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV |
