交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI30-19-U-P6RAC/DC DESKTOP ADAPTER 19V 30W |
0 | - |
|
数据表 |
SDI30-U (30W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 19V | 1.6A | - | 30 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-24-U-P5RAC/DC DESKTOP ADAPTER 24V 30W |
0 | - |
|
数据表 |
SDI30-U (30W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 1.25A | - | 30 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-24-U-P6AC/DC DESKTOP ADAPTER 24V 30W |
0 | - |
|
数据表 |
SDI30-U (30W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 1.25A | - | 30 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-24-U-P6RAC/DC DESKTOP ADAPTER 24V 30W |
0 | - |
|
数据表 |
SDI30-U (30W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 1.25A | - | 30 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
SWM30-12-EV-P5RAC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SWM30-E (30W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 75mW (Max) | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI, CoC Tier 2 | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SWM30-12-EV-P6AC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SWM30-E (30W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 75mW (Max) | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI, CoC Tier 2 | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|
|
SWM30-12-EV-P6RAC/DC WALL MOUNT ADAPTER 12V 36W |
0 | - |
|
数据表 |
SWM30-E (30W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 75mW (Max) | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI, CoC Tier 2 | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, UL | |
|

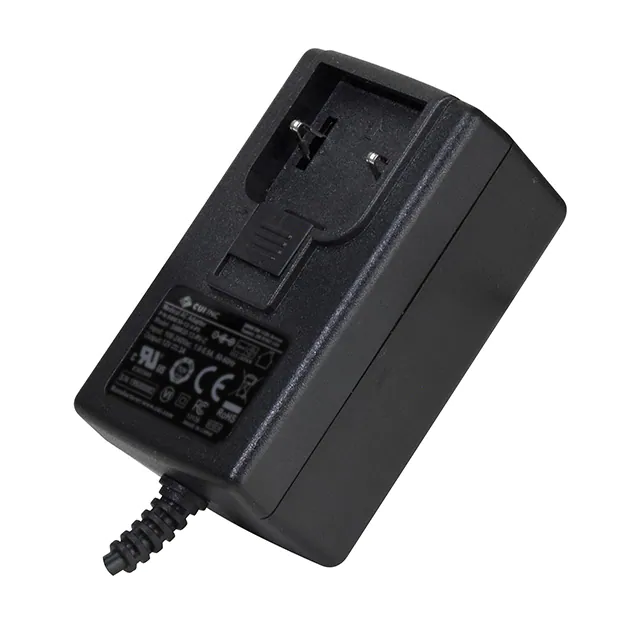

SMM30-48-K-MUBAC/DC WALL MOUNT ADAPTER 48V 30W |
0 | - |
|
数据表 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 48V | 620mA | - | 30 W | 100mW (Max) | Multi-Blade (Sold Separately) | - | Medical | Multi-Blade (Sold Separately) | Level VI | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | USB Micro | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-36-K-MUBAC/DC WALL MOUNT ADAPTER 36V 30W |
0 | - |
|
数据表 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 36V | 830mA | - | 30 W | 100mW (Max) | Multi-Blade (Sold Separately) | - | Medical | Multi-Blade (Sold Separately) | Level VI | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | USB Micro | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
TR30RDM090-11G03-BK-BK VIAC/DC WALL MOUNT ADAPTER 9V 30W |
0 | - |
|
数据表 |
TR30RDM (30W) | Box | Active | International | Wall Mount (Class II) | 80 ~ 264 VAC | 9V | 3.3A | - | 30 W | 75mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 3.81" L x 2.28" W x 1.70" H (96.7mm x 58.0mm x 43.3mm) | 70.9" (1.80m) | -25°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cURus, FCC, NEMKO, PSE | |
|
|
TR30RDM120-11G03-BK-BK VIAC/DC WALL MOUNT ADAPTER 12V 30W |
0 | - |
|
数据表 |
TR30RDM (30W) | Box | Active | International | Wall Mount (Class II) | 80 ~ 264 VAC | 12V | 2.5A | - | 30 W | 75mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 3.81" L x 2.28" W x 1.70" H (96.7mm x 58.0mm x 43.3mm) | 70.9" (1.80m) | -25°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cURus, FCC, NEMKO, PSE | |
|
|
TR30RDM150-11G03-BK-BK VIAC/DC WALL MOUNT ADAPTER 15V 30W |
0 | - |
|
数据表 |
TR30RDM (30W) | Box | Active | International | Wall Mount (Class II) | 80 ~ 264 VAC | 15V | 2A | - | 30 W | 75mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 3.81" L x 2.28" W x 1.70" H (96.7mm x 58.0mm x 43.3mm) | 70.9" (1.80m) | -25°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cURus, FCC, NEMKO, PSE | |
|
|
TR30RDM180-11G03-BK-BK VIAC/DC WALL MOUNT ADAPTER 18V 30W |
0 | - |
|
数据表 |
TR30RDM (30W) | Box | Active | International | Wall Mount (Class II) | 80 ~ 264 VAC | 18V | 1.67A | - | 30 W | 75mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 3.81" L x 2.28" W x 1.70" H (96.7mm x 58.0mm x 43.3mm) | 70.9" (1.80m) | -25°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cURus, FCC, NEMKO, PSE | |
|
|
TR30RDM240-11G03-BK-BK VIAC/DC WALL MOUNT ADAPTER 24V 30W |
0 | - |
|
数据表 |
TR30RDM (30W) | Box | Active | International | Wall Mount (Class II) | 80 ~ 264 VAC | 24V | 1.25A | - | 30 W | 75mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 3.81" L x 2.28" W x 1.70" H (96.7mm x 58.0mm x 43.3mm) | 70.9" (1.80m) | -25°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cURus, FCC, NEMKO, PSE | |
|
SMI18-9-V-P5AC/DC WALL MOUNT ADAPTER 9V 20W |
0 | - |
|
数据表 |
SMI18 (18W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.2A | - | 20 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade | Level VI, CoC Tier 2 | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
SDI12-12-UDC-P10AC/DC DESKTOP ADAPTER 12V 12W |
0 | - |
|
数据表 |
SDI12-UD (12W) | Box | Active | North America | Desktop (Class II) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | 100mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 2.95" L x 1.50" W x 1.18" H (74.9mm x 38.1mm x 30.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMI18-9-V-N5AC/DC WALL MOUNT ADAPTER 9V 20W |
0 | - |
|
数据表 |
SMI18 (18W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.2A | - | 20 W | 100mW (Max) | Multi-Blade (Included) | Negative Center | ITE (Commercial) | Multi-Blade (Included) | Level VI, CoC Tier 2 | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
|
SMI18-9-V-N5RAC/DC WALL MOUNT ADAPTER 9V 20W |
0 | - |
|
数据表 |
SMI18 (18W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.2A | - | 20 W | 100mW (Max) | Multi-Blade (Included) | Negative Center | ITE (Commercial) | Multi-Blade (Included) | Level VI, CoC Tier 2 | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
|
SMI18-9-V-P7AC/DC WALL MOUNT ADAPTER 9V 20W |
0 | - |
|
数据表 |
SMI18 (18W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2.2A | - | 20 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade (Included) | Level VI, CoC Tier 2 | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
VET36US240C2-JAAC/DC DESKTOP ADAPTER 24V 36W |
5 | - |
|
数据表 |
VET36 (36W) | Box | Obsolete | International | Desktop (Class II) | 90 ~ 264 VAC | 24V | - | - | 36 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 4.53" L x 1.89" W x 1.28" H (115.0mm x 48.0mm x 32.5mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB |
