交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI24-24-UD2-P6RAC/DC DESKTOP ADAPTER 24V 24W |
0 | - |
|
数据表 |
SDI24-UD (24W) | Box | Active | Europe | Desktop (Class II) | 90 ~ 264 VAC | 24V | 1A | - | 24 W | 75mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|

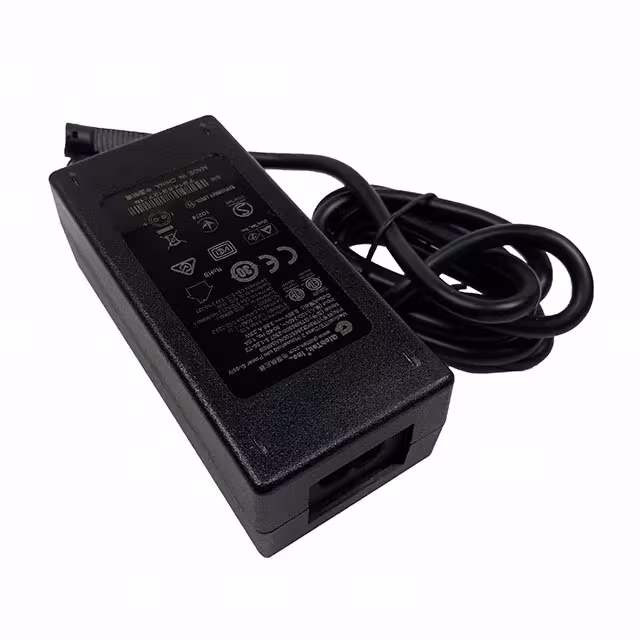

TR9KB3865T00NAIMR6BAC/DC DESKTOP ADAPTER 5.95V 23W |
0 | - |
|
数据表 |
GTM96300-36VV-T2 | Bulk | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 5.95V | 3.86A | - | 23 W | 75mW (Max) | Cord (Sold Separately) | - | Household Appliances, ITE (Commercial), Medical | IEC 320-C8 | Level VI | 4.13" L x 1.97" W x 1.40" H (105.0mm x 50.0mm x 35.5mm) | 47.2" (1.20m) | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | |
|
GSM12E15-P1JAC/DC WALL MNT MED ADPT EU CBL C |
5 | - |
|
数据表 |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 15V | 800mA | - | 12 W | - | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | 70.8" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, EAC, TUV, UKCA | |
|
|
GSM12U15-P1JAC/DC WALL MNT MED ADPT USA CBL |
5 | - |
|
数据表 |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 15V | 800mA | - | 12 W | - | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level VI | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | 70.8" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cURus, EAC, FCC | |
|
|
GSM12U24-P1JAC/DC WALL MNT ADAPTER USA |
2 | - |
|
数据表 |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | 500mA | - | 12 W | - | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level VI | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | 70.8" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cURus, EAC, FCC | |
|
|
GSM12U09-P1JAC/DC WALL MNT MED ADPT USA CBL |
1 | - |
|
数据表 |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 9V | 1.33A | - | 12 W | - | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level VI | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | 47" (1.20m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cURus, EAC, FCC | |
|
|
GSM12E12-P1JAC/DC WALL MNT MED ADPT EU CBL C |
0 | - |
|
数据表 |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 12V | 1A | - | 12 W | - | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | 70.8" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, EAC, TUV, UKCA | |
|
|
SMM12-9-4W-P6RAC-DC, 9 VDC, 1.33 A, SW, MULTI- |
0 | - |
|
数据表 |
SMM12 (12W) | Box | Active | International | Wall Mount | 90 ~ 264 VAC | 9V | 1.33A | - | 12 W | 100mW | Multi-Blade (Included) | Positive Center | ITE (Commercial), Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, PSE, TUV | |
|
|
TRE25R120-A-11E03 VIAC/DC WALL MOUNT ADAPTER 12V 25W |
0 | - |
|
数据表 |
TRE25R (25W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 2.1A | - | 25 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.80" L x 1.30" W x 2.22" H (71.0mm x 33.0mm x 56.4mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25R150-A-11E02 VIAC/DC WALL MOUNT ADAPTER 15V 25W |
0 | - |
|
数据表 |
TRE25R (25W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.67A | - | 25 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.80" L x 1.30" W x 2.22" H (71.0mm x 33.0mm x 56.4mm) | 48" (1.22m) | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25R180-A-11E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W |
0 | - |
|
数据表 |
TRE25R (25W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 1.4A | - | 25 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.80" L x 1.30" W x 2.22" H (71.0mm x 33.0mm x 56.4mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25R240-A-11E03 VIAC/DC WALL MOUNT ADAPTER 24V 25W |
0 | - |
|
数据表 |
TRE25R (25W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1.05A | - | 25 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.80" L x 1.30" W x 2.22" H (71.0mm x 33.0mm x 56.4mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25R120-01E03 VIAC/DC WALL MOUNT ADAPTER 12V 25W |
0 | - |
|
数据表 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 2.1A | - | 25 W | 75mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade (Included) | Level VI, CoC Tier 2 | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25R150-01E03 VIAC/DC WALL MOUNT ADAPTER 15V 25W |
0 | - |
|
数据表 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.67A | - | 25 W | 75mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade (Included) | Level VI, CoC Tier 2 | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV | |
|
|
TRE25R180-01E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W |
0 | - |
|
数据表 |
TRE25R (25W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 1.4A | - | 25 W | 75mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade (Included) | Level VI, CoC Tier 2 | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, FCC, GS, PSE, TUV | |
|
|
RPS-ICR2-USPOWER SUPPLY, ICR2, 12V/1A, 6-PI |
5 | - |
|
数据表 |
SYS1561-Wxx (12W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | - | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level VI | 2.52" L x 1.77" W x 1.18" H (64.0mm x 45.0mm x 30.0mm) | 59" (1.50m) | 0°C ~ 40°C | Rectangular, 6 Position | BIS, BSMI, CB, CCC, CE, cULus, EAC, FCC, GS, IECEE, KC, PSE, RCM, SAA, S-MARK, UKCA | |
|
FWA020024B-10AAC/DC DESKTOP ADAPTER 24V 20W |
0 | - |
|
数据表 |
FWA020 (20W) | Bulk | Active | International | Desktop (Class II) | 85 ~ 264 VAC | 24V | 840mA | - | 20 W | 300mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm) | 48" (1.22m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE, cTUVus | |
|
SDI36-12-U-P5RAC/DC DESKTOP ADAPTER 12V 36W |
0 | - |
|
数据表 |
SDI36-U (36W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI, CoC Tier 2 | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI36-12-U-P6RAC/DC DESKTOP ADAPTER 12V 36W |
0 | - |
|
数据表 |
SDI36-U (36W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI, CoC Tier 2 | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI36-48-U-P5RAC/DC DESKTOP ADAPTER 48V 36W |
0 | - |
|
数据表 |
SDI36-U (36W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 48V | 750mA | - | 36 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI, CoC Tier 2 | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
