交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

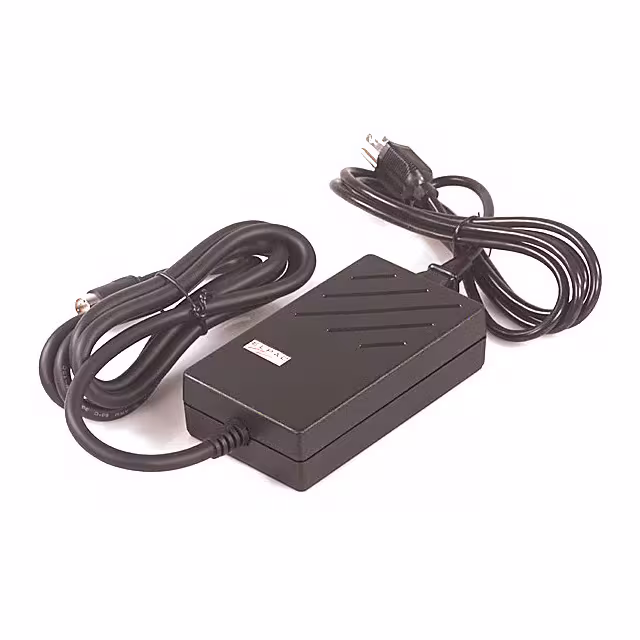

W4232-D5AC/DC DSKTP ADAPTER 5V +/-12 42W |
0 | - |
|
数据表 |
W42 (42W) | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 5V, 12V, -12V | 4.8A, 1.5A, 500mA | - | 42 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | - | 5.50" L x 3.33" W x 1.50" H (139.7mm x 84.6mm x 38.1mm) | 72" (1.83m) | 0°C ~ 40°C | DIN, 5 Pin | CB, CE | |
|

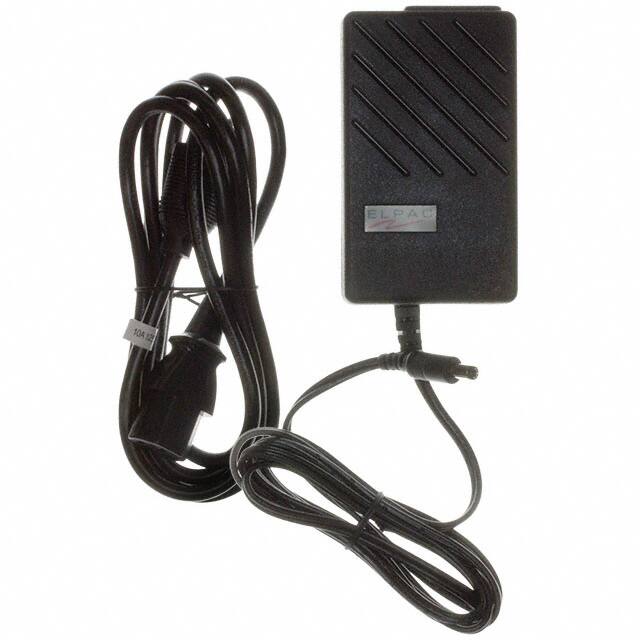

M42012-760AC/DC DESKTOP ADAPTER 12V 20W |
0 | - |
|
数据表 |
M4 (20W) | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 12V | 1.7A | - | 20 W | - | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | 75% | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
W7212-D5AC/DC DESKTOP ADAPTER 12V 72W |
0 | - |
|
数据表 |
W72 | - | Obsolete | North America | Desktop (Class I) | 90 ~ 265 VAC | 12V | 6A | - | 72 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | - | - | - | - | DIN, 5 Pin | - | |
|
W7224-D5AC/DC DESKTOP ADAPTER 24V 72W |
0 | - |
|
数据表 |
W72 | - | Obsolete | North America | Desktop (Class I) | 90 ~ 265 VAC | 24V | 3A | - | 72 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | - | - | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|
DPS120125-P5PAC/DC WALL MOUNT ADAPTER 12V 15W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 12V | 1.25A | - | 15 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | 70% | 3.19" L x 2.09" W x 1.38" H (81.0mm x 53.0mm x 35.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | |
|
DPS120150U-P5PAC/DC WALL MOUNT ADAPTER 12V 18W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 12V | 1.5A | - | 18 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | 70% | 3.19" L x 2.09" W x 1.38" H (81.0mm x 53.0mm x 35.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | |
|
DPR050020-P6/R-SZAC/DC WALL MOUNT ADAPTER 5V 1W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 5V | 200mA | - | 1 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | - | 72" (1.83m) | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | - | |
|
DPD050055-P13P-TCAC/DC WALL MOUNT ADAPTER 5V 2.5W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 5V | 500mA | - | 2.5 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 2.32" L x 1.77" W x 1.56" H (59.0mm x 45.0mm x 39.5mm) | 72" (1.83m) | - | Barrel Plug, 1.7mm I.D. x 4.0mm O.D. x 9.5mm | - | |
|
DPD090050-P5P-TCAC/DC WALL MOUNT ADAPTER 9V 4.5W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 9V | 500mA | - | 4.5 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 3.07" L x 1.91" W x 1.33" H (78.0mm x 48.5mm x 33.9mm) | 72" (1.83m) | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | - | |
|

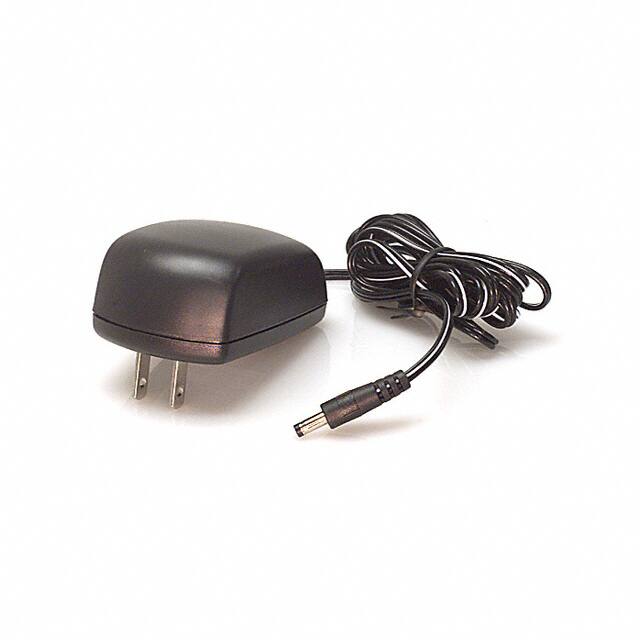

DPD120030-P13P-TCAC/DC WALL MNT ADAPTER 12V 3.6W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 12V | 300mA | - | 3.6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 2.32" L x 1.77" W x 1.56" H (59.0mm x 45.0mm x 39.5mm) | 72" (1.83m) | - | Barrel Plug, 1.7mm I.D. x 4.0mm O.D. x 9.5mm | - | |
|
MW4015-760-NC-WHAC/DC DESKTOP ADAPTER 15V 39W |
0 | - |
|
数据表 |
MW40 (40W) | - | Obsolete | International | Desktop (Class I) | 100 ~ 240 VAC | 15V | 2.6A | - | 39 W | - | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C14 | Level V | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | 60" (1.52m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | |
|
|
MW4018-760-NC-WHAC/DC DESKTOP ADAPTER 18V 40W |
0 | - |
|
数据表 |
MW40 (40W) | - | Obsolete | International | Desktop (Class I) | 100 ~ 240 VAC | 18V | 2.2A | - | 40 W | - | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C14 | Level V | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | 60" (1.52m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | |
|
WP0612-760AC/DC WALL MOUNT ADAPTER 12V 6W |
0 | - |
|
数据表 |
WP06 | - | Obsolete | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 12V | 500mA | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | 75% | - | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
W0812-760AC/DC DESKTOP ADAPTER 12V 8W |
0 | - |
|
数据表 |
W08 | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 12V | 670mA | - | 8 W | - | Cord | Positive Center | ITE (Commercial) | IEC 320-C14 | - | - | - | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | |
|
|
DPD120050-P1/RAC/DC WALL MOUNT ADAPTER 12V 6W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 12V | 500mA | - | 6 W | - | Fixed Blade | Positive Tip, Negative Sleeve | ITE (Commercial) | NEMA 1-15P | - | - | 72" (1.83m) | - | Phono Plug, 3.5mm O.D. x 14.5mm | - | |
|
DTS050250SUDC-P5P-SZAC/DC DESKTOP ADAPTER 5V 13W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | Desktop (Class II) | 90 ~ 264 VAC | 5V | 2.5A | - | 13 W | - | Cord | Positive Center | ITE (Commercial) | IEC 320-C8 | 60% | 2.95" L x 1.87" W x 1.04" H (75.0mm x 47.5mm x 26.5mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, GS, UL | |
|
DTS090133SUDC-P5P-SZAC/DC DESKTOP ADAPTER 9V 12W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | Desktop (Class II) | 90 ~ 264 VAC | 9V | 1.33A | - | 12 W | - | Cord | Positive Center | ITE (Commercial) | IEC 320-C8 | 60% | 2.95" L x 1.87" W x 1.04" H (75.0mm x 47.5mm x 26.5mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, GS, UL | |
|

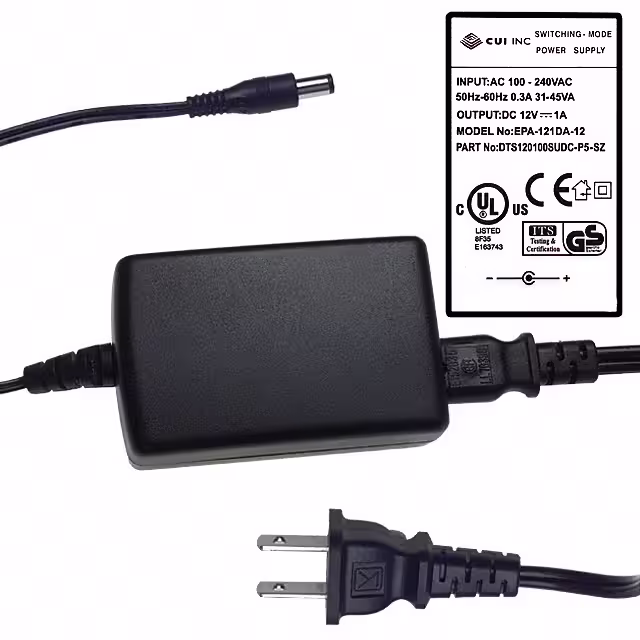

DTS120100SUDC-P5P-SZAC/DC DESKTOP ADAPTER 12V 12W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | Desktop (Class II) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | - | Cord | Positive Center | ITE (Commercial) | IEC 320-C8 | 60% | 2.95" L x 1.87" W x 1.04" H (75.0mm x 47.5mm x 26.5mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, GS, UL | |
|

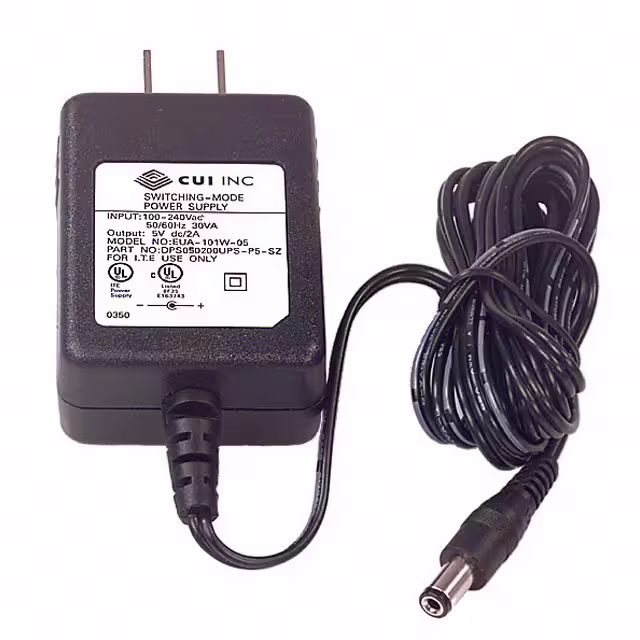

DPS050200UPS-P5P-SZAC/DC WALL MOUNT ADAPTER 5V 10W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | 60% | 2.36" L x 1.73" W x 0.98" H (60.0mm x 44.0mm x 25.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | |
|

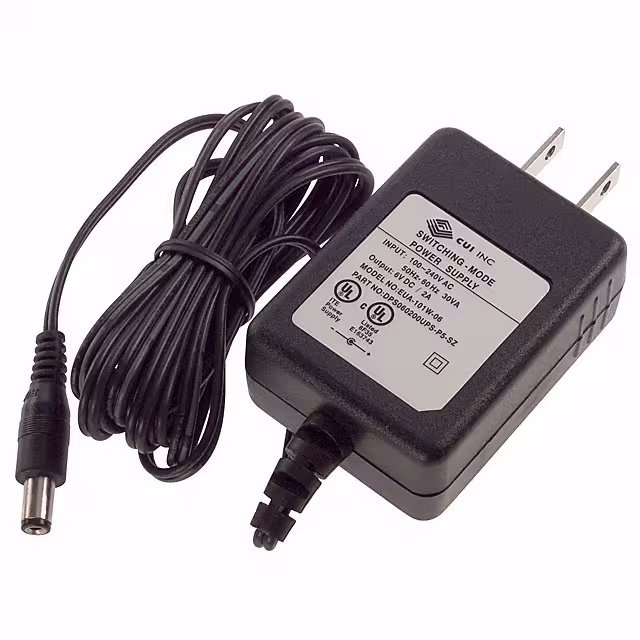

DPS060200UPS-P5P-SZAC/DC WALL MOUNT ADAPTER 6V 12W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 6V | 2A | - | 12 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | 60% | 2.36" L x 1.73" W x 0.98" H (60.0mm x 44.0mm x 25.0mm) | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - |
