交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

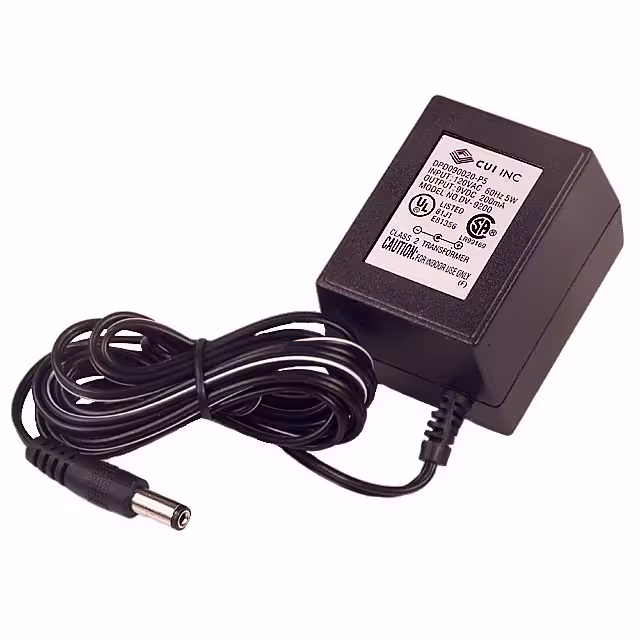

DPD090020-P5PAC/DC WALL MOUNT ADAPTER 9V 1.8W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 9V | 200mA | - | 1.8 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 2.20" L x 1.73" W x 1.42" H (56.0mm x 44.0mm x 36.0mm) | 72" (1.83m) | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | |
|

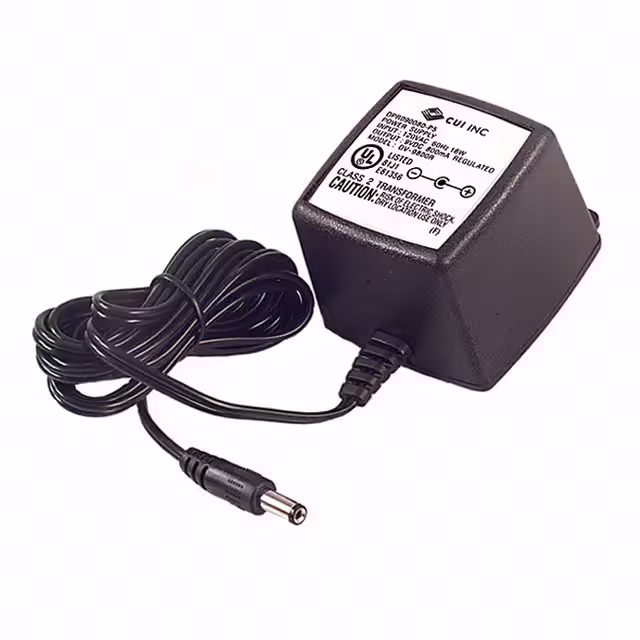

DPR090080-P5PAC/DC WALL MOUNT ADAPTER 9V 7.2W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 9V | 800mA | - | 7.2 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 3.21" L x 2.31" W x 1.93" H (81.6mm x 58.7mm x 49.1mm) | 72" (1.83m) | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | |
|

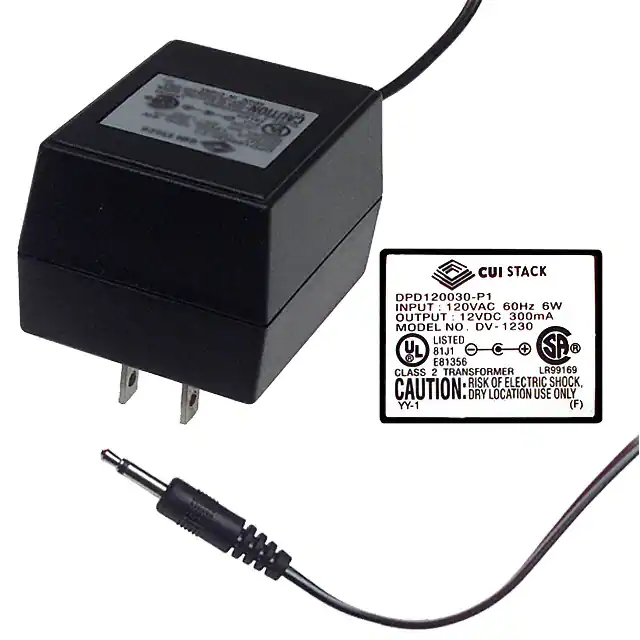

DPD120030-P1PAC/DC WALL MNT ADAPTER 12V 3.6W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 12V | 300mA | - | 3.6 W | - | Fixed Blade | Positive Tip, Negative Sleeve | ITE (Commercial) | NEMA 1-15P | - | 2.36" L x 1.99" W x 1.61" H (60.0mm x 50.5mm x 41.0mm) | 72" (1.83m) | - | Phono Plug, 3.5mm O.D. x 14.5mm | CSA, UL | |
|
DPD240040-P6PAC/DC WALL MNT ADAPTER 24V 9.6W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 24V | 400mA | - | 9.6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | - | 2.58" L x 2.36" W x 1.95" H (65.5mm x 60.0mm x 49.5mm) | 72" (1.83m) | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | |
|

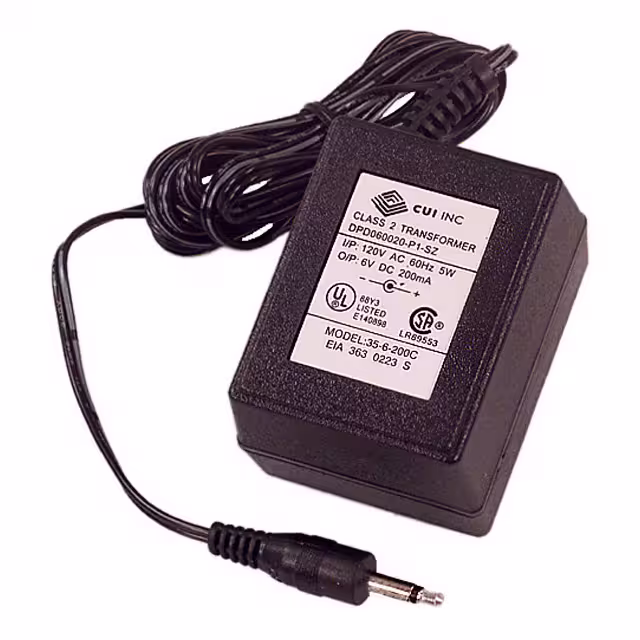

DPD060020-P1P-SZAC/DC WALL MOUNT ADAPTER 6V 1.2W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 6V | 200mA | - | 1.2 W | - | Fixed Blade | Positive Tip, Negative Sleeve | ITE (Commercial) | NEMA 1-15P | - | 2.15" L x 1.67" W x 1.46" H (54.6mm x 42.5mm x 37.0mm) | 72" (1.83m) | - | Phono Plug, 3.5mm O.D. x 14.5mm | - | |
|

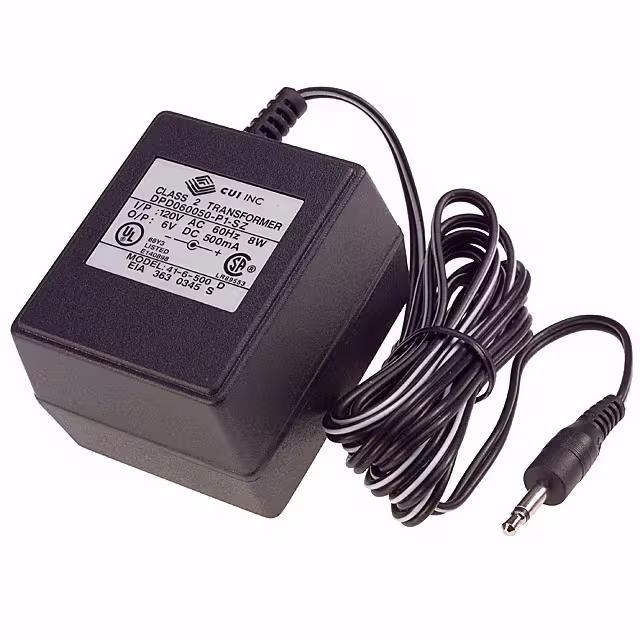

DPD060050-P1P-SZAC/DC WALL MOUNT ADAPTER 6V 3W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 6V | 500mA | - | 3 W | - | Fixed Blade | Positive Tip, Negative Sleeve | ITE (Commercial) | NEMA 1-15P | - | 2.32" L x 1.97" W x 1.63" H (59.0mm x 50.0mm x 41.5mm) | 72" (1.83m) | - | Phono Plug, 3.5mm O.D. x 14.5mm | - | |
|

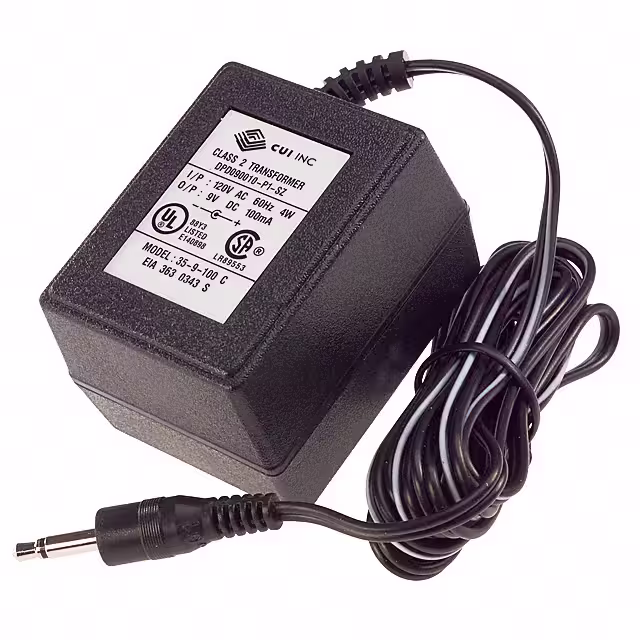

DPD090010-P1P-SZAC/DC WALL MNT ADAPTER 9V 900MW |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 9V | 100mA | - | 900 mW | - | Fixed Blade | Positive Tip, Negative Sleeve | ITE (Commercial) | NEMA 1-15P | - | 2.15" L x 1.67" W x 1.46" H (54.6mm x 42.5mm x 37.0mm) | 72" (1.83m) | - | Phono Plug, 3.5mm O.D. x 14.5mm | - | |
|

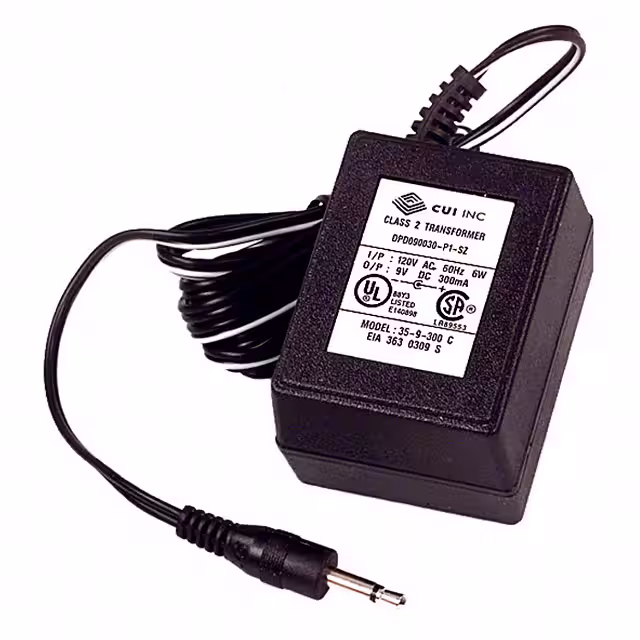

DPD090030-P1P-SZAC/DC WALL MOUNT ADAPTER 9V 2.7W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 9V | 300mA | - | 2.7 W | - | Fixed Blade | Positive Tip, Negative Sleeve | ITE (Commercial) | NEMA 1-15P | - | 2.15" L x 1.67" W x 1.46" H (54.6mm x 42.5mm x 37.0mm) | 72" (1.83m) | - | Phono Plug, 3.5mm O.D. x 14.5mm | - | |
|
DPD120005-P1P-SZAC/DC WALL MNT ADAPTER 12V 600MW |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 12V | 50mA | - | 600 mW | - | Fixed Blade | Positive Tip, Negative Sleeve | ITE (Commercial) | NEMA 1-15P | - | 2.15" L x 1.67" W x 1.46" H (54.6mm x 42.5mm x 37.0mm) | 72" (1.83m) | - | Phono Plug, 3.5mm O.D. x 14.5mm | - | |
|

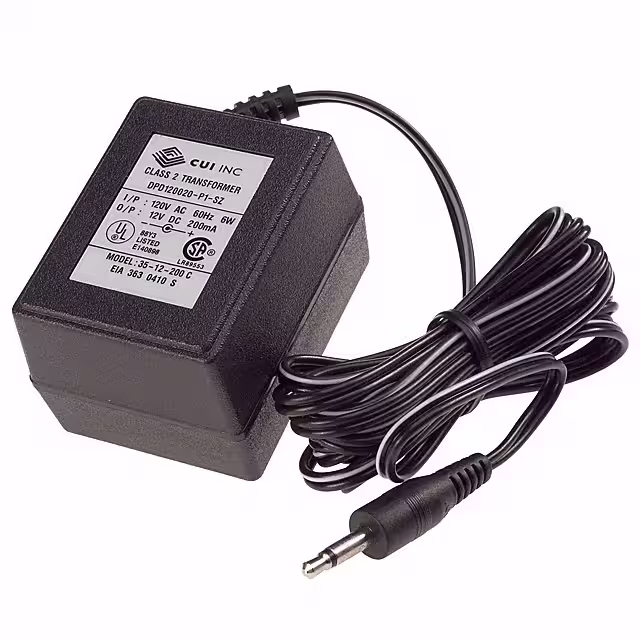

DPD120020-P1P-SZAC/DC WALL MNT ADAPTER 12V 2.4W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 120VAC | 12V | 200mA | - | 2.4 W | - | Fixed Blade | Positive Tip, Negative Sleeve | ITE (Commercial) | NEMA 1-15P | - | 2.15" L x 1.67" W x 1.46" H (54.6mm x 42.5mm x 37.0mm) | 72" (1.83m) | - | Phono Plug, 3.5mm O.D. x 14.5mm | - | |
|
WRI3021-D5AC/DC DESKTOP ADAPTER 5V/12V 28W |
0 | - |
|
数据表 |
WRI | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 5V, 12V | 2A, 1.5A | - | 28 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | 75% | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|

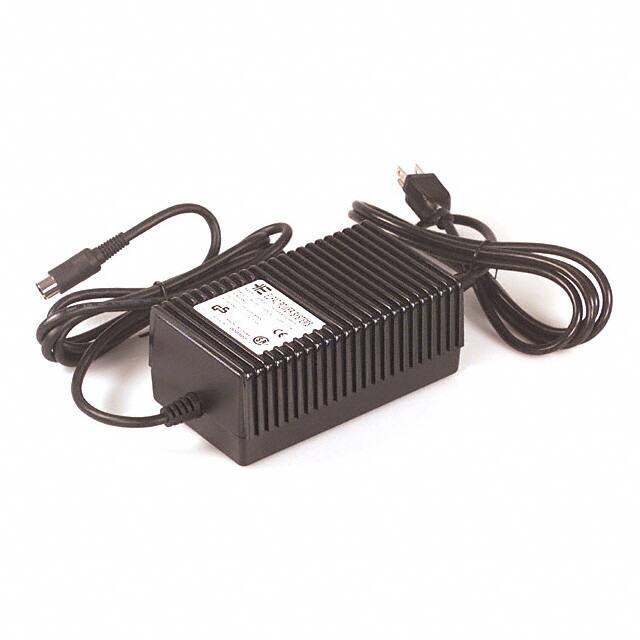

WRI3012-D5AC/DC DESKTOP ADAPTER 12V 30W |
0 | - |
|
数据表 |
WRI | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 12V | 2.5A | - | 30 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | 75% | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|

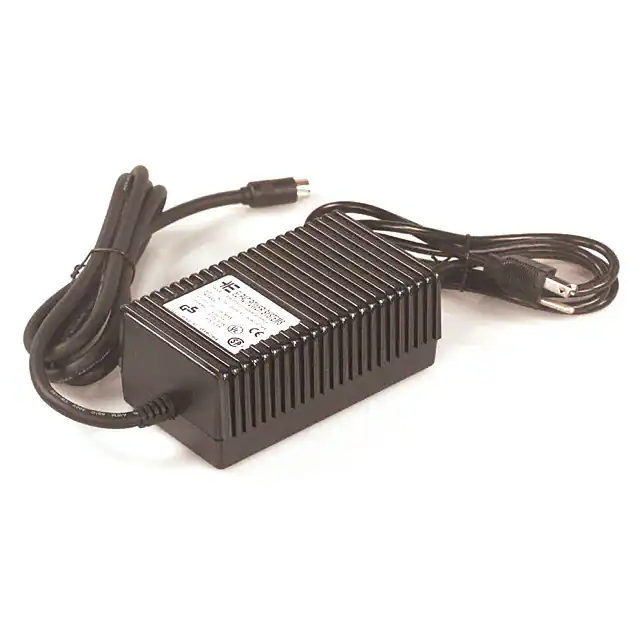

WRI2731-D5AC/DC DSKTP ADAPTER 5V +/-12 27W |
0 | - |
|
数据表 |
WRI | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 5V, 12V, -12V | 3A, 500mA, 500mA | - | 27 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | 75% | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|
WM144-1950-SAC/DC WALL MOUNT ADAPTER 12V 14W |
0 | - |
|
数据表 |
WM | - | Obsolete | North America | Wall Mount (Class II) | 108 ~ 132 VAC | 12V | 1.2A | - | 14 W | - | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | - | - | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|
WM075-1950-D5AC/DC WALL MOUNT ADAPTER 5V 7.5W |
0 | - |
|
数据表 |
WM | - | Obsolete | North America | Wall Mount (Class II) | 108 ~ 132 VAC | 5V | 1.5A | - | 7.5 W | - | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | - | - | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|
WRI3031-D5AC/DC DSKTP ADAPTER 5V +/-12 30W |
0 | - |
|
数据表 |
WRI | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 5V, 12V, -12V | 2A, 1.5A, 500mA | - | 30 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | 75% | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|
WRI4212-D5AC/DC DESKTOP ADAPTER 12V 42W |
0 | - |
|
数据表 |
WRI | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3.5A | - | 42 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | 75% | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|
WRI4214-D5AC/DC DESKTOP ADAPTER 24V 42W |
0 | - |
|
数据表 |
WRI | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 24V | 1.75A | - | 42 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | 75% | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|
WRI4231-D5AC/DC DSKTP ADAPTER 5V +/-12 42W |
0 | - |
|
数据表 |
WRI | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 5V, 12V, -12V | 3A, 2.5A, 500mA | - | 42 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | 75% | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - | 0°C ~ 40°C | DIN, 5 Pin | - | |
|

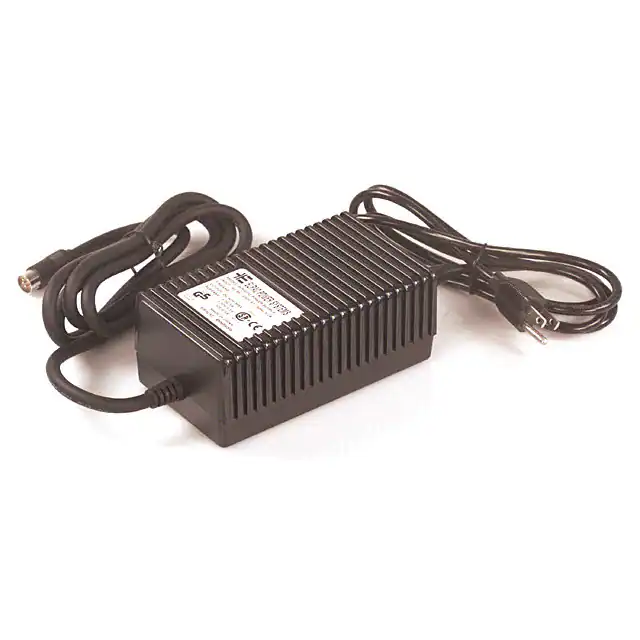

WRI4232-D5AC/DC DSKTP ADAPTER 5V +/-12 42W |
0 | - |
|
数据表 |
WRI | - | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 5V, 12V, -12V | 4.8A, 1.5A, 500mA | - | 42 W | - | Cord | - | ITE (Commercial) | IEC 320-C14 | 75% | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - | 0°C ~ 40°C | DIN, 5 Pin | - |
