交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMA12ER4-050200YAC/DC WALL MOUNT ADAPTER 5V 10W |
5 | - |
|
数据表 |
AMA12-Y | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI | 2.72" L x 1.18" W x 3.28" H (69.0mm x 30.0mm x 83.3mm) | 60.2" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, UL | |
|
|
AMA12ER5-050200YAC/DC WALL MOUNT ADAPTER 5V 10W |
5 | - |
|
数据表 |
AMA12-Y | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI | 2.72" L x 1.18" W x 3.28" H (69.0mm x 30.0mm x 83.3mm) | 60.2" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, UL | |
|
|
AMA12EU1-050200YAC/DC WALL MOUNT ADAPTER 5V 10W |
4 | - |
|
数据表 |
AMA12-Y | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 75mW (Max) | Fixed Blade | - | ITE (Commercial) | CEE 7/16 | Level VI | 2.72" L x 1.18" W x 3.28" H (69.0mm x 30.0mm x 83.3mm) | 60.2" (1.50m) | 0°C ~ 40°C | USB Micro | CE, UL | |
|
|
AMA12ER4-120100YAC/DC WALL MOUNT ADAPTER 12V 12W |
1 | - |
|
数据表 |
AMA12-Y | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI | 2.72" L x 1.18" W x 3.28" H (69.0mm x 30.0mm x 83.3mm) | 60.2" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, UL | |
|
VEP08US09AC/DC WALL MOUNT ADAPTER 9V 8W |
0 | - |
|
数据表 |
VEP08 (8W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 9V | 880mA | - | 8 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial), Medical | Multi-Blade | Level V | 2.83" L x 1.67" W x 1.06" H (72.0mm x 42.4mm x 26.8mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CB, TUV, UL | |
|
SMM12-9-4B-I38AC/DC WALL MOUNT ADAPTER 9V 12W |
0 | - |
|
数据表 |
SMM12-USB (12W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.33A | - | 12 W | 100mW (Max) | Multi-Blade (Included) | - | ITE (Commercial), Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | - | 0°C ~ 40°C | USB A Receptacle | CE, cULus, FCC, PSE, TUV | |
|
GSM06U15-P1JAC/DC WALL MOUNT ADAPTER 15V 6W |
5 | - |
|
数据表 |
GSM06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 85 ~ 264 VAC | 15V | 400mA | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level V | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | 72" (1.83m) | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cURus | |
|
SDI18-5-UD-P5RAC/DC DESKTOP ADAPTER 5V 15W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-5-UD-P6RAC/DC DESKTOP ADAPTER 5V 15W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-5.9-UD-P5AC/DC DESKTOP ADAPTER 5.9V 18W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 5.9V | 3A | - | 18 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-5.9-UD-P5RAC/DC DESKTOP ADAPTER 5.9V 18W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 5.9V | 3A | - | 18 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-5.9-UD-P6RAC/DC DESKTOP ADAPTER 5.9V 18W |
0 | - |
|
数据表 |
SDI18-UD (18W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 5.9V | 3A | - | 18 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
SMI18-24-B-STAC/DC WALL MOUNT ADAPTER 24V 19W |
0 | - |
|
数据表 |
SMI18 (18W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 800mA | - | 19 W | 100mW (Max) | Multi-Blade (Included) | - | ITE (Commercial) | Multi-Blade (Included) | Level VI, CoC Tier 2 | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | 59" (1.50m) | 0°C ~ 40°C | Stripped, Tinned Wire Leads | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
|
VEP15US09AC/DC WALL MOUNT ADAPTER 9V 13W |
0 | - |
|
数据表 |
VEP15 (15W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 9V | 1.4A | - | 13 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial), Medical | Multi-Blade | Level V | 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CB, TUV, UL | |
|
KTPS36-075040WA-VI-P1AC/DC WALL MNT ADAPTER 7.5V 30W |
0 | - |
|
数据表 |
KTPS36 (36W) | Box | Active | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 7.5V | 4A | - | 30 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, UL | |
|

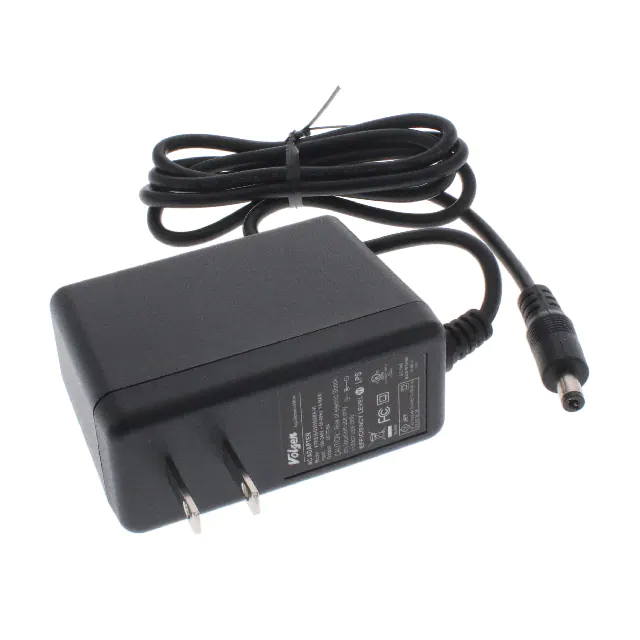

KTPS36-050500WA-VI-P1AC/DC WALL MOUNT ADAPTER 5V 25W |
0 | - |
|
数据表 |
KTPS36 (36W) | Box | Active | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 5V | 5A | - | 25 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | IEC | |
|
|
KTPS36-090334WA-VI-P1AC/DC WALL MOUNT ADAPTER 9V 30W |
0 | - |
|
数据表 |
KTPS36 (36W) | Box | Active | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 9V | 3.34A | - | 30 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | IEC | |
|
|
WR9QA3600USBC-CIMR6WAC/DC WALL MOUNT ADAPTER 5V 18W |
0 | - |
|
数据表 |
GTM96180-1807-2.0 | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3.6A | - | 18 W | 75mW (Max) | Multi-Blade (Sold Separately) | - | Household Appliances, ITE (Commercial), Medical | Multi-Blade | Level VI, CoC Tier 2 | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | 47.2" (1.20m) | -20°C ~ 40°C | USB C | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
SMI24-48-K-P5RAC/DC WALL MOUNT ADAPTER 48V 24W |
0 | - |
|
数据表 |
SMI24 (24W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 48V | 500mA | - | 24 W | 100mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | Multi-Blade | Level VI, CoC Tier 2 | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
|
SMI24-48-K-P6RAC/DC WALL MOUNT ADAPTER 48V 24W |
0 | - |
|
数据表 |
SMI24 (24W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 48V | 500mA | - | 24 W | 100mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | Multi-Blade | Level VI, CoC Tier 2 | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL |
